MR CARTOOL T130 is a professional smoke machine for cars which can carry out comprehensive leak detection on automobile pipelines. It is easy to use and works flawlessly. It is an excellent tool for locating and repairing pipes such as car intake, exhaust and emission leaks, and is even more beneficial for maintaining your car, making it healthier and improving driving security.
Description of Mrcartool T130 Smoke Machine for Cars：
MR CARTOOL T130 Smoke Machine for cars is a professional detector equipped with comprehensive funtions, which is easy to use and works flawlessly. An excellent tool to find and fix automotive intake, exhaust and emission leaks, etc.
Output pressure: 15~17Psi
Test oil capacity: 15ML
Package weight: 3.9 KGS/8.6 LBS
Test Oil: Mineral oil or baby oil (Not included)
Air Pressure Output: Built-in air pump
Dimensions of the Main Unit：160x280x190mm/6.3×11.02×8.6inch
How to do leakage test ?
1. Unscrew the oil filler cap and fill it with10ml baby oil into the detector for the first time.
2. Connect the car battery, then turn on the air pump and smoke generator.
3. Connect the smoke hose to the pipeline to be tested through the adapter.
4. In about 10 seconds, the leaks can be found according to where the smoke appears.
The Main Functions of T130 Smoke Machine for Cars：
*Tightness Test : It can test the tightness and leakage of the tested pipeline under system pressure.
*Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
*Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.
*EVAP System Test: it can test the leakage of fuel evaporation in the EVAP system.
MR CARTOOL T130 Automotive Smoke Machine Features :
1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.
2.[Powerful and easy to operate] The MR CARTOOL T130 for cars has its own air pump, it does not rely on other air machine ,Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.
3.[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).
4.[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 80℃. It will power off automatically.
5.[2 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 2 years.
*Wide Range Of Application
For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, AT Vs, light trucks and speedboats. Suitable for all car models.
*Adjust air/smoke flow
Output Flow: 6 L/min
To observe the current airflow volume, it equipped with airflow meter. This regulator can more easy and better control the smoke effect.
*Visible Oil Level
Equipped with an oil level meter to observe the current test oil volume. And with an oil drain port to recover the remaining test oil after the testing.
*Overheat and Anti-frost
When the temperature of the device exceeds 80℃, power protection will be inteligently activated to turn it off. The device can also work normally at -15℃.
*Dual mode Dual Mode Design:
Air Mode: The air pump can be regulated separately.
Smoke Mode: The smoke generator can be regulated separately.
Both adopt smoke generator technology to produce stable and large amount of smoke within 10 seconds

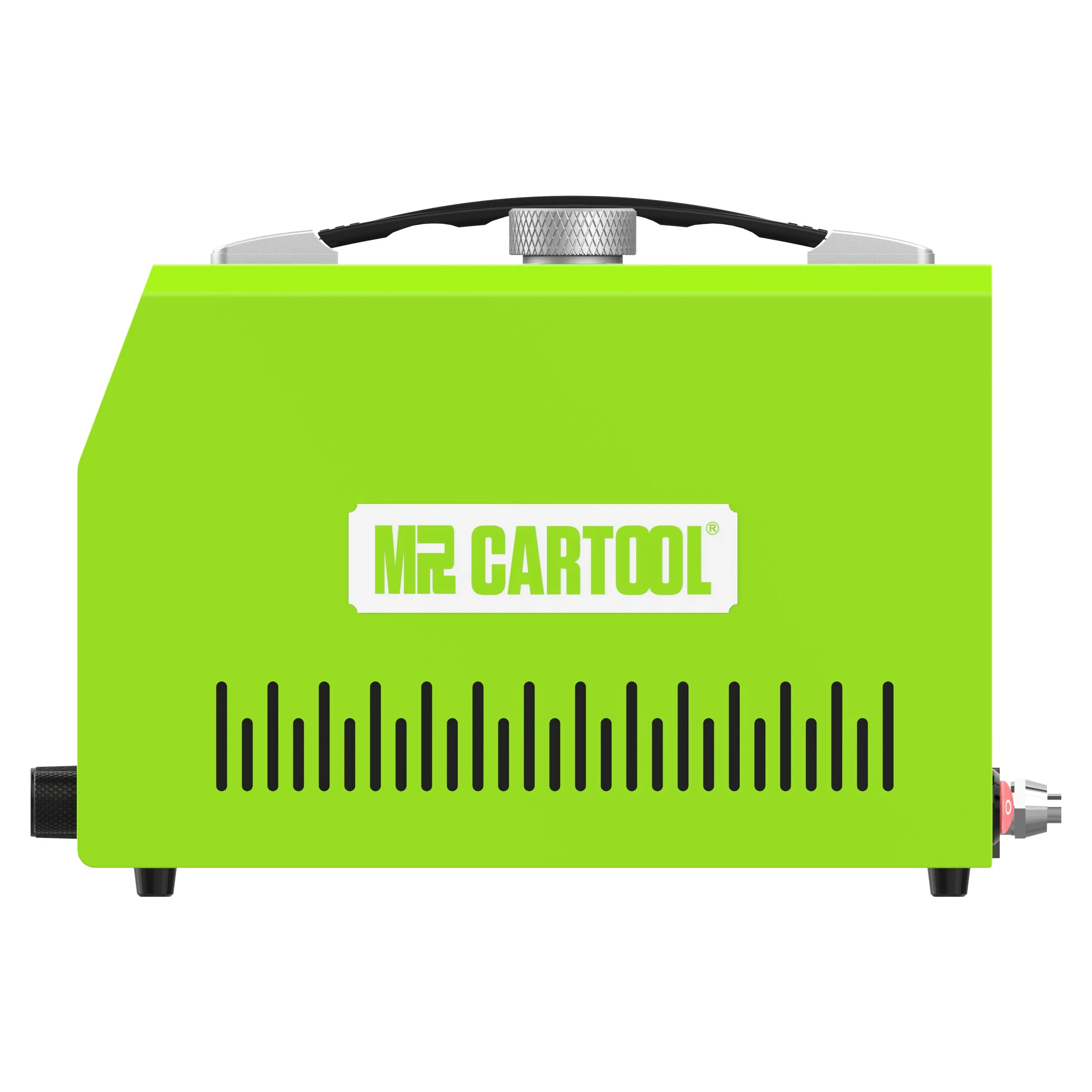

Main Unit Structure :
Hook: To hang the detector when detecting.
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Smoke Output Tube: The smoke outlet which connecting with detection port
Power Clamp: To connect with vehicle battery. The voltage is DC12V.
Function Comparison with other models:
1.When you use this MR CARTOOL T130 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 80 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
Packing List :
1pc* MRCARTOOL automotive smoke leak detector T130 main unit
1pc* Power cord clamp
1pc* Smoke hose
1pc set* Soft rubber hose plug
1pc set* Hard rubber hose plug
1pc* Test oil bottle
1pc* Valve corde wrench
1pc* EVAP specilal connector & rubber connector part
1pc* Standard cone adapter
1pc* Universal airbag adapter
1pc* User manual
WHY CHOOSE Our T130 Smoke leak Detector?
1. More directly, accurate and faster than traditional leak detection methods such as soap bubbles and throttle cleaners.
2. Adopting smoke generator technology facilitate smoke stability and large amount output.
3. Built-in air pump, ready for testing and maintenance.
4. Compact, lightweight design allows for any placement of machine for work.
5. Test oil is non-toxic and non-corrosive.
6. The air pump can be regulated separately.
7. The smoke generator can be regulated separately.
