Name: MR CARTOOL T130 Automotive Smoke Tester
SKU: MOT232-33
Availability: InStock

The MR CARTOOL T130 Automotive Smoke Tester is a professional smoke machine for comprehensive leak detection in automotive pipelines. Easy to use and reliable, it effectively locates and repairs leaks in intake, exhaust, and emission systems, enhancing vehicle maintenance and improving driving safety.

Help Center

📝Warm Tips

Please connect the 12V battery for use, too much current will damage the machine.
When you use this MR CARTOOL T100 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.

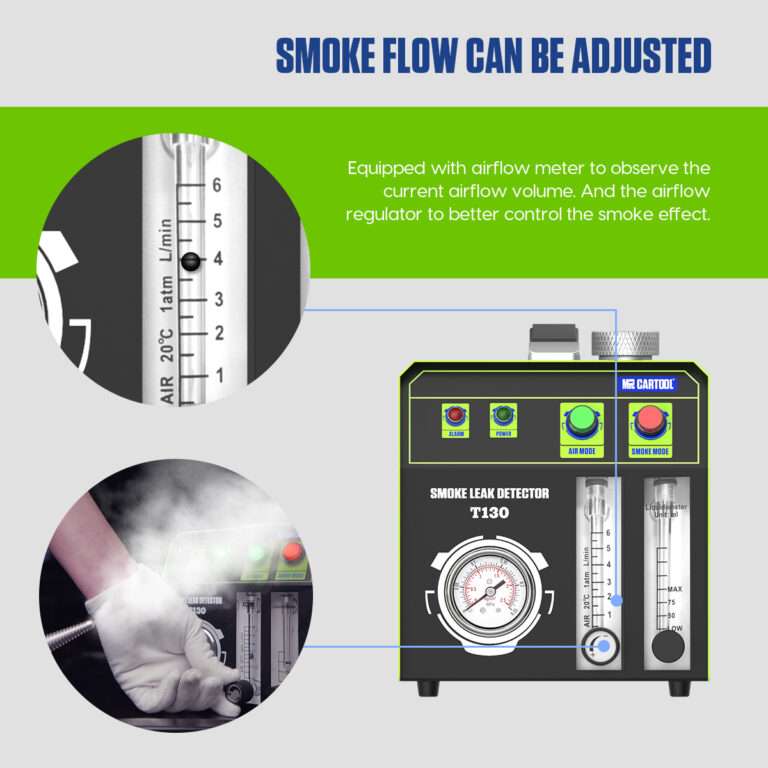

Before use, gently turn the knob to open the airflow regulator valve.
The testing liquid: both liquid paraffin and baby oil are OK.
Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
During the process of leak detection, please keep away from smoke-sensitive parts.
Do not run the detector for over 8 minutes continuously. It needs interval rest.
The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
The round part of this detector has temperature, please be careful to avoid burns.

📘MR CARTOOOL T130 Manual

Download

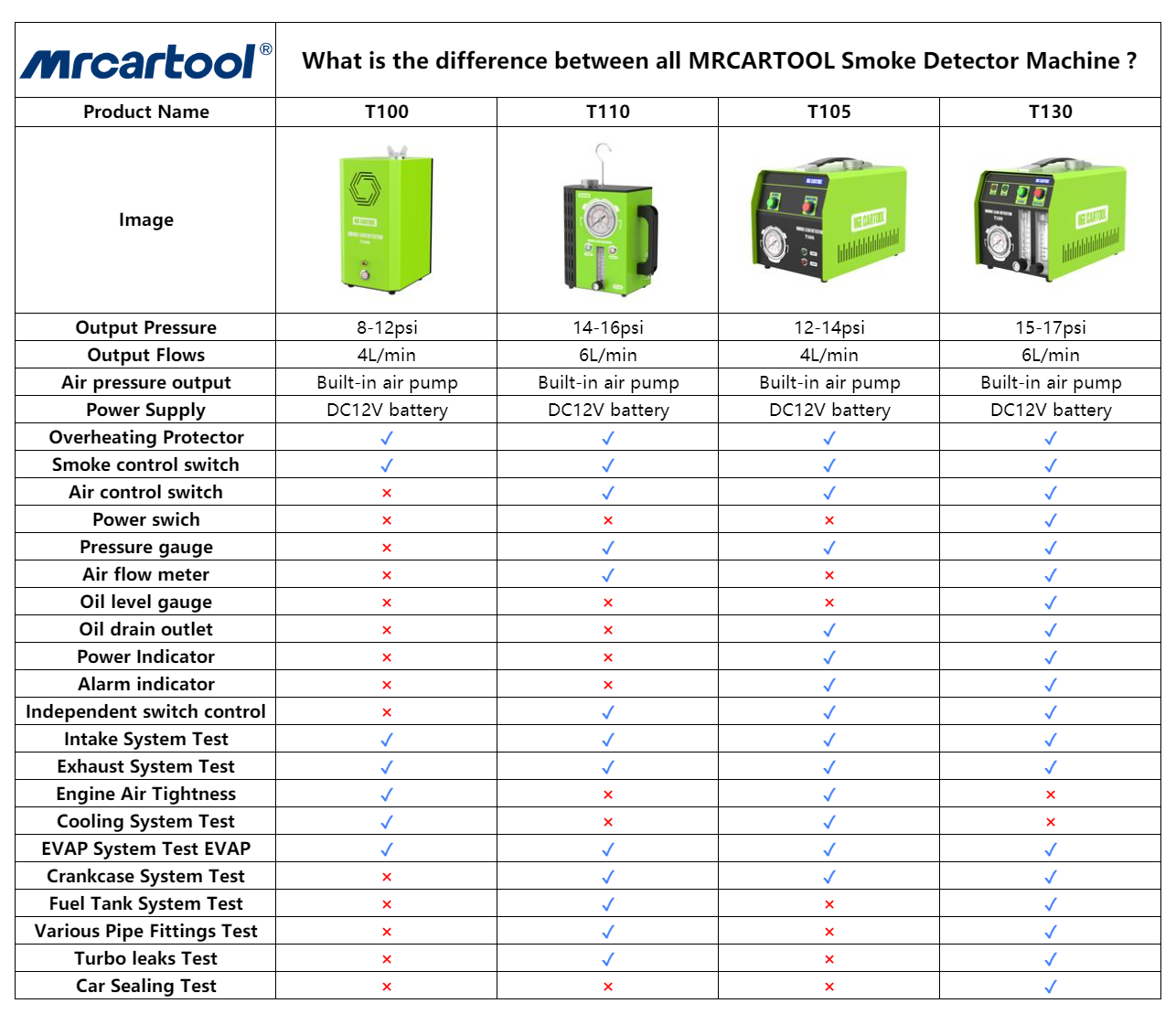

What is the difference between all MR CARTOOL Smoke Detector Machine ?

⚙️Other Models

MR CARTOOL T80 Smoke Leak Detector $89.99
MRCARTOOL T100 Automotive Smoke Tester Multi-function Smoke Tester Intake and Exhaust Leak Detection $97.99
MRCARTOOL T105 Automotive Engine Air Inlet And Outlet Pipe Smoke Leakage EVAP/AP System Smoke Leakage Detector $124.99
MR CARTOOL T130 Automotive Smoke Tester Original price was: $399.00.Current price is: $299.00.

🆚Comparison Data

smoke tester car diagnostic smoke machine

MR CARTOOL T130 Automotive Smoke Tester Features

Features

Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money.
Easy Operation and Safe: Thick smoke output detects even the smallest leaks. The smoke leakage tester comes with a variety of adapters for multiple pipeline systems to facilitate various tests.
Fast Smoke Output: The system produces smoke within 10 seconds and generates a stable, large amount of smoke after being switched on by heating Baby Oil.. Dramatically reducing diagnostic time.

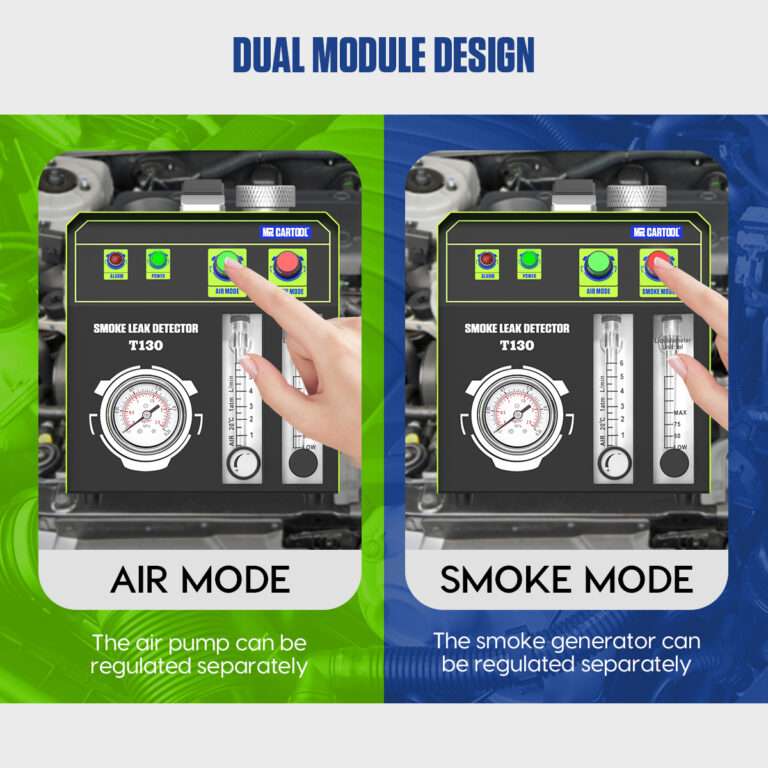

Air Mode & Smoke Mode: Built-in air pump and smoke generator, so it does not rely on an additional air machine, perfect for Mobile Automotive Repair! The system produces smoke within 10 seconds, dramatically reducing diagnostic time, with a smoke output of 6L/min.
Overheat & Anti-frost protection: The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

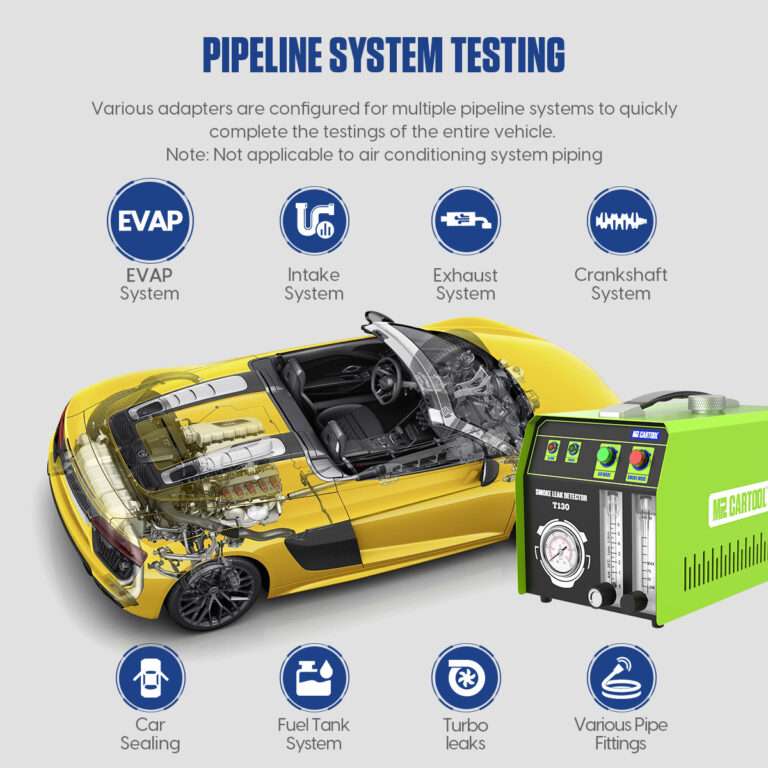

Multi Functions: Tightness Test, Intake System Test, Exhaust System Test, Cooling System, EVAP System Test and Overheating Protection. Built-in air pump and smoke generator, so it does not rely on other air machine, perfect for Mobile Automotive Repair!

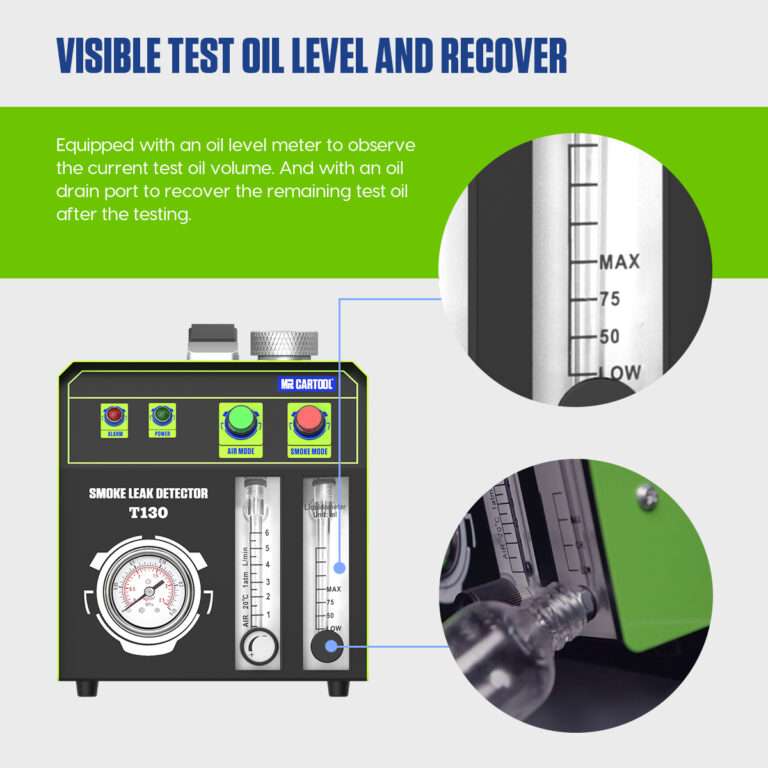

Outlet design: If you add too much baby oil or after using the smoke leakage detector, you can recycle the remaining baby oil.

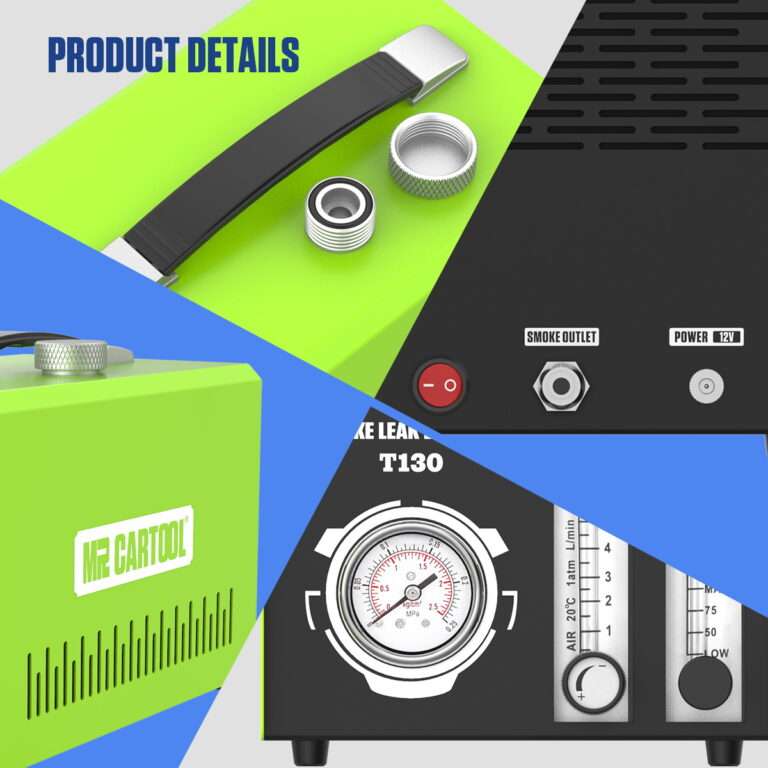

Product details: the hook design makes it more convenient for you to test, and the knob for adding baby oil is also an anti-scald design
Wide range of application: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road wehicles, ATVs, light truck and speedboats. Suitable for all car models.
After- Sales Service: MR CARTOOL offers a 48 month warranty and 7×24 hour friendly customer service to ensure your shopping experience. If you have any questions about EVAP leak detectors, please contact us directly.

online support

How To Use The MR CARTOOL T130 Automotive Smoke Tester?

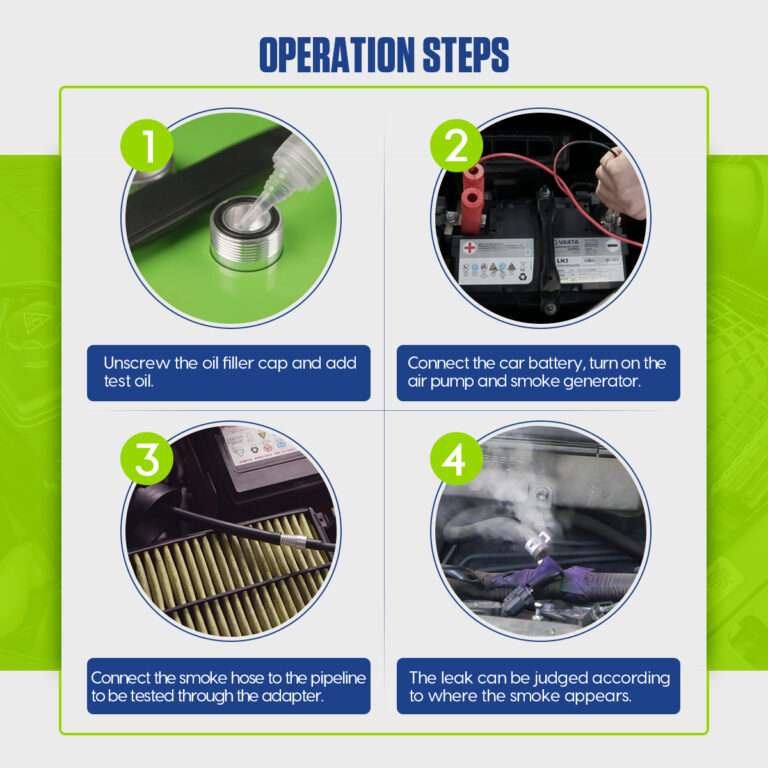

Operating Procedure

- - Step1: Fill 10-15ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
  - Step2: Disconnect the pipe that needs to be connected with detector.
  - Step3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
  - Step4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

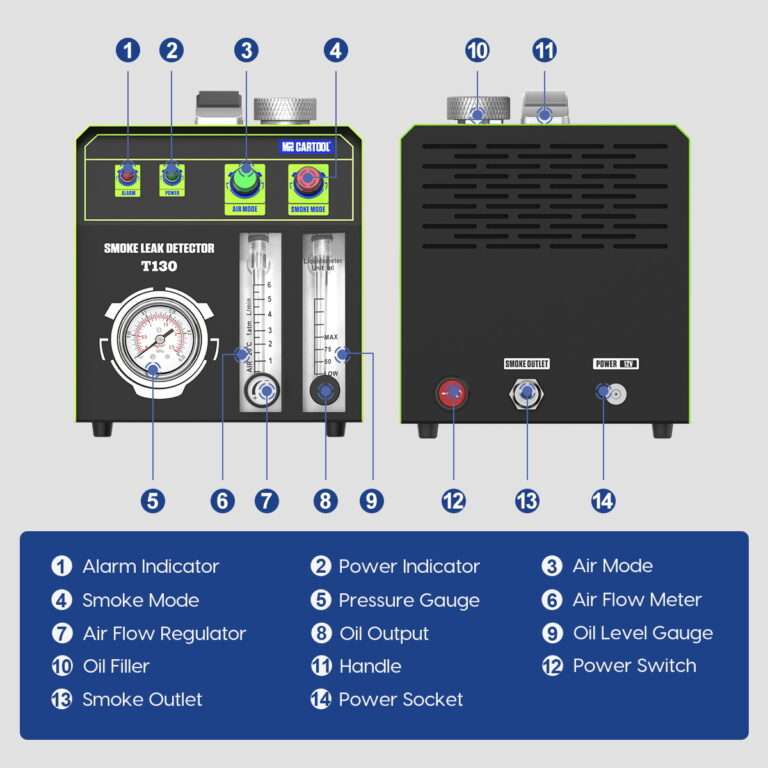

T130 Automotive Smoke Tester Structure:

Structure

- - Hook: To hang the detector when detecting.
  - Working Indicator: It is lit when the detector works
  - Power Switch: Power it on, and the detector works
  - Smoke Output Tube: The smoke outlet which connecting with detection port
  - Power Clamp: To connect with vehicle battery. The voltage is DC12V.
  - Oil Filler: Please add 10-15ml of baby oil, do not introduce too much, too much will lead to insufficient space in the device to produce smoke.

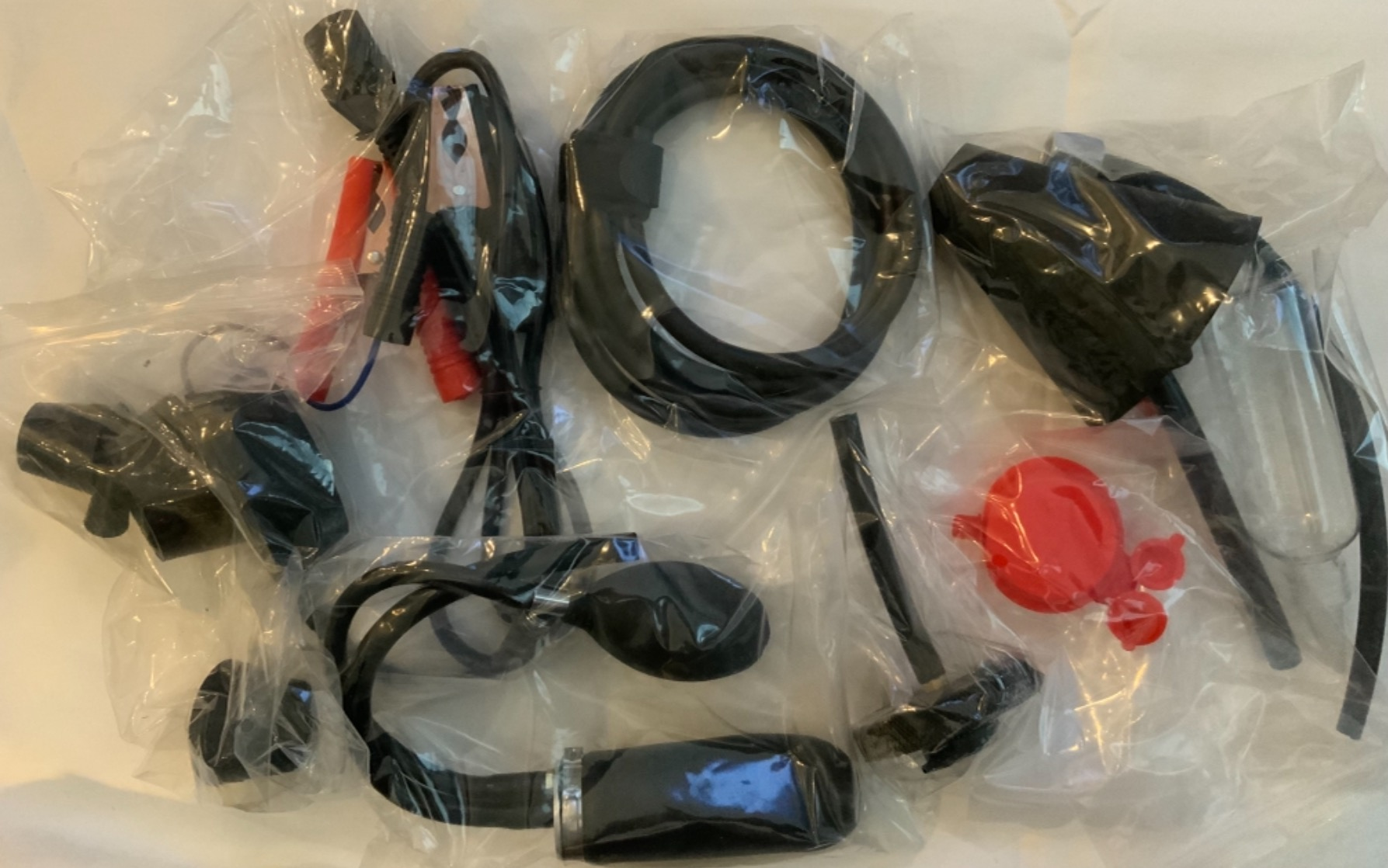

Packing List :

Blowing smoke, in a good way!

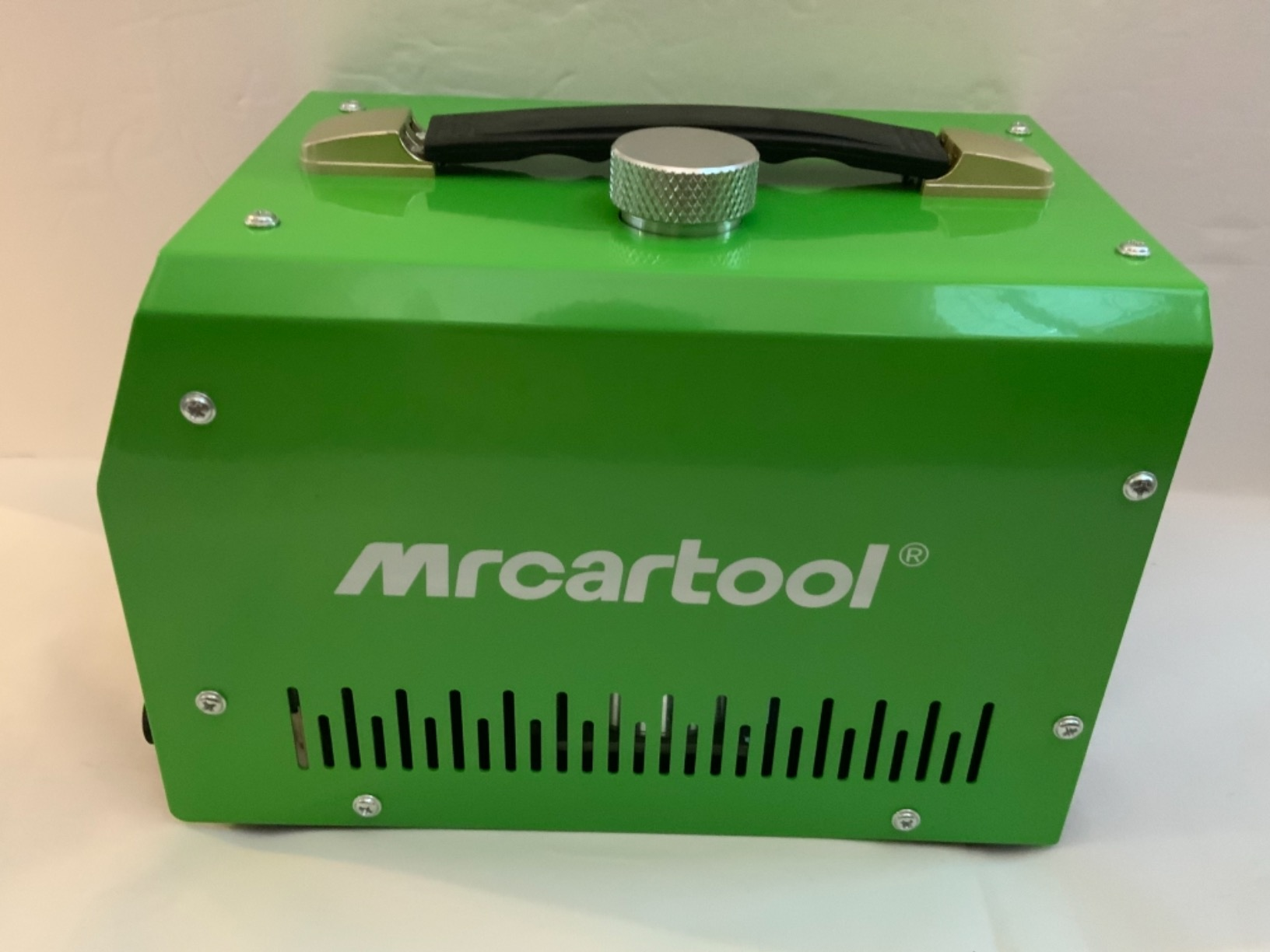

Only used once so far but works quickly and is a really great bargain compared to other smoke machines I have seen

Great smoke machine

It's worked great the last few yrs I've had it. Unfortunately the level indicator has cracked causing it to leak. I bypassed it with a vacuum T for now but it doesn't seem I can order the repair part so I guess it's permanent

Great device. I have two and I recommend. Fast delivery and responsive staff

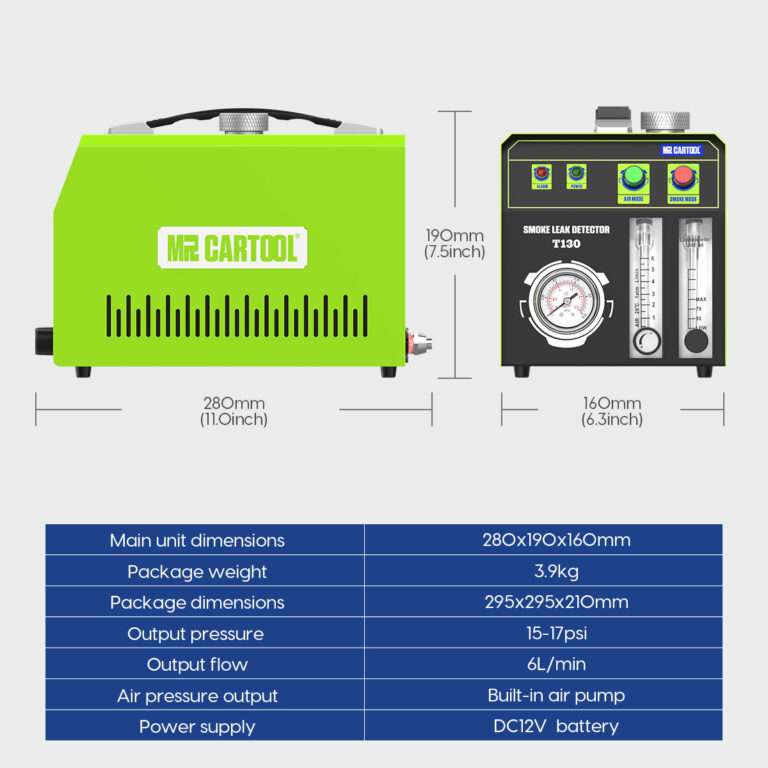

Weight	4 kg
Ship From	China, Germany, United Kingdom, United States
