Name: Automotive Smoke Leak Tester Evap Leak Tester MRCARTOOL T80
SKU: MMT702
Availability: InStock

Please connect the 12V battery for use, too much current will damage the machine.
When you use this MRCARTOOL T105 Car Smoke Leak Detector for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
Before use, gently turn the knob to open the airflow regulator valve.
The testing liquid: both liquid paraffin and baby oil are OK.
Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
During the process of leak detection, please keep away from smoke-sensitive parts.
Do not run the detector for over 8 minutes continuously. It needs interval rest.
The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
The round part of this detector has temperature, please be careful to avoid burns.

BUILT-IN AIR PUMP: Customers don’t need to buy additional air pump, we use high quality materials and have been tested many times, please feel free to use it. You can save more time and money.
EASY AND SAFE TO OPERATE: The smoke output can detect the tiniest leaks. The smoke leak tester comes with a variety of adapters for a wide range of piping systems, making it easy to perform a variety of tests.

Adjustable Smoke Output: Generates smoke in less than 10 seconds and adjusts the smoke size after power-up (by heating baby oil) to provide a steady stream of smoke. Significantly reduces diagnostic time.
Air Mode And Smoke Mode: Built-in air pump and smoke generator eliminates the need to rely on an additional air unit, making it ideal for mobile automotive repairs! Generates smoke in less than 5 seconds, dramatically reducing diagnostic time. Smoke output: 5 liters/minute.
Overheating And Freeze Protection: The detector is intelligently protected. If the operating limit is exceeded, e.g. 75°C, the detector automatically cuts off. It will automatically cut off the power to better delay the life of the machine.
Multi-functional: Seal test, air intake system test, exhaust system test, cooling system, EVAP system test and overheating protection. Built-in air pump and smoke generator, so no need to rely on other air units, ideal for mobile vehicle servicing!
After- Sales Service: MRCARTOOL offers a 48 month warranty and 7×24 hour friendly customer service to ensure your shopping experience. If you have any questions about Evap Leak Tester, please contact us directly.

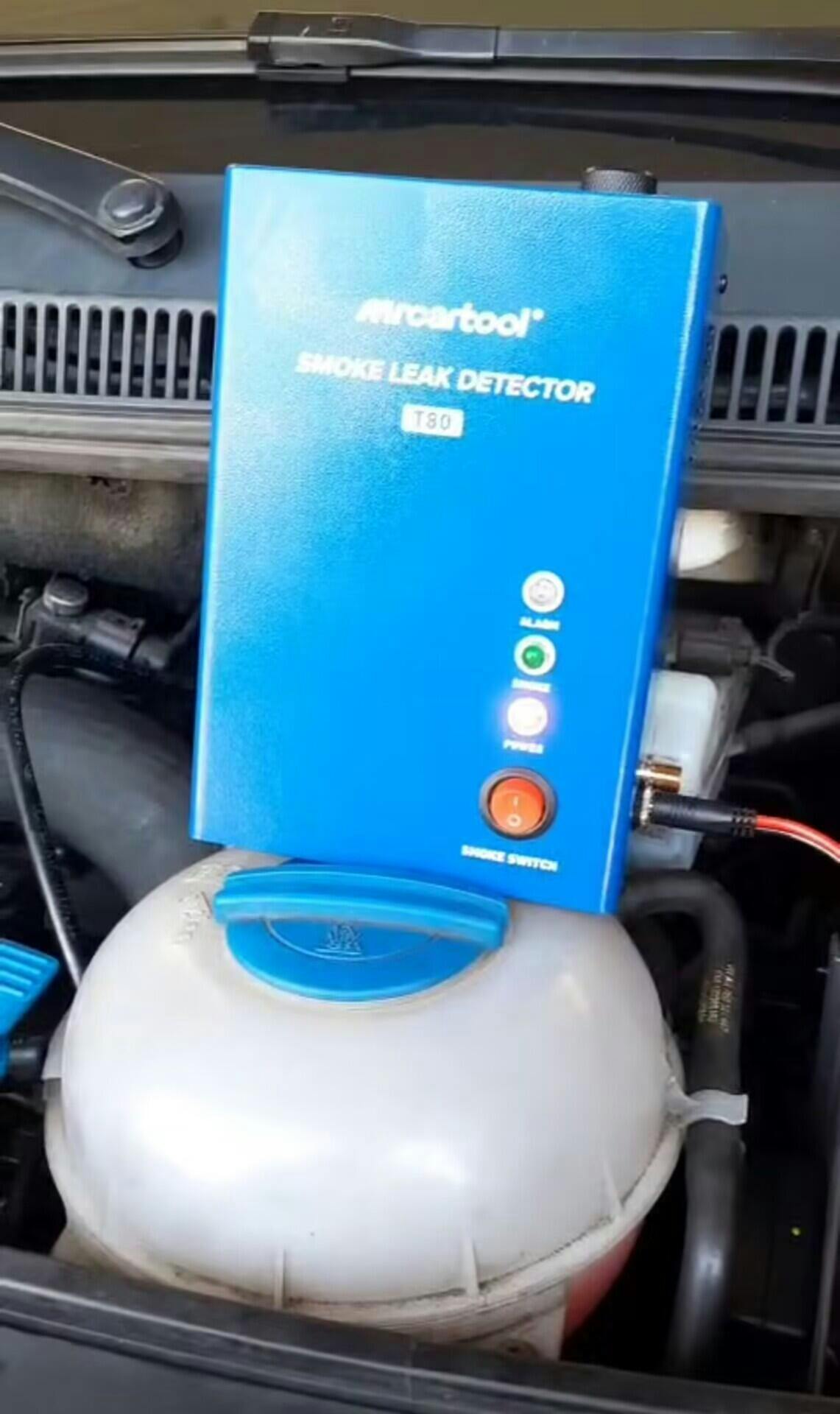

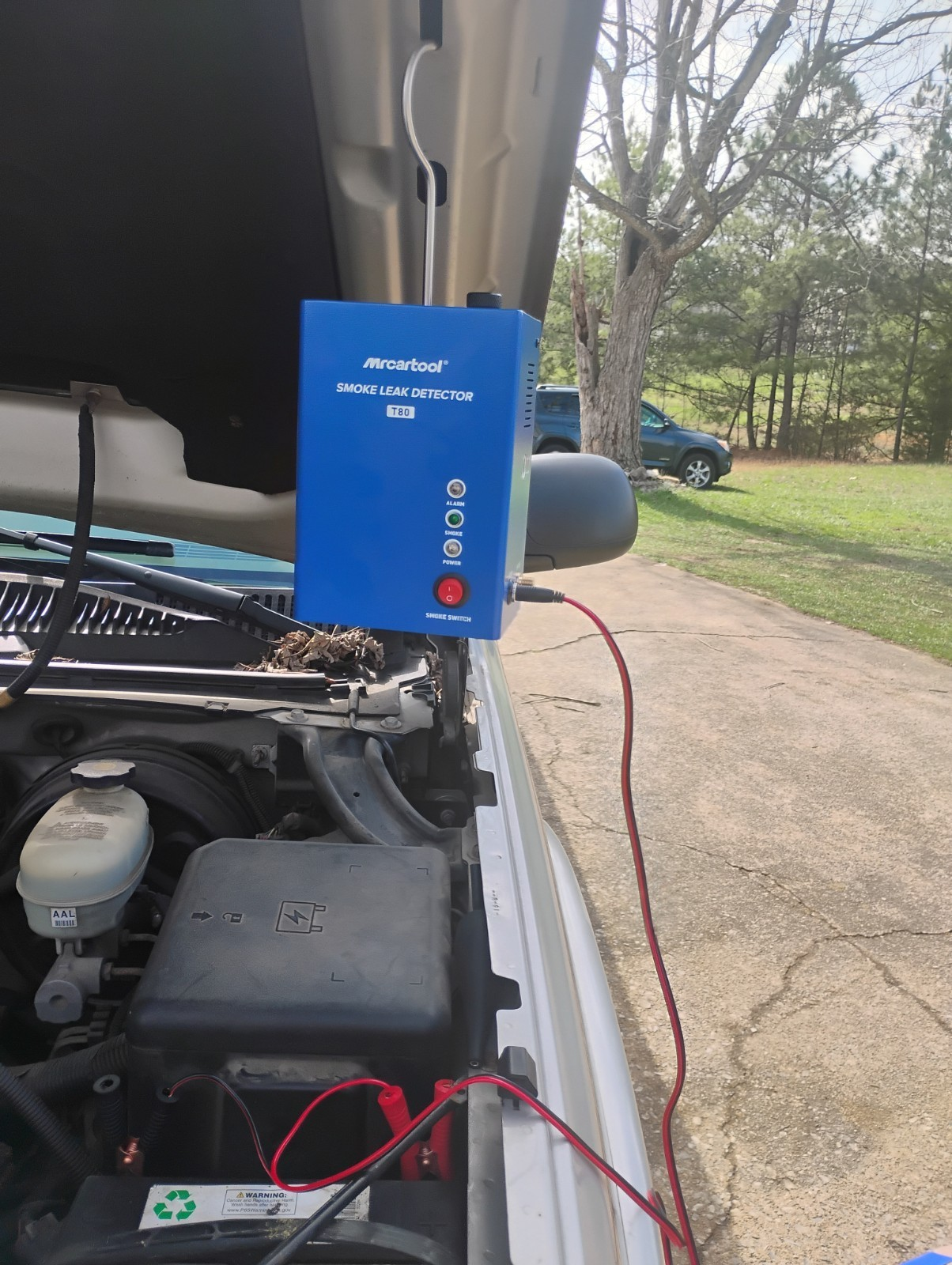

Step1: Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
Step2: Disconnect the pipe that needs to be connected with detector.
Step3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.

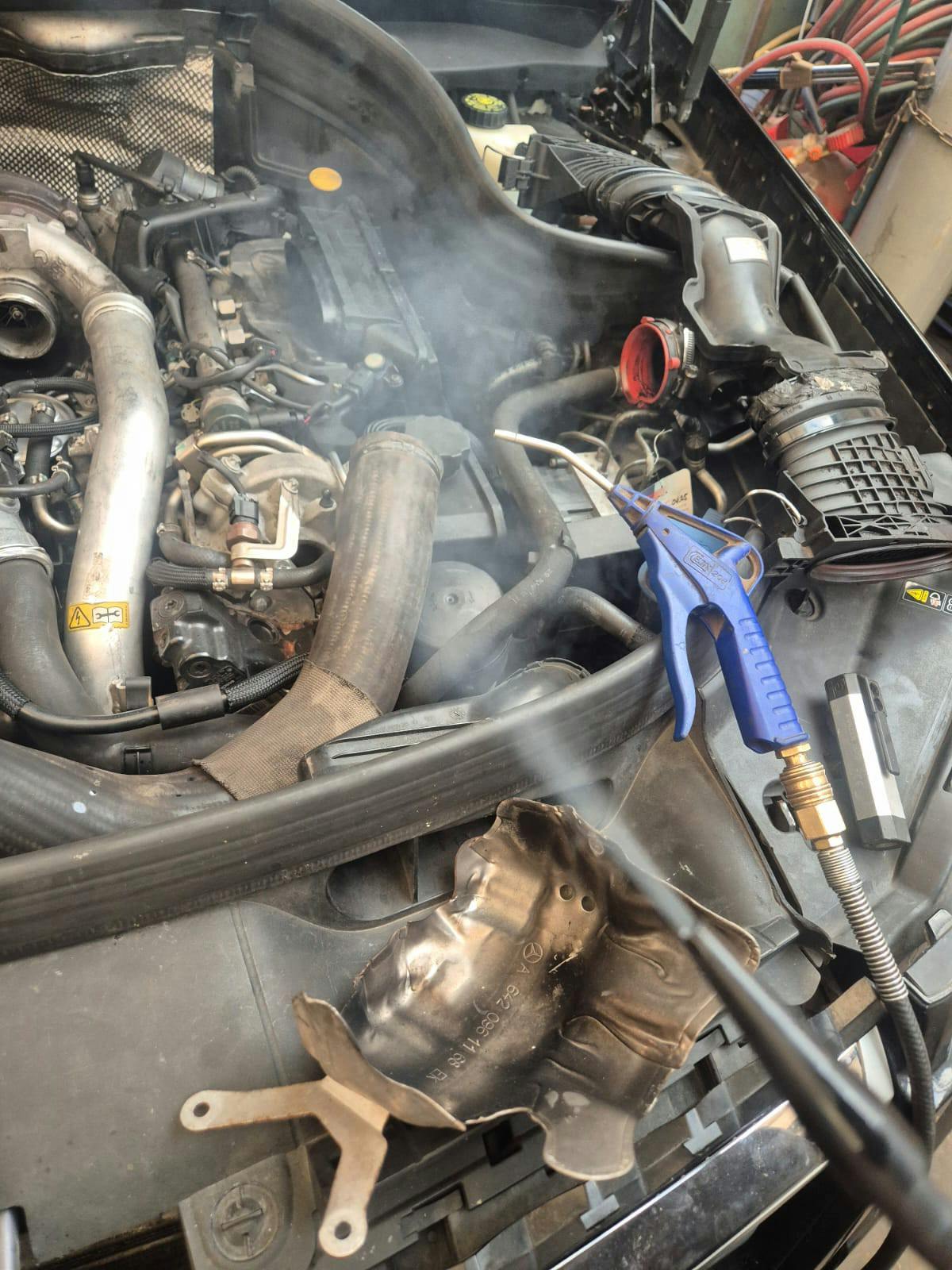

Step4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

Hook: For hanging the detector during detection.

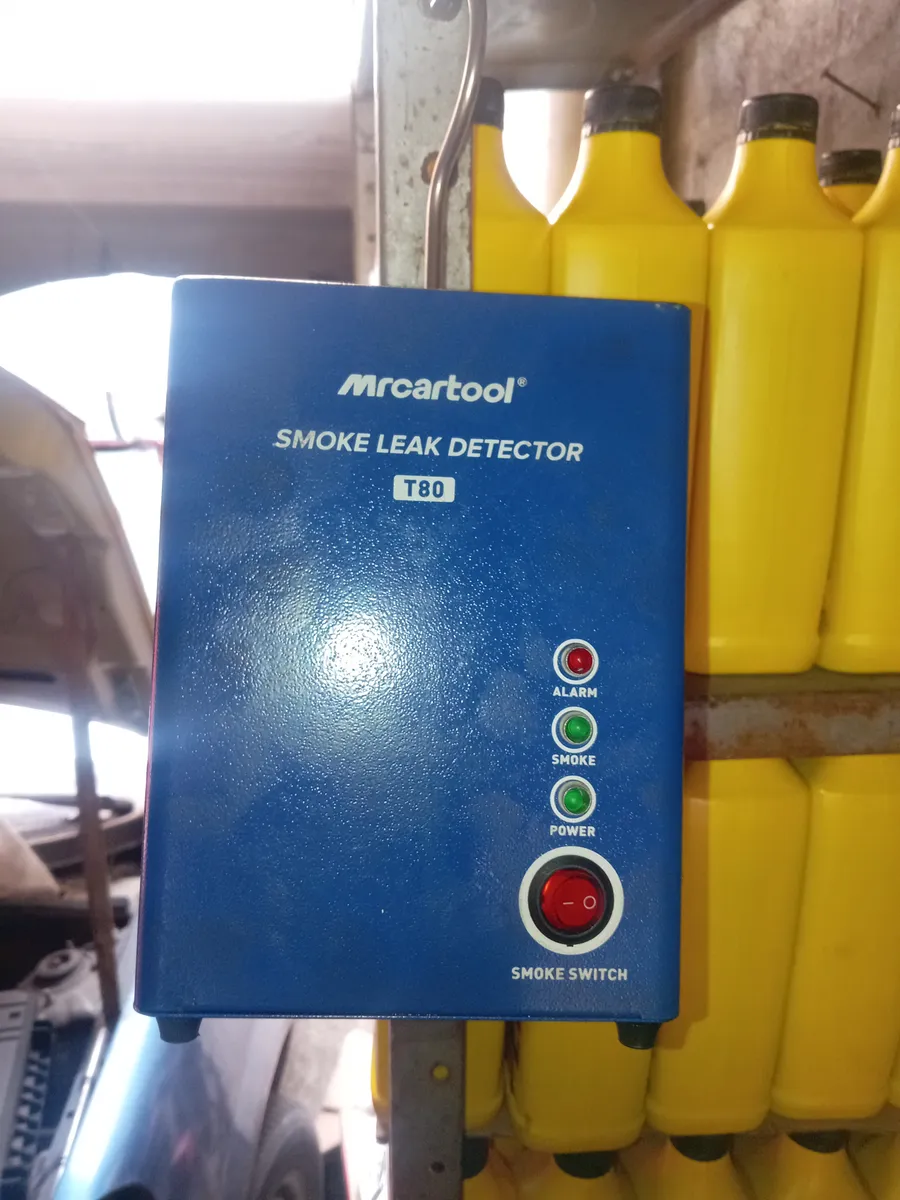

Work Indicator: Lights up when the detector is working.
Pressure gauge: displays the current pressure of the detector.
Smoke flow control valve: detects and sets the amount of smoke coming out.
Power switch: Turn on the power, the detector starts to work.
Smoke Output Tube: Smoke outlet connected to the detector port.
Power Clip: Used to connect the car battery. Voltage is DC12V.
Filler: Please add 10-15 ml of baby oil, do not add too much as there will not be enough space in the device to produce smoke.
