5 Common Exhaust System Configurations You Should Know

What is an Exhaust System?

The main job of an exhaust system is to safely remove harmful gases produced by engine combustion, such as carbon monoxide, nitrogen oxides, and hydrocarbons. It also helps reduce noise and control emissions.

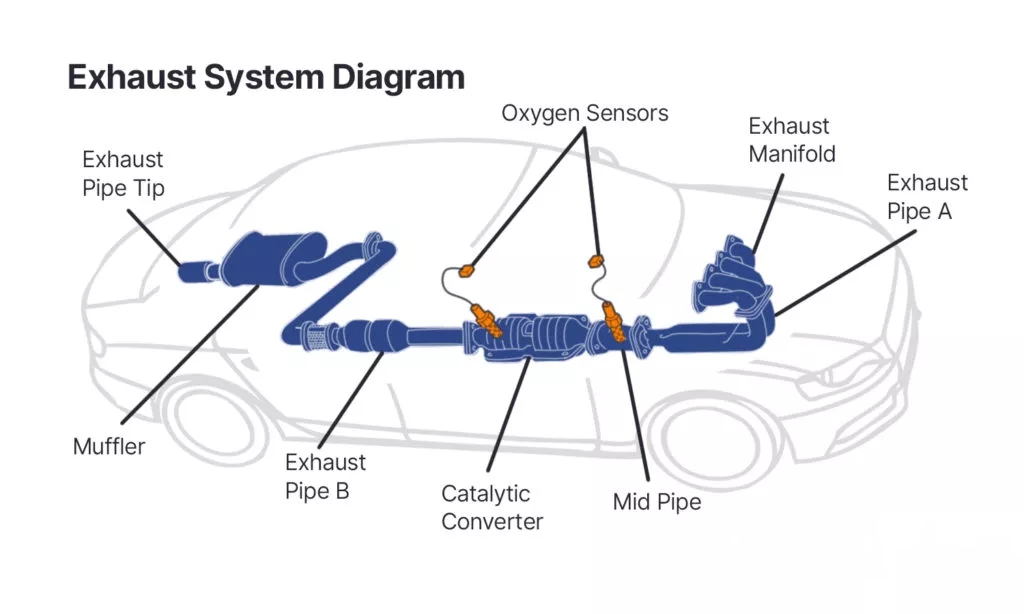

The main components include:

• Exhaust Manifold: Collects exhaust gases from each cylinder into one pipe.

• Catalytic Converter: Uses precious metals to turn harmful gases into carbon dioxide and water vapor.

• Resonator: Adjusts sound waves and reduces some noise.

• Muffler: Further reduces remaining noise and ensures the car meets sound regulations.

• Tailpipe: Releases the cleaned gases into the air.

Different Types of Exhaust Systems Explained

Exhaust systems can be upgraded or replaced in parts. Here are 5 common configurations:

1. Cat-Back System

Includes everything from the catalytic converter to the tailpipe. It improves flow and sound. This is the most popular upgrade for performance.

2. Axle-Back System

Starts from the rear axle and includes the muffler and tailpipe only. It changes the sound but offers limited performance gains. It’s budget-friendly.

3. Turbo-Back System

Used on turbocharged vehicles. It replaces everything from the turbo to the tailpipe. It gives strong power gains but needs to match vehicle requirements and laws.

4. Header-Back System

Replaces the full system from the exhaust manifold to the tailpipe. Best for performance lovers who want full control and maximum output.

5. Straight-Pipe System

Removes both the catalytic converter and muffler. It offers no restriction and maximum power, but it is very loud and illegal in many places. It’s best for track use only.

Exhaust Leak Symptoms & Repair: How Bad Are Exhaust Leaks?

Exhaust leaks may seem small but can affect safety, engine performance, and emissions. Here are signs of a leak:

• Strange Noises: Hissing, popping, or metal tapping noises, especially at idle or when accelerating.

• Strong Smell: A bad smell inside the car, like rotten eggs, could mean a leak before the catalytic converter. This is dangerous and can cause carbon monoxide poisoning.

• Check Engine Light: Exhaust leaks can confuse oxygen sensors and cause the warning light to turn on.

• Poor Fuel Economy / Low Power: Exhaust flow problems can reduce combustion efficiency, increase fuel use, and cause slow acceleration.

How to Detect Leaks – Use a Smoke Leak Detector

Visual checks and listening may not find small leaks. A Smoke Leak Detector is a better way:

1. Connect the machine to the front part of the exhaust (like the O2 sensor port).

2. Seal the tailpipe.

3. The machine sends low-pressure smoke into the exhaust.

4. Smoke will clearly show the leak spot, even tiny cracks.

Tip: The EVAP smoke machine is fast and accurate. No need to remove parts. They are widely used in repair shops and fit all types of vehicles.

How to Choose the Best Exhaust System for Performance and Sound

Choosing the right system depends on your goals and budget:

• Performance: Cat-Back and Turbo-Back systems boost horsepower and torque.

• Sound: Choose systems with resonators and mufflers to get the sound you like.

• Cost: Axle-Back is cheaper; Header-Back is more expensive.

• Legal Compliance: Check if the system has CARB or EC certification.

• Material: 304 stainless steel is rust-resistant and great for off-road or wet conditions.

FAQ

Q: What’s the difference between Axle-Back and Cat-Back?
A: Axle-Back only changes the muffler and tailpipe. Cat-Back includes everything from the catalytic converter to the tailpipe. Cat-Back gives better power and sound.

Q: Is stainless steel better for off-road vehicles?
A: Yes, it’s strong and rust-proof. Ideal for off-road and harsh weather.

Q: Can upgrading the exhaust save fuel?
A: Yes, a well-designed system improves engine efficiency and fuel economy.

Q: Are full exhaust systems legal on public roads?
A: If they meet local rules on noise and emissions (such as CARB or EC approval), they are legal. Always check your local laws first.

Q: How does the exhaust system improve performance?
A: By improving airflow and reducing backpressure, it helps increase horsepower and engine response.

Conclusion

Whether you’re a car owner, DIY fan, or auto technician, knowing how exhaust systems work helps you take better care of your vehicle. If you hear odd sounds, see worse fuel use, or feel weak power, check for leaks. An automotive Smoke Leak Detector can help you find the problem fast and easy.
