Rising Costs of Cylinder Head Gasket Replacement? A Full Process Analysis

Posted on by Daisy
24
Jul
Sealing is a complex system that relies on multiple components working together to prevent leaks of air, water, and oil in an engine. Any weakness in the system can reduce performance or cause engine failure. The cylinder head gasket is a vital seal that prevents oil, coolant, and combustion gases from mixing between the engine block and the cylinder head. Once damaged, repairs can be costly. Regular maintenance is essential to ensure engine reliability and prevent serious issues.

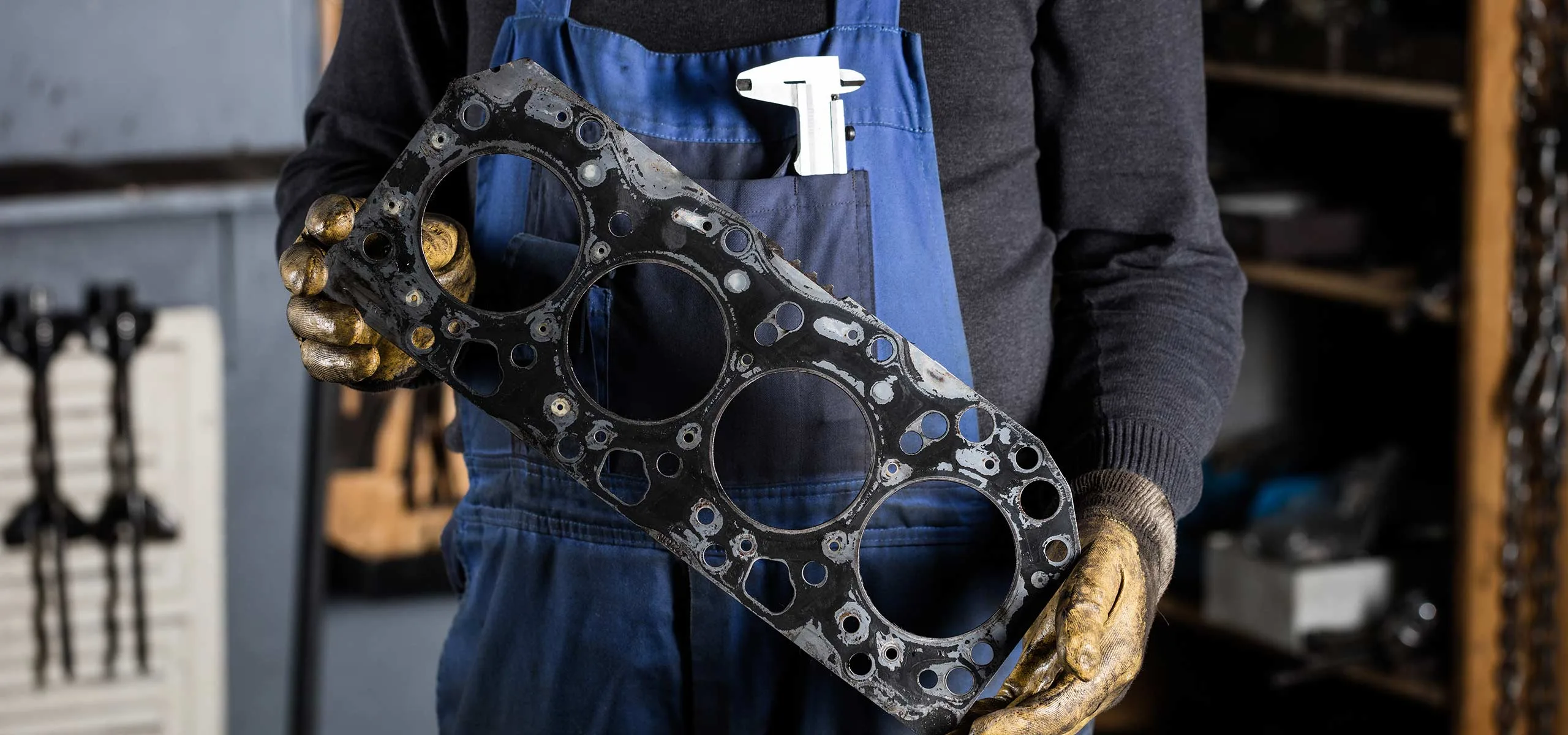

What is a Cylinder Head Gasket?

The cylinder head gasket is a sealing component between the engine block and the cylinder head, designed to withstand the high pressure and heat within the engine compartment. Every car, truck, light truck, forklift, and heavy machinery today has gaskets, but their thickness and structure vary depending on the engine manufacturer’s design. Typically, a 6 or 8-cylinder engine is equipped with two cylinder head gaskets. Using high-quality gaskets helps ensure maximum compression and prevents coolant or engine oil from leaking into the cylinders. This contributes to long-lasting performance and maintains the engine’s efficiency.

What Can Cause Cylinder Head Gasket Failure?

Cylinder gasket damage is a common engine issue. Loose head bolts, warped surfaces, incorrect installation, engine overheating, or using poor-quality gaskets can cause cylinder gasket failure.
These factors can all lead to gasket failure.

1. Improper Use and Installation of the Cylinder Head Gasket

The cylinder head gasket sits between the engine block and cylinder head, sealing the combustion chamber and preventing leaks of exhaust gases, coolant, and oil. Improper use or installation can affect sealing and shorten gasket life. To ensure proper sealing, the gasket must match the original cylinder’s specifications and thickness, have a smooth surface, tight edges, and be free of damage or rust.

2. Slight Movement of the Cylinder Head

Cylinder head movement caused by compression and combustion pressures can stretch the head bolts and create a small gap between the head and engine block. This repeated movement puts stress on the gasket, causing it to wear out faster and reducing its sealing effectiveness.

3. Cylinder Head Bolts Not Tightened to the Specified Torque Value

If the cylinder head bolts are not tightened to the specified torque values, the wear of the cylinder head gasket caused by slight movement will occur more rapidly and severely. If the bolts are too loose, it will result in an increased amount of movement between the cylinder head and the engine block. On the other hand, if the bolts are over-tightened, it will cause the bolts to exceed their yield strength limit, leading to elongation beyond their design tolerance. This also increases the movement of the cylinder head, accelerating the wear of the cylinder head gasket. Using the correct torque specifications and tightening the bolts in the proper sequence will minimize the movement of the cylinder head relative to the engine block, ensuring the sealing quality of the cylinder head.

4. Excessive Warping of the Cylinder Head or Engine Block

Warping and twisting are common issues with cylinder heads and are major causes of repeated cylinder head gasket failures. This is particularly noticeable with aluminum alloy cylinder heads, as aluminum has a high thermal conductivity, and the cylinder head is relatively small and thin compared to the engine block, causing the aluminum alloy cylinder head to heat up quickly. When the cylinder head deforms, it fails to form a tight seal with the engine block surface, reducing the sealing quality of the cylinder, leading to air leakage and burning the cylinder head gasket, further deteriorating the seal. If the cylinder head experiences severe warping, it must be replaced.

5. Uneven Cooling of the Cylinder Surface

Uneven cooling of the cylinder surface can create localized hotspots. These hotspots cause excessive expansion in small areas of the cylinder head or engine block, which in turn compresses and damages the cylinder head gasket. The damage to the gasket leads to leaks and corrosion, ultimately resulting in it being burned through. If the cylinder head gasket is replaced without first addressing the cause of the localized hotspots, it will be ineffective, as the new gasket will eventually be burned out as well. Localized hotspots also create additional internal stress in the cylinder head, which can result in cracks. If the working temperature exceeds normal levels, localized hotspots will have severe negative effects. Any overheating condition can lead to permanent distortion in the cast iron components of the engine block.

6. Issues with Additives in Coolant

When coolant additives are mixed into the coolant, air bubbles may form. These bubbles in the cooling system can cause the cylinder head gasket to fail. When air bubbles are present, the coolant is unable to circulate properly within the system, preventing the engine from receiving uniform cooling. This leads to localized hotspots, damaging the cylinder head gasket and causing sealing issues. Therefore, to ensure the engine is evenly cooled, it is crucial to remove air from the engine when adding coolant. Some mechanics use antifreeze in winter and switch to water in summer, thinking it is more economical. However, this can cause long-term issues, as the minerals in water can form scale that accumulates in the water jacket, radiator, and temperature sensors, disrupting the engine’s temperature control and causing overheating. This can lead to serious problems, including burning the cylinder head gasket, warping the cylinder head, cylinder scoring, and bearing failure. Therefore, antifreeze should be used in summer as well.

7. Poor Diesel Engine Maintenance and Assembly Quality

Poor engine maintenance and assembly quality are primary causes of inadequate cylinder head gasket sealing and a major factor in gasket failure. Therefore, when repairing an engine, it is crucial to strictly follow relevant requirements and properly dismantle and assemble the cylinder head. The cylinder head should only be removed when the engine is cold. Removing it while the engine is hot can cause the cylinder head to warp. During removal, the bolts should be loosened gradually and symmetrically, starting from the outer edges and moving inward. If the cylinder head is firmly attached to the engine block and difficult to remove, do not use metal tools to strike it or sharp objects to pry it open. A more effective method is to rotate the crankshaft with the starter motor or manually, using the high-pressure gases in the cylinders to help detach it. This prevents damage to the mating surfaces or the gasket. When assembling the cylinder head, first clean the mating surfaces between the cylinder head and the engine block, as well as the bolt holes, to remove oil, carbon particles, rust, and other contaminants. Use compressed air to blow these clean to ensure the bolts provide sufficient clamping force on the cylinder head. When tightening the cylinder head bolts, tighten them symmetrically in 3–4 stages, starting from the center and moving outward. The final tightening should achieve the specified torque value with an error margin of ≤2%. For cast iron cylinder heads, after reaching an engine temperature of 80°C, the bolts should be retightened to the specified torque. For bi-metal engine components, this retightening should only be done once the engine has cooled down.

8. Using Inappropriate Fuel

Different types of diesel engines have varying requirements for the cetane rating of diesel fuel. Using fuel that doesn’t meet these requirements can not only reduce fuel economy and engine performance but also cause excessive carbon buildup or abnormal combustion in the diesel engine. This leads to local overheating of the engine block, resulting in erosion of the cylinder head gasket and engine block, which in turn degrades the sealing performance of the cylinder head. Therefore, the cetane rating of the diesel fuel used in diesel engines must meet the specified requirements.

9. Improper Use of the Diesel Engine

Some operators, fearing engine stalling, continuously accelerate when starting the engine or allow the engine to run at high speeds immediately after starting in an attempt to keep the engine running. Additionally, during operation, they may often disengage the gear and coast to a stop, only to force the engine to restart by engaging the gear. Operating the engine in such conditions not only increases wear on the engine but also causes a sharp rise in cylinder pressure, which can easily damage the cylinder head gasket and reduce its sealing performance. Furthermore, when the engine is frequently overloaded (or experiences premature ignition) and operates under prolonged knock conditions, it creates excessively high localized pressures and temperatures inside the cylinders, which can also damage the cylinder head gasket, leading to a decline in its sealing capabilities.

How to Tell if the Cylinder Head Gasket is Faulty?

A damaged cylinder head gasket can cause a range of symptoms, some of which may start off mild but can quickly worsen if not addressed. Recognizing warning signs early can save you a significant amount in repair costs and prevent potential engine damage. Here are some key signs of a damaged cylinder head gasket:

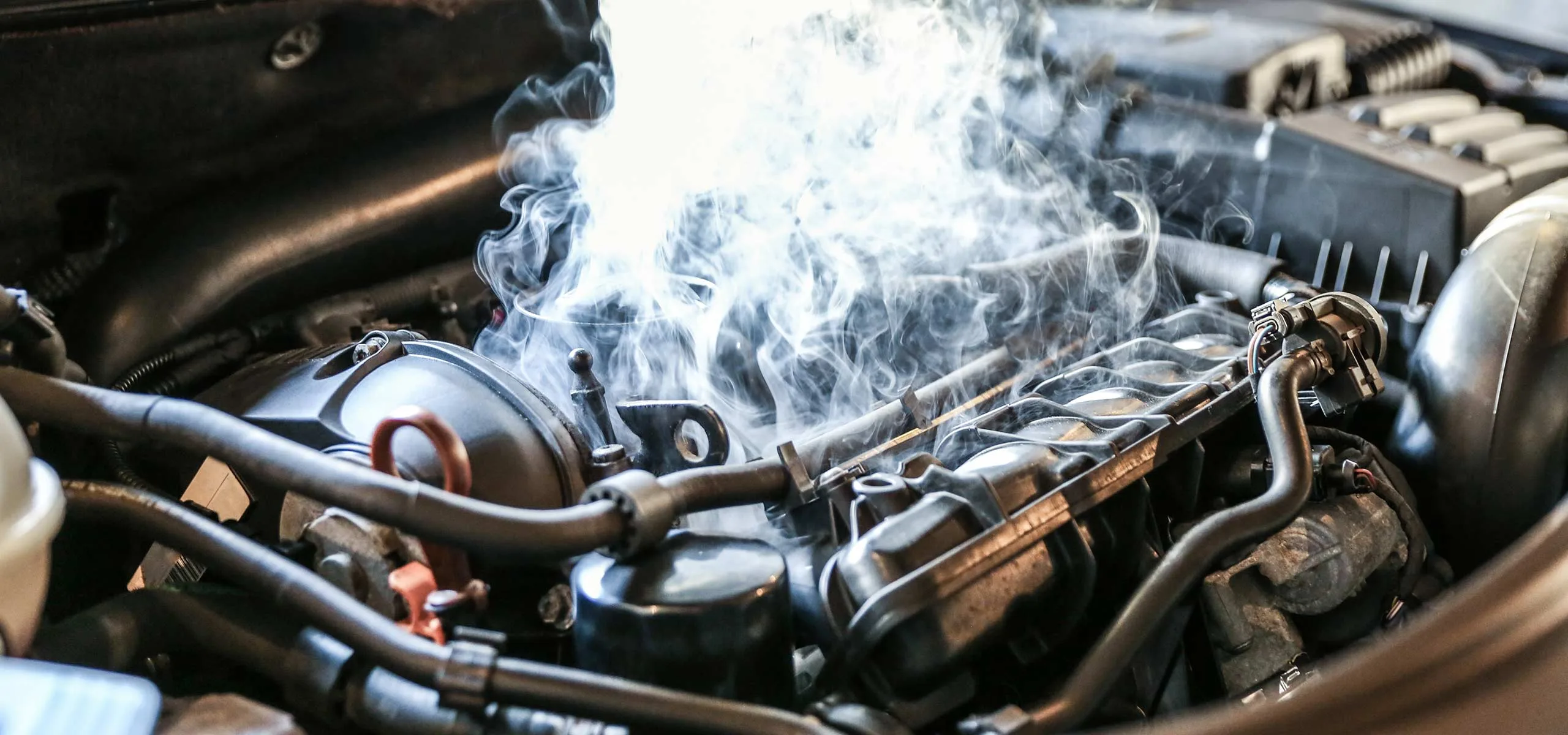

Engine Overheating

When the cylinder head gasket fails, coolant may leak or burn off in the combustion chamber, reducing the availability of coolant in the cooling system. This leads to engine overheating, as the system can no longer regulate the temperature effectively. Overheating puts additional stress on the engine, further deteriorating the condition of the cylinder head gasket and other internal components.

Signs:

  • The temperature gauge consistently stays in the red zone.
  • The coolant level drops, but there are no visible external leaks.
  • Steam coming out from under the hood after driving.

Engine Misfire or Poor Performance

A damaged cylinder head gasket can affect the compression within the engine, leading to an imbalanced air-fuel mixture. This can result in engine misfires, unstable idling, or the engine stalling during operation.

Signs:

  • Unstable idling or engine “shaking” when the vehicle is stationary.
  • Occasional stalling, especially when starting from a stop.
  • Noticeable loss of power or performance, particularly during acceleration.

Excessive White Steam from the Exhaust Pipe

If you notice white smoke or steam coming from the exhaust pipe, especially after the engine has warmed up, it could indicate that coolant is leaking into the combustion chamber. This creates a pungent-smelling smoke, indicating that the antifreeze is burning along with the fuel.

Signs:

  • White steam persists even in warm weather and doesn’t dissipate.
  • A sweet smell from the exhaust indicates that the coolant is burning.
  • The smoke is usually thicker than normal and may last longer.

Milky or Creamy Oil

A faulty cylinder head gasket can allow coolant to leak into the oil system, turning the oil a milky or foamy appearance. This causes the oil texture to resemble a milkshake, which can be observed when checking the dipstick or under the oil filler cap.

Signs:

  • Check the dipstick for milky residue.
  • Inspect under the oil cap for foam or creamy buildup.
  • Be aware of engine overheating or performance issues caused by the mixing of coolant and engine oil.

Exhaust Gases in the Cooling System

Exhaust gases entering the cooling system indicate a serious issue with the cylinder head gasket. While the engine is running, combustion gases leaking into the coolant can cause bubbles to appear in the coolant reservoir or radiator.

Signs:

  • Wait for the engine to fully cool down before removing the radiator cap.
  • Start the engine and observe the radiator or coolant reservoir for bubbles.
  • Excessive bubbles indicate that combustion gases are leaking into the coolant.

Coolant Loss

A slow but constant loss of coolant with no visible leaks could indicate a cylinder head gasket leak. This happens when coolant burns or evaporates into the combustion chamber, reducing the coolant level in the reservoir.

Signs:

  • Despite regular topping off, the coolant level remains consistently low.
  • No visible external leaks around the engine bay or on the ground.
  • Overheating issues persist even though the initial coolant level was adequate.

Unstable Idling/Engine Knock

When the cylinder head gasket is damaged, the compromised seal affects engine compression. This can lead to unstable idling or knocking sounds, particularly when the engine is cold or operating at low RPMs.

Signs:

  • The engine idles unevenly but smooths out after acceleration.
  • Knocking sounds are audible, especially during cold starts or idling.
  • Difficulty starting the engine or maintaining idle in cold weather.

External Leaks

Visible coolant or engine oil leaks around the cylinder head gasket can also indicate a gasket failure. These leaks can further deplete coolant levels, leading to engine overheating or poor lubrication.

Signs:

  • Check for dampness or fresh coolant/oil around the gasket.
  • Look for puddles of fluid under the car, especially after long drives.
  • Inspect hoses, gaskets, and seals for signs of leaks or damage.

Check Engine Light and Misfire

When the engine control module detects misfires or irregular compression caused by a cylinder head gasket leak, it will trigger the check engine light. This is often due to an imbalanced mixture or poor cylinder sealing.

Signs:

  • Use an OBD scanner to check for misfire or compression-related trouble codes.
  • Pay attention to any hesitation or stalling during acceleration.
  • Watch for the check engine light staying on or flashing continuously.

Fluctuating Temperature Gauge

If the temperature gauge fluctuates frequently or stays in the high range, it could be due to a cylinder head gasket failure. Coolant leaks or low coolant levels disrupt temperature regulation, leading to these fluctuations.

Signs:

  • Significant fluctuation in the temperature gauge during normal driving.
  • The gauge reading stays in the high or red zone for extended periods.
  • Steam appears in the engine bay due to overheating.

Why is Replacing a Cylinder Head Gasket So Expensive?

The main reason why replacing a cylinder head gasket is expensive is not the high price of the gasket itself, but because the entire repair process is extremely time-consuming and complex. The costs add up from several factors. Removing and reinstalling the cylinder head requires disassembling almost the entire upper engine assembly, including the fuel system, exhaust, cylinder head, camshaft, etc. Technicians often need 10–20 hours of labor. It’s not just the gasket that may need replacement, but also cylinder head bolts, water pump, radiator hoses, oil seals, spark plugs, and many other consumables.

Tips to Prevent Damage:

  • Regularly Check Coolant: Ensure the coolant level is adequate and flush the system periodically to maintain its health.
  • Change Oil on Time: Regularly change the engine oil to prevent overheating, which can cause the gasket to fail.
  • Avoid Overloading: Prevent vehicle overload to reduce the stress on the engine and its components.
  • Gradual Engine Warm-up: Encourage drivers to let the engine gradually warm up rather than accelerating immediately after startup, which helps prevent thermal shock to the cylinder head gasket.

Summary

The cost of replacing or repairing a cylinder head gasket can vary depending on several factors, such as the make and model of your vehicle, the extent of the damage, and any additional parts that may need replacing. It’s not just the gasket itself; labor, bolts, seals, fluids, and the additional costs of addressing any engine damage will also factor in. Therefore, early detection (such as noticing white exhaust smoke, milky oil, or overheating) can significantly reduce repair costs. Understanding the potential costs of repairs and implementing preventive measures can help protect the health of your engine.
