MRCARTOOL M85 Multi-function HUD GPS Inclinometer Slope Meter for Off-Road SUV Vehicles

Product Description:

M85 off-road vehicle gradient meter is a compact and powerful car instrument product. The instrument has functions such as vehicle speed, time, altitude, mileage, etc. It is especially suitable for off-road vehicles without gradient meters.

Product Parameters：

Working voltage: 5V-35V DC

Working current: <80mA

Sleep current: <10mA

Working temperature: -20~75℃

Product volume: 115mm×75mm×50mm

Main functions of the product：

1. Altitude display

2. Satellite time display

3. Travel speed display

4. Battery voltage and current display

5. Driving time

6. Compass display

7. Current distance travelled

8. Total distance travelled

9. Driving direction

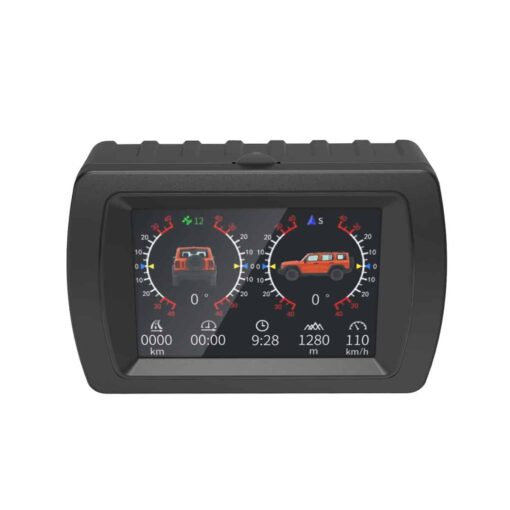

10. Roll angle display

11. Pitch angle display

12. Latitude and longitude measurement

13. Automatic brightness adjustment

14. Number of positioning satellites

15. Fatigue warning

16. Fatigue warning

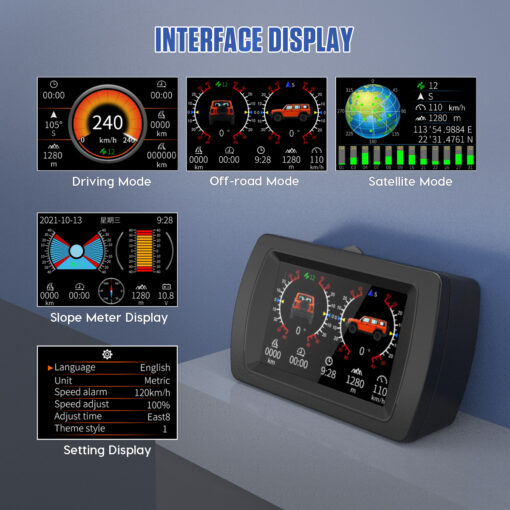

4 Kinds of Working Interfaces：

Product Features:

Product installation:

1. Insert the car charger cable into the vehicle, and then plug the miniUSB head socket into the rear socket of the host.

2. The provided modification cable can be connected to the vehicle ACC power supply terminal, and the unit will automatically switch on and off after the vehicle starts and turns off.

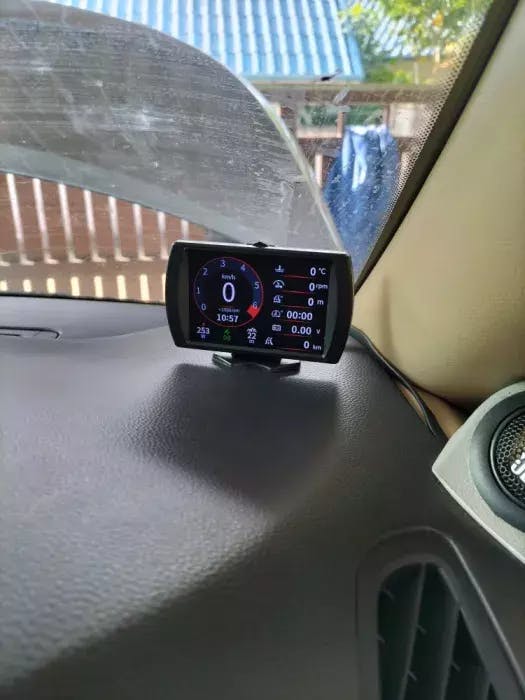

3. Paste the double-sided tape on the base of the main unit, and find a suitable position to stick it on the instrument panel.

Packaging List:
