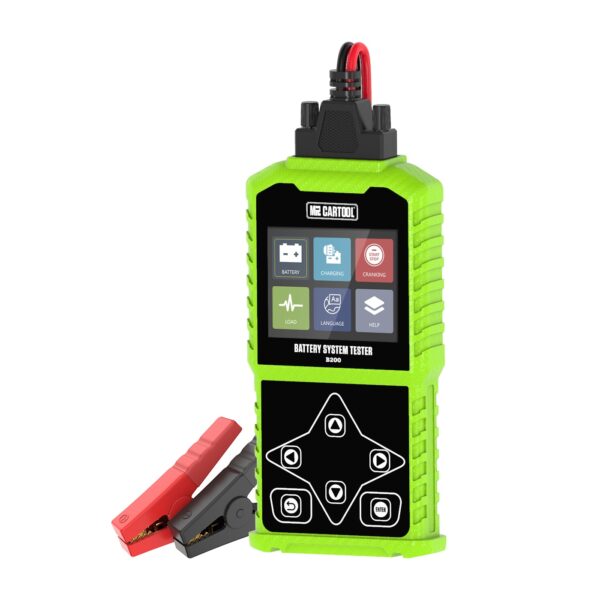

B200 Auto Battery Tester introduction:
MR CARTOOL B200 Auto Battery Tester with the most advanced conductivity testing technology in the world, it can easily, quickly and accurately measure the actual cold starting current capability of the car starting battery, the health of the battery, as well as quickly detect common faults in the car starting system and charging system, which is beneficial for the maintenance personnel to quickly and accurately determine the fault location of the car and facilitate the quick repair of the car.
* Working temperature: -20℃ to 50℃
* Special test clip: double conductor Kelvin clip
* Housing material: acid-resistant ABS plastic
* Measuring battery range: 4AH-300AH
* Measuring voltage range: 7V-30V
*Product Weight: 439g
Battary Test Standard:
CCA: Cold Cranking Amps 30-1700
JIS: Japan Industrial Standard 26A17-245H52
GB: China National Standard 4-220Ah
BCI: Battery Council International 30-1700
CA: Cranking Amps 30-1700
DIN: German Auto Industry Committee 30-1000
IEC: Interal Electrical 30-1000
EN: European Automobile Industry Association 30-1700
SAE: Society of Automotive engineers 30-1700
B200 12V/24V Auto Battery Tester Features:
➤1. ACCURATE BATTERY TEST: Battery test result includes reading of real voltage, Rated CCA value, measured value, resistance value and SOC.
➤ STARTING SYSTEM TEST: MR CARTOOL B200 Auto Battery Tester allows to do the starting test, which can diagnose the maximum and minimum starting voltage and real voltage reading.
➤CHARGING TEST & WAVE TEST: The charging test helps to clearly know the status of load voltage, no-load voltage, diodes ripple voltage, and charge voltage; Wave testing can provide real-time monitoring to the battery.
➤MULTI-LANGUAGE OPTIONS: This battery tester can support multiple languages and customers can choose different language packs, which include: Chinese, Japanese, English, Russian, Spanish, French, German, etc. Other languages can be customized according to user needs, please contact the battery tester manufacturer.
➤SUPPORT VARIOUS VEHICLE MODELS: MR CARTOOL B200 Car Battery Tester Supports all 12V/24V vehicles battery and system testing.
➤PLUG AND PLAY: Just connect the tester’s clips with battery then it will turn on and ready to test and analyze battery. It’s one of the most cost-effective Gift!
➤TWO TEST MODE: The B200 auto battery load tester with “Quick” and “Standard” two modes. If you Don’t Know the Type of Battery, you can choose the “Quick” mode. Fast and Convenient for users and technicians to operate and provides accurate test result
➤WORRY-FREE SERVICE: Fast and safe delivery; Within 24h professional after-sale team service, MR CARTOOL offers a 2-year warranty, and lifetime maintenance.
Developed to test 12V/24V 20 – 2000 CCA batteries, Cranking and Charging system. Supports the majority of battery standards, such as CCA, JIS, GB, BCI, CA, MCA, DIN, IEC, EN, SAE. Great for cars, RV, SUV, motorcycle, boats, light trucks
MR CARTOOL B200 Car Battery Tester Functions:
The Charging test helps to clearly know the status of load voltage.no-load voltage, diodes ripple voltage,and charge voltage
Note: Please do not turn off the engine during the testing. All electrical appliances are turned off. If you turn on or off any electrical appliances in the car during the testing, this will affect the accuracy of the testing results.
➤Maximum load testing
In the main menu, press the up and down keys to select the maximum load testing, press ENTER the tester to enter the testing.
➤Accurate Battery Test:
Test result includes reading of real voltage, Rated CCA value, measured CCA value, resistance value SOH, and SOC.
Product Detail Shows:
When doing a battery test, please make sure the car is off .
Packing List :
1pc* MR CARTOOL B200 Auto Battery Tester main unit
1pc* User maunal
1pc* Package box
Safety Protection Measures and Precautions:
1.Please ensure that the diagnostic testing or services are performed in a safe environment.
2.Wear protective safety glasses that comply with ANSL standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all running or heating equipment.
3.Testing the vehicle in a well-ventilated work area: the exhaust gases are toxic.
4.When working around the ignition coil, be especially careful with the distributor cap, ignition wires, and spark plugs, which are components that generate dangerous high voltage when the engine is running.
5.Place fire extinguishers near gasoline/chemical/electrical devices in case
6.Put the gearbox in park (automatic transmission) or neutral (manual transmission), and make sure to apply the handbrake.
7.Do not connect or disconnect any testing devices while the ignition is on or the engine is running.
8.When turning on the power switch of the tool, the battery current and voltage will be conducted directly to contact the ground or certain circuits may produce sparks, therefore, do not use it around flammable materials, such as gasoline or its vapors. Sparks from electrified tools can ignite these vapors, using the same caution as you would when using a welding machine.
9.Keep the equipment dry, clean and free of oil, water or grease. Please keep the equipment clean by using a clean cloth if necessary.
If you have any questions, please feel free to contact us first！
