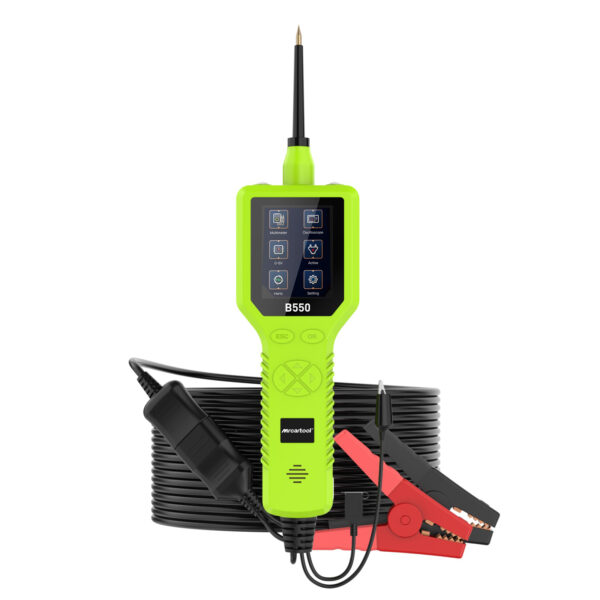

MRCARTOOL B550 Automotive Circuit Tester Electrical System Voltage Tester Multimeter For 12V/24V Vehicles
MRCARTOOL B550 is the best automotive circuit tester for reducing diagnostic time in all 9V to 30V vehicle electrical systems. After a simple hook-up of the tool to the vehicle’s battery, you can determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another. Additionally, AC voltage detection, DC voltage detection, resistance detection, diode testing, and current overload protection will be available to test.
MRCARTOOL Electrical System Circuit Tester Quick Search
MRCARTOOL B550 Electrical System Circuit Tester Features:
- Flashlight Design: Enables successful completion of circuit testing even in dark environments.

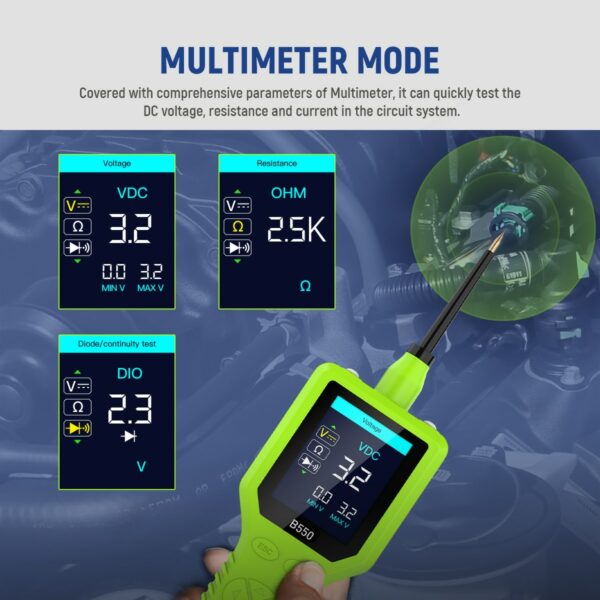

- Multimeter Mode:
- DC Voltage Detection Mode: Detects DC voltage values in the circuit under test and displays maximum and minimum voltages.
- Resistance Test and Diode Test Mode: Detects component damage due to short circuits.
- Oscilloscope Mode: Displays voltage, frequency, and duty cycle of tested components.
- Component Activation Function: The MRCARTOOL B550 automotive circuit tester outputs required drive waveforms for component activation.

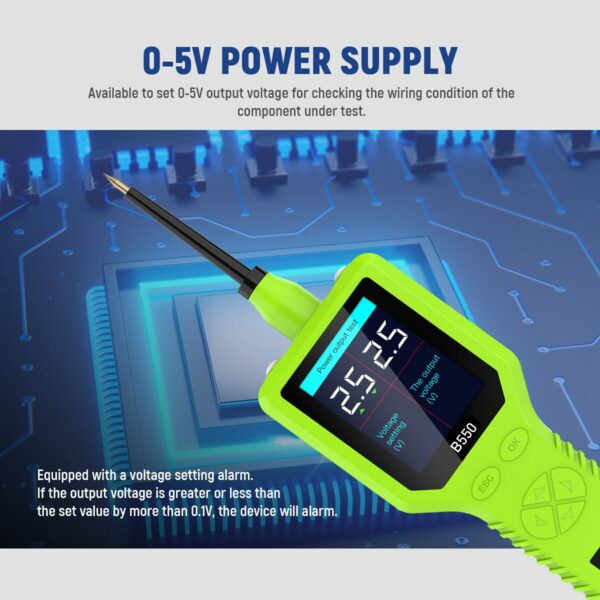

- Adjustable Voltage Output from 0-5V: The MRCARTOOL B550 automotive circuit tester can output any voltage value between 0 and 5 volts.

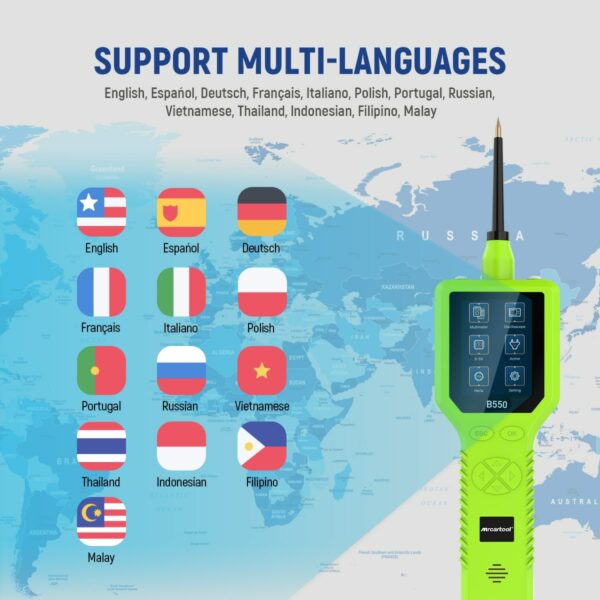

- Multiple Language Settings: Supports English, Spanish, German, and 13 other languages, ensuring convenience in use.

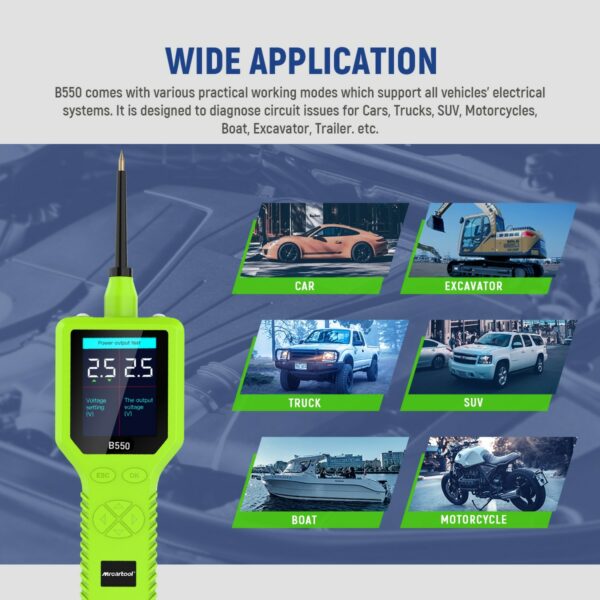

- Wide Range of Applications: The MRCARTOOL B550 automotive circuit tester offers various practical working modes, supporting detection systems in diverse electrical models.

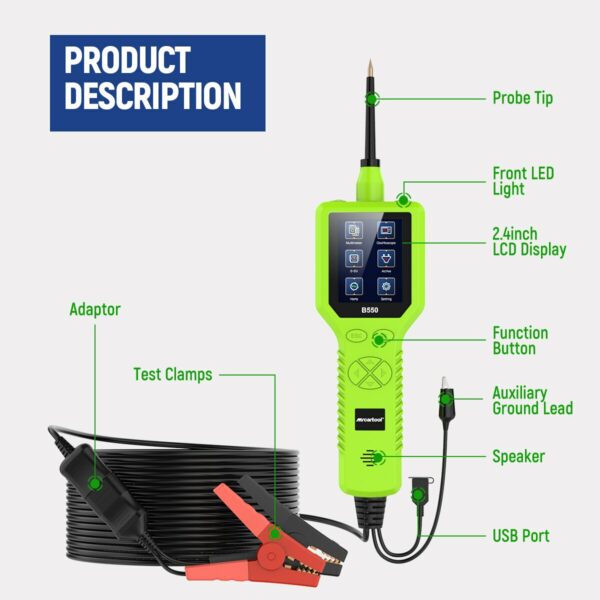

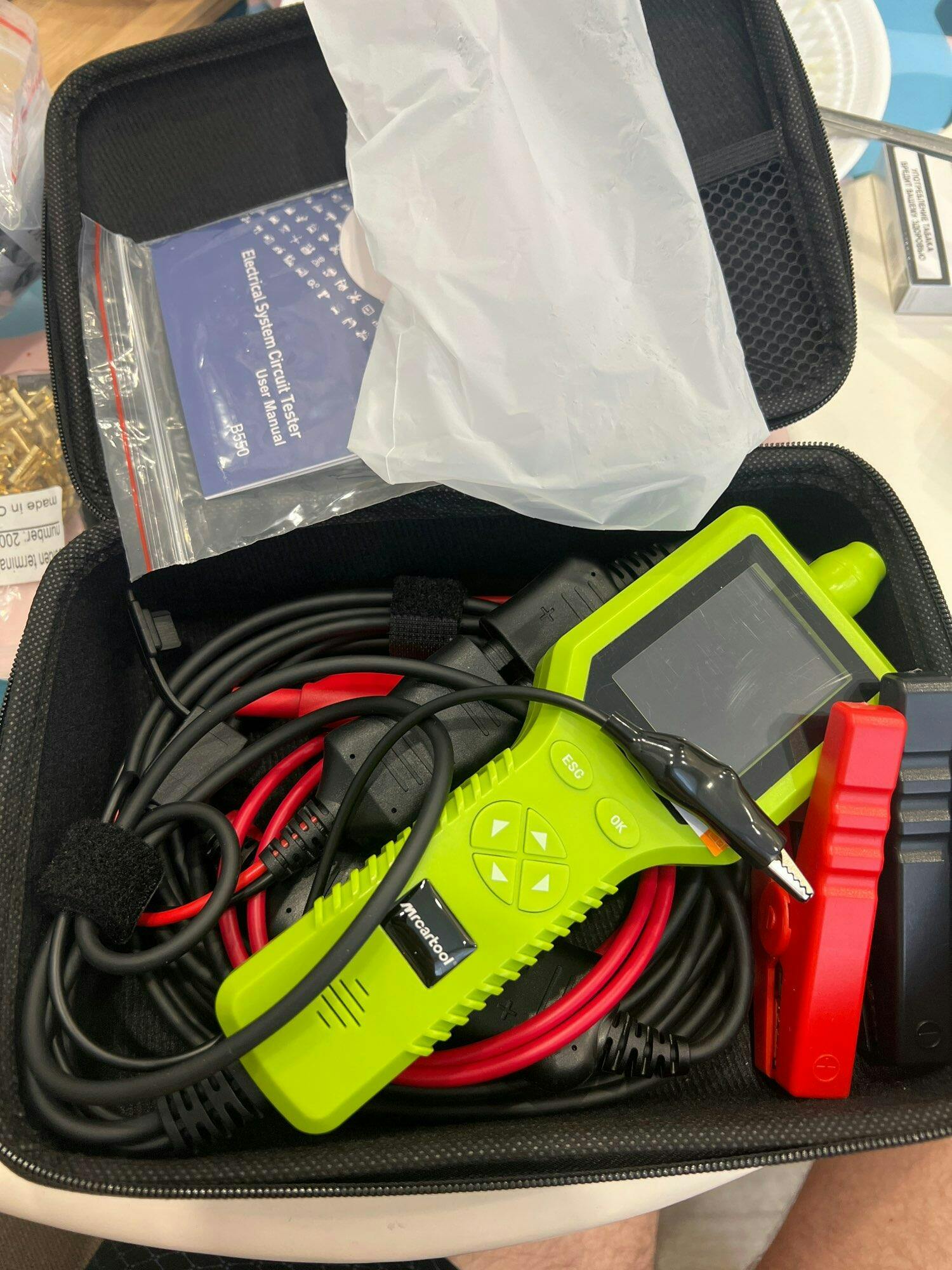

Packing List：
- 1pc x User’s manual
- 1pc x Cigarette lighter adapter
- 1pc x Battery hookup clips
- 1pc x Probe tip
- 1pc x 10m extension cable
| Weight | 1.1 kg |
|---|---|
| ships-from | Poland, United States, GERMANY, SPAIN, Russian Federation, France, CN |
Specifications
Brand Name: MR CARTOOL
External Testing Certification: ce
Origin: CN(Origin)
Model Name: B550
Electronic: No
Item Height: 2.7cm
Item Length: 16.5cm
Power: 8W
Material Type: ABS
Certification: CE
Item Type: Electrical Testers & Test Leads
Item Weight: 1.2kg
Voltage: 12V/24V battery
Item Width: 4cm
Item Type: Car Electrical Circuit Tester
Function: Automotive Circuit Voltage Test
Feature 1: Car Auto Circuit Tester
Dimensions: 165×40×27 (mm)
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60℃ ( 32 to 140 F)
Storage Temperature: -40 to 70 ℃ (-40 to 185F)
External Power: 12V/24V battery
Feature 2: PS100 Power Scan
