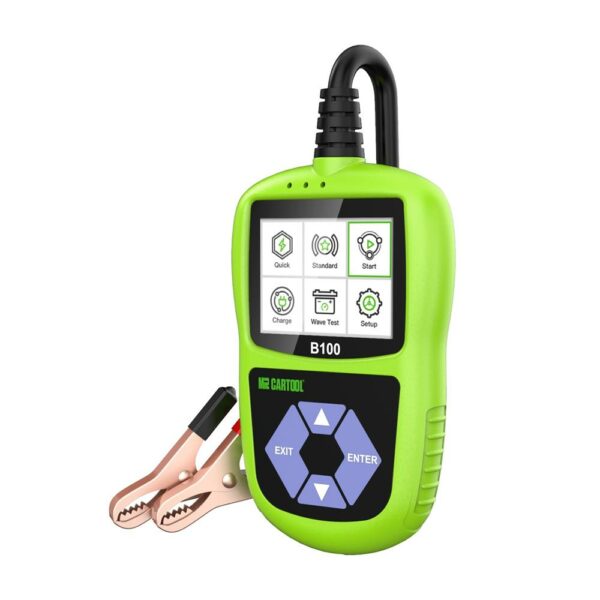

The MR CARTOOL B100 Automotive Battery Tester is a battery tester for small to medium sized repair stores and individual car owners. It can accurately test the performance of automotive batteries as well as diagnose car starting systems and car charging systems, and other battery-related problems. the B100 is suitable for 12V battery testing and comes with a standard battery test selection process. Using advanced conductive technology, battery test results are highly accurate.
Display: 2.4-inch TFT color
Operating temperature: -20 to 60 degrees Celsius / 32 to 140 degrees Fahrenheit
Storage temperature: -20 to 70 degrees Celsius / -4 to 158 degrees Fahrenheit
External power supply: 12V /
Dimensions: 115 x 75 x 18mm/4.5 x 3 x 0.7 inches
Weight: 800 grams / 1.76 lbs

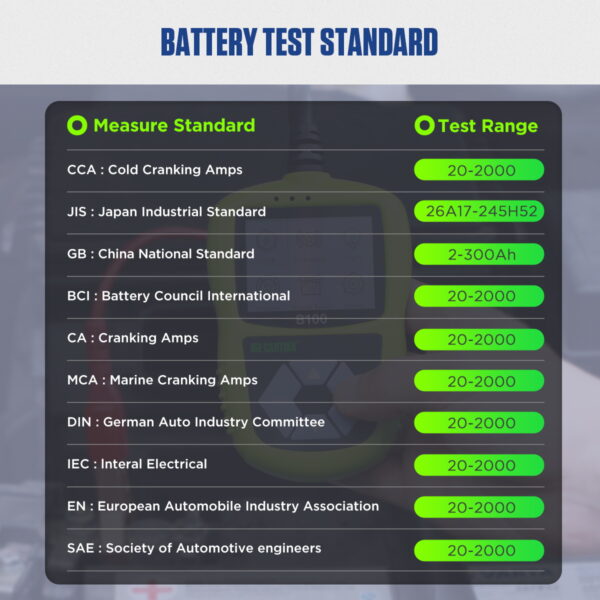

Battery test standards:
CCA: Cold start current 20-2000
JIS: Japanese Industrial Standard 26A17-245H52
GB: Chinese National Standard 2-300Ah
BCI: Battery Council International 20-2000
CA：Starting current 20-2000
MCA: Marine starting current 20-2000
DIN: German Automotive Industry Council 20-2000
IEC：Interal Electrical 20-2000
EN: European Association of the Automotive Industry 20-2000
SAE: Society of Automotive Engineers 20-2000
B100 12V Battery Tester Features:
➤ ACCURATE BATTERY TEST: Battery test results include readings of actual voltage, rated CCA values, measured values, resistance values, and SOC.
➤ START-UP SYSTEM TEST: The MR CARTOOL B100 automotive battery tester allows for start-up testing and can diagnose maximum and minimum start-up voltages as well as actual voltage readings.
➤ CHARGING TEST & WAVE TEST: The charging test helps to clearly know the status of load voltage, no-load voltage, diodes ripple voltage, and charge voltage; Wave testing can provide real-time monitoring to the battery.

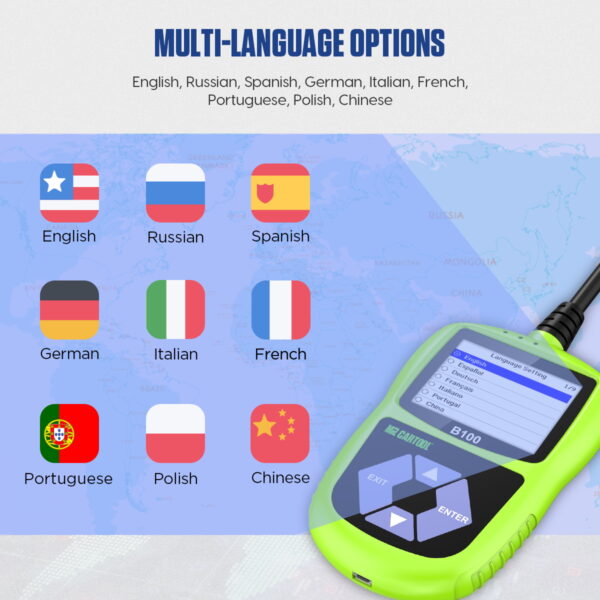

➤ MULTI-LANGUAGE OPTIONS: MR CARTOOL B100 Car Battery Tester comes with 8 available options, which are: English, German, Spanish, Portuguese, italian, French, Chinese, Polish

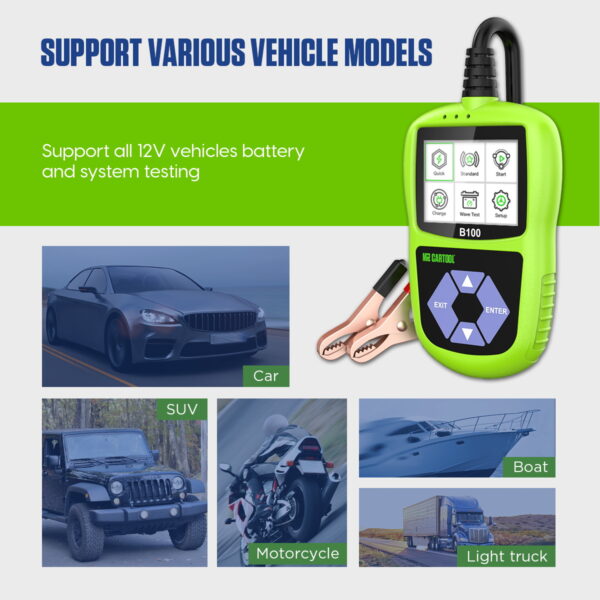

➤ SUPPORT VARIOUS VEHICLE MODELS: MR CARTOOL B100 Car Battery Tester Supports all 12V vehicles battery and system testing.
➤ PLUG AND PLAY: Just connect the tester’s clips with battery then it will turn on and ready to test and analyze battery. It’s one of the most cost-effective Gift!
➤ TWO TEST MODE: The B100 auto battery load tester with “Quick” and “Standard” two modes. If you Don’t Know the Type of Battery, you can choose the “Quick” mode. Fast and Convenient for users and technicians to operate and provides accurate test result
➤ WORRY-FREE SERVICE: Fast and safe delivery; Within 24h professional after-sale team service, MR CARTOOL offers a 2-year warranty, and lifetime maintenance.
Developed to test 12V/24V 20 – 2000 CCA batteries, Cranking and Charging system. Supports the majority of battery standards, such as CCA, JIS, GB, BCI, CA, MCA, DIN, IEC, EN, SAE. Great for cars, RV, SUV, motorcycle, boats, light trucks
MR CARTOOL B100 Functions:
The Charging test helps to clearly know the status of load voltage.no-load voltage, diodes ripple voltage,and charge voltage

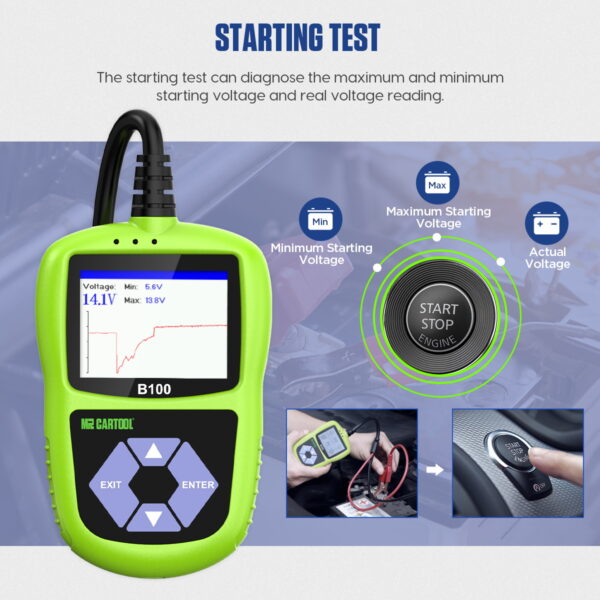

The start-up test diagnoses the maximum and minimum start-up voltages and the actual voltage readings.
Real time monitoring of battery
➤Accurate Battery Test:
Test result includes reading of real voltage, Rated CCA value, measured CCA value, resistance value SOH, and SOC.

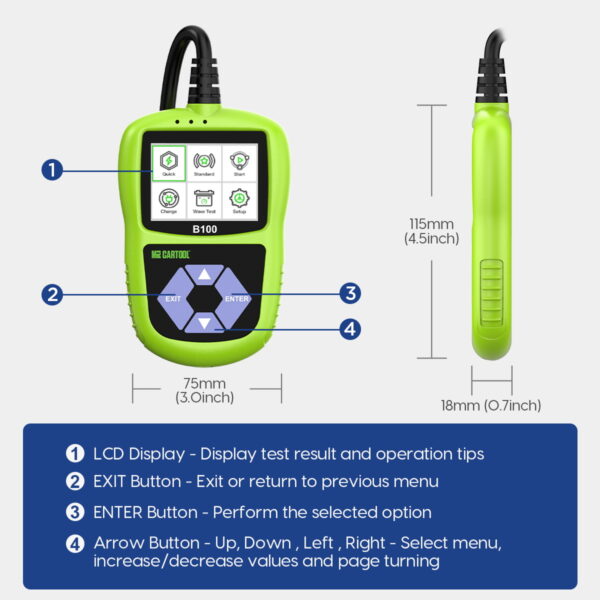

Product Detail Shows:
When doing a battery test, please make sure the car is off .
Packing List :
1pc* MR CARTOOL B100 Car Battery Tester main unit
1pc* User maunal
1pc* Package box
If you have any questions, please feel free to contact us first！
