【Black Friday Prices】MRCARTOOL V311 6-Cylinder GDI Fuel Injector Cleaner Machine

Original price was: $609.00.Current price is: $559.00.

V311 Fuel Injector Cleaner and Tester Machine is a mechatronic product integrating ultrasonic cleaning technology with microcomputer-controlled closed-loop hydraulic cleaning and testing technology. By simulating various engine operating conditions, this equipment can clean and test injectors for all types of automobiles, motorcycles, and marine vessels.

Fast shipping within 48 hours

2 year warranty, Free Part

MRCARTOOL V311 Fuel Injector Cleaner Machine is a new 2024 professional fuel injector cleaning, injector flow tester for stand alone fuel injections with full injector testing capabilities. It is also a marine fuel injector cleaning machine that supports GDI, EFI and FSI injector cleaners. Injector Pulse Tester performs injector testing, heats up ultrasonic cleaning fluids and offers multiple language options.

📝Warm Tips
  1. Regarding the injector test fluid you can choose medical alcohol and paraffin for testing, please do not use any corrosive cleaning fluid for testing. If it is not used for a long time, it is recommended to recycle the test fluid after the test is completed.
  2. Regarding the injector cleaning fluid, you can purchase a cleaning fluid specifically for carbon cleaning, and I’ve attached a link below to the one we often recommend to our customers to purchase. You can click on the link to purchase it directly.
  3. The cleanser added into the ultrasonic cleaner just soaked the injectors’ needle is suitable.
  4. Do not activate the ultrasonic cleaner before adding the ultrasonic cleanser, as this may result in damage.
  5. Strictly prohibit to put the pulse signal cable or its connecter into the cleanser, otherwise damage will be incurred.
  6. The continue work time of the ultrasonic cleaner don’t be more than 30min, otherwise it will shorten the life.
  7. Not in using, please put out the power plug.

What is the difference between all MRCARTOOL Fuel Injector Tester?

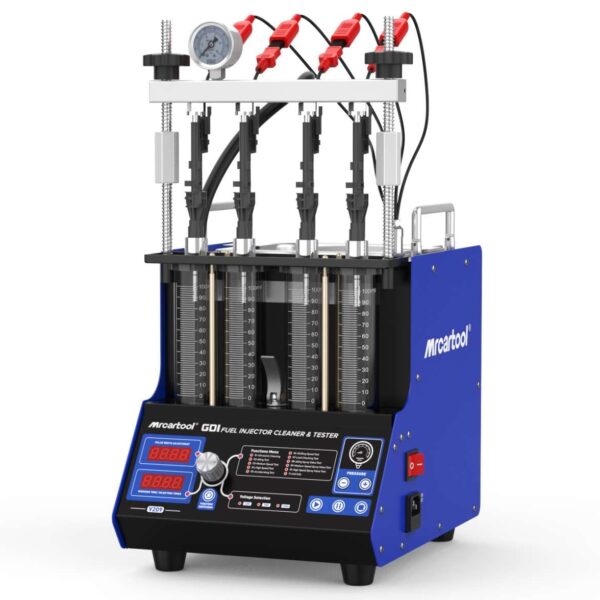

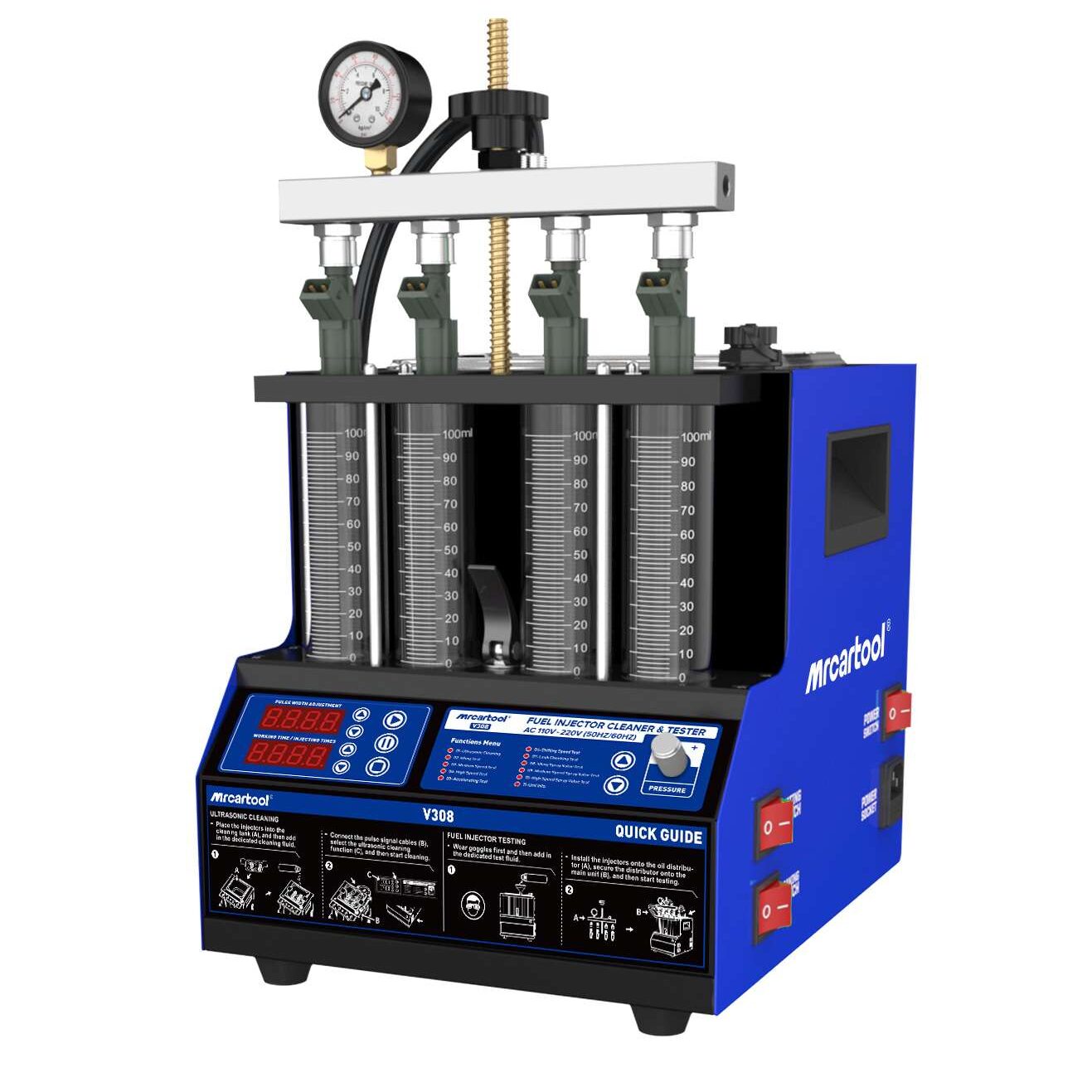

Product Name V209 V308 V309 V310 V311
Product Image
Applicable Voltage 110V/220V 110V/220V 110V/220V 110V/220V 110V/220V
Basic Functions 1 Cleaning Functions
9 Testing Functions
1 Cleaning Functions
9 Testing Functions
3 Cleaning Functions
9 Testing Functions
3 Cleaning Functions
9 Testing Functions
1 Cleaning Functions
6 Testing Functions
Capacity of Measuring Cylinder 110ml 100ml 110ml 110ml 100ml
Cleaning Fluid Tank Capacity 1600ml 2000ml 1600ml 2000ml 1600ml
Simulated RPM Range 0–5000r/min 0–7500r/min 0–7500r/min 0–7500r/min 0–5000r/min
Engine Cylinder 4 Fuel Injectors 4 Fuel Injectors 4 Fuel Injectors 6 Fuel Injectors 6 Fuel Injectors
Adapter Connectors 6 Types 4 Types 9 Types 9 Types 6 Types
Fuel Injector Cleaning Type Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)
Standard Fuel Injector Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)
Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)
Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)
Supported Voltage Settings
(Auto Voltage Protection Function)
12V / 70V / 120V 12V 12V / 70V / 120V 12V / 70V / 120V 12V / 70V / 120V
Language English English English, Germany, Italian, Chinese, Spanish, French, Russian, Arabic English English, Germany, Italian, Chinese, Spanish, French, Russian, Arabic
Cleaning Fluid Heating
45°C

45°C
× ×
45°C
Color Display Screen × × × 3.2 inch 5 inch
⚙️Other Models
Sale!
Original price was: $469.00.Current price is: $439.00.
Sale!
Original price was: $519.00.Current price is: $509.00.
Sale!
Original price was: $609.00.Current price is: $559.00.

MRCARTOOL V311Fuel Injector Cleaner Machine

Features
  • Ultrasonic Cleaning Of Fuel InjectorsMRCARTOOL V311 Injector Pulse Tester is able to heat the cleaning fluid to 50℃ in the cleaning tank, which can improve the cleaning effect on injectors.Cleaning tank capacity 1600ml, can clean 6 nozzles at the same time
  • Color Display: The 5-inch backlit LCD display ensures excellent visibility in both bright and dim environments, allowing you to intuitively and easily set cleaning and testing parameters.
  • Six test modes: Supports simulation of various actual engine working conditions, injector flow tester comprehensive testing of injector performance.
  • Compatible with a wide range of fuel injectors: The unit cleans and tests standard injectors, GDI injectors, FEI injectors and FSI injectors. It is suitable for direct injection engines from brands such as Mercedes-Benz, BMW, Audi, Porsche and Ford. It offers three voltage modes.
  • Wide Range of Application Scenarios: the machine can not only meet the cleaning of gasoline injectors, but also can be used for testing and cleaning of marine fuel injectors and motorcycle fuel injectors.
  • Multiple languages: Supports 7 languages: English, French, German, Italian, Spanish, Russian, Arabic, Chinese.
  • Adjustable Operating Parameters: During the detection process, the parameters of each detection function can be accurately adjusted to achieve better results.
  • Six-Cylinder Test: The design supports the cleaning or testing of six injectors at the same time, improving work efficiency.
  • WARRANTY: MRCARTOOL offers a 24-month warranty and 7×24 hours of friendly customer service to ensure your shopping experience.
online support

How to test Fuel Injectors with V311 Injector Pulse Tester injector flow teste?

Structure
  • Clean the injector’s exterior with liquid before use. Place injectors in the ultrasonic bath after removing dirt, ensuring the fluid doesn’t exceed the pulse line connection port.
  • Turn on the ultrasonic system to allow the ultrasonic energy to dislodge any particle buildup inside the injectors. After cleaning, recycle the remaining cleaning fluid.
  • Fix the injectors on the main machine and test them for resistance, shorts, and current draw. Add the test liquid to half of the glass tube.
  • We are performing leak tests, spray pattern evaluations, and flow rate testing on the flow bench. The technicians have now returned the injectors to the flow bench to retest all functions.

Packing List :

Weight N/A
Ship From

, , ,

Voltage

,

Delivery

18 reviews for 【Black Friday Prices】MRCARTOOL V311 6-Cylinder GDI Fuel Injector Cleaner Machine

5.0
Based on 18 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
  1. John Gardner

    this unit is built well and will clean and test your injectors. Any engine tuner should have one because it is the only way you will know if newly purchased injectors are flow matched. I found my original injectors were matched very close and new injectors not so much. I cleaned and reused my old injectors and sent back the new ones. The only way an engine could compensate for mismatched injectors is if it had a O2 sensor for each cylinder, I dont know of any that does.

    (0) (0)
  2. JBM Performance

    The fuel injector tester has a user-friendly, clear, and easy-to-use interface, providing accurate simulations. It’s truly a great product, and it even allows you to set the language to Arabic! No other product on the market can compare.

    (0) (0)
  3. King Christian

    About 10 minutes after the cleaning began, the flow rate of the fuel injectors changed significantly. Initially, the flow rates of the six injectors varied greatly, but by the end of the test, the flow rate of each injector differed by only a few milliliters. I first used the ultrasonic cleaner on one part, then connected the cleaning agent. This cleaner can be reused until it gets dirty again. The instruction manual is well-written, and the included adapter and components seem capable of cleaning almost all fuel injectors on the market. The pressure and pulse frequency are adjustable, as is the flow rate of the injectors themselves. It also has some standard programs that automatically adjust the pulse frequency during the cleaning process. Overall, I think it’s good value for money, and I believe it will bring even more benefits in the coming years.

    (0) (0)
  4. Daphne Alice

    The MRCARTOOL V311 Fuel Injector Cleaner Machine is an impressive 2025-edition tool that delivers reliable performance for both automotive and marine applications. It supports GDI, EFI, and FSI injectors, making it versatile enough for a wide range of engines. The injector pulse testing function works smoothly and provides accurate flow testing results, while the ultrasonic cleaning with a built-in heating feature ensures injectors are thoroughly cleaned.

    What stands out most is its stand-alone operation—no need for external connections—and its multi-language interface, which makes it user-friendly for workshops worldwide. Overall, the V311 combines professional-grade testing capabilities with convenience, making it a great choice for technicians and DIY users looking for efficiency and precision in injector maintenance.

    (0) (0)
  5. Arlen

    The V311 injector tester is fantastic! It heats the cleaning fluid to 50°C for deep cleaning and can test up to six injectors at once, making it incredibly efficient. The six testing modes meet all my needs. It’s compatible with GDI injectors. Absolutely excellent value for money!

    (0) (0)
  6. Bertram Harrod

    When it evenly sprays mist, I knew I made the right choice buying it! I absolutely love this product, and its built-in cleaning function is super convenient.

    (0) (0)
  7. Ethan

    I primarily use this machine in my marine repair shop for testing and cleaning marine fuel injectors, and it performs exceptionally well. (My car gets to enjoy the benefits too!) I find the light and testing process during injector inspection quite therapeutic, and the results are crystal clear¡ªyou can easily see the differences between various injectors. A tool worth buying!

    (0) (0)
  8. Logan

    The product works great and handles normal injectors without any problems. But when testing the BMW injectors it will short, what should I do with it?
