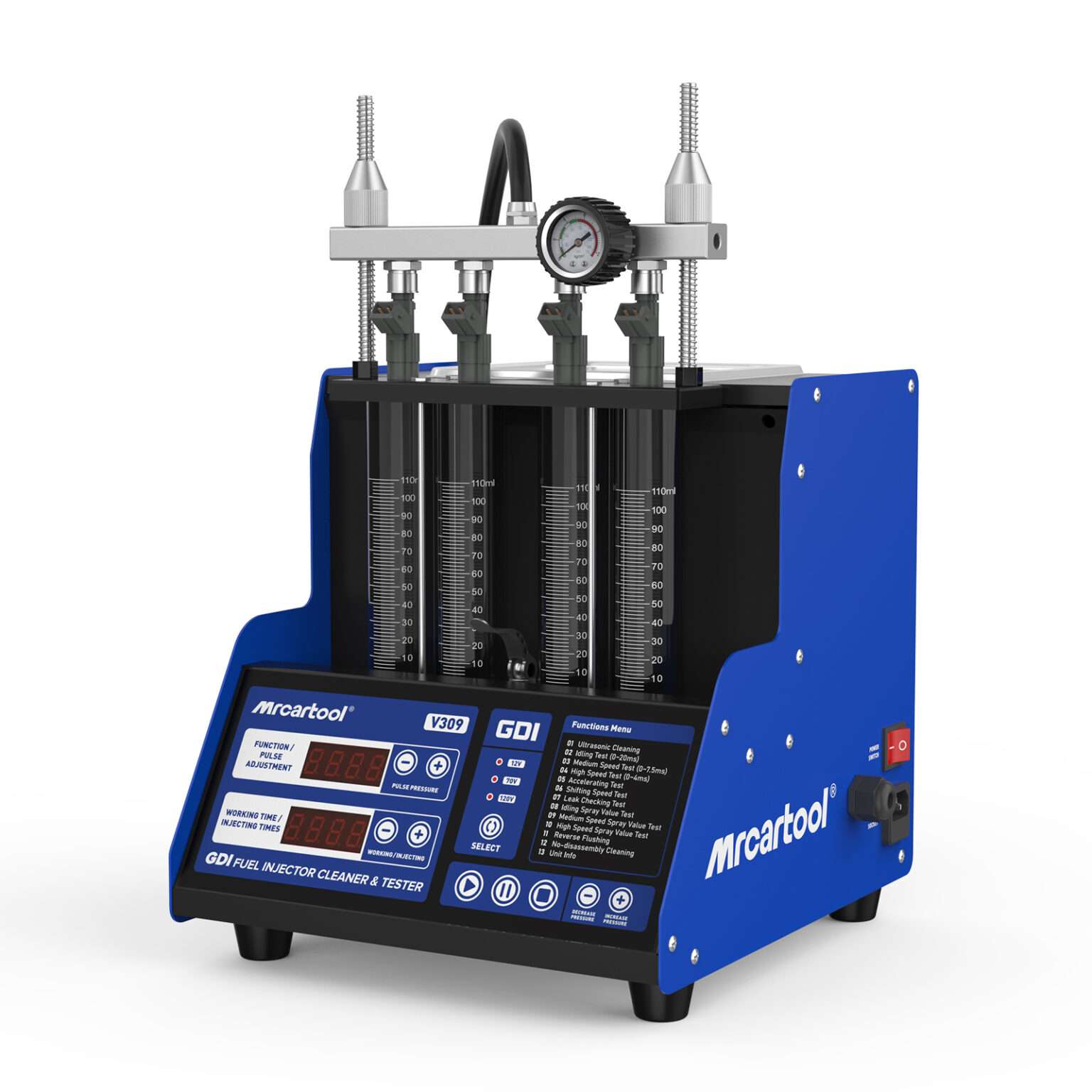

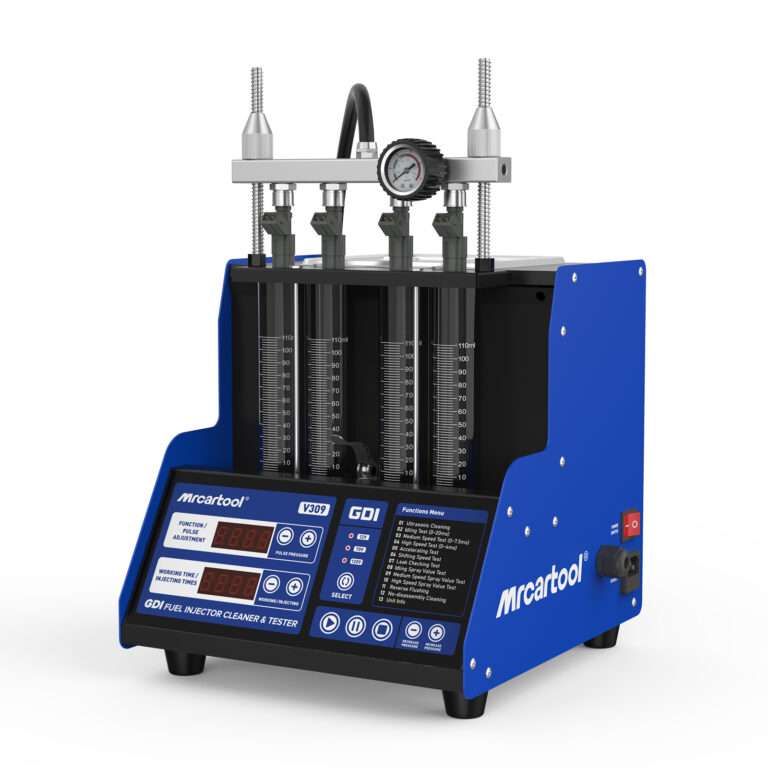

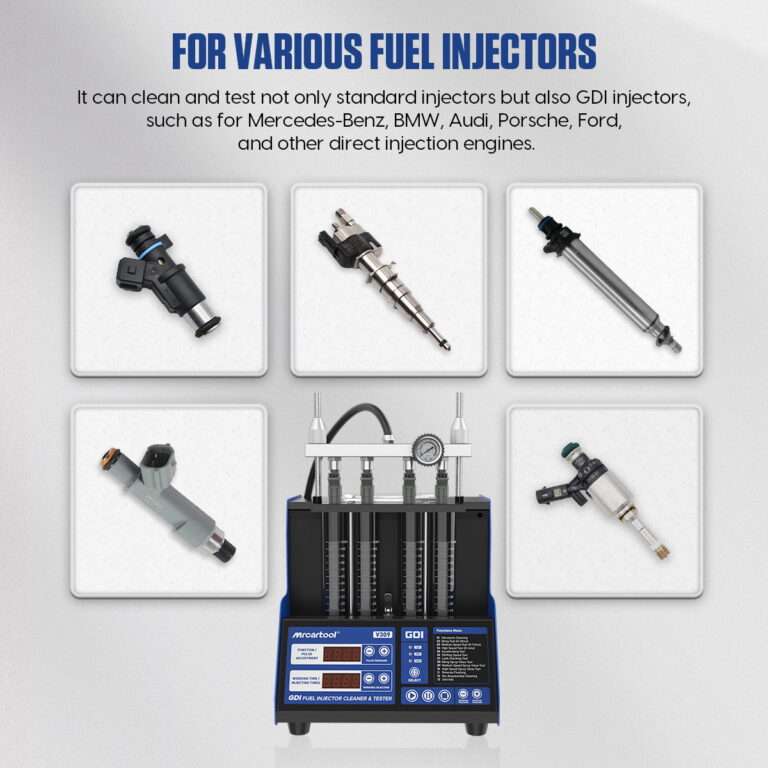

MRCARTOOL V309 Fuel Injector Tester and cleaning machine combines ultrasonic cleaning with microcomputer-controlled oil pressure for detection. It simulates various engine conditions to clean and inspect high-pressure EFI/FSI/GDI injectors and standard injectors, compatible with 99% of vehicles.
- The cleanser added into the ultrasonic cleaner just soaked the injectors’ needle is suitable.
- Do not turn on the ultrasonic cleaner before adding the ultrasonic cleanser, or you may incur damage.
- Strictly prohibit to put the pulse signal cable or its connecter into the cleanser, otherwise damage will be incurred.
- The continue work time of the ultrasonic cleaner don’t be more than 30min, otherwise it will shorten the life.
- Not in using, please put out the power plug.

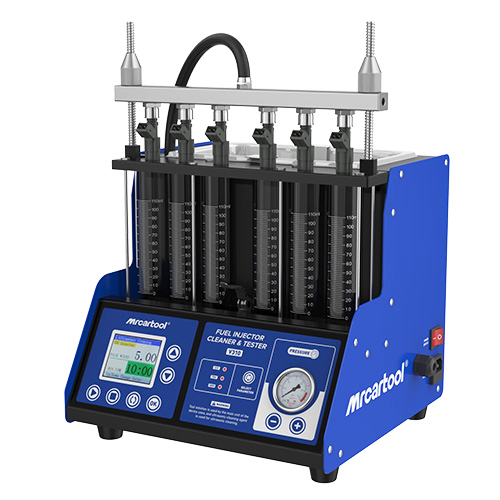

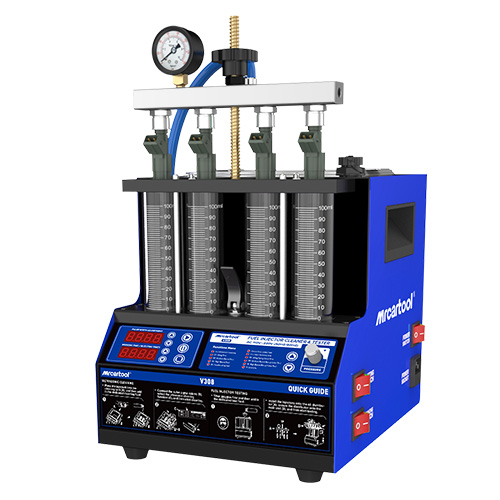

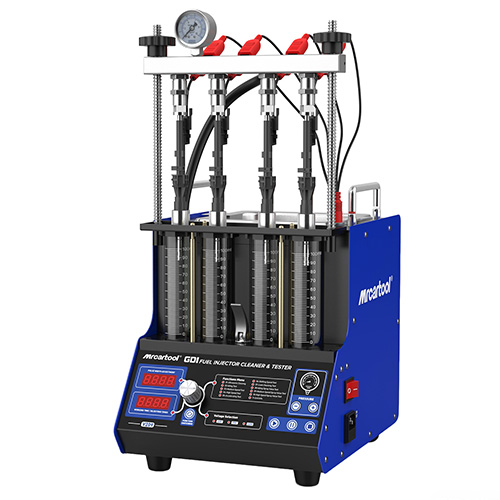

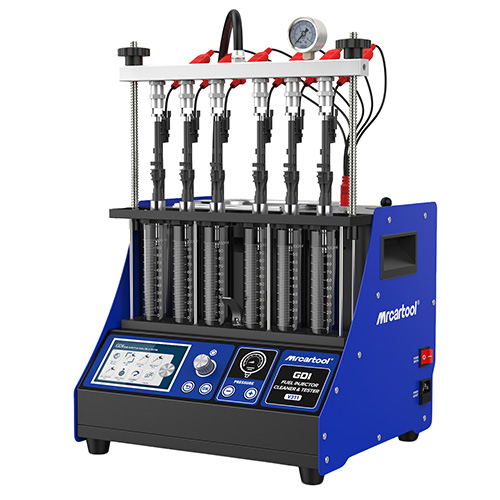

What is the difference between all MRCARTOOL Fuel Injector Tester?

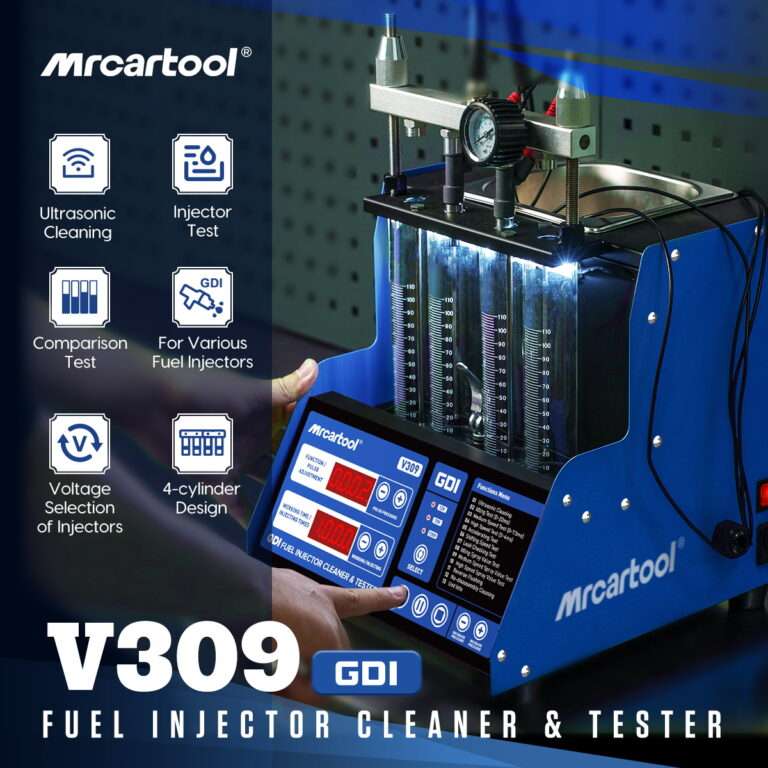

MRCARTOOL V309 Fuel Injector Tester Features

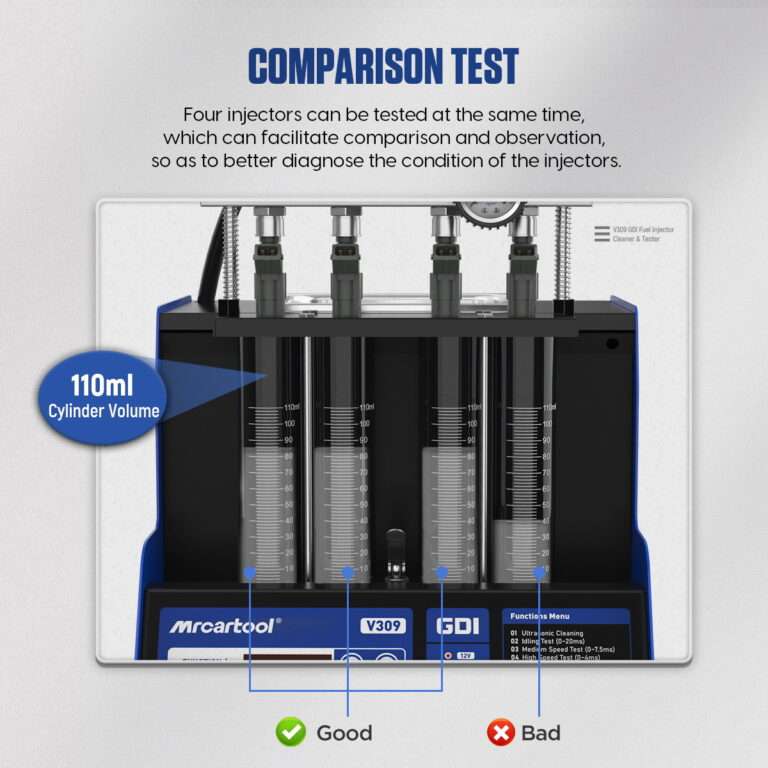

- 4 Large Cylinders & 1300ml Tank Capacity: V309 Fuel Injector Tester kit equipped with 140ml-capacity cylinders, directly check GDI/standard injectors’ bad or good situation. Powerful ultrasonic cleaning capacity, support to clean or test 4 injectors simultaneously at most.

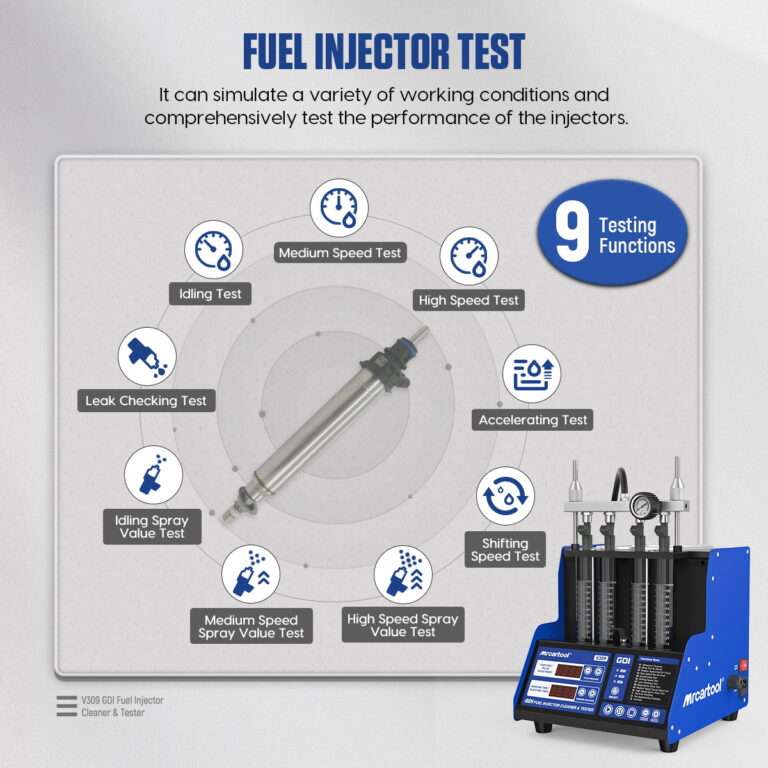

- 9 Testing Functions: The injector cleaner machine supports nine test functions: Idle Speed, Medium Speed, High Speed, Accelerating, Variable Speed, Leakage, and three Spray Volume tests. In addition, the ultrasonic cleaning function is devoted to fast injector cleaning without any damage.

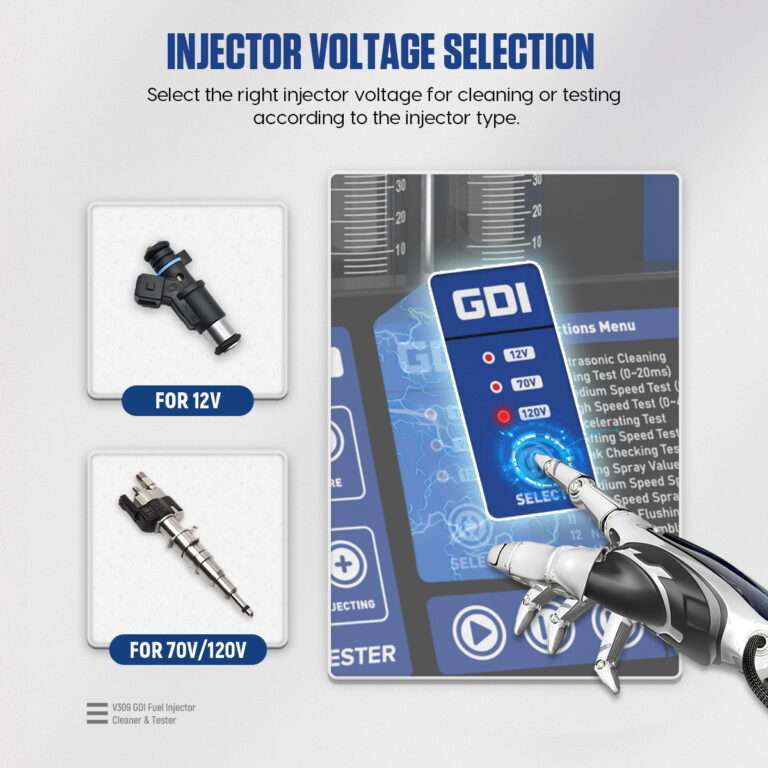

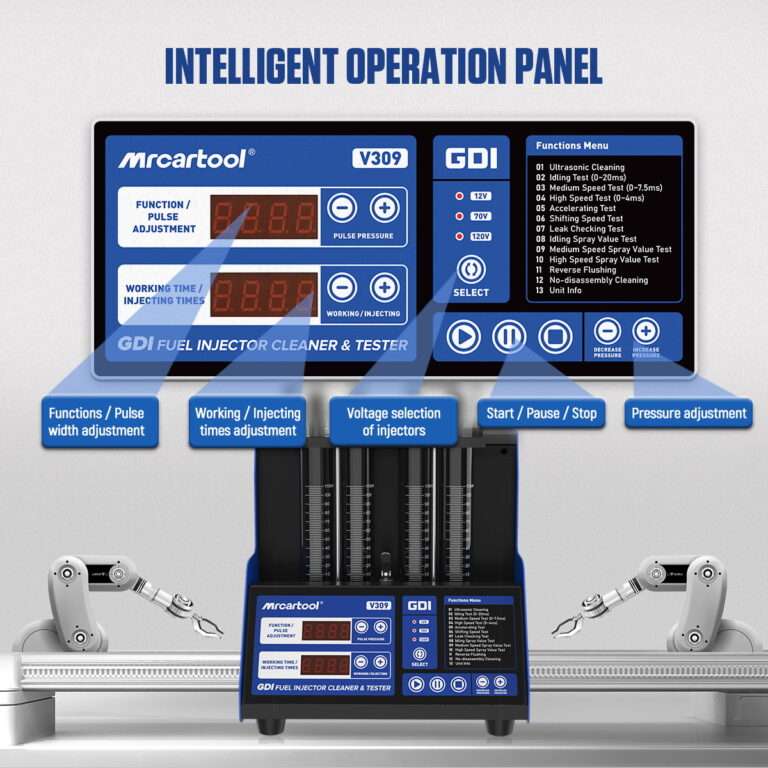

- Smart Operation Panel: The digital control panel allows one-button start/stop and lets users adjust the test time, working frequency, fuel injection times, and shortest switching period within the allowable range. 12V/70V/120V voltages to meet your different needs. All can be done by one person, saving time and energy.
- WARRANTY: MR CARTOOL offers a 24-month warranty and 7×24 hours of friendly customer service to ensure your shopping experience.Onlie Support>>
MRCARTOOL V309 Fuel Injector Tester Main Detection Functions:
- Cleanning petrol injector with ultrasonic
- Cleanning spark plug.Put spark plug into cleaning tank ,input clean fluid and begin clean
- Testing injector injection in different situation, check leaking and blocking
- Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
- Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
- The cleaning and testing function is compatible only with HONDA, YAMAHA, SUZUKI, and SANYANG injectors, requiring additional user-chosen accessories and fees.
How to test fuel injectors with V309 fuel injector tester?

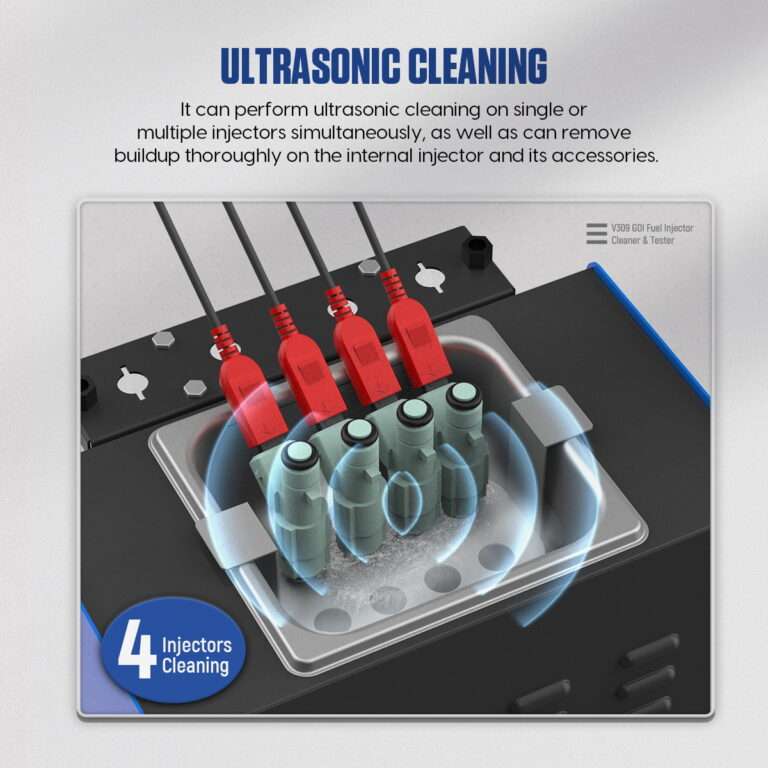

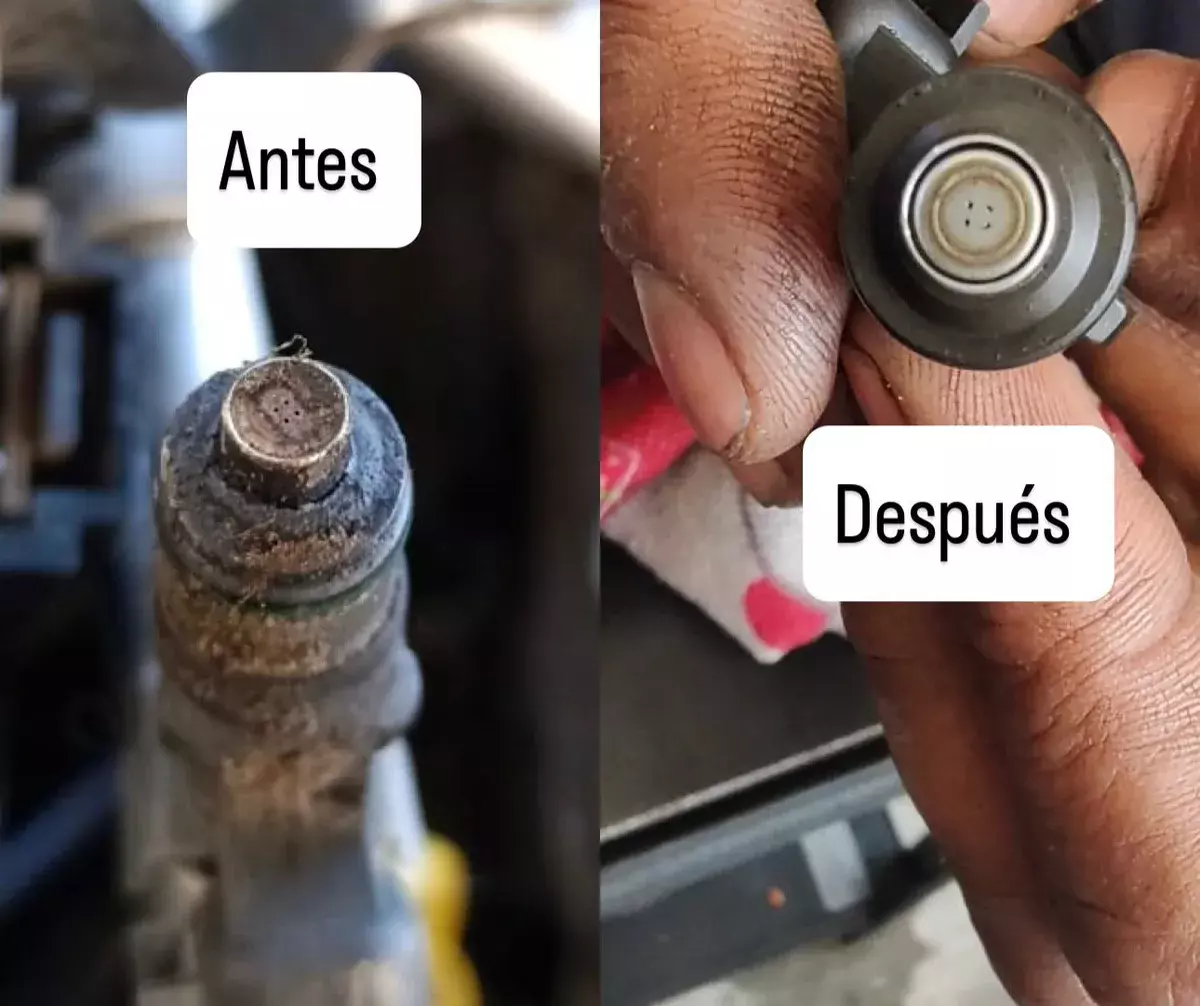

- Clean the injector’s exterior with liquid before use. Place injectors in the ultrasonic bath after removing dirt, ensuring the fluid doesn’t exceed the pulse line connection port.
- Turn on the ultrasonic system to allow the ultrasonic energy to dislodge any particle buildup inside the injectors. After cleaning, recycle the remaining cleaning fluid.
- Fix the injectors on the main machine and test them for resistance, shorts, and current draw. Add the test liquid to half of the glass tube.
- We are performing leak tests, spray pattern evaluations, and flow rate testing on the flow bench. The technicians have now returned the injectors to the flow bench to retest all functions.
