MRCARTOOL V310 Introduction:
MRCARTOOL V310 GDI Fuel injector diagnostic and cleaning equipment is a mechatronics product that combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various operating conditions of the engine, and cleans and inspects the fuel injectors of various automobiles and motorcycles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry, research and teaching and training departments
Notice:
The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-230V. V308 Car Fuel Injector Tester Cleaner versions: English(If you would like to customize the language version,you can contact customer service before placing the order, Minimum order quantity: 10pcs,support customized language versions)
GDI Fuel Injector Cleaner & Tester Machine Feature:
[For GDI Injector Cleaning&Test]: MRCARTOOL V310 can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.
[Multi Voltage Selection]: MRCARTOOL V310 GDI Fuel Injector 6-cylinder Cleaner and Tester designs with various types of voltage output (12V, 70V & 120V) to be selected to adapt for different types of injector testing. [Upgrade Ultrasonic Cleaning]: Different from other cleaner& tester machines, MRCARTOOL V310 comes with a cooling fan and thermal protection, and with a power of 60w, its ultrasonic cleaning capacity is significantly enhanced. [Various Parts equipped&Portable Drawer ]: It is equipped with a variety of injector accessories for different needs. A portable drawer at the bottom is designed to store a variety of parts and for easy access. [6-Cylinder & 2 Draining Ports Design]: MRCARTOOL V310 can test and clean 6 injectors at the same time for better efficiency; it also has both control valves for cleaning solution draining and test liquid recovery. Very easy and convenient to deal with and no worries about leaving a mess.MRCARTOOL V310 Details Design:
Structural description
1 Lock pole;
2 Lock nut;
3 Oil rail;
4 Top oil inlet connector;
5 Glass measuring cylinder;
6 Oil drain handle;

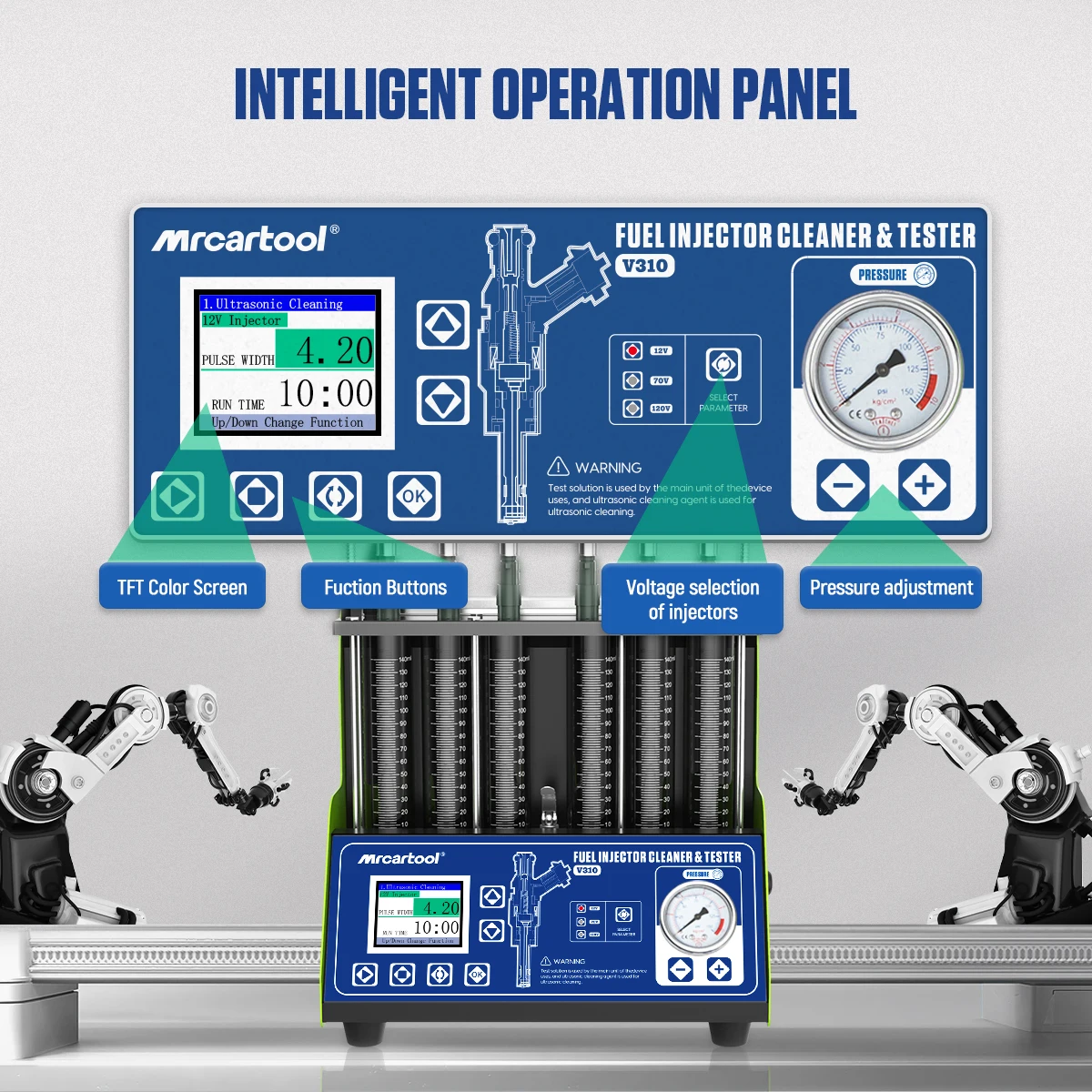

7 Operation panel;
8 Pressure gauge;
9 Oil outlet pipe;
10 Ultrasonic cleaning tank;
11 Signal wire;
12 Power switch;
13 Power socket;
14 Cleaning agent drain valve;
15 Testing agent liquid level
MRCARTOOL V310 Specifications:
Working Environment Parameters:
Power Supply: AC 110/220V±10%
Frequency: 50HZ±0.5
Relative Humidity:<85%
Environment Temperature:0℃~+40℃
External Magnetic Field Strength: <400A/m
No Open Flames Are Allowed: Around
Technical Parameters:
Tank Capacity: 2000ml
Range Of Rotation: 0-7500r/min
PWM Pulse Width: 0~20.0ms step0.1ms
Time: 0~20min
Cleaning Frequency: 40 kHz
Cylinder Volume: 180ml
Injection Times: 0~9900 times, step 100ms
System Pressure: 0~0.6Mpa
Ultrasonic Cleaning Power: 70W
Package Dimensions: 340*295*360mm
Packaging List:
