Sale!
MRCARTOOL V309 Fuel Injector Tester Direct Injection
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 2
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 3
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 4
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 5
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 6
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 7
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 8
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 9
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 10
MRCARTOOL V309 Fuel Injector Tester Direct Injection - Image 11

MRCARTOOL V309 Fuel Injector Tester Direct Injection

Original price was: $469.00.Current price is: $439.00.

V309 Fuel Injector Testing and Cleaning Machine integrates ultrasonic cleaning with microcomputer-controlled hydraulic pressure testing technology. It simulates multiple engine operating conditions and supports cleaning and testing of high-pressure EFI/FSI/GDI injectors as well as standard injectors, compatible with 98% of vehicle models.

Fast shipping within 48 hours

2 year warranty, Free Part

Discounts or Wholesale

MRCARTOOL V309 Fuel Injector Tester and cleaning machine combines ultrasonic cleaning with microcomputer-controlled oil pressure for detection. It simulates various engine conditions to clean and inspect high-pressure EFI/FSI/GDI injectors and standard injectors, compatible with 99% of vehicles.

📝Warm Tips
  • The cleanser added into the ultrasonic cleaner just soaked the injectors’ needle is suitable.
  • Do not turn on the ultrasonic cleaner before adding the ultrasonic cleanser, or you may incur damage.
  • Strictly prohibit to put the pulse signal cable or its connecter into the cleanser, otherwise damage will be incurred.
  • The continue work time of the ultrasonic cleaner don’t be more than 30min, otherwise it will shorten the life.
  • Not in using, please put out the power plug.

What is the difference between all MRCARTOOL Fuel Injector Tester?

Product Name V209 V308 V309 V310 V311
Product Image
Applicable Voltage 110V/220V 110V/220V 110V/220V 110V/220V 110V/220V
Basic Functions 1 Cleaning Functions
9 Testing Functions		 1 Cleaning Functions
9 Testing Functions		 3 Cleaning Functions
9 Testing Functions		 3 Cleaning Functions
9 Testing Functions		 1 Cleaning Functions
6 Testing Functions
Capacity of Measuring Cylinder 110ml 100ml 110ml 110ml 100ml
Cleaning Fluid Tank Capacity 1600ml 2000ml 1600ml 2000ml 1600ml
Simulated RPM Range 0–5000r/min 0–7500r/min 0–7500r/min 0–7500r/min 0–5000r/min
Engine Cylinder 4 Fuel Injectors 4 Fuel Injectors 4 Fuel Injectors 6 Fuel Injectors 6 Fuel Injectors
Adapter Connectors 6 Types 4 Types 9 Types 9 Types 6 Types
Fuel Injector Cleaning Type Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)		 Standard Fuel Injector Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)		 Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)		 Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors
(Mercedes-Benz, BMW, Audi, Porsche, Ford)
Supported Voltage Settings
(Auto Voltage Protection Function)		 12V / 70V / 120V 12V 12V / 70V / 120V 12V / 70V / 120V 12V / 70V / 120V
Language English English English, Germany, Italian, Chinese, Spanish, French, Russian, Arabic English English, Germany, Italian, Chinese, Spanish, French, Russian, Arabic
Cleaning Fluid Heating ✓
45°C		 ✓
45°C		 × × ✓
45°C
Color Display Screen × × × 3.2 inch 5 inch
⚙️Other Models
Sale!
New
【Black Friday Prices】MRCARTOOL V209 GDI Fuel Injector Cleaner 4-Cylinder Gasoline Outboard Motor

【Black Friday Prices】MRCARTOOL V209 GDI Fuel Injector Cleaner 4-Cylinder Gasoline Outboard Motor

Price range: $269.00 through $289.00
MRCARTOOL V308 Fuel Injection Tester Boat Fuel Injector Cleaner

MRCARTOOL V308 Fuel Injection Tester Boat Fuel Injector Cleaner

$289.00
Sale!
MRCARTOOL V309 Fuel Injector Tester Direct Injection

MRCARTOOL V309 Fuel Injector Tester Direct Injection

Original price was: $469.00.Current price is: $439.00.
Sale!
fuel injector

MRCARTOOL V310 Six-Tube Car Injector Tester Fuel Injector Supports GDI

Original price was: $519.00.Current price is: $509.00.
Sale!
【Black Friday Prices】MRCARTOOL V311 6-Cylinder GDI Fuel Injector Cleaner Machine

【Black Friday Prices】MRCARTOOL V311 6-Cylinder GDI Fuel Injector Cleaner Machine

Original price was: $609.00.Current price is: $519.00.

MRCARTOOL V309 Fuel Injector Tester Features

Features
  • 4 Large Cylinders & 1300ml Tank Capacity: V309 Fuel Injector Tester kit equipped with 140ml-capacity cylinders, directly check GDI/standard injectors’ bad or good situation. Powerful ultrasonic cleaning capacity, support to clean or test 4 injectors simultaneously at most.
  • 9 Testing Functions: The injector cleaner machine supports nine test functions: Idle Speed, Medium Speed, High Speed, Accelerating, Variable Speed, Leakage, and three Spray Volume tests. In addition, the ultrasonic cleaning function is devoted to fast injector cleaning without any damage.
  • Smart Operation Panel: The digital control panel allows one-button start/stop and lets users adjust the test time, working frequency, fuel injection times, and shortest switching period within the allowable range. 12V/70V/120V voltages to meet your different needs. All can be done by one person, saving time and energy.
  • WARRANTY: MRCARTOOL offers a 24-month warranty and 7×24 hours of friendly customer service to ensure your shopping experience.
online support

MRCARTOOL V309 Fuel Injector Tester Detection Functions

Functions
  1. Cleanning petrol injector with ultrasonic
  2. Cleanning spark plug.Put spark plug into cleaning tank ,input clean fluid and begin clean
  3. Testing injector injection in different situation, check leaking and blocking
  4. Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
  5. Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
  6. The cleaning and testing function is compatible only with HONDA, YAMAHA, SUZUKI, and SANYANG injectors, requiring additional user-chosen accessories and fees.

How to test fuel injectors with V309 Fuel Injector Tester?

Structure
  1. Clean the injector’s exterior with liquid before use. Place injectors in the ultrasonic bath after removing dirt, ensuring the fluid doesn’t exceed the pulse line connection port.
  2. Turn on the ultrasonic system to allow the ultrasonic energy to dislodge any particle buildup inside the injectors. After cleaning, recycle the remaining cleaning fluid.
  3. Fix the injectors on the main machine and test them for resistance, shorts, and current draw. Add the test liquid to half of the glass tube.
  4. We are performing leak tests, spray pattern evaluations, and flow rate testing on the flow bench. The technicians have now returned the injectors to the flow bench to retest all functions.

Packing List :

Weight 11.4 kg
Ship From

, , ,

Delivery

11 reviews for MRCARTOOL V309 Fuel Injector Tester Direct Injection

5.0
Based on 11 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

  1. Bartels –

    Love this V309 tester! It’s super easy to use—4 cylinders let me check injectors quickly, and ultrasonic cleaning works like a charm. 9 test functions cover every scenario I need, and the smart panel lets me tweak settings with one button. 12V/70V/120V voltages fit all my needs, and I can do everything alone. Saves time and gets injectors back in shape fast—worth every penny!

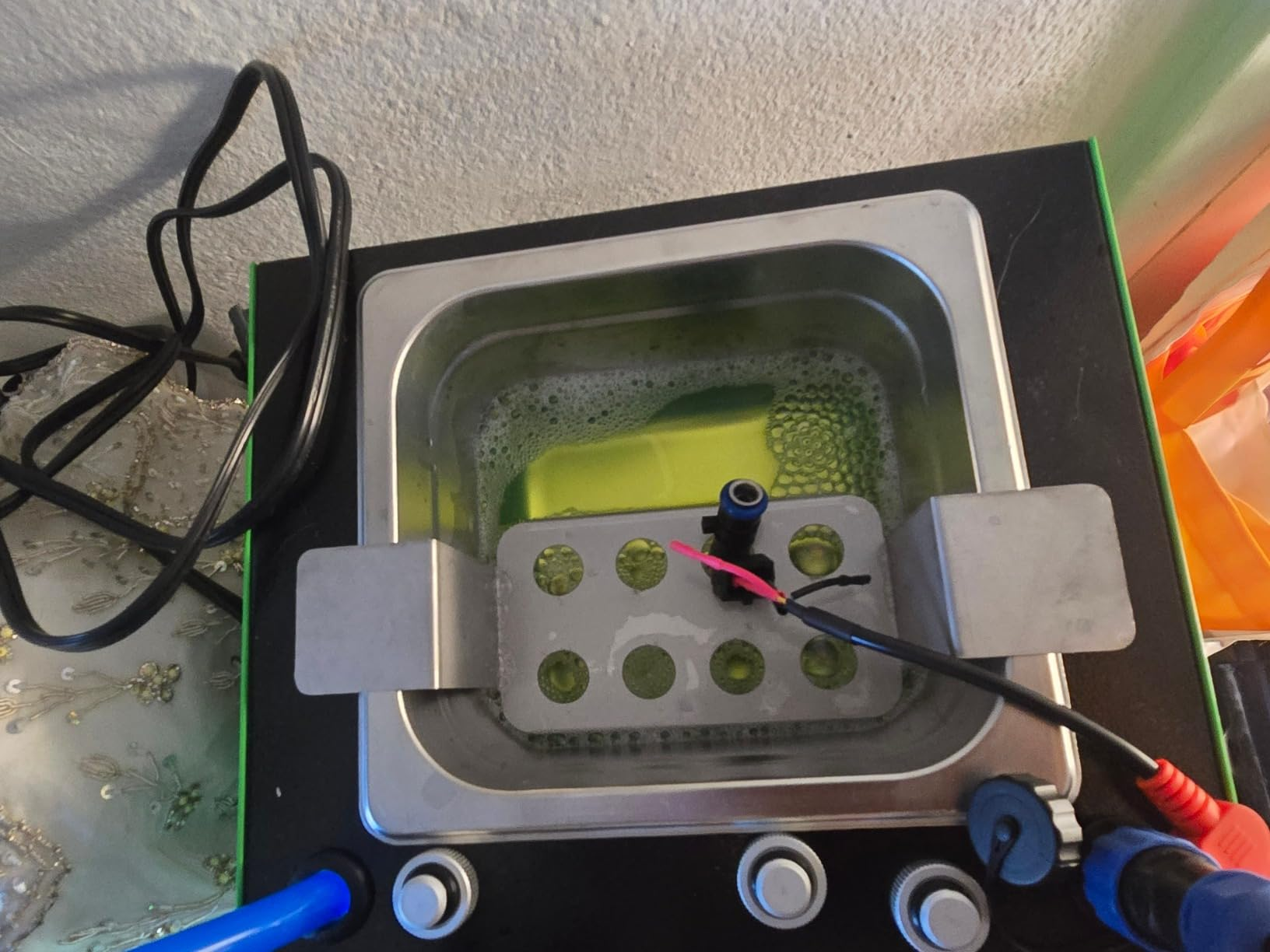

    Image #1 from Bartels
