Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video
$159.00 Original price was: $159.00.$129.00Current price is: $129.00.
- 2-Way Articulation: Features a steerable probe with a 210° turning angle in both directions, allowing mechanics to easily inspect complex, hidden automotive components without blind spots.

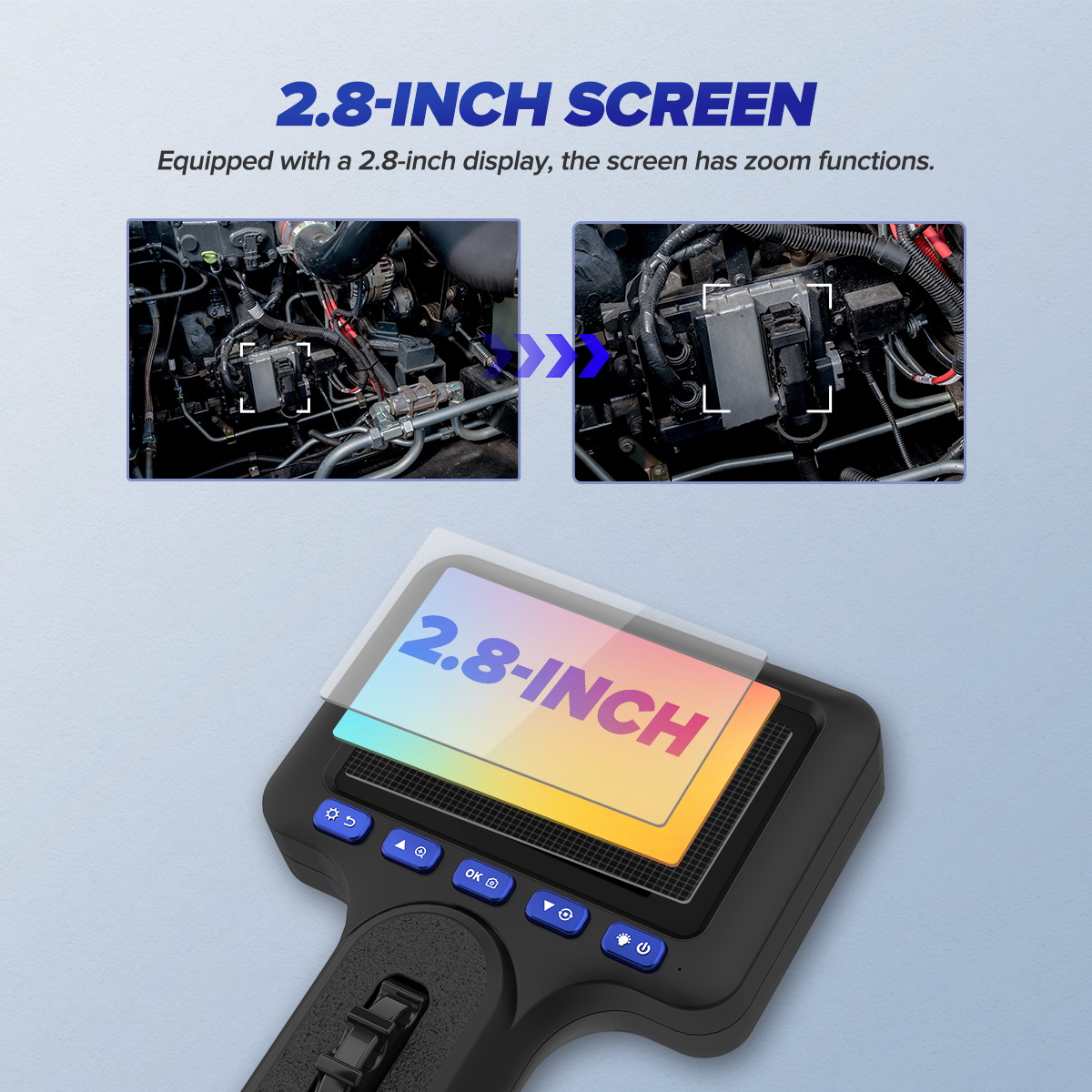

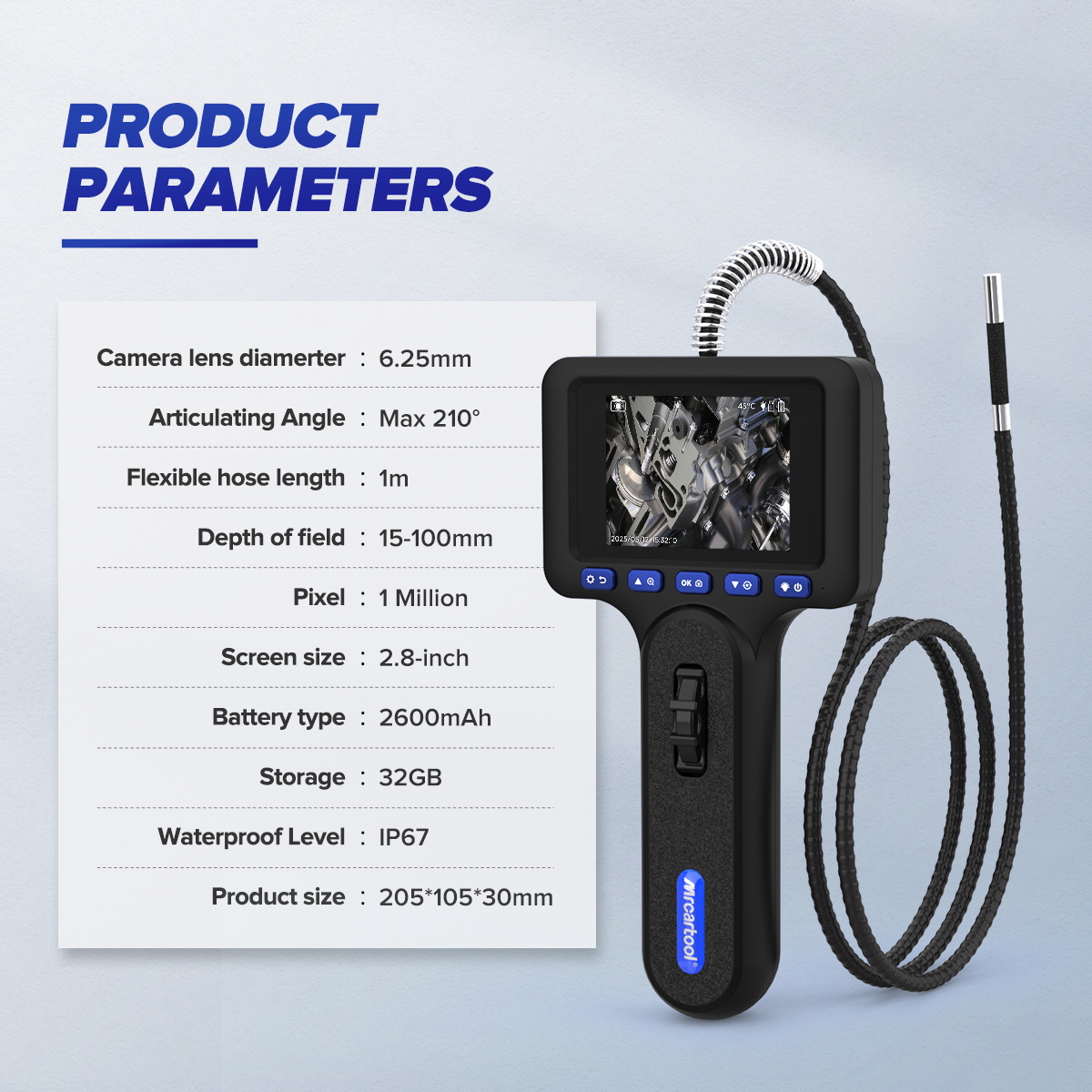

- High-Resolution Imaging: Equipped with a 1-Megapixel CMOS sensor and a 2.8″ IPS display, delivering crystal-clear 1080P resolution for accurate visual diagnosis.

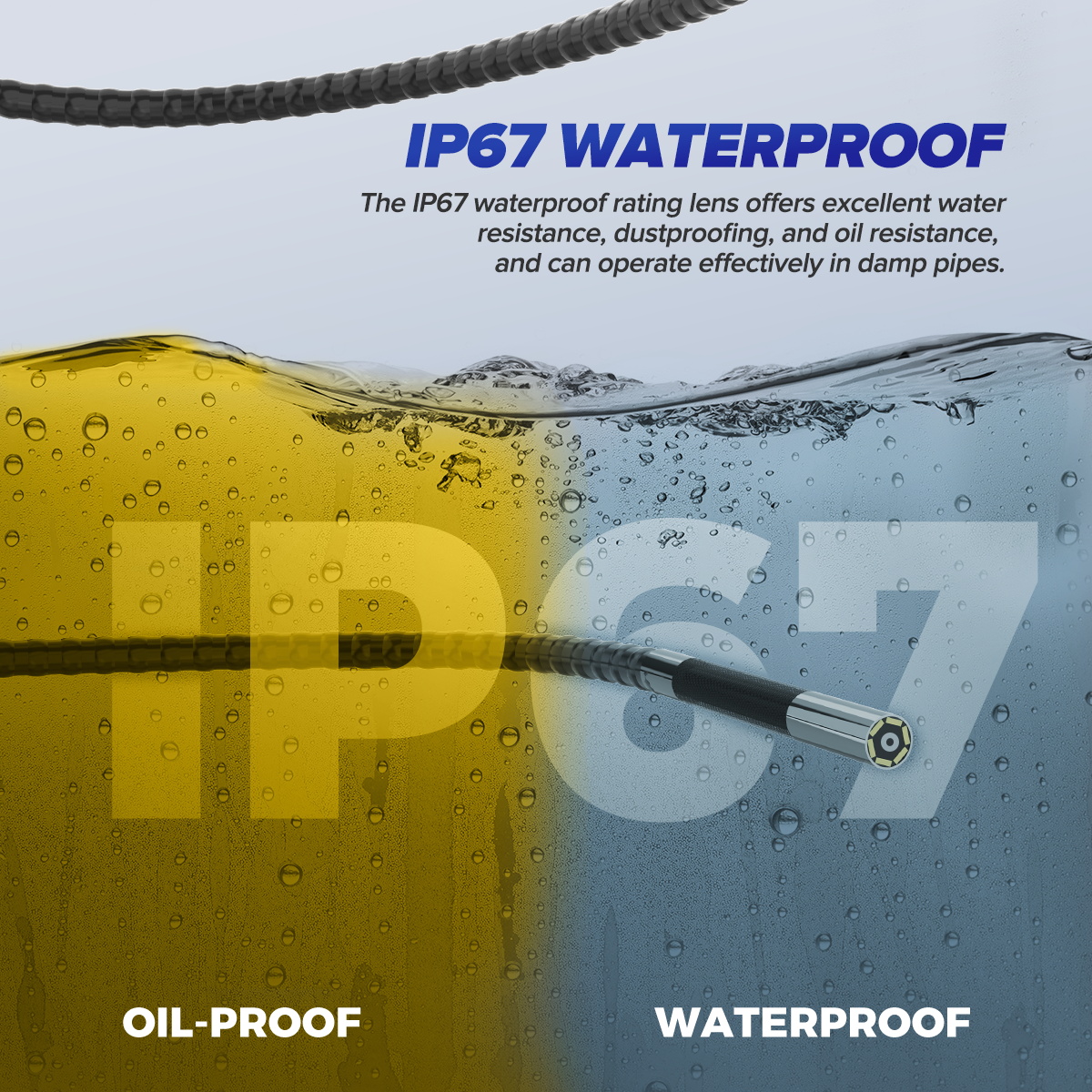

- IP67 Waterproof Lens: The camera lens is IP67 rated, ensuring safe and reliable operation in wet or oily environments such as engine blocks and pipelines.
- 2-Year Warranty: Enjoy complete peace of mind with a standard 2-year warranty on your entire order.
More Discounts? Please Contact us Get exclusive offers Here

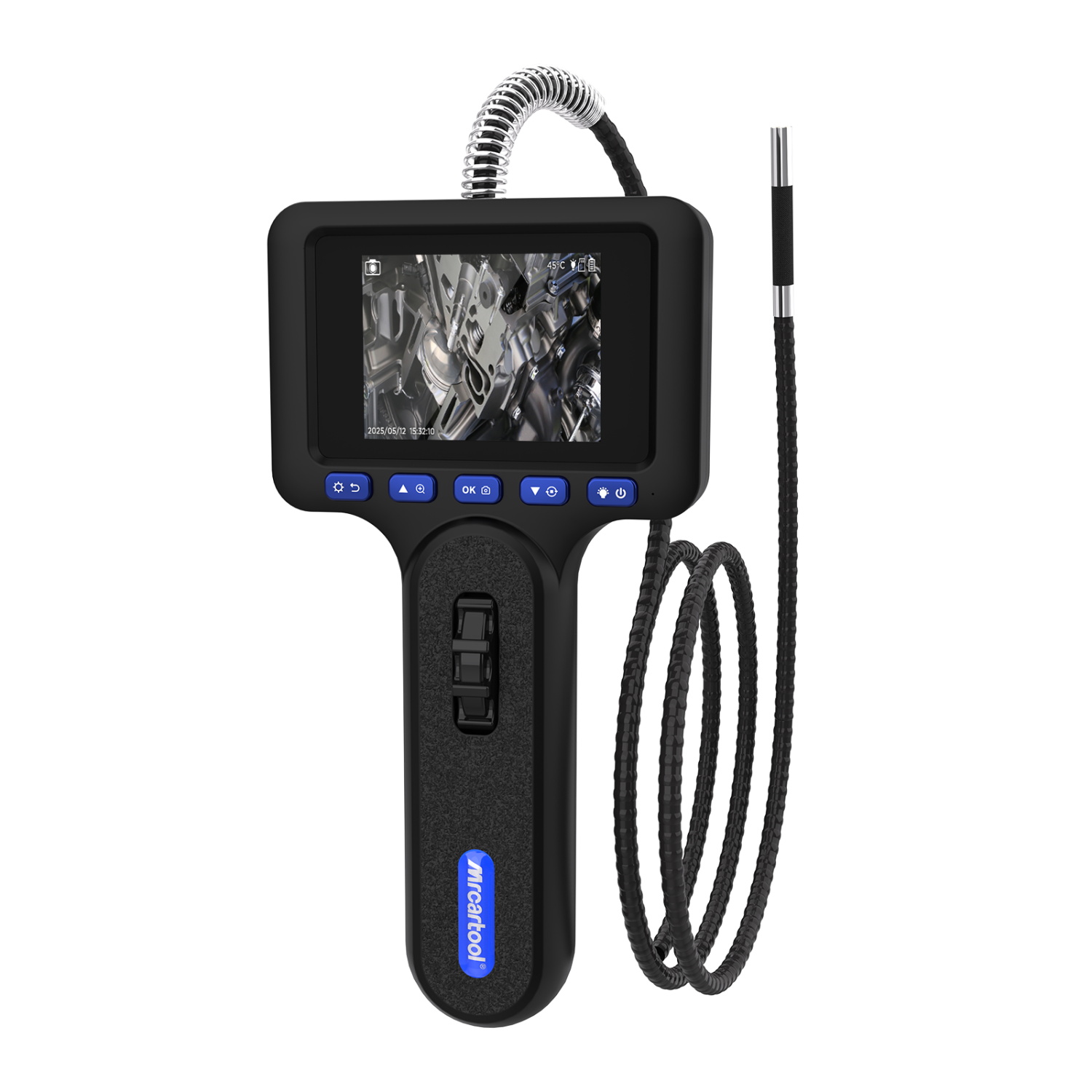

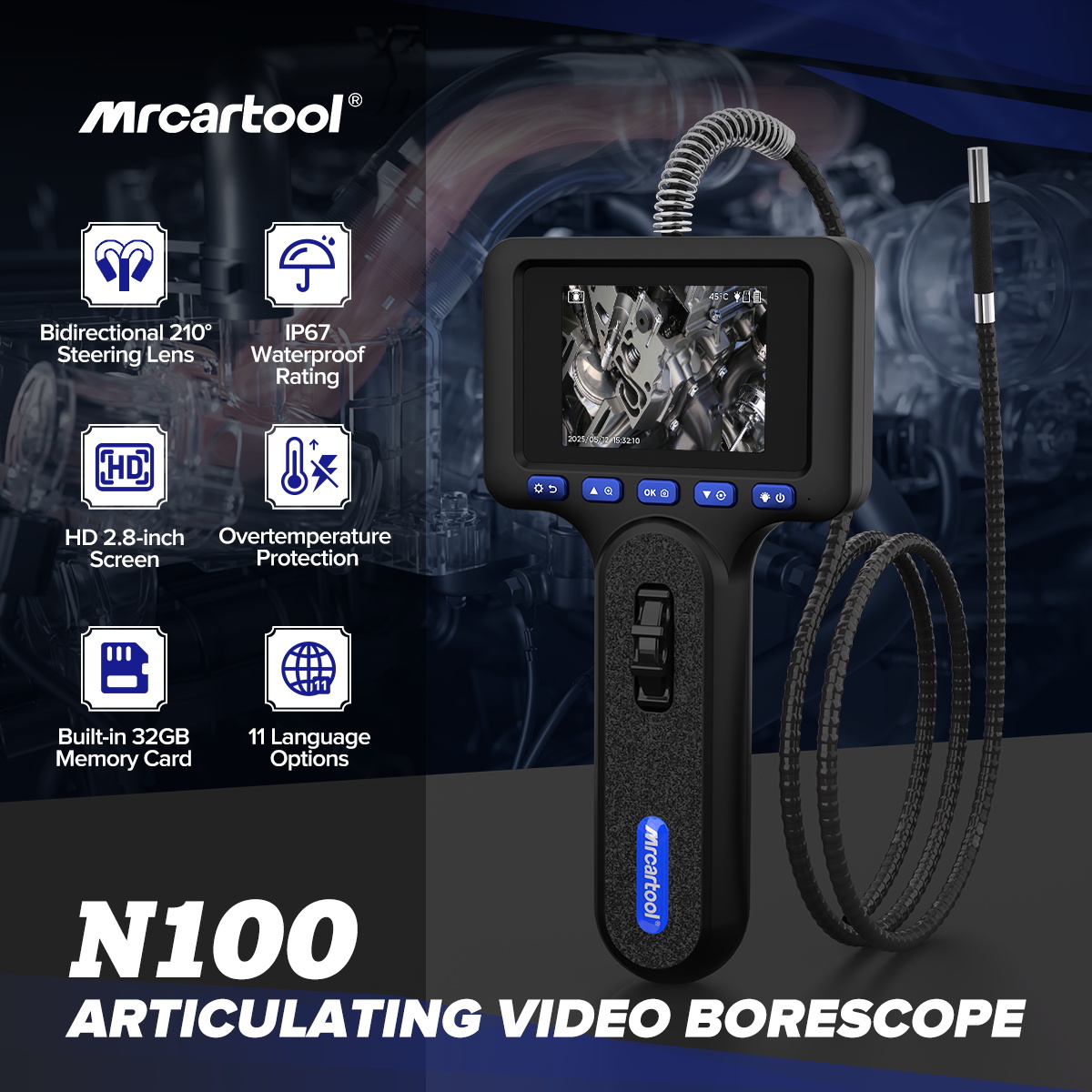

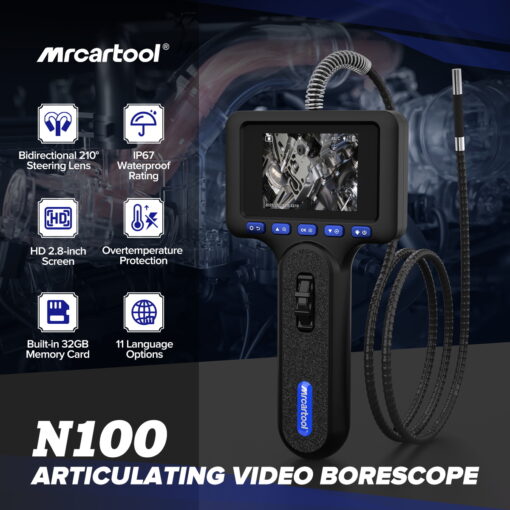

MRCARTOOL N100 Articulating Video Borescope is an advanced inspection tool designed for professional maintenance personnel. It is engineered to detect hidden faults in concealed machine components, inaccessible engine cylinders, and complex pipelines without the need for destructive disassembly. The N100 features a highly maneuverable camera head with a 2-way articulation system, allowing the probe to bend up to 210 degrees in both directions. Paired with a built-in 2.8-inch IPS screen and an adjustable 6-LED lighting system, this borescope captures sharp, high-definition images and videos, making engine overhauls, HVAC maintenance, and auto repairs more efficient and accurate.
- Safe Probe Handling: To avoid damaging the internal steering mechanism, you must straighten the flexible cable and ensure the rotate wheel is returned to the neutral position before pulling the tube out of the inspected cavity. Never forcefully tug or over-bend the tube.
- Waterproof Limitation: Please note that while the camera lens is IP67 waterproof, the main handheld host is NOT waterproof. Do not operate the entire machine underwater or expose the host to corrosive liquids.
- Power Adapter Warning: Please use a standard DC 5V 1A power adapter to charge the built-in 2600mAh battery. Using substandard or mismatched chargers may severely damage the device.
Auto Inspection Camera features a 210-degree adjustable HD lens, allowing flexible use in hard-to-reach areas of the car (15-100mm range), and its large 5-inch screen provides clear visibility.
- Wait 1-2 hours for the engine to cool before testing to avoid damaging the camera with high temperatures.
- Since the screen isn’t waterproof, you should keep it away from liquids.
- Pipe Inspection Camera connects to a cell phone, while the N160 and N150 have screens that do not connect to a cell phone.
- Please do not penetrate any liquid (e.g. motor oil) into the screen of the borescope, it will lead to the damage of the screen, you need to buy the screen at your own expense
What is the difference between all MRCARTOOL Digital Inspection Camera?
| Product Name | N100 | N130 | N150 | N180 | N220 |
|---|---|---|---|---|---|
| Product Image | ![]() |
![]() |
![]() |
![]() |
![]() |
| Steering Angle | Maximum: Two Way 210° | Maximum: Two Way 210° | Maximum: Two Way 210° | Maximum: Four Way 360° | Maximum: Two Way 210° |
| Display Screen | 2.8-inch | 3.5-inch | 3.5-inch | 5-inch | 3.5-inch |
| Lens Diameter | 6.25mm | 5.5mm | 6.2mm | 6.25mm | 3.9mm |
| Viewing Angle | 90° | 90° | 90° | 90° | 90° |
| Depth of Field | 15-100mm | 15-100mm | 20-100mm | 15-100mm | 15-100mm |
| High-Temperature Protection | Automatic Alarm Above 80°C (It is recommended that the temperature of the camera’s operating environment is -10°C~50°C.) | ||||
| Manual Light Adjustment | Three Adjustable Levels | ||||
| LED Lighting | Six High-Intensity Lights | ||||
| Bending Radius | 35mm | ||||
| Flexible Tube Length | 1M (Customization Available) | ||||
| Waterproof Rating | IP67 | ||||
| Magnification | 4X | 4X | 4X | 8X | 4X |
| Detachable screen connects to mobile phone | × | × | × | ✓ | ✓ |

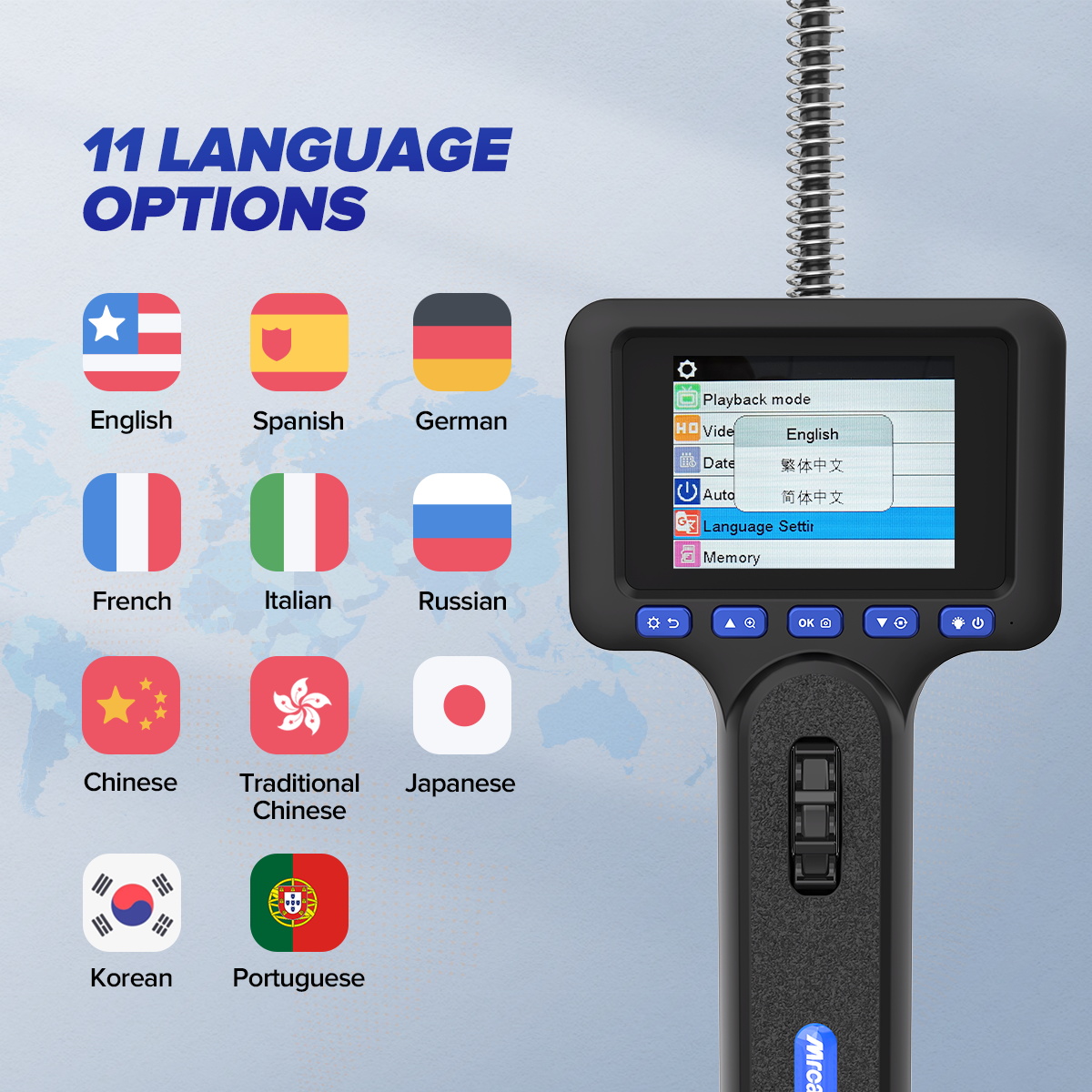

| Languages | 11 Types | 11 Types | 10 Types | 11 Types | 11 Types |
| Battery Capacity | 2600mAH Lithium Battery | 2000mAH Lithium Battery | 2200mAH Lithium Battery | 2600mAH Lithium Battery | 2000mAH Lithium Battery |

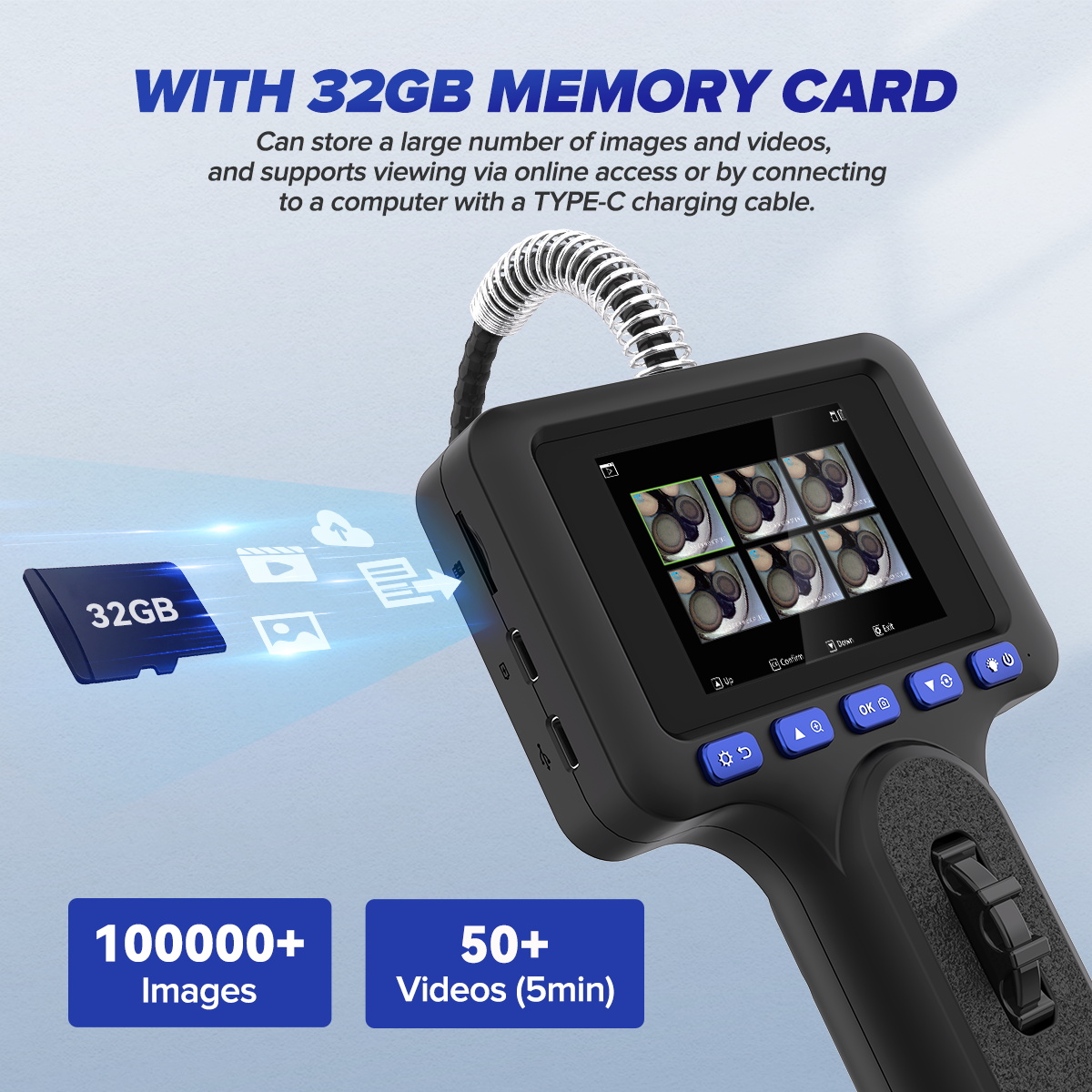

| Storage Capacity | 32GB | 32GB | 32GB | 32GB | 32GB |

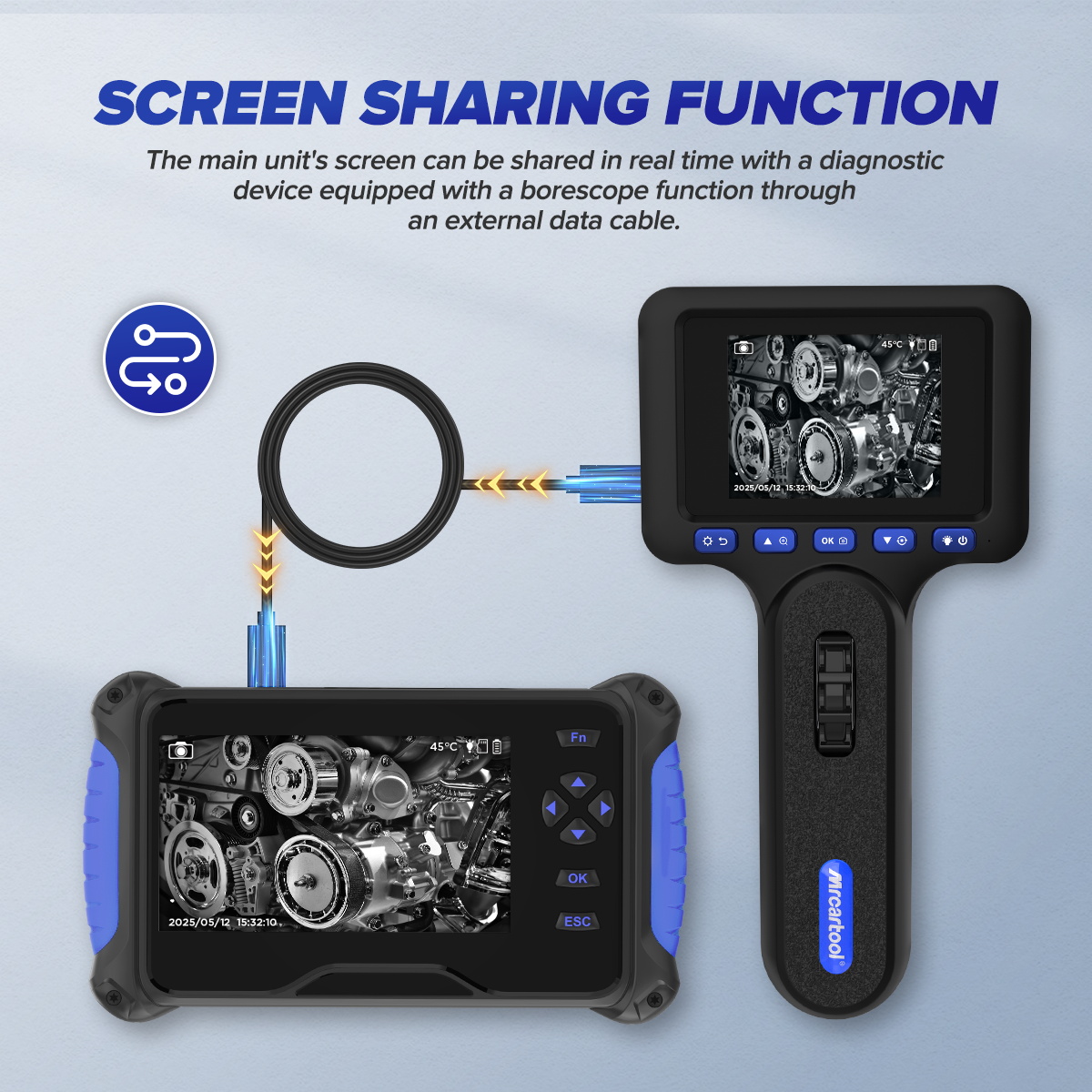

| External Monitor | ✓ | ✓ | × | ✓ | ✓ |
MRCARTOOL N100 Auto Inspection Camera Features

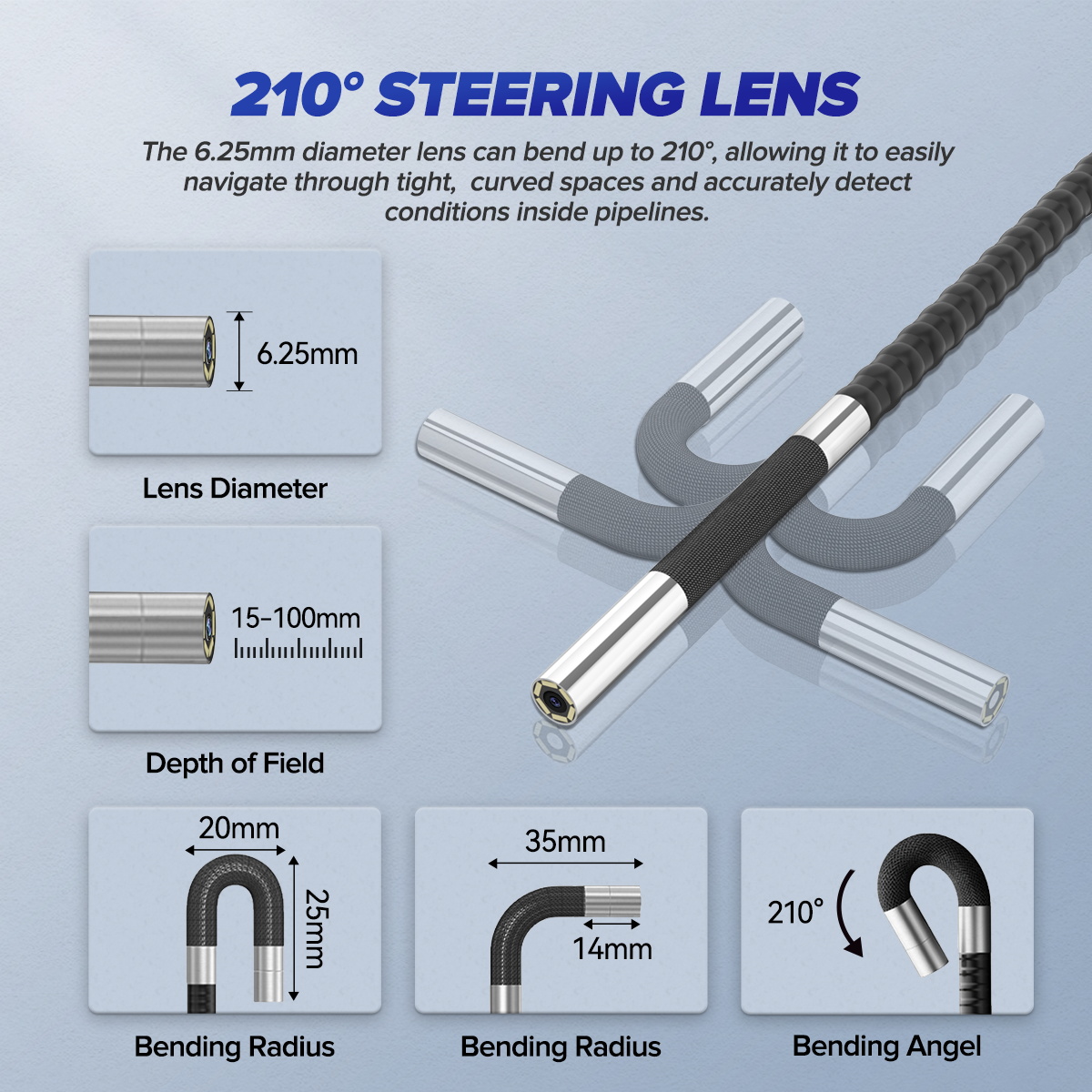

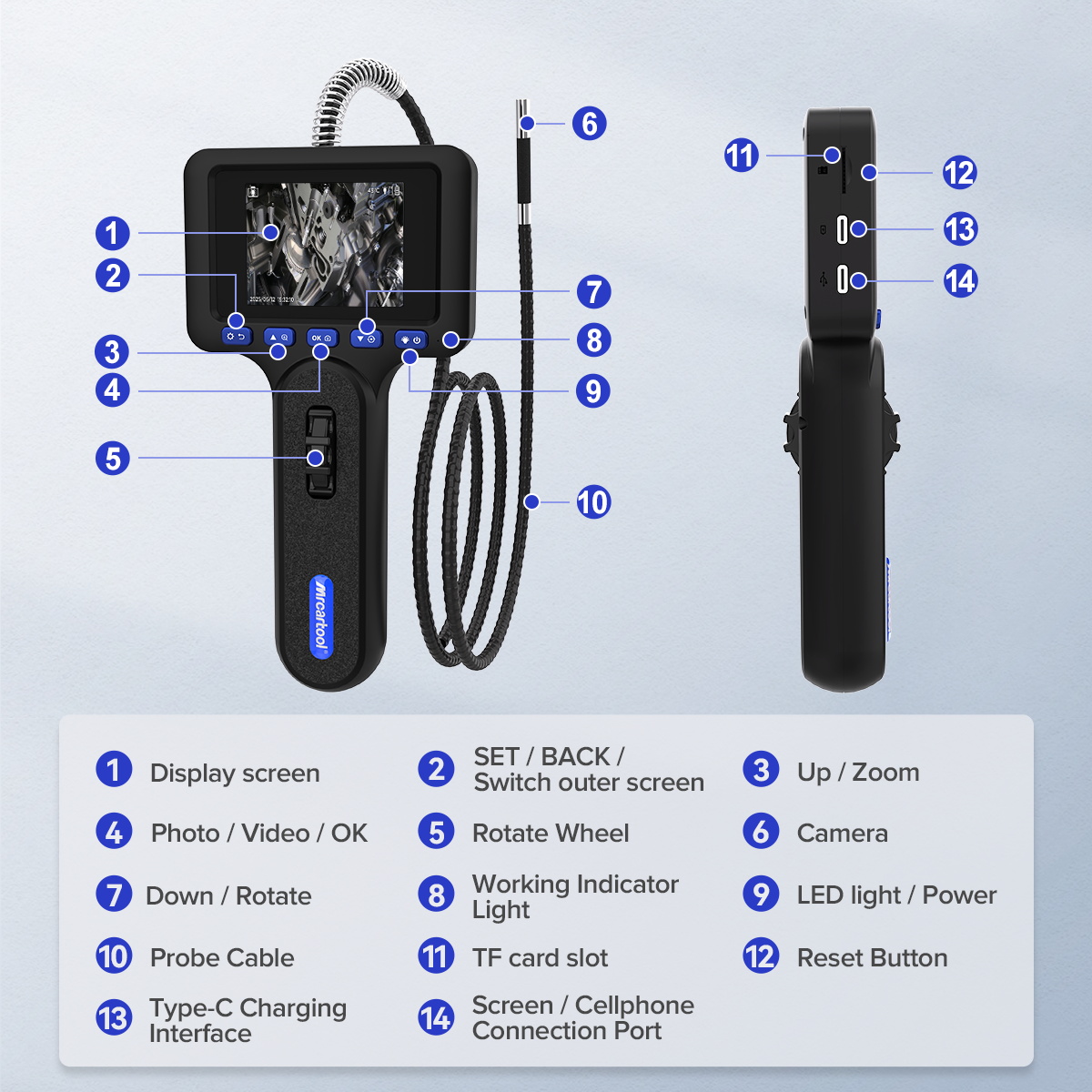

- Precision 2-Way Articulation: Use the ergonomic rotate wheel on the handle to effortlessly steer the semi-rigid probe. The camera head can bend 210° left and right, easily navigating narrow and twisted spaces with a small 32mm steering radius.
- High-Definition Visuals: Powered by a 1/9″ CMOS sensor, the N100 supports 1080P HD image capturing and video recording (MOV format), all displayed clearly on the integrated 2.8″ IPS screen.

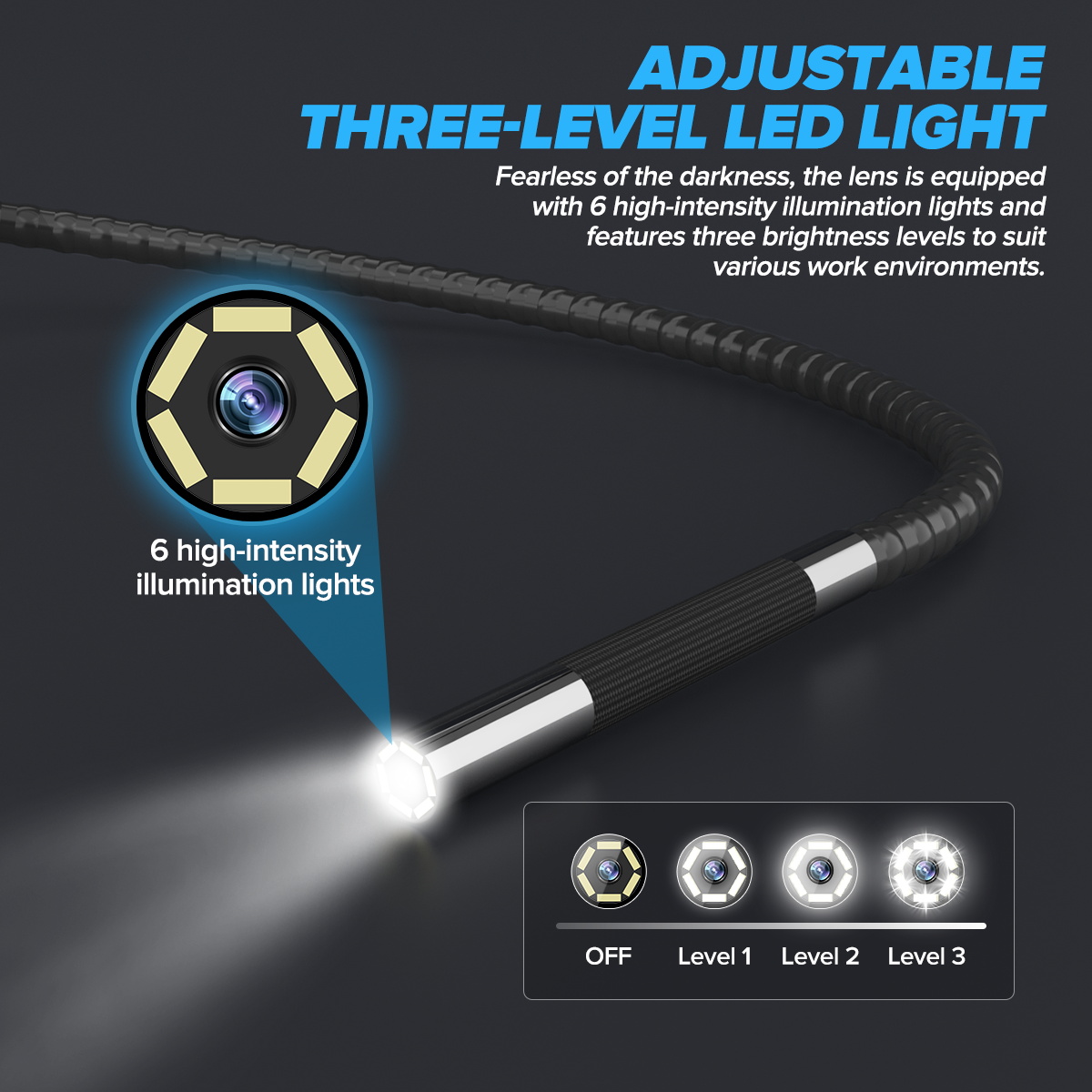

- Adjustable LED Illumination: The 6.25mm camera head is equipped with 6 high-intensity LEDs featuring 4 adjustable brightness levels, ensuring optimal visibility even in pitch-black environments.
- Lens Temperature Monitoring: Features a built-in temperature sensor that displays the current lens temperature on the screen in real-time, preventing the camera from heat damage during engine inspections.
- Durable & Waterproof: The camera lens boasts an IP67 waterproof rating, making it perfectly capable of inspecting fluid-filled pipes or oily engine bays. (Note: The main host is NOT waterproof).
- Reliable Warranty Service: Enjoy worry-free after-sales support with a standard 2-year warranty for your complete order.
Inspection Cameras

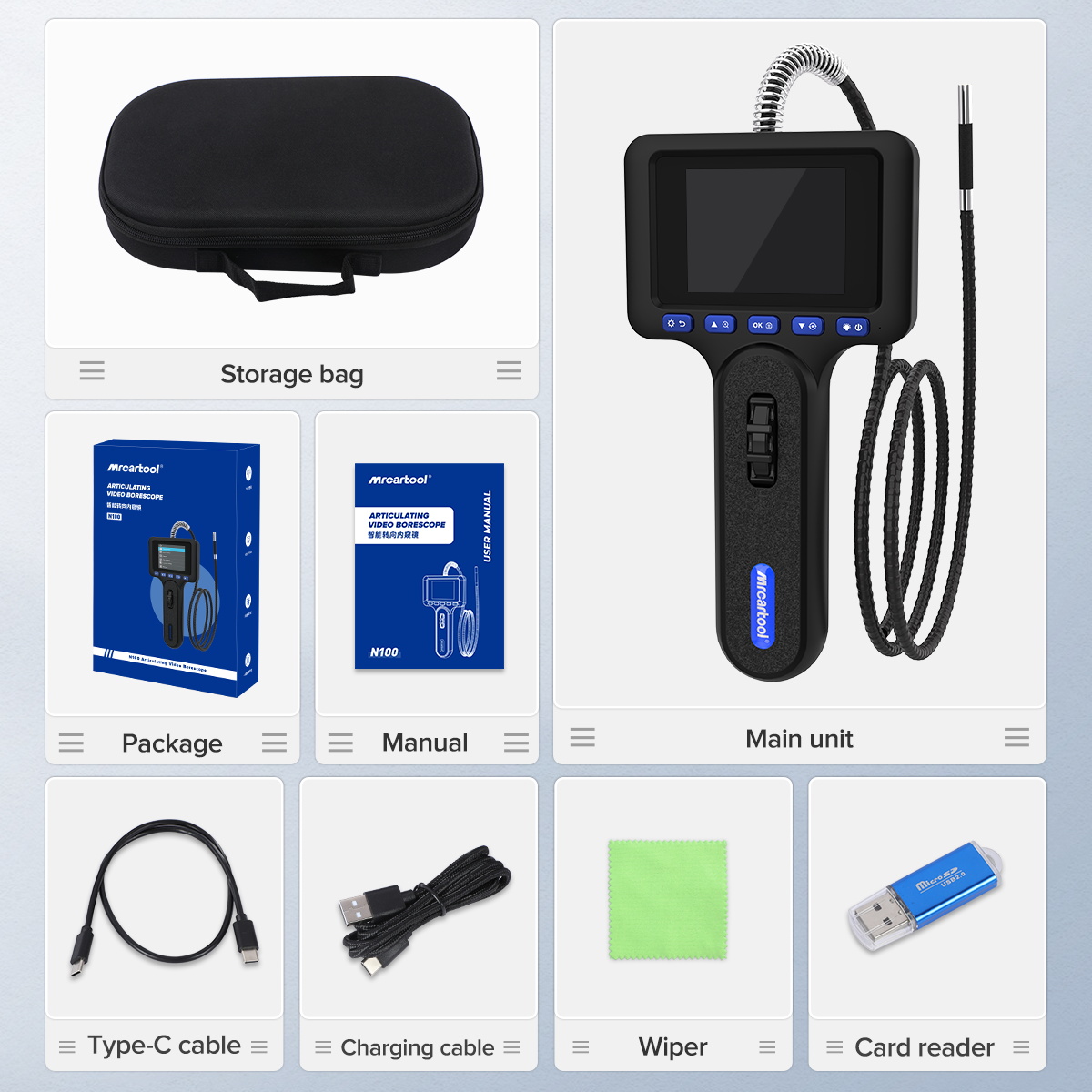

Packing List :
| Weight | 1 kg |
|---|---|
| Dimensions | 32 × 22 × 8 cm |
| Ship From |
4 reviews for Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video
| 5 star | 100 | 100% |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |

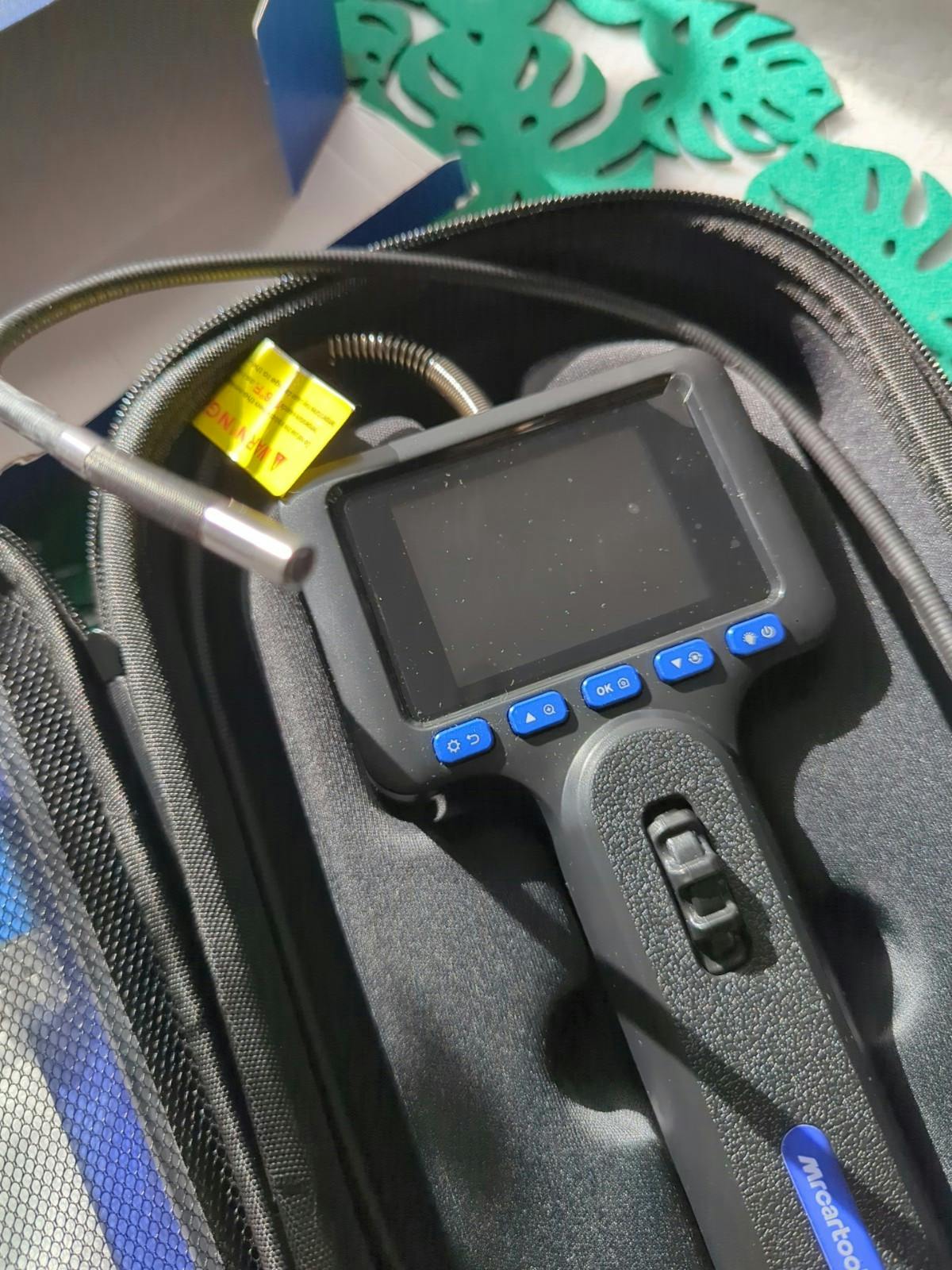

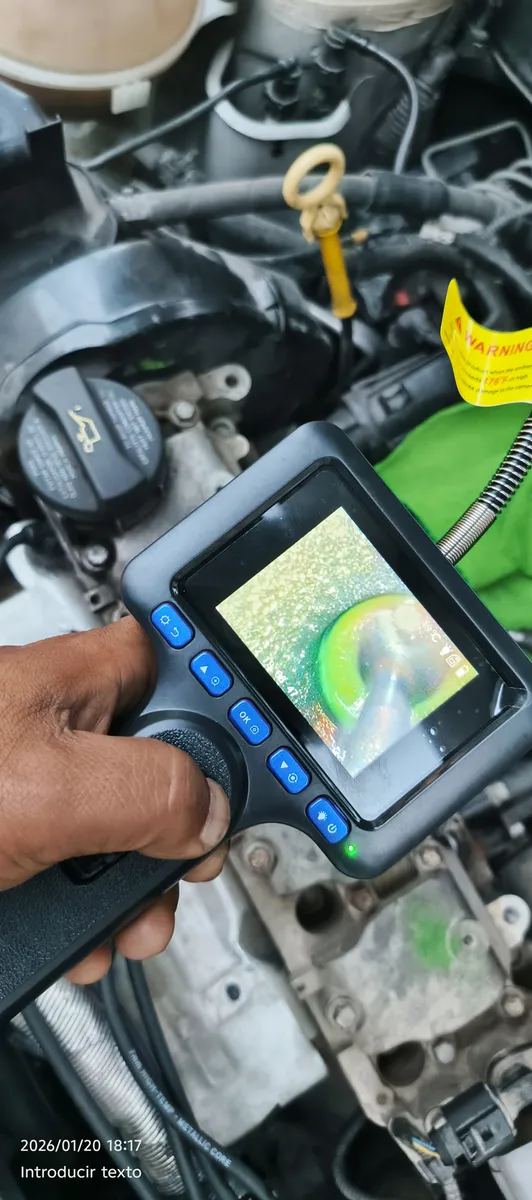

Customer Images


Dan
Excelente equipo.

Sorry, no reviews match your current selections
Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video
Q & A
Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video























Excelente equipo.
Came with a 32 gig memory card. Picture is very clear, camera swings very easy with lever. Cable is stiff but very easy to move. I plan to use this for a lot applications, auto, home ducts, look behind dishwasher to check water connection, look inside furnace,pull somthing out of a drain, etc. The light is very bright.
Ease of use and quality of product. The endoscope I owned before this product used an app to view, always stopping never clear. This products screen resolution is fantastic for the money.
Been doing a bunch of small project stuff around the house lately and figured a borescope might come in handy.
This one replaces a phone-based one (wifi) that I tried and was too laggy. This one was significantly better for the price. Many other name-brand variants cost more and offer less, imo. Used it to check inside a wall and under some sheathing in the attic, worked great both times. Picture is clear enough to see what you need and the lights are super helpful, you can adjust the brightness easy. Cord is semi-rigid but still flexible enough to snake around corners if you’re patient. The articulating part is useful. I wish it did in 2 dimensions, but that would be even more $$, and for this price, I can’t really argue.
This is one of those tools you won’t use everyday but when you need it, you’re gonna be glad you have it.
