MRCARTOOL S310 EV Home Charger Wallbox 32A 7KW Level 2 Charging Pile Wall Mount For EV

$269.00 – $299.00

United States dollar ($) - USD

United States dollar ($) - USD
Euro (€) - EUR
Pound sterling (£) - GBP

Fast and reliable charging： provides efficient power delivery for electric vehicles.

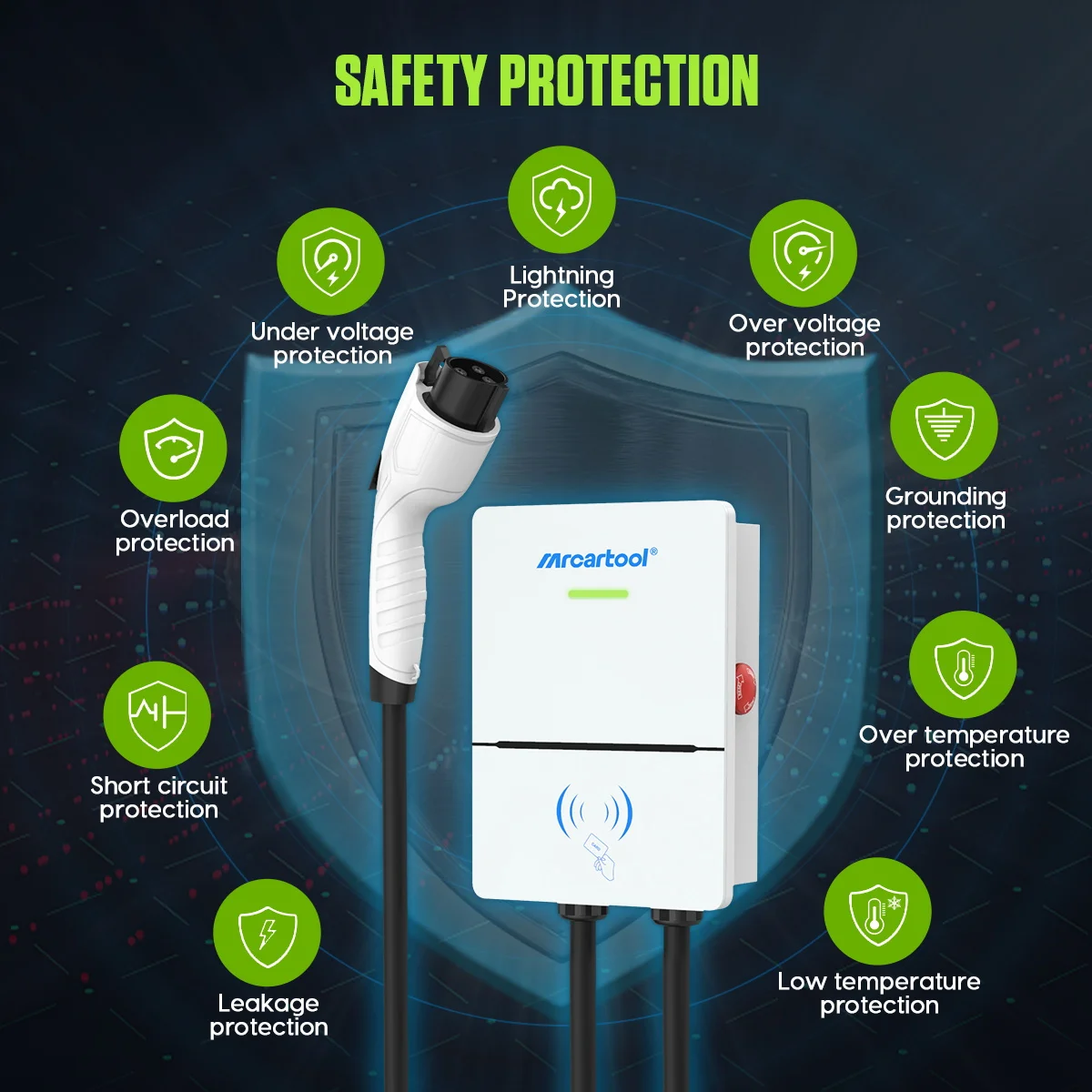

Enhanced safety features： include built-in overcurrent and leakage current protection.
Easy installation and versatile use： allow setup in a garage or any suitable home location..Online Support>>

More Discounts? Please Contact us Get exclusive offers Here

Ship From

Model

Regular

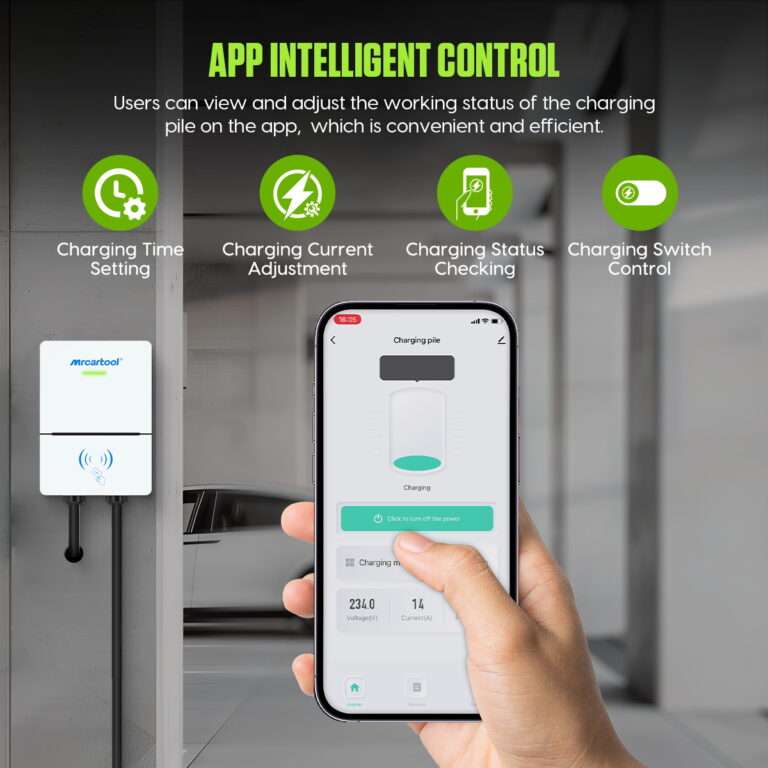

APP Version

Clear

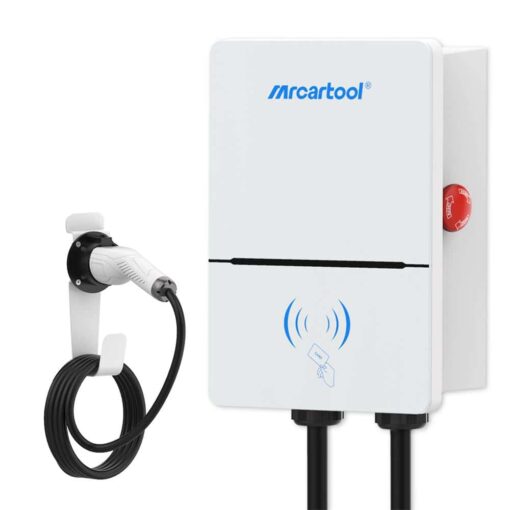

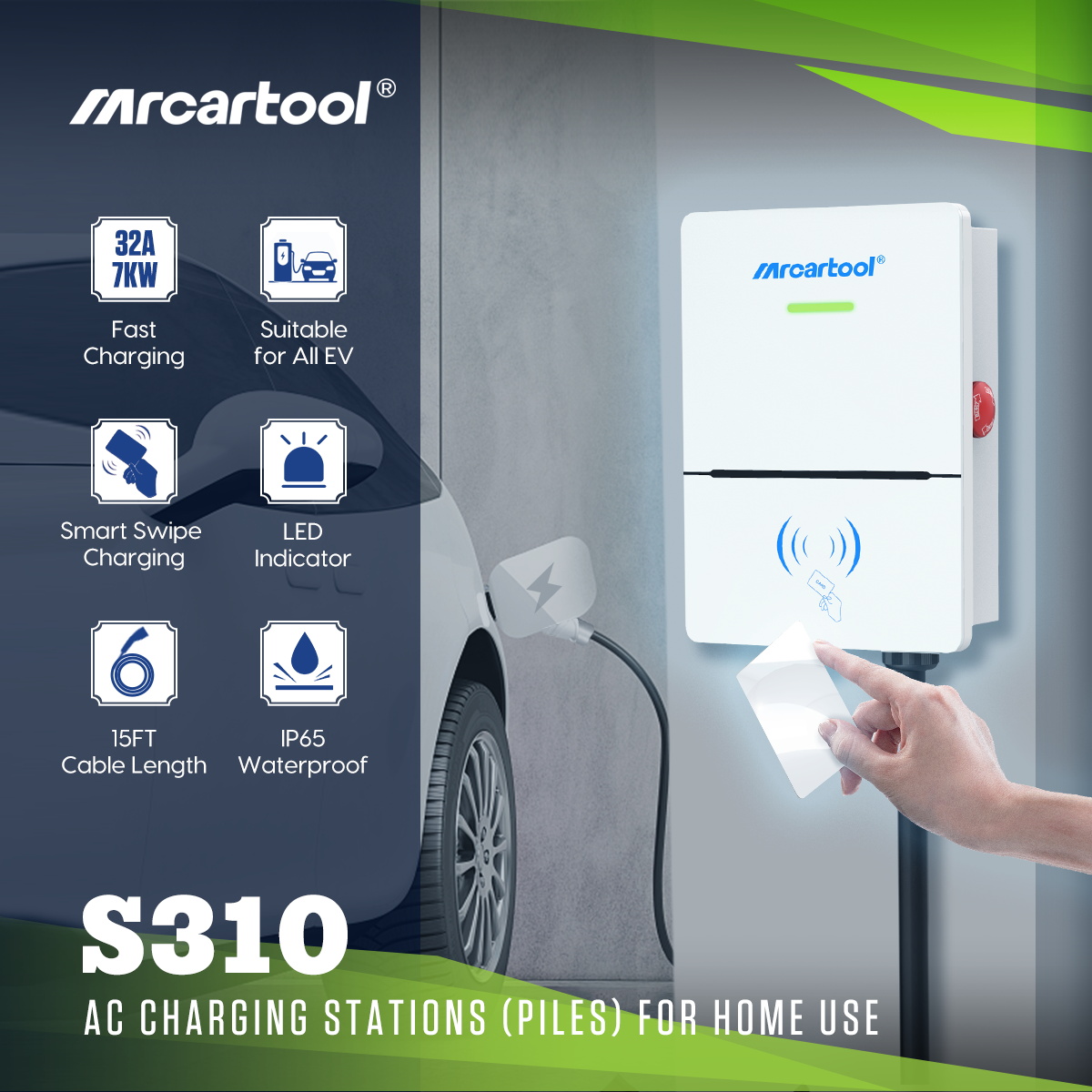

MRCARTOOL S310 EV Home Charger is your reliable partner for the fast charging of electric vehicles. With built-in overcurrent and leakage current protection, it can be installed as a stand-alone unit to ensure your safety. You can install it in your garage or anywhere in your home.

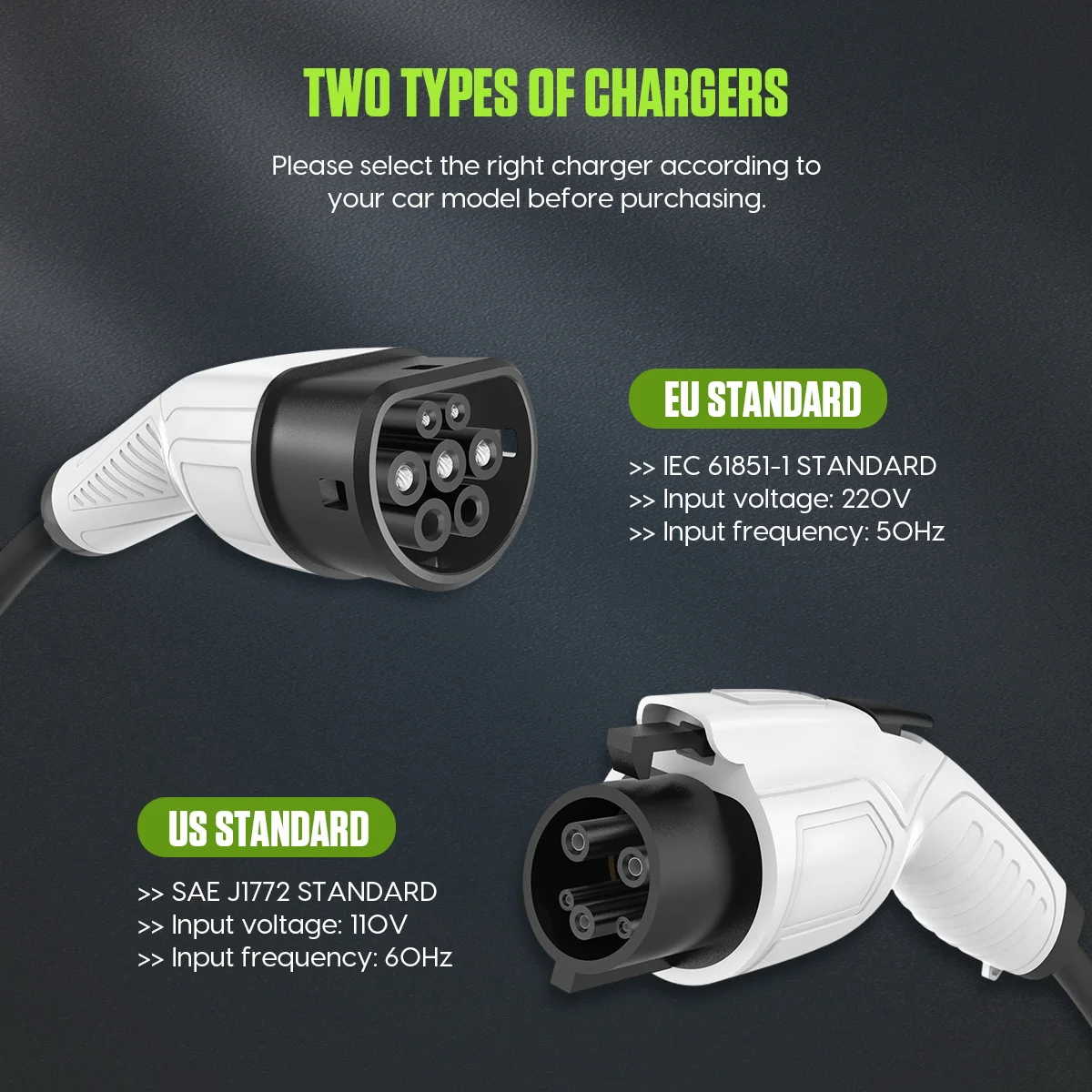

The product is available in two versions for US and European standards, Please select the right charger according to your car model before purchasing.

MRCARTOOL S310 User Home Charger Manual Download>>

EV charger Series Quick Search

Product Features:

The S310 EV home charger uses standard SAE_J1772 and IEC_61851-1 charging protocol, so it works well with all electric cars.

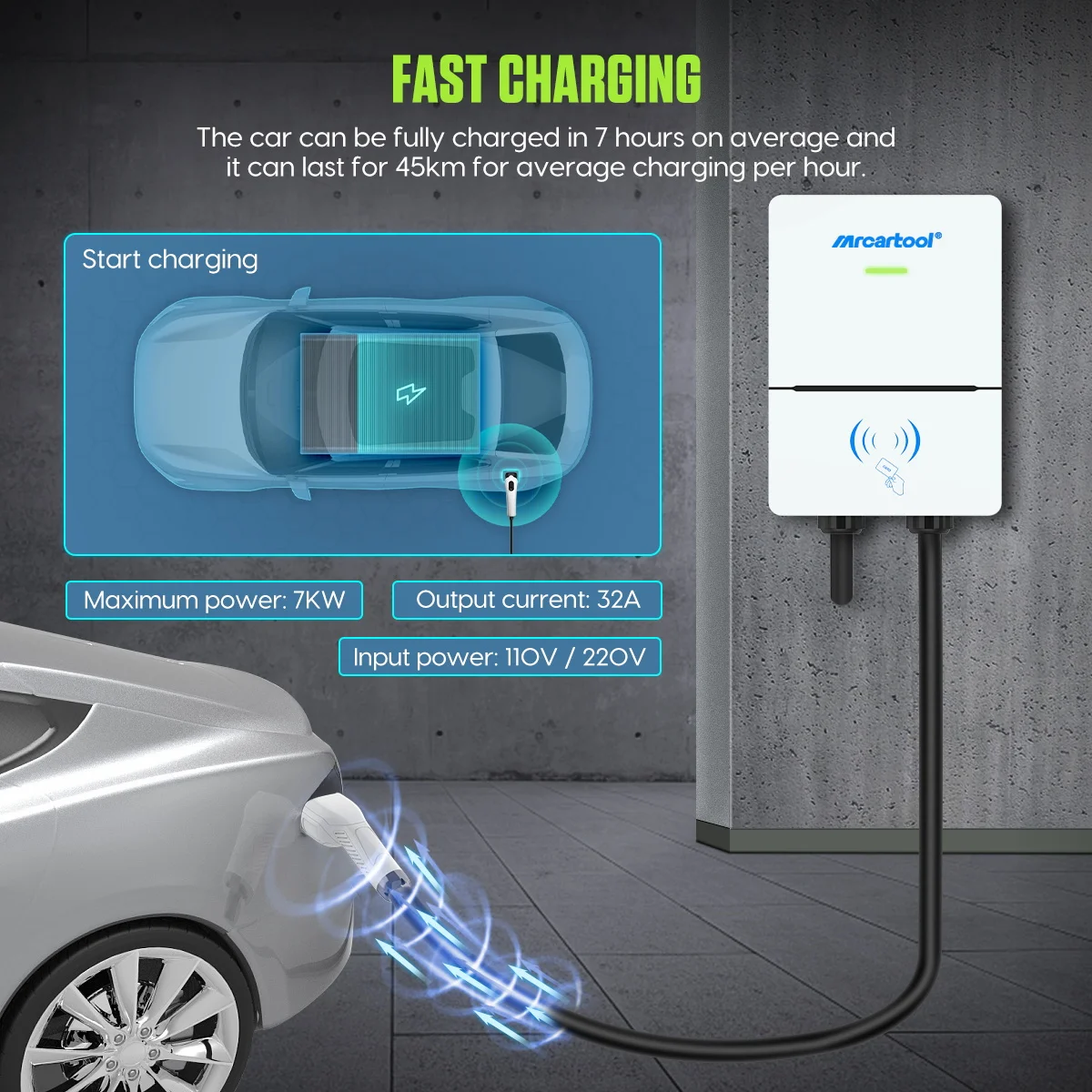

Its 32A level 2 EV charger can charge your car up to 2X faster than the 16A level 2 EV charger. It is 4X more quickly than the 16A level 1 EV charger that most electric vehicles come with. Normally, it will take 7-12 hours for a full charge. (The actual working current depends on your vehicle setting)

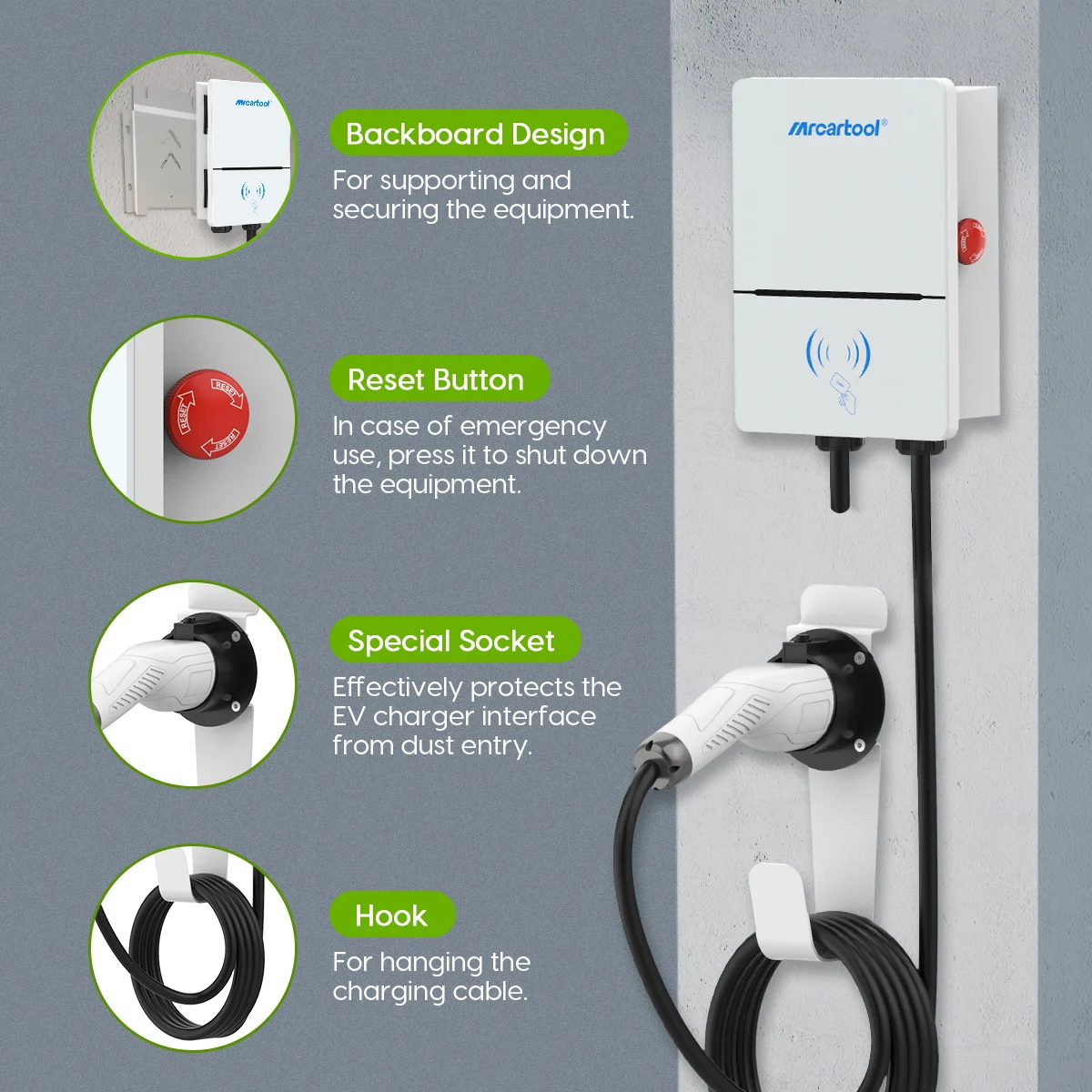

How to install S310 EV Home Charger:

1. Positioning holes according to the size of the wall-mounted backplane, then punching holes of 4-φ6*35mm and inserting expansion tubes.
2. Lock the 4-M4*32 self-tapping screws into the expansion tube, and fix the wall-mounted backboard on the wall.
3. Open the upper cover of the charging pile, hang the pile on the wall-mounted backboard, and lock the screws from the bottom of the
pile.
4. Pass the power cable of 3*6mm through the corresponding waterproof head and connect it to the corresponding input terminal.
Lock the screws of the upper cover panel.

Operation of S310 EV Home Charger:

1. Insert the EV charging station (connect the charging plug)
2. Start charging:
Method 1: Plug the charger and start charging;

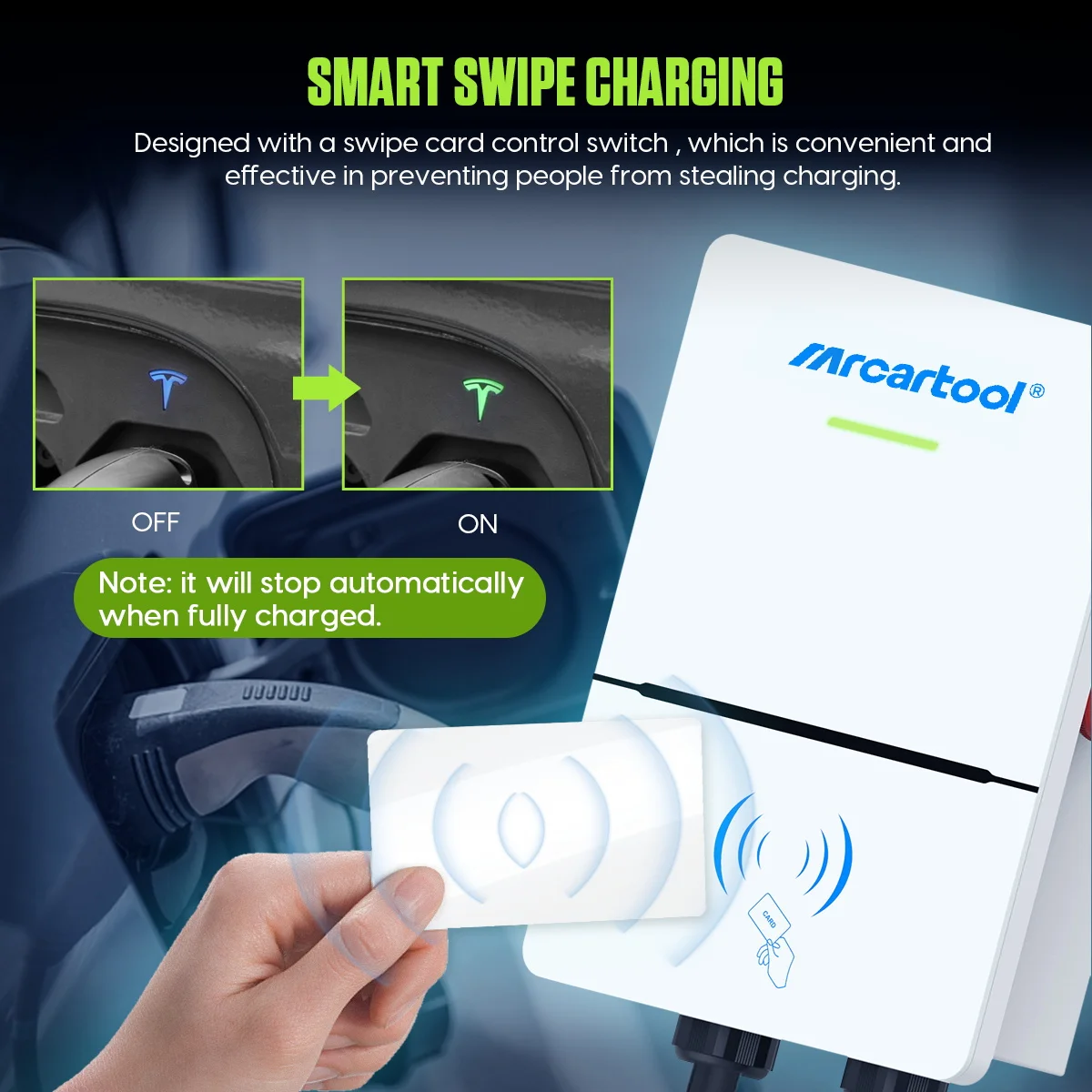

Method 2: Use the designated charging card to swipe.
The green light flashes: indicating regular charging.
Swipe the card again to end charging.
Method 1: Pull out the charger to end
the charging;
Method 2: Swipe the card again to end the charging
Put the EV charging station back in its place

S310 EV Home Charger Specifications:

Shell Material: Galvanized steel body, Tempered glass panel
Dimension: 180 x 80 x 240 mm
Weight: <7kg

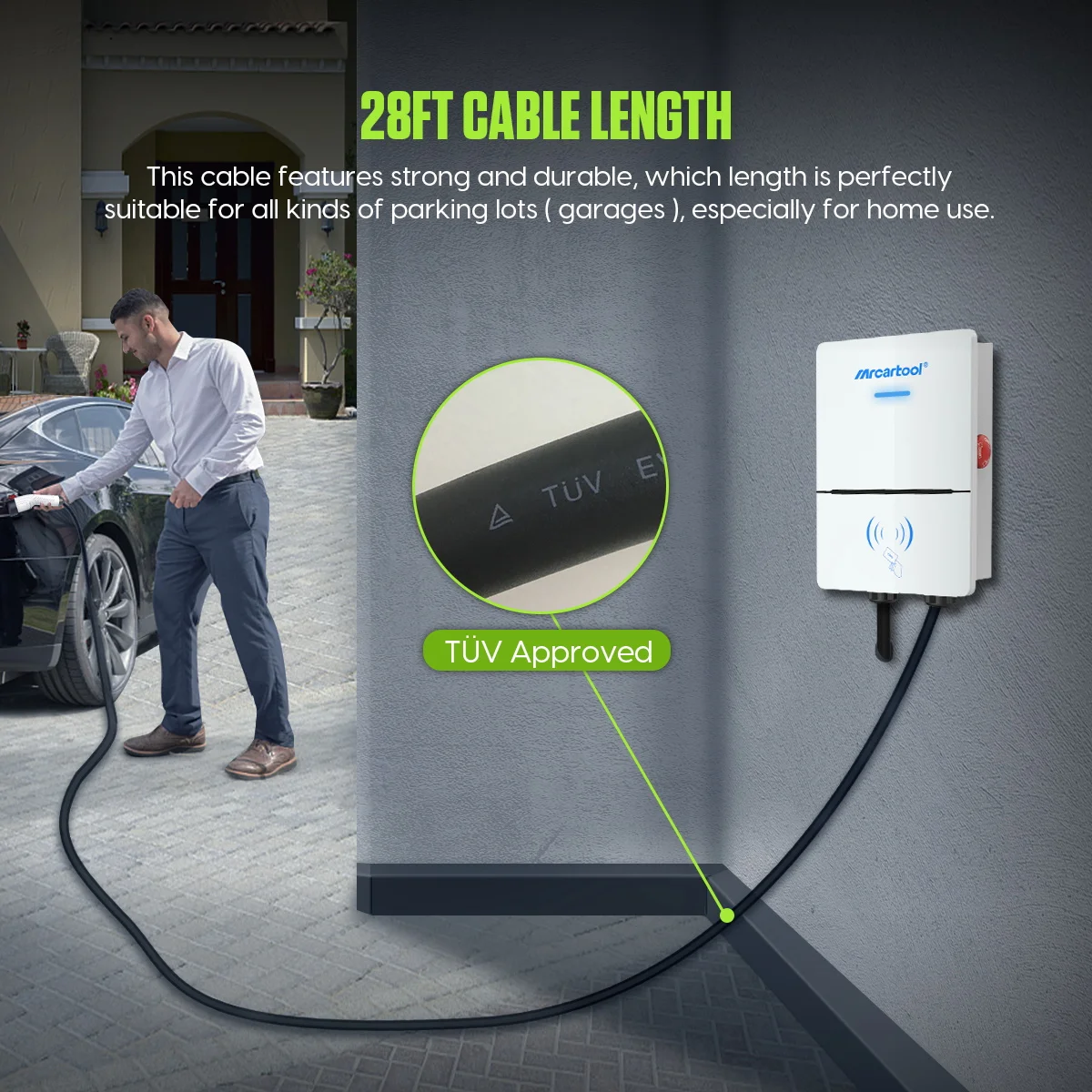

Cable length: 8.5m

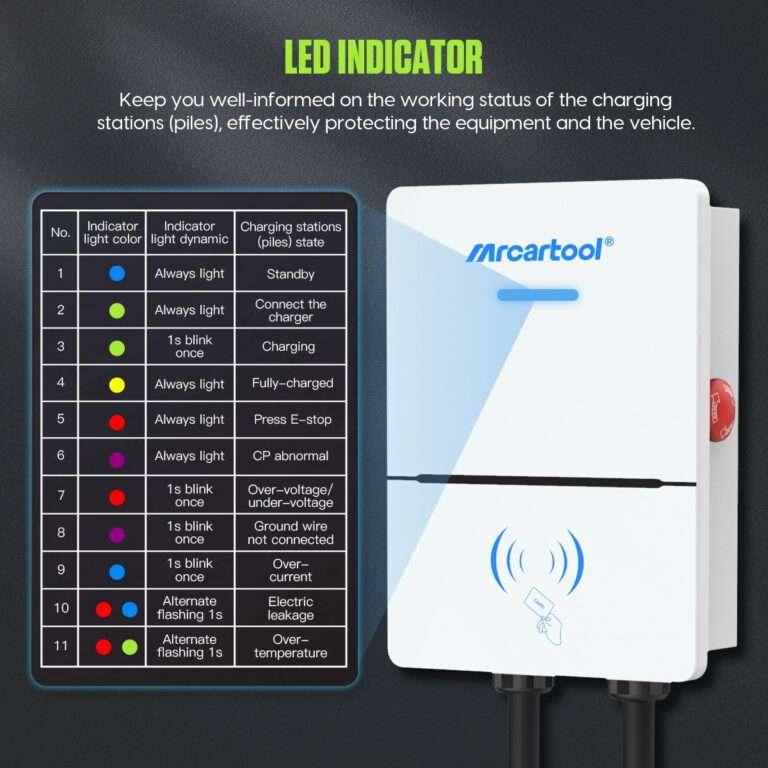

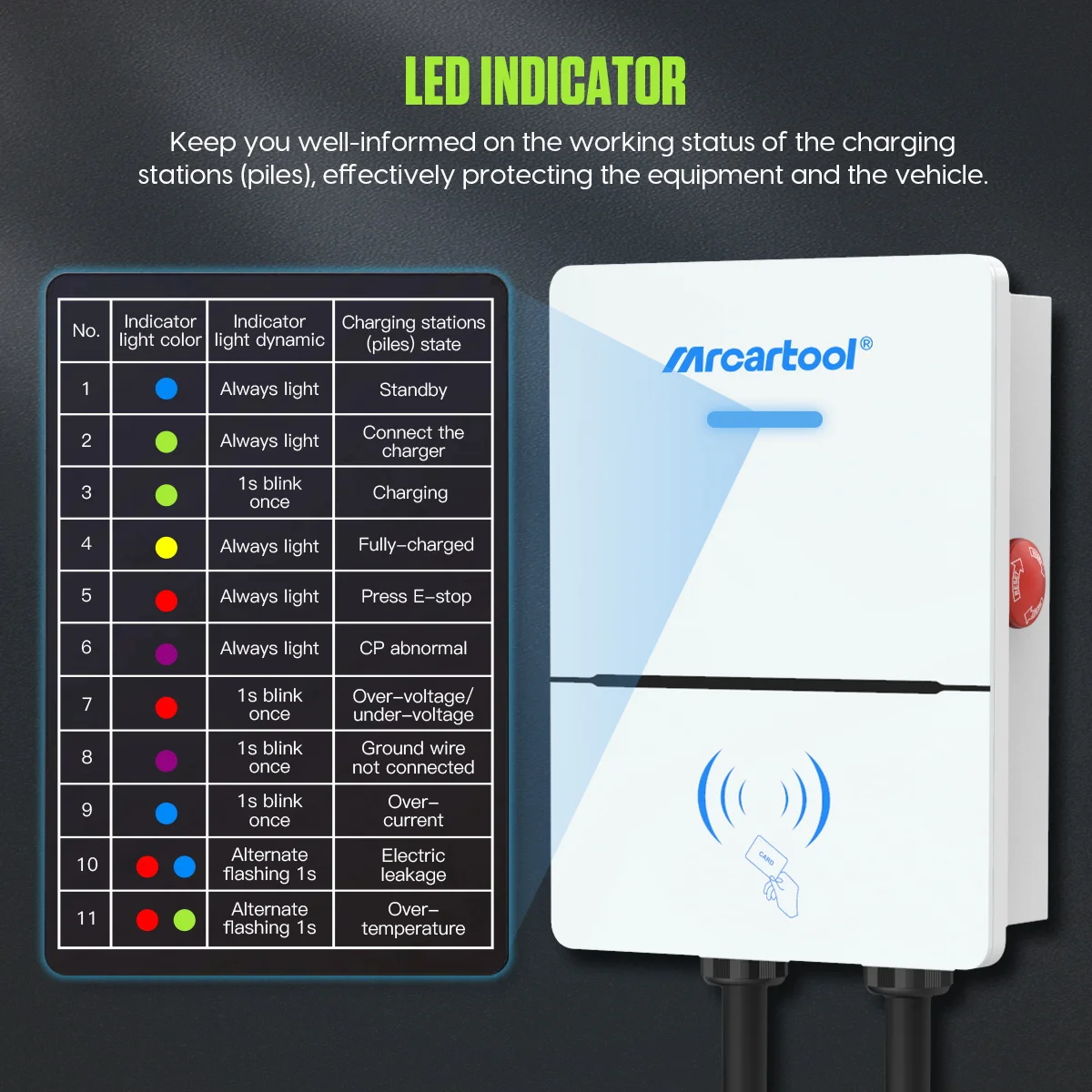

Indicator Light: Blue, green, purple and red
Installation Methods: Wall-mount \ Column installation

Installation Precautions

MRCARTOOL S310 Wall Connector must be installed by individuals who have been trained and are qualified to work with electrical systems.

Product Details:

Precautions:

1. For the first installation, attention should be paid to the power cable according to IN-L (fire), IN-N (zero), and PE (ground) one by one, and the fire wire and zero wire cannot be reversed.
2. PE (ground wire) needs to be grounded reliably.
3. Ensure the emergency stop switch is activated after power is on.
4. Before charging, make sure that the tip of the EV charger is free
from stains and water;
5. It is prohibited to place the charging pile inside the car when charging.

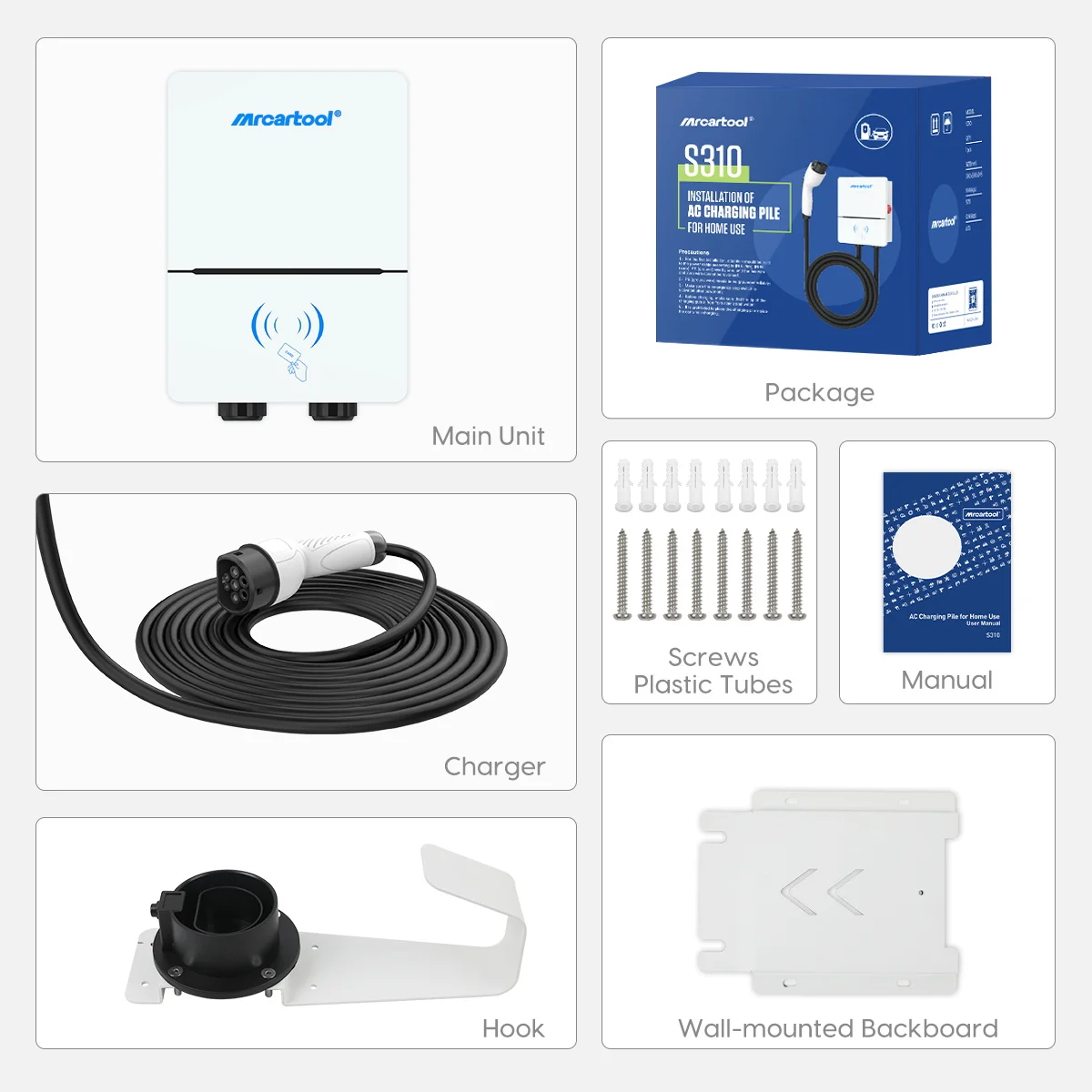

Packaging List:

1pc: MRCARTOOL S310 AC Charging Stations (Piles) Main unit
1pc: EV charger
1pc: Wall-mounted backboard
1pc: Hook
1 set: Srews &Plastic tubes
1pc: User manual
1pc: Package box

Weight	7.5 kg
Ship From	China, Germany, United Kingdom, United States
Model	Regular, APP Version

Delivery

simple installation

Got this charging post has been used for several days, the overall experience is very satisfied! Installation is not difficult, do-it-yourself can be done, connected to the electricity can be used, eliminating the trouble of hiring a master. Charging speed is stable, go home at night and plug in, the next morning full of power, battery life is not worried. The appearance is also quite atmospheric, put in the garage is very qualitative.

Comparison of a circle, I feel that this cost-effective is really high, not only good, but also a lot cheaper than some big brands, and I sincerely recommend it to friends who need to install home charging piles for EV! 🚗⚡

Excellent Charger

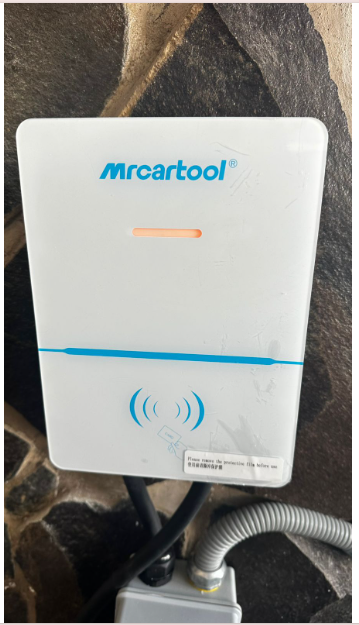

This charger was easy to install. The short length of cable supplied for the incoming supply was easily removed and the armoured cable fitted into the existing gland. I had to purchase some ring crimps for the armoured cable to connect to the circuit board and you need to take care not to overtighten and damage the board.
The charging lead is longer than supplied with other makes of charger and makes the choice of location for the charger easier as it will reach any position on the car. The hook for hanging this long cable is a nice touch and allows the cable to be kept tidy. The socket for parking the plug keeps the plug clean and undamaged.
I was worried that delayed charging on the car might be a problem but it turned out that it all worked perfectly. My car was set to charge overnight but once plugged in and the charge card swiped, the car flashed its charging light to show delayed charge and when the charge time came it started charging without further input.
The indicator light on the front of the charger could be brighter. I find that I need to cup my hand round the light to see it but as most cars have their own indications this should not be a problem.
The manual is fine for installation but is poor for operation. For example, it gives two methods to start charging (with and without the charge card) but gives no explanation of how to set it. That said, a quick email to the manufacturer and they sent video showing how. They should probably add this to their Web site.
Overall build is good considering the excellent price, not the strongest inside but if you are careful with installation this is not a problem.
As long as your car has programmable charging routine built in this charger should cope with all your requirements. If you need the charger to set the charge time or communicate with your electric supplier then you need a more intelligent (expensive) charger.

Leave 5 stars for engagement that put the seller, always ready to answer every question and always polite and efficient. The product is to be tested but I am sure it will meet expectations, looks well made and appearance communicates fastness and care in construction. The wire length is 8 MT about and this is very important. Hope to do more business with you

Fast delivery product conforms to the DESCRIPTION,

Article received very quickly, as described on the site. I recommend
