Can 8bar Pressure Fuel Injector Cleaner Machine Simulate a 200bar Operating Condition?

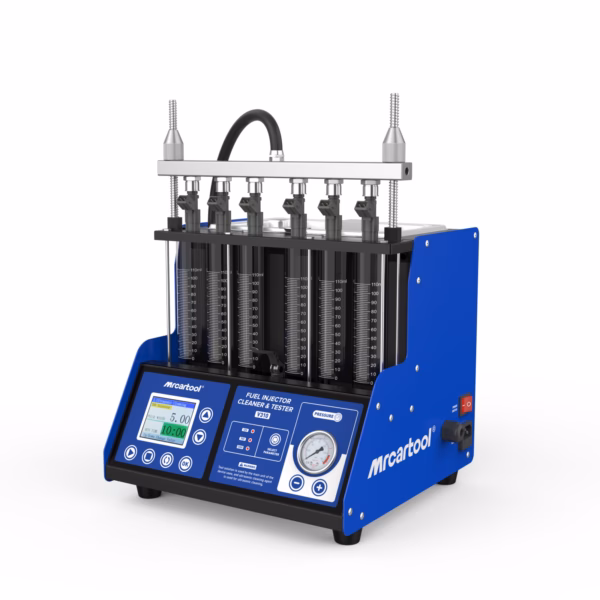

Is the MRCARTOOL Fuel Injector Cleaner Machine Effective?

1. Functions of the Fuel Injector Tester

The fuel injector tester is mainly used to:

✔ Check the atomization effect of the injectors (whether it is uniform and without leakage)

✔ Test the sealing performance of the injectors (whether it leaks fuel)

✔ Measure if the fuel injection volume is normal (whether it meets standards)

✔ Check the solenoid valve response speed (whether it is stuck or delayed)

2. Effectiveness of the MRCARTOOL Fuel Injector Tester

• High-Precision Sensors: Ensure accurate measurement of fuel injection volume and atomization state.
• Visual Detection: Allows intuitive judgment of atomization quality through a transparent observation window.
• Simulates Real-World Conditions: Although the test pressure is lower (8bar), it can still reflect the basic performance of the injectors through flow control and injection frequency adjustment.
• Strong Compatibility: Suitable for a wide range of fuel injectors, including those for cars, motorcycles, and boats, compatible with most vehicle models.

  Conclusion: The MRCARTOOL fuel injector tester is effective for basic function tests (such as atomization, sealing, and fuel injection volume) and is suitable for the daily testing needs of repair shops.

  ---

  Can 8bar Pressure Simulate a 200bar High-Pressure Operating Condition?

  1. Actual Working Pressure of Fuel Injectors

  • Diesel Common Rail Fuel Injectors: Typically operate at 200-250bar, or even higher (some models can reach up to 300bar).
  • Gasoline Direct Injection Fuel Injectors: Typically operate at around 50-150bar.

  2. Can 8bar Pressure “Simulate” 200bar Injection Pressure?

  Many people believe that to test the injector’s working pressure, a pressure above 200bar, similar to the actual engine operating conditions, is required for accurate testing. However, this is not the case.Most MRCARTOOL testing equipment uses 6-8bar air pressure or electric pump pressure to drive the testing fluid, not to perfectly replicate the high-pressure system inside the engine, but for the following two reasons:

  ✅ Purpose 1: Check Spray Pattern, Flow Rate, and Clogging

  • At 6-8 bar, technicians can directly observe injector clogging, uneven atomization, misaligned spray cone angles, and leakage using the fuel injector cleaning machine.
  • The fuel injector cleaning machine can detect common power-loss issues – including poor spray patterns and partial clogging – that lead to increased fuel consumption at this pressure range.

  ✅ Purpose 2: Safe Testing Environment

  • Using 200bar high pressure requires a specialized booster system, reinforced steel structure, and ultra-high-pressure seals. This not only drives up equipment costs but also poses safety risks for the user.
  • The 8bar testing method chosen by MRCARTOOL allows for safe operation in home garages and repair shops, significantly lowering the user’s entry barrier.

  ---

  Why Do We Not Recommend Consumers Choose a 200bar Pressure Fuel Injector Tester?

  ⚠️ 1. Extremely High Cost

  • Requires a hydraulic or high-pressure air pump booster system.
  • Pipelines and valves must be made from aerospace-grade materials (explosion-proof, leak-proof).
  • High-pressure seals, precision instruments, and pressure relief protection systems are costly.
  • The equipment price is at least 3-5 times that of a standard tester, making it completely uncost-effective for regular repair shops or DIY enthusiasts.

  ⚠️ 2. High Operational Risks

  • A 200bar liquid pressure can easily puncture the skin, causing serious injuries.
  • Professional protective clothing, safety goggles, and enclosed spaces are required during use.
  • Any leakage or improper operation can result in severe consequences.

  ⚠️ 3. Limited Practical Value

  • High-pressure (200bar) testing only evaluates injector dynamic response under extreme conditions. However, such issues typically stem from aging solenoid coils or ECU control problems – neither of which cleaning can resolve.

  ---

  Conclusion: Applicable Scenarios for the MRCARTOOL Fuel Injector Cleaner Machine

  Applicable Scenarios	Inapplicable Scenarios
  ✔ Quick detection of injector atomization and sealing performance	✖ Requires precise simulation of 200bar high-pressure injection
  ✔ Daily troubleshooting for repair shops	✖ R&D-level high-pressure injector performance testing
  ✔ Low-cost, high-efficiency testing solution	✖ Replacing OEM high-pressure test benches

  Final Recommendation:

  • If your customers are primarily regular repair shops or dealerships, the MRCARTOOL 8bar ultrasonic injector cleaner is more than sufficient.
  • If your customers require precise testing of high-pressure common rail injectors, we have 20 years of experience in the automotive injector field and an in-house R&D team. We can provide high-end customized services. Please contact our Online Support for more details.
