MRCARTOOL T100 Smoke Test Machine
$109.99
United States dollar ($) - USD
- Fast Smoke Output: Built-in air pump eliminates the need to purchase an additional air pump and produces a steady, high volume of smoke within 10 seconds of start-up.
- Multi-function: Seal test, air intake system test, exhaust system test, cooling system test, EVAP system test and overheat protection.
- After-Sales Service: 48 months warranty and 7×24 hours friendly customer service to ensure your shopping experience.Online Support>>
More Discounts? Please Contact us Get exclusive offers Here
MRCARTOOL T100 Smoke Test Machine is a specialty tool used with vehicle diagnostic devices to check the tightness of the vehicle pipeline system and find leaks, helping the auto repair technician to quickly and accurately determine whether the fault is caused by the pipeline leaks.
📝Warm Tips
- Please connect the 12V battery for use, too much current will damage the machine.
- When you use this MRCARTOOL T100 smoke test machine for the first time, fill it with 10-15ml oil. Please be careful NOT to beyond this range.
- Before use, gently turn the knob to open the airflow regulator valve.
- The testing liquid: both liquid paraffin and baby oil are OK.
- Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 15ml each time.
- Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
- During the process of leak detection, please keep away from smoke-sensitive parts.
- Do not run the detector for over 8 minutes continuously. It needs interval rest.
- The smoke test machine has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
- The round part of this detector has temperature, please be careful to avoid burns.
❓How to Use

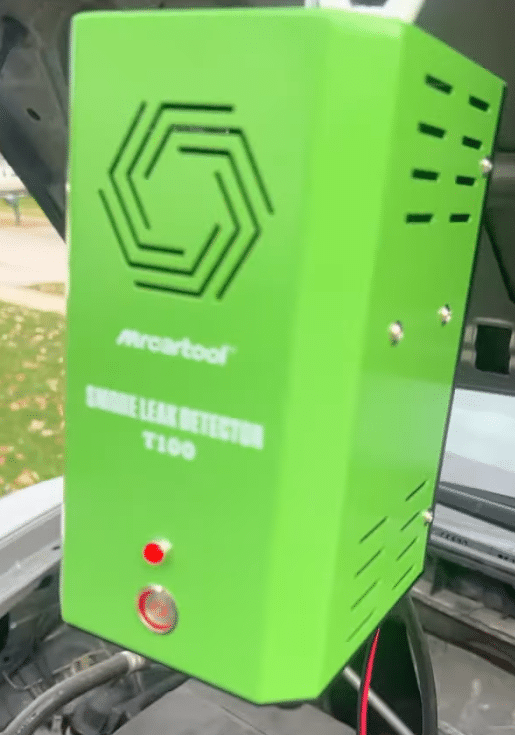

- Step 1: Pour 10-15 ml of baby oil into the smoke test machine for its first use. Open the engine cover and hang the Smoke Leak Detector inside it.
- Step 2: Disconnect the pipe that should connect to the smoke test machine.
- Step 3: Connect the detector to a DC12V battery. Turn on the power switch to start the detector.

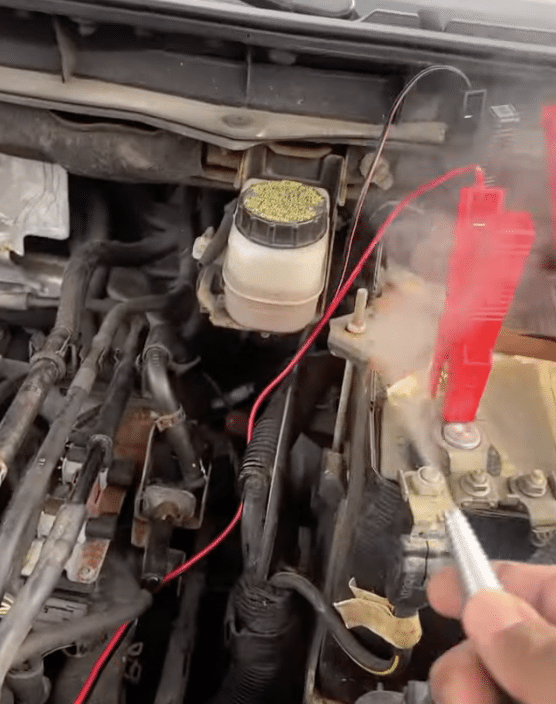

- Step 4: After about 30 seconds, smoke will fill the pipe. Check for leaks. Use a headlamp if needed.
- Step 5: Choose the location you want to check and be safe while doing it. After you finish, store the protective equipment properly.
What is the difference between all MRCARTOOL Smoke Test Machine ?
MRCARTOOL T100 Smoke Test Machine Features
Features
- Built-In Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money.
- Easy Operation And Safe: Thick smoke output detects even the smallest leaks. The smoke leakage tester is equipped with assortment of adapters for multiple pipeline systems to facilitate various tests. (Note: Not fit for air conditioning system piping)
- Fast Smoke Output: T100 smoke test machine produce smoke within 10 seconds and maintain a stable, large amount of smoke output after switching on the device by heating Baby Oil. Dramatically reducing diagnostic time.

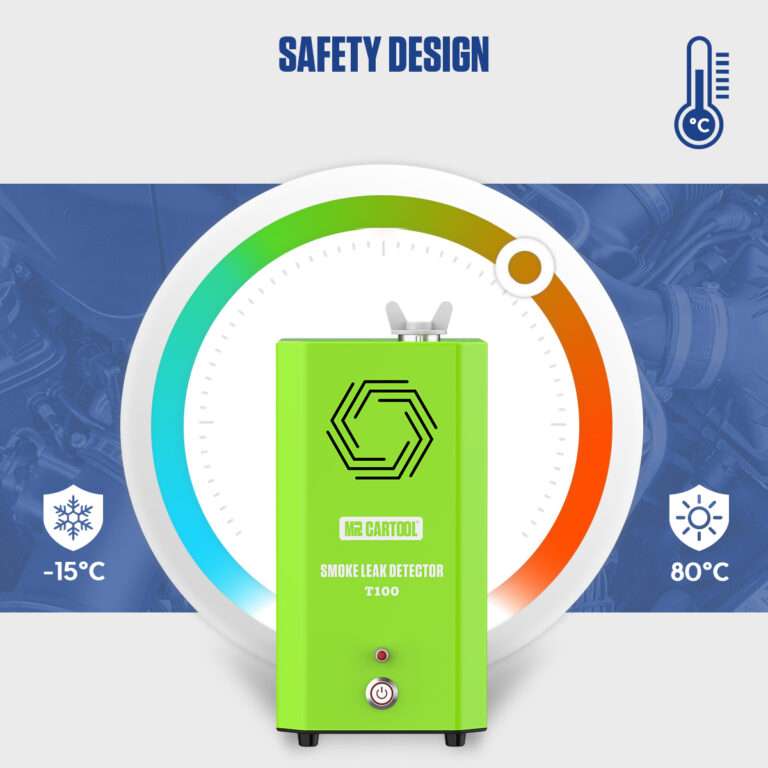

- Overheat & Anti-Frost Protection: The T100 smoke test machine has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

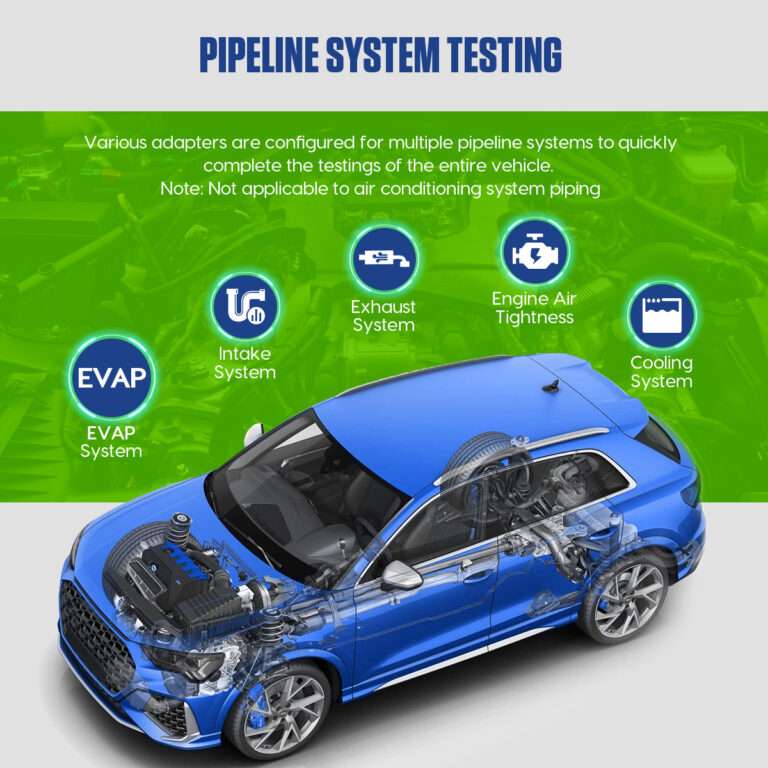

- Multi Functions: Tightness Test, Intake System Test, Exhaust System Test, Cooling System, EVAP System Test and Overheating Protection. Built-in air pump and smoke generator, so it does not rely on other air machine, perfect for Mobile Automotive Repair!

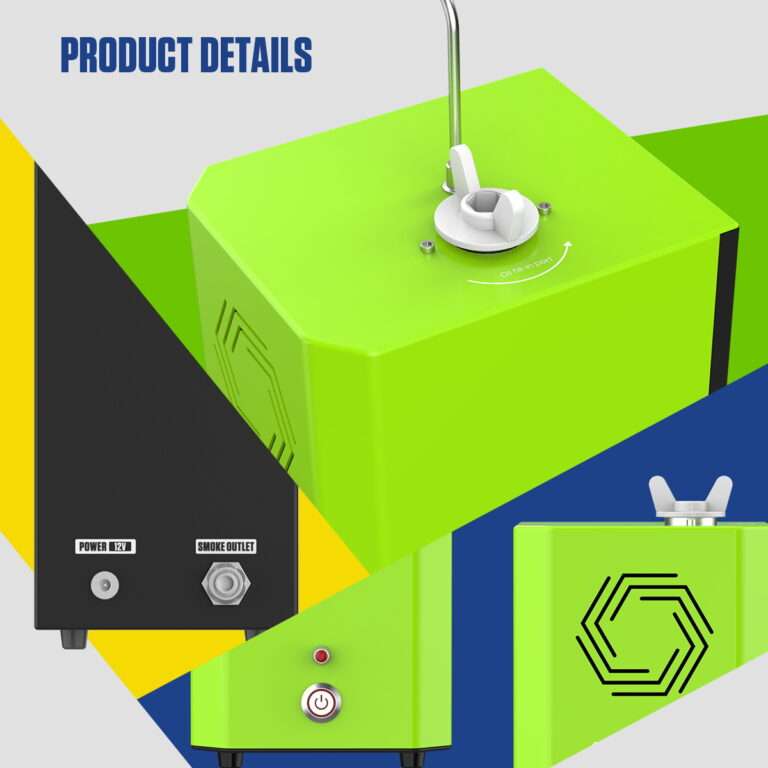

- Product Details: The hook design makes it more convenient for you to test, and the knob for adding baby oil is also an anti-scald design
- Wide Range Of Application: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road wehicles, ATVs, light truck and speedboats. Suitable for all car models.
- After- Sales Service: MRCARTOOL offers a 48 month warranty and 7×24 hour friendly customer service to ensure your shopping experience. If you have any questions about EVAP leak detectors, please contact us directly.

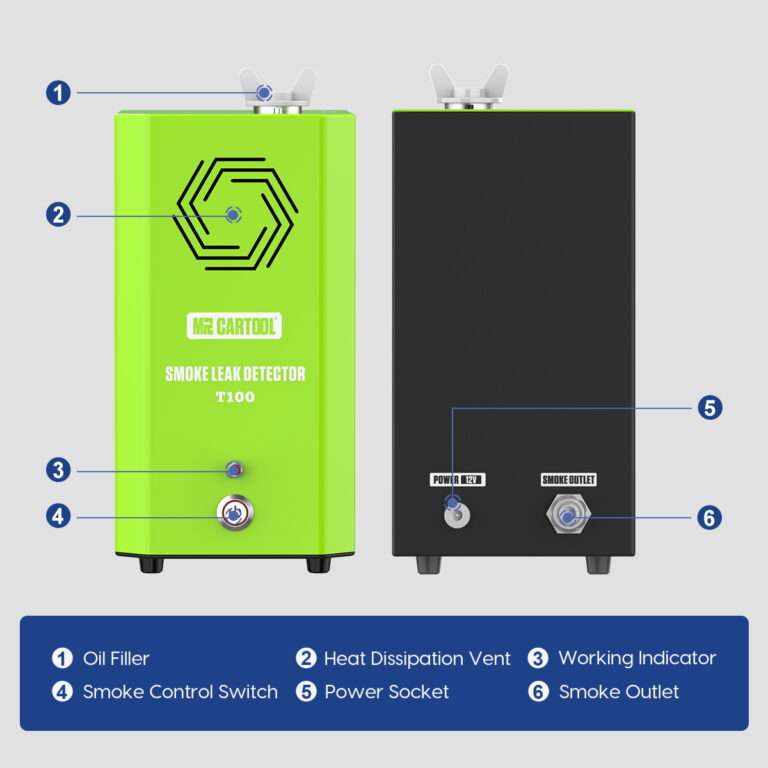

T100 Smoke Test Machine Structure:
Structure
- Hook: To hang the smoke test machine when detecting.
- Working Indicator: It is lit when the detector works
- Power Switch: Power it on, and the detector works
- Smoke Output Tube: The smoke outlet which connecting with detection port
- Power Clamp: To connect with vehicle battery. The voltage is DC12V.
- Oil Filler: Please add 10-15ml of baby oil, do not introduce too much, too much will lead to insufficient space in the smoke test machine to produce smoke.

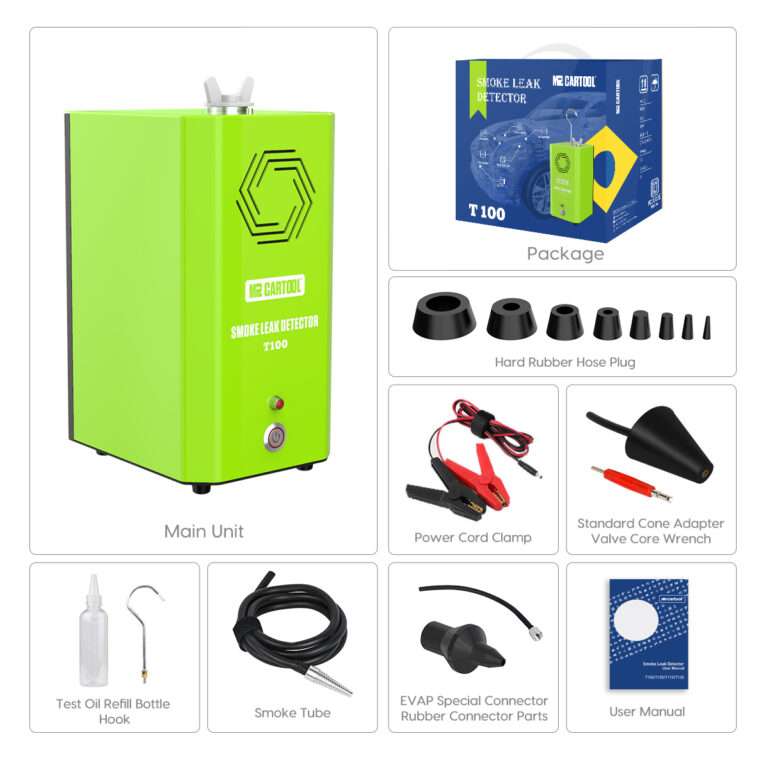

Packing List:
FAQ
Why has my smoke test machine stopped producing smoke?
- Please check if you have added too much smoke oil, it is recommended to add 10ml-15ml of smoke oil, if you pour more smoke oil, it will lead to not enough space to produce smoke.
- Please open your Smoke Leak Detector to check if your heating pad is off, if it is off, please install it and use it again.
How long is the warranty for MRCARTOOL Product
MRCARTOOL provides 24 months warranty and 7×24 hours friendly customer service to ensure your shopping experience.If you have any problem at any time, please get in touch with me. I will deal with it for you at the first time. Onlie Support>>
Where can smoke test machine be used?
- It can detect the intake system, engine block, EVAP Systemand exhaust system of the automobile.
- For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road wehicles, ATVs, light truck and speedboats. Suitable for all car models.
How do I choose a smoke test machine for my engine problems?
- Smoke Generation Method: Decide between a built-in air pump, which is portable, or an external air compressor, which can be cumbersome.
- Portability: Portable models are best for small users and workshops. Larger, professional models work better in industrial settings.
- Detection Precision: Basic auto smoke machine find simple vacuum leaks. Higher-end models detect smaller leaks and let you adjust pressure for better results.
- Compatibility: Some Smoke Leak Detector work only for specific systems, like the automotive evap system, while others can test multiple systems, including intake and exhaust.
- Price and Features: Cheaper models offer basic functions, while more expensive units provide advanced features like adjustable smoke density and diagnostics.
- Smoke Volume and Density: Higher-end models produce denser smoke, making it easier to spot leaks. Basic models may struggle with smaller leaks.
What kind fluid should I use and how much should I add?
- Use either Liquid Paraffin or Babay Oil as a substitute
- No more than 10ml at a time (If there’s already oil inside please don’t add more )
Related blogs
Automotive smoke leak detector: The top 3 things you need to know.
Do you know why automotive [...]
24
Sep
Sep
10
Jun
Jun

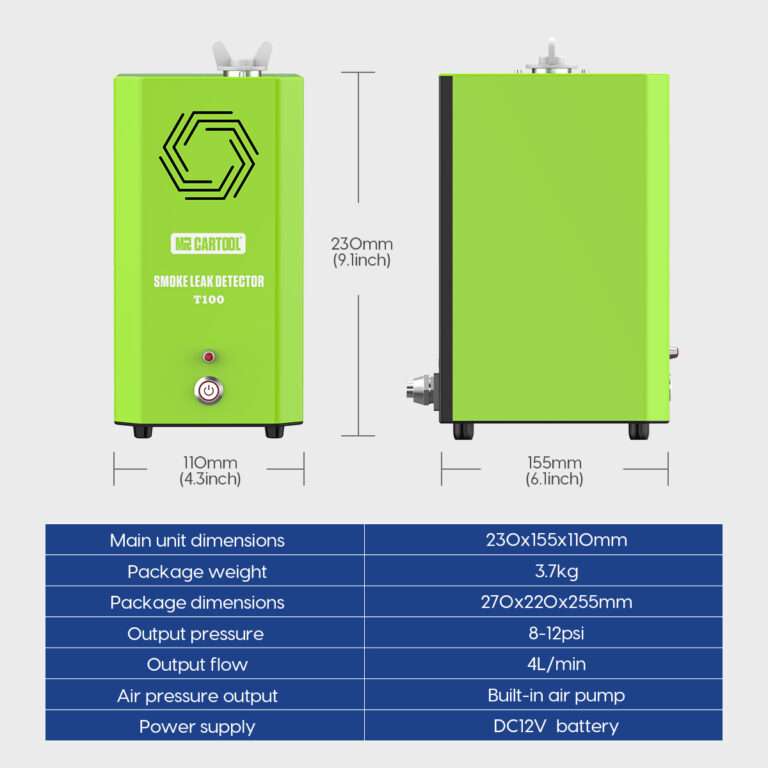

| Weight | 3.402 kg |
|---|---|
| Dimensions | 28 × 22 × 27 cm |
| Ship From | China, Germany, United Kingdom, United States |
