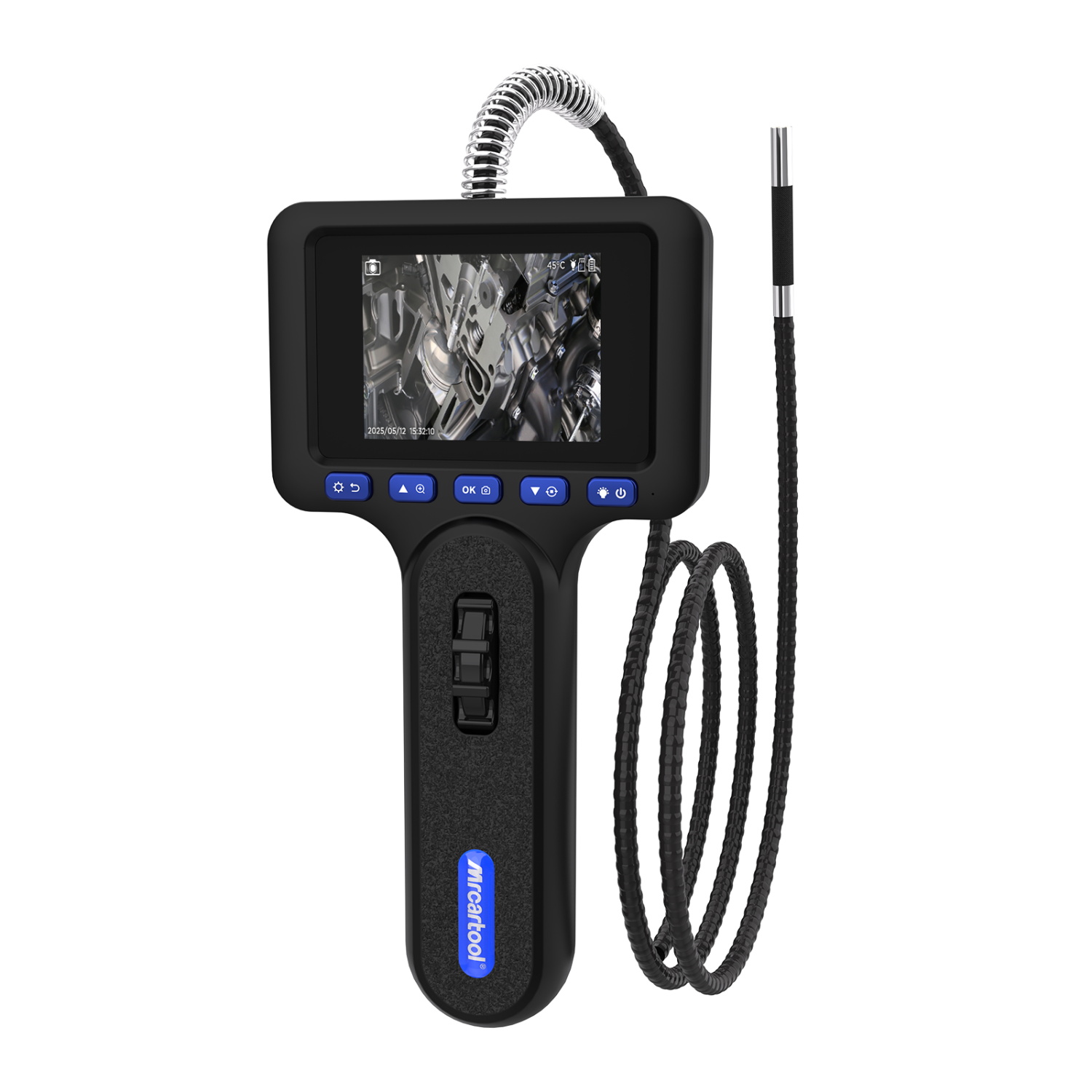

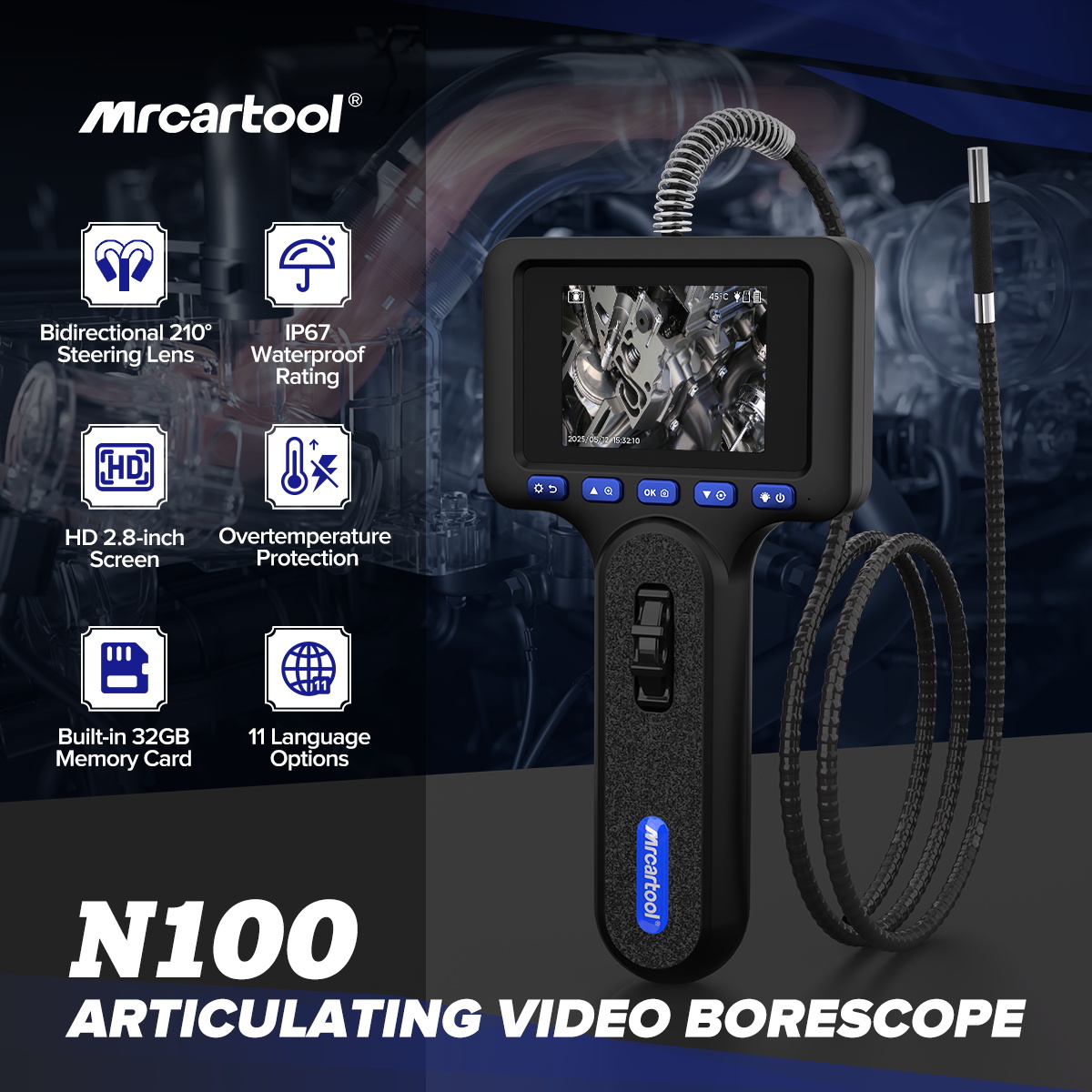

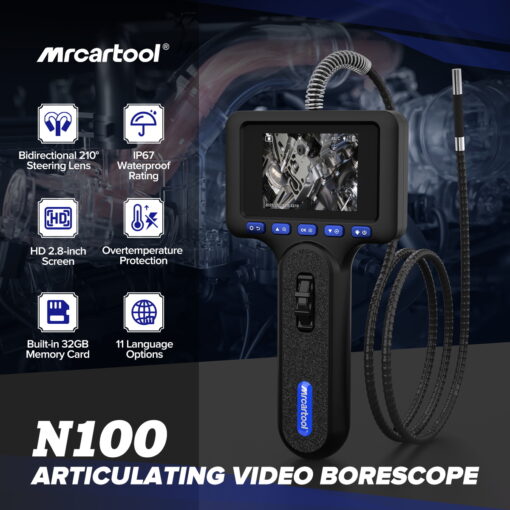

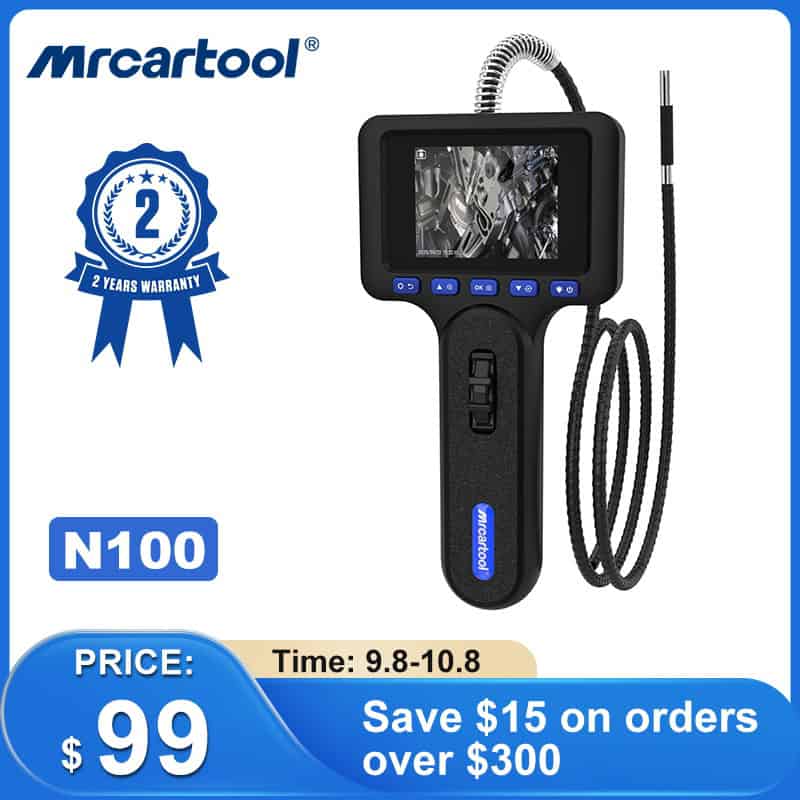

Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video

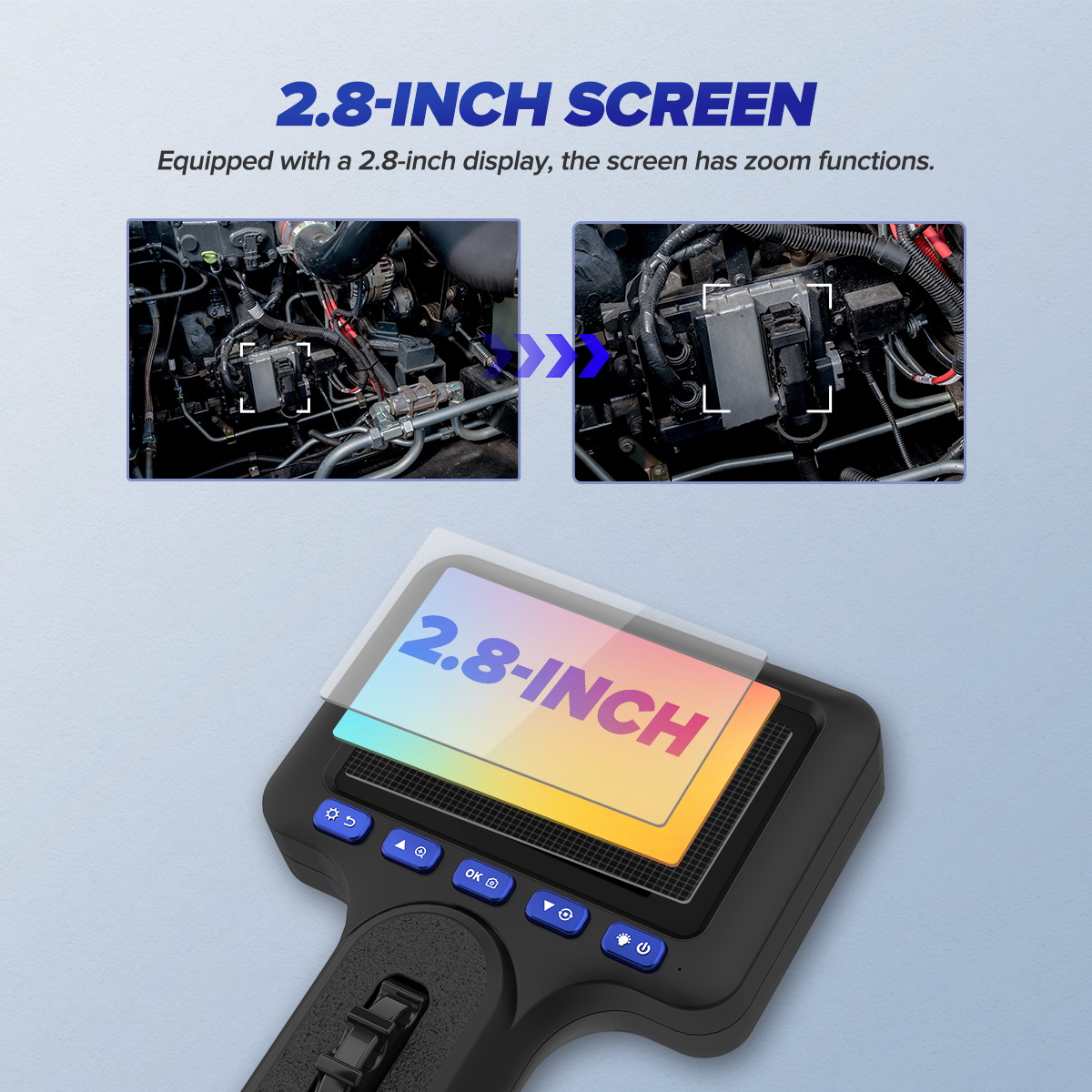

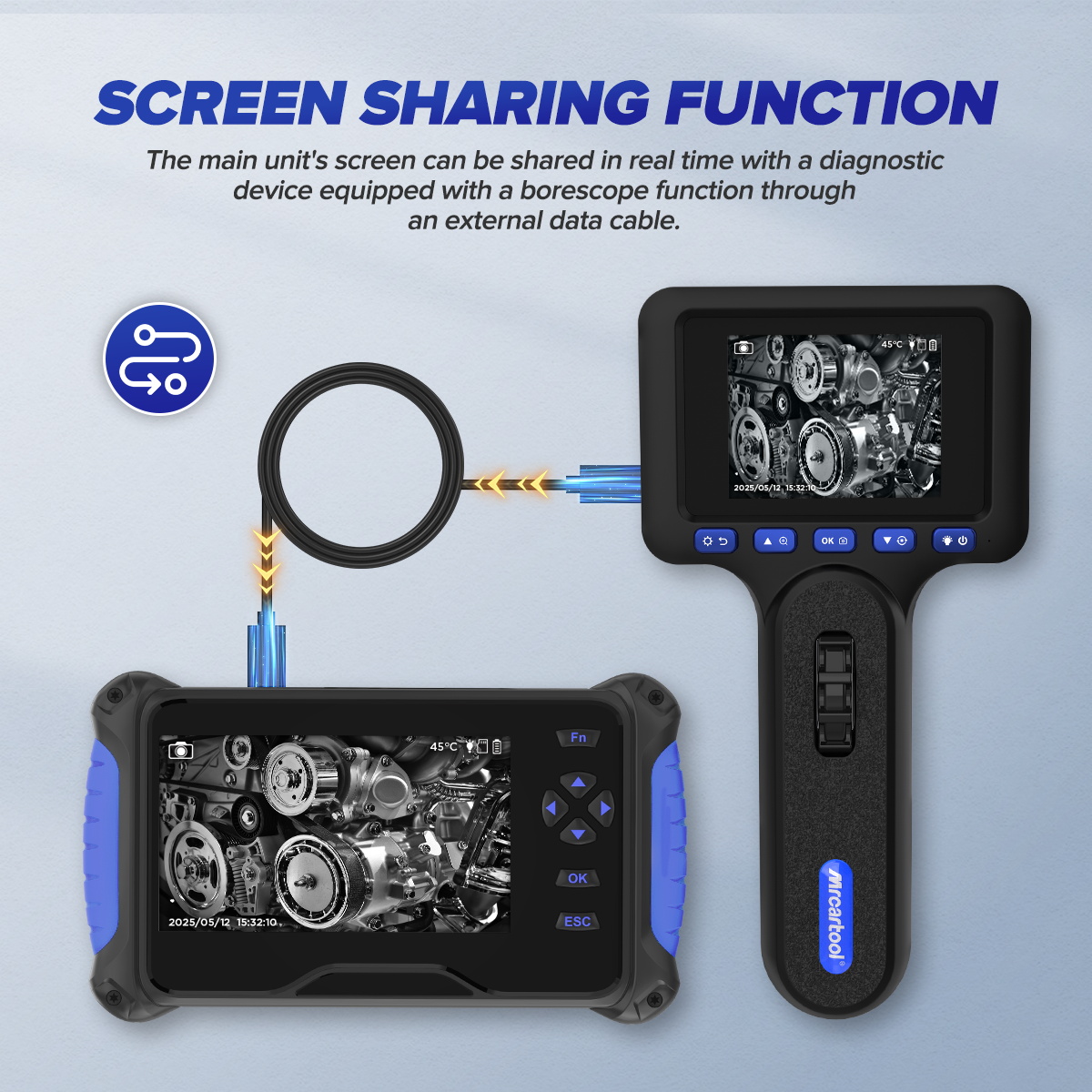

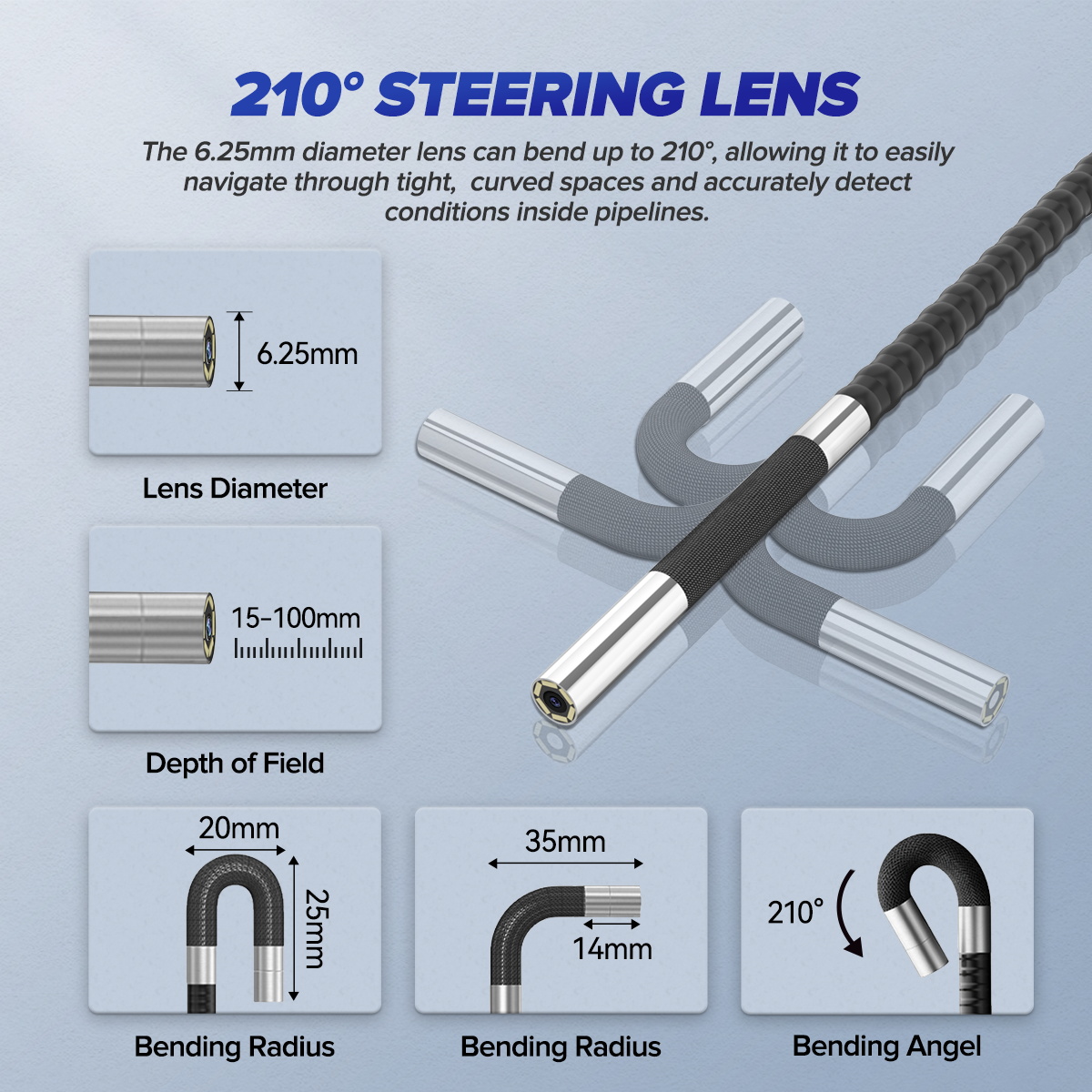

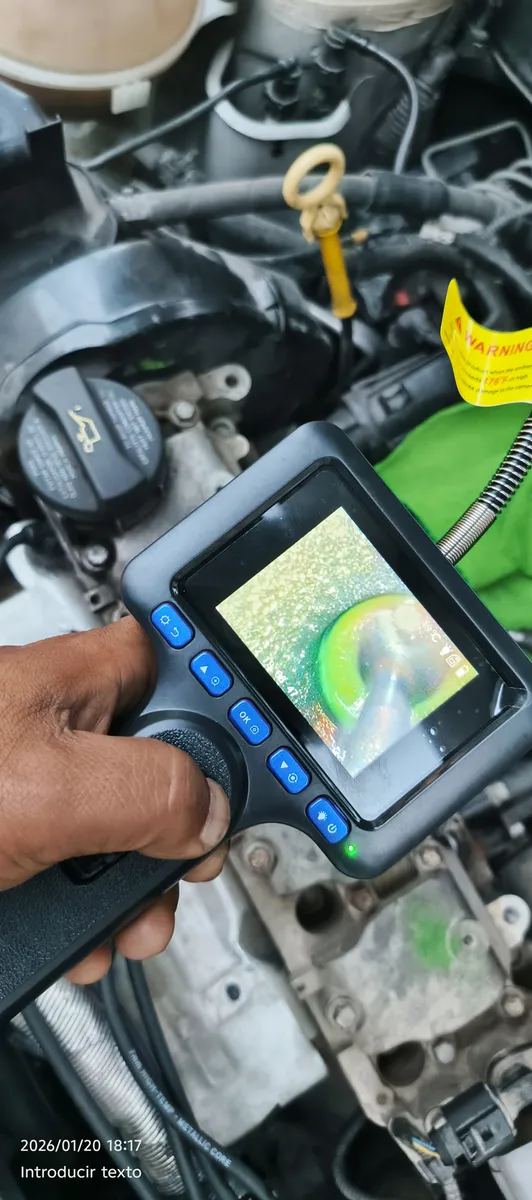

MRCARTOOL N100 Auto Inspection Camera is equipped with 210 degree bi-directional adjustable HD pipeline lens, which can be used flexibly in the hard-to-reach area of the car to support automotive maintenance, air conditioning pipeline inspection, mechanical inspection and other multi-scenario uses, equipped with a large 2.8-inch screen for real-time observation of the inside of the pipeline, and can be connected to an external display screen, which provides a clear visibility, and is the best companion of the automotive pipeline repair.

Help Center

Wait 1-2 hours for the engine to cool before testing to avoid damaging the camera with high temperatures.
Since the screen isn’t waterproof, you should keep it away from liquids.
Auto Inspection Camera can be connected to a cell phone, while the N150/160 comes with a screen that does not need to be connected to a cell phone.
Please do not penetrate any liquid (e.g. motor oil) into the screen of the borescope, it will lead to the damage of the screen, you need to buy the screen at your own expense

Auto Inspection Camera features a 210-degree adjustable HD lens, allowing flexible use in hard-to-reach areas of the car (15-100mm range), and its large 5-inch screen provides clear visibility.

Help Center

📝Warm Tips

Wait 1-2 hours for the engine to cool before testing to avoid damaging the camera with high temperatures.

Since the screen isn’t waterproof, you should keep it away from liquids.

Pipe Inspection Camera connects to a cell phone, while the N160 and N150 have screens that do not connect to a cell phone.

Please do not penetrate any liquid (e.g. motor oil) into the screen of the borescope, it will lead to the damage of the screen, you need to buy the screen at your own expense

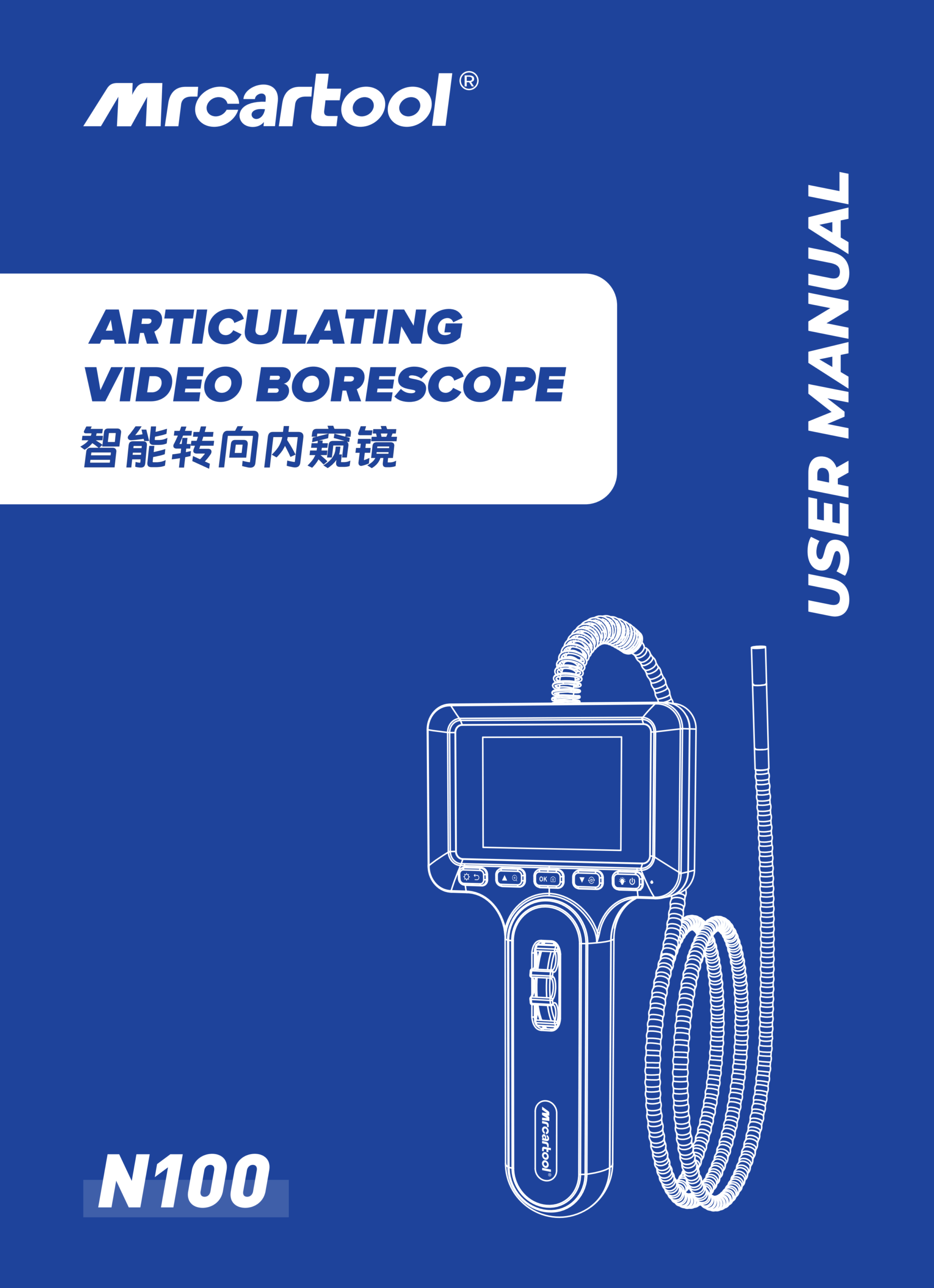

📘MRCARTOOOL N100 Manual

Download

What is the difference between all MRCARTOOL Digital Inspection Camera?

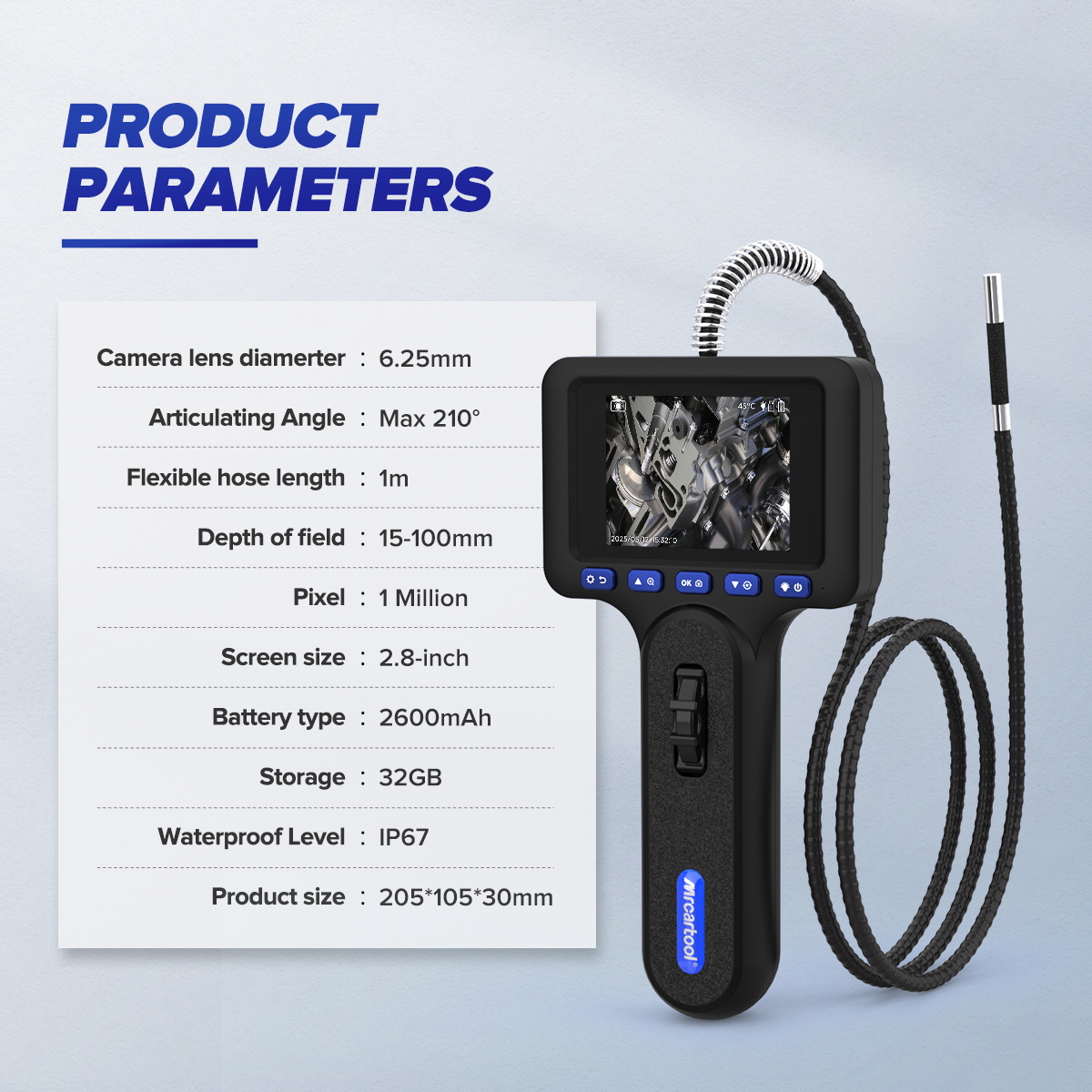

Product Name	N100	N130	N150	N180	N220
Product Image
Steering Angle	Maximum: Two Way 210°	Maximum: Two Way 210°	Maximum: Two Way 210°	Maximum: Four Way 360°	Maximum: Two Way 210°
Display Screen	2.8-inch	3.5-inch	3.5-inch	5-inch	3.5-inch
Lens Diameter	6.25mm	5.5mm	6.2mm	6.25mm	3.9mm
Viewing Angle	90°	90°	90°	90°	90°
Depth of Field	15-100mm	15-100mm	20-100mm	15-100mm	15-100mm
High-Temperature Protection	Automatic Alarm Above 80°C (It is recommended that the temperature of the camera’s operating environment is -10°C~50°C.)
Manual Light Adjustment	Three Adjustable Levels
LED Lighting	Six High-Intensity Lights
Bending Radius	35mm
Flexible Tube Length	1M (Customization Available)
Waterproof Rating	IP67
Magnification	4X	4X	4X	8X	4X
Detachable screen connects to mobile phone	×	×	×	✓	✓
Languages	11 Types	11 Types	10 Types	11 Types	11 Types
Battery Capacity	2600mAH Lithium Battery	2000mAH Lithium Battery	2200mAH Lithium Battery	2600mAH Lithium Battery	2000mAH Lithium Battery
Storage Capacity	32GB	32GB	32GB	32GB	32GB
External Monitor	✓	✓	×	✓	✓

⚙️Other Models

Sale!

Quick View

Mrcartool N100 Auto Inspection Camera 2.8inch Screen Photo-Video

Quick View

MRCARTOOL N130 Flexible Scope Camera 5.5mm 1-Meter Cable 210°

$199.00

Sale!

Quick View

【Black Friday Prices】MRCARTOOL N150 210° Articulating Borescope

Sale!

NEW

Quick View

【Black Friday Prices】N180 Borescope Cylinder Inspection 360° Waterproof Endoscope Camera

New

Quick View

MRCARTOOL N220 Digital Inspection Camera 3.9mm 210°

$249.00

MRCARTOOL N100 Auto Inspection Camera Features

Features

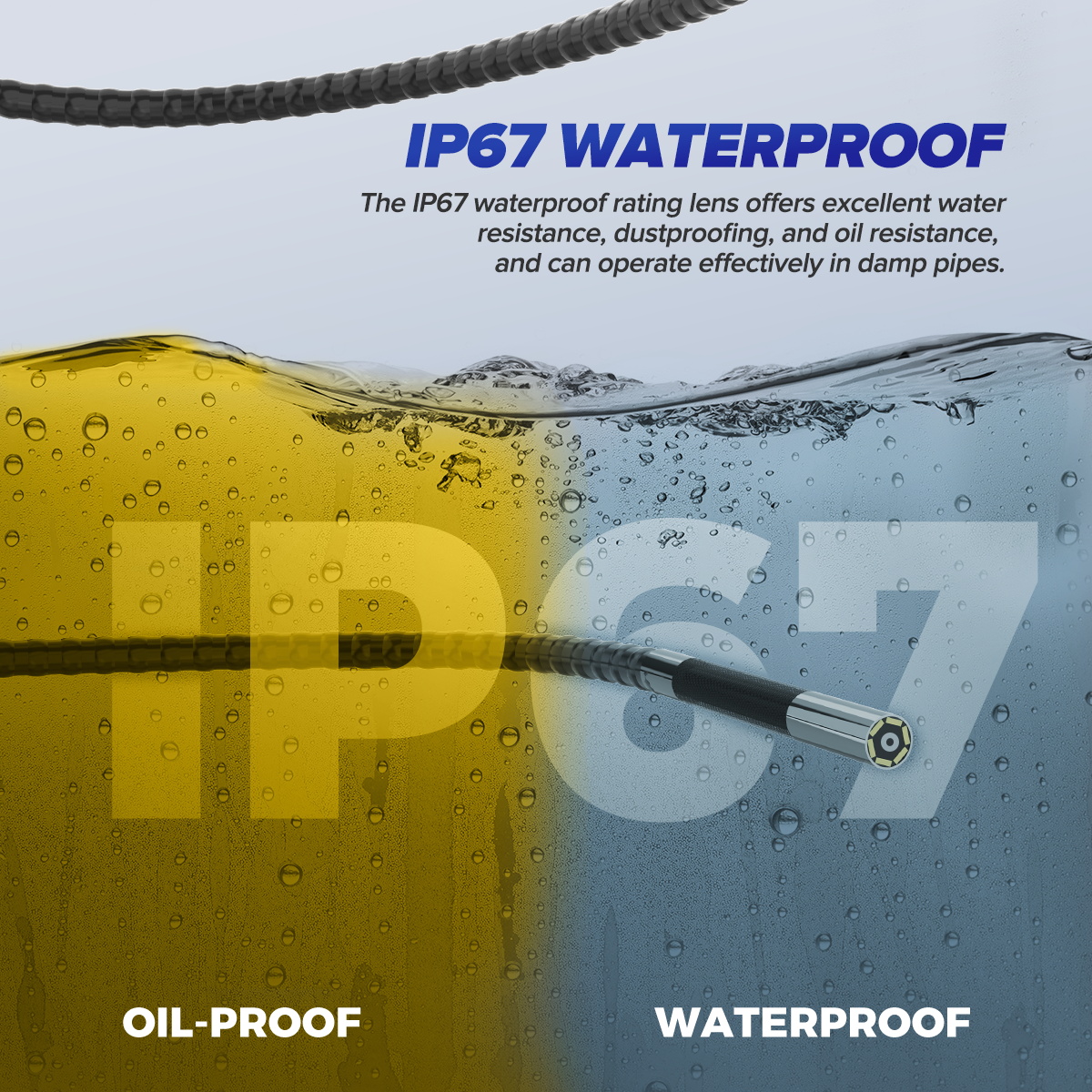

Best-in-Class Waterproofing: The N100 inspection camera ducting supports IP67-rated water and oil resistance, making it ideal for maintenance in oily, wet and dusty environments.

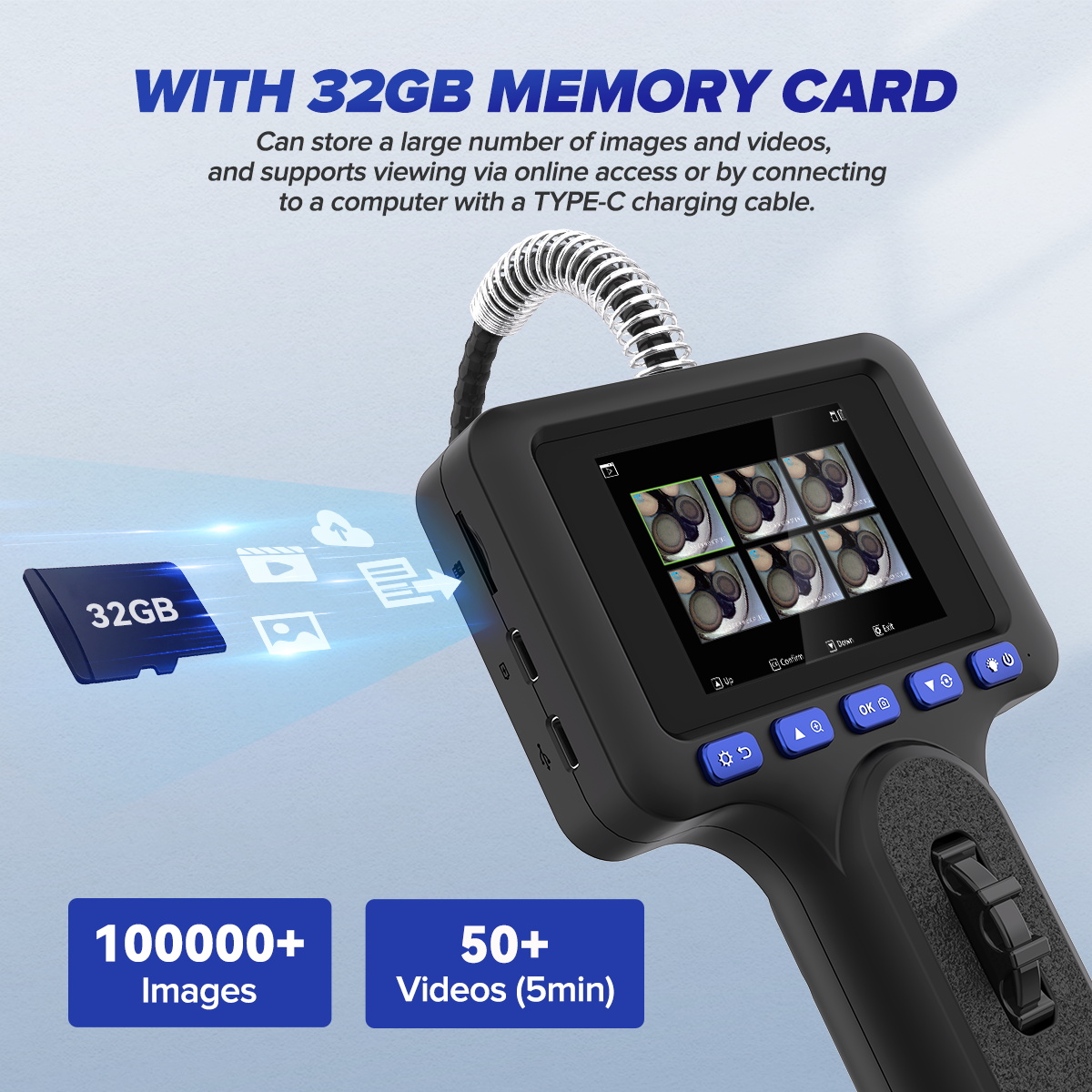

Huge 32GB Memory: The machine comes with a memory card that can store up to 10,000+ photos and 50+ videos, which is good for case studies of automotive problems at any time.

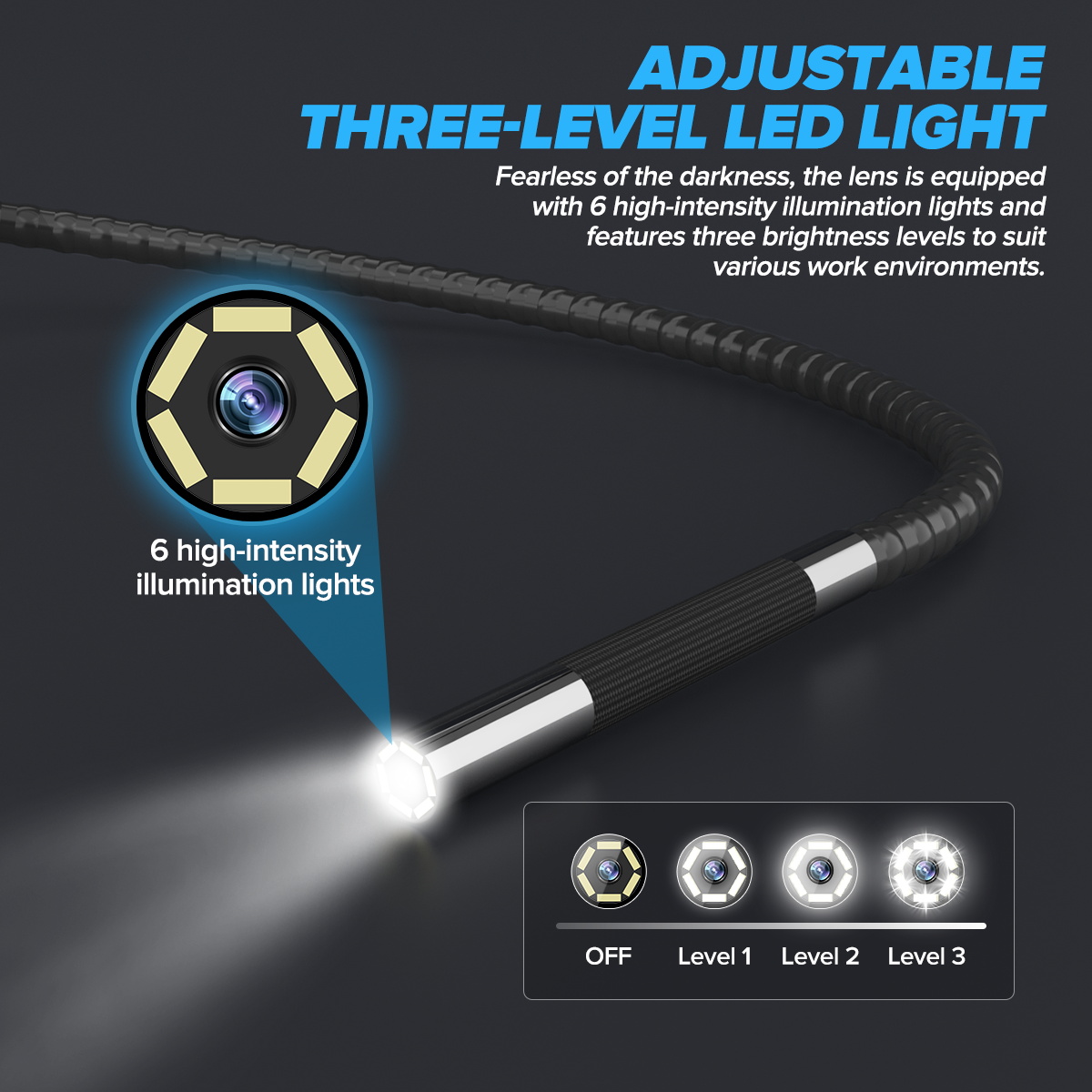

Led Light Line Adjustable: Six high-brightness LED lights provide three levels of brightness to adapt to a variety of narrow, dark pipes, and can be adjusted accordingly for clearer inspection.
Multi-Scenario Application: Suitable for automotive plumbing repair, mechanical equipment inspection, electrical systems, sewer inspection and air conditioning repair.

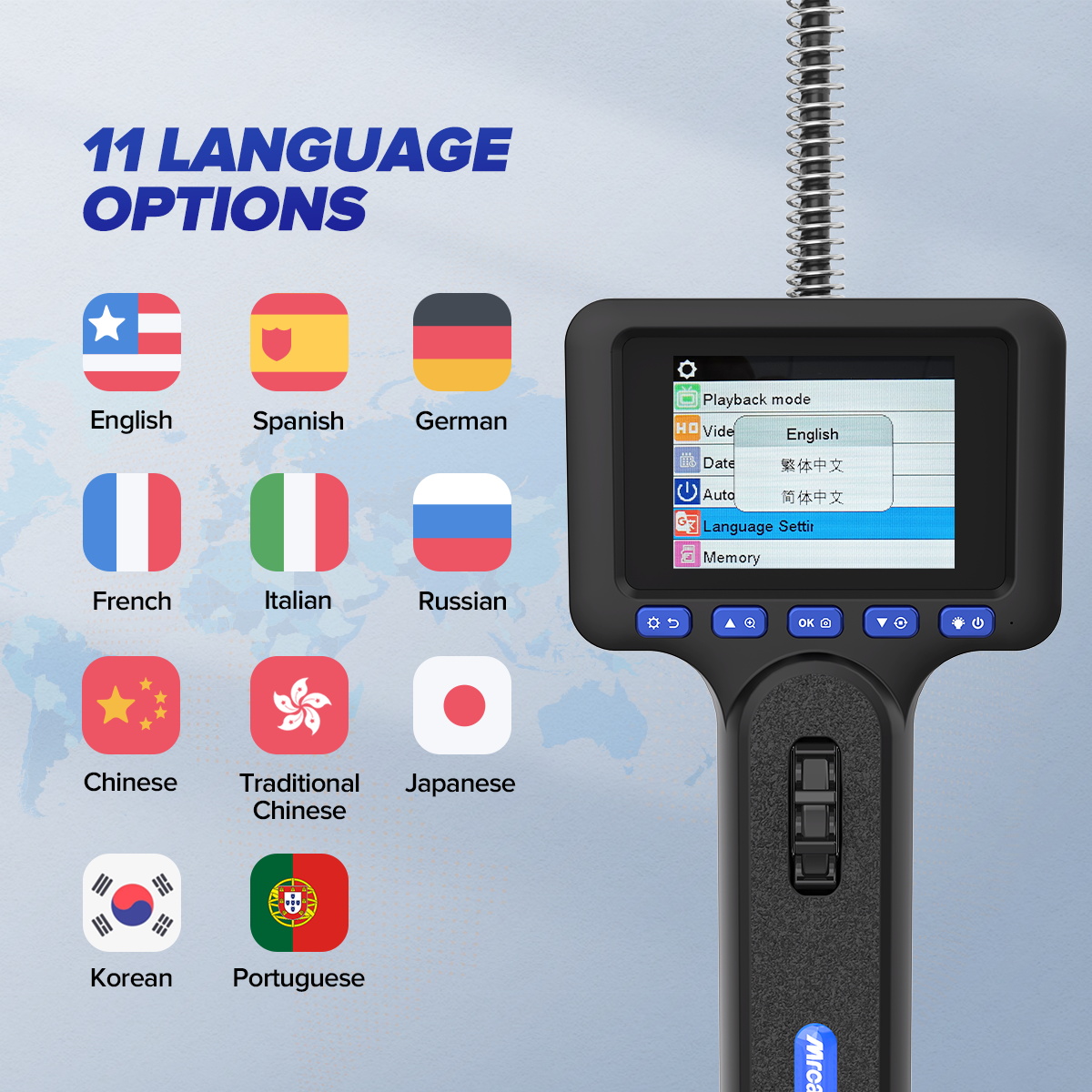

Multi-Language Support: Built-in 11 language settings to meet different language users.
2 Year Warranty: MRCARTOOL provides 24 months warranty and 7×24 hours friendly customer service to ensure your shopping experience.
