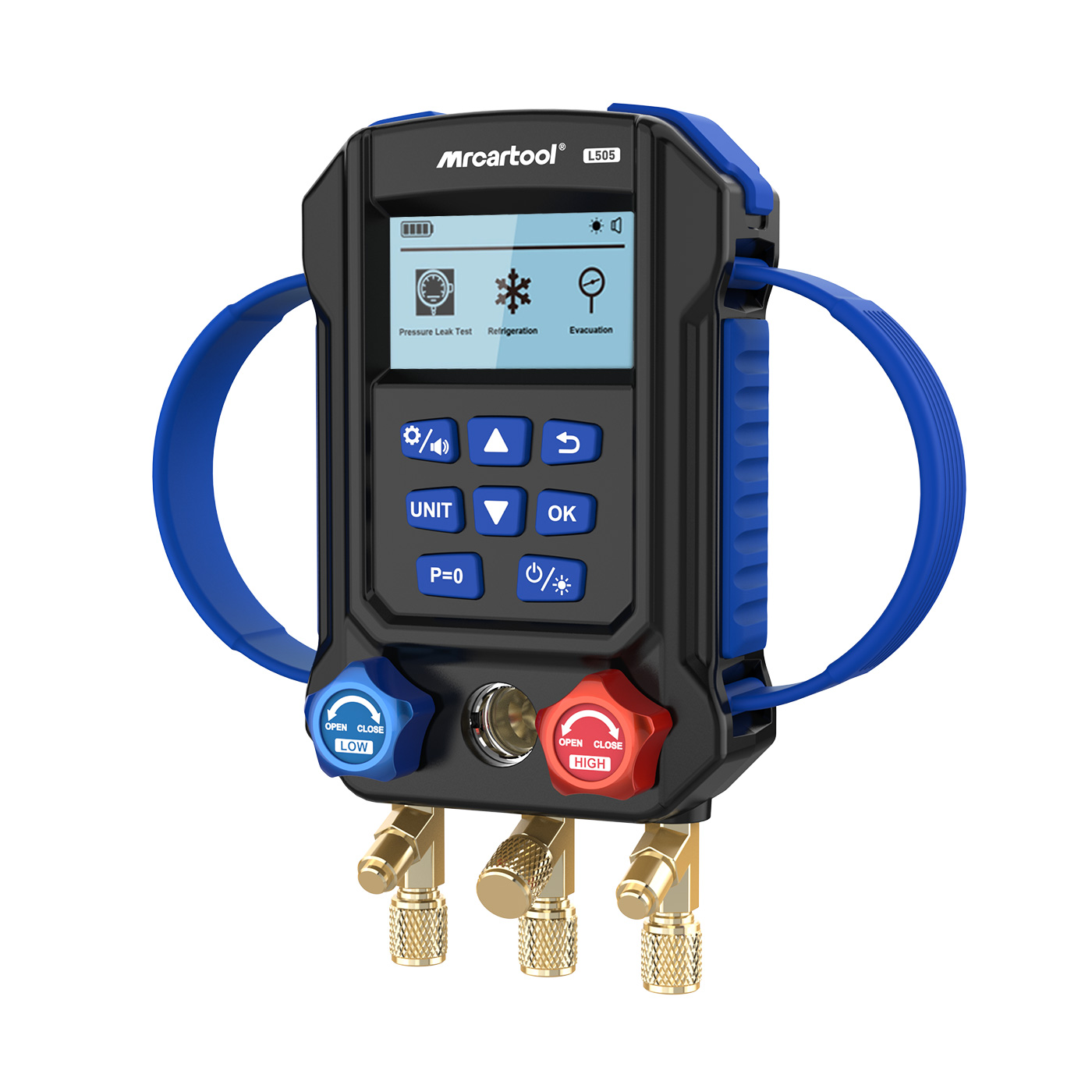

MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 2
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 3
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 4
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 5
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 6
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 7
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set - Image 8

MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set

2 reviews

$259.00

  • Supports over 95 refrigerants
  • R134A/R717/R32 compatible
  • Features an integral vacuum gauge

More Discounts? Please Contact us Get exclusive offers Here

The MRCARTOOL L505 digital refrigeration pressure gauge measures both pressure and temperature, features a built-in database of 95 refrigerant pressures. Manifold Gauge Set can calculate single-sided subcooling and superheat. Its high-quality standard dual valve manifold is durable. Its high-quality housing, reinforced hooks, and impact-resistant screen ensure every detail of your work is taken care of, making hvac manifold gauges – a perfect partner for refrigerant filling and maintenance.

Help Center

📝Warm Tips
  • The pressure measured by the digtal manifold pressure tester is gauge pressure.

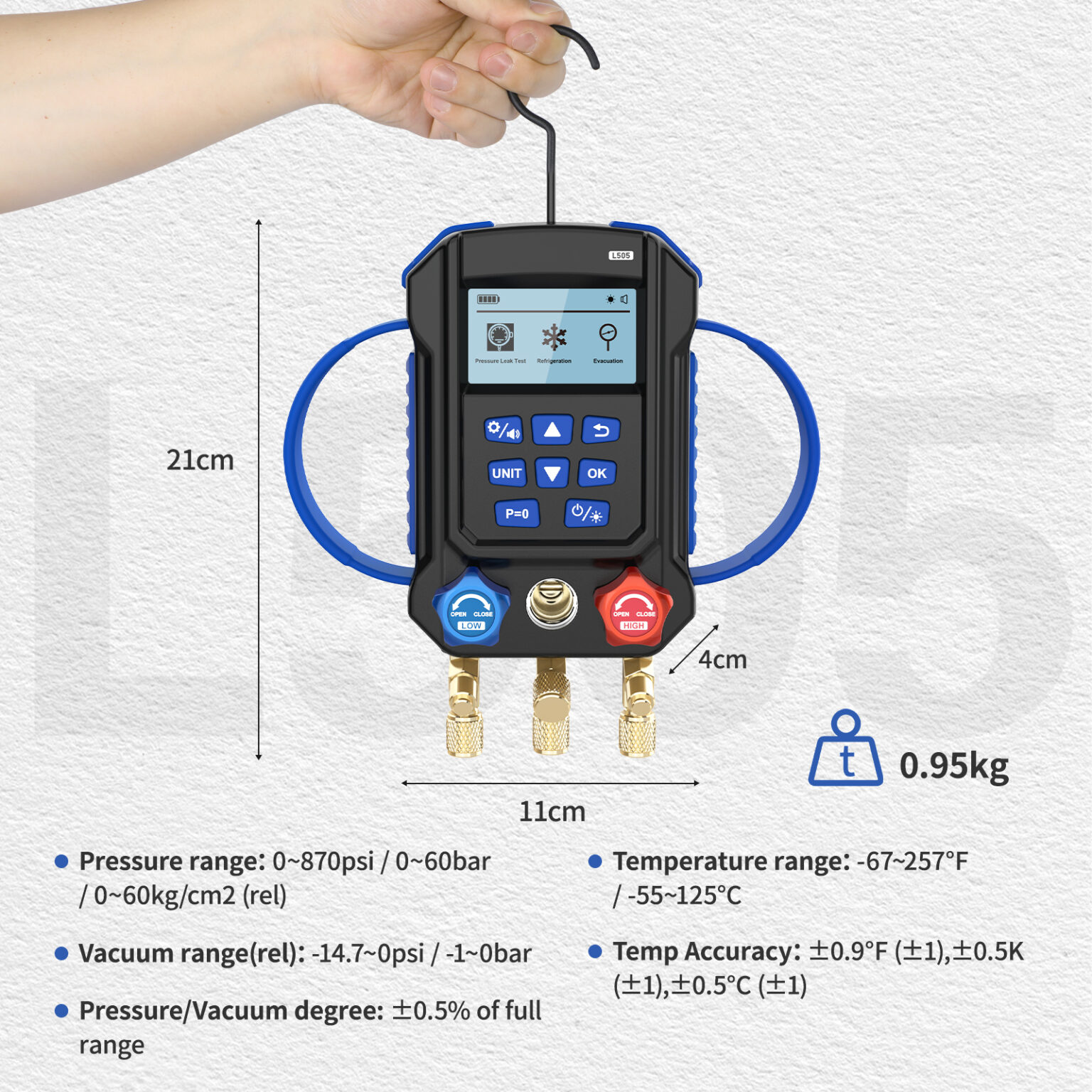

  • Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
  • The limit pressure is 10 Mpa (100 bar).
  • The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ).
  • The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
  • Please confirm the rated pressure value of the tested equipment before testing.
  • Do not use it if it exceeds the range of the instrument.
  • Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
  • Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
  • Please wear qualified protective equipment to protect user during testing.
  • Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.

What is the difference between all MRCARTOOL Digital HVAC Gauges Manifold Gauge Set?

Product Name L202 L205 L302 L505
Product Image
Number of Refrigerant Species 90 92 90 95
Pressure Measurement Unit Kpa, bar, psi, inHg, KgF/cm² Kpa, Mpa, bar, inHg, psi Kpa, bar, psi, inHg, KgF/cm² Kpa, bar, psi, inHg, KgF/cm²
Vacuum Degree × × × hPa/mbar/Torr
Temperature Measurement Unit °C, °F °C, °F °C, °F °C, °F
Intelligent Digital Display Adjustable screen brightness Adjustable screen brightness Adjustable screen brightness Adjustable screen brightness
Dual Pressure Test × × ✓ ✓

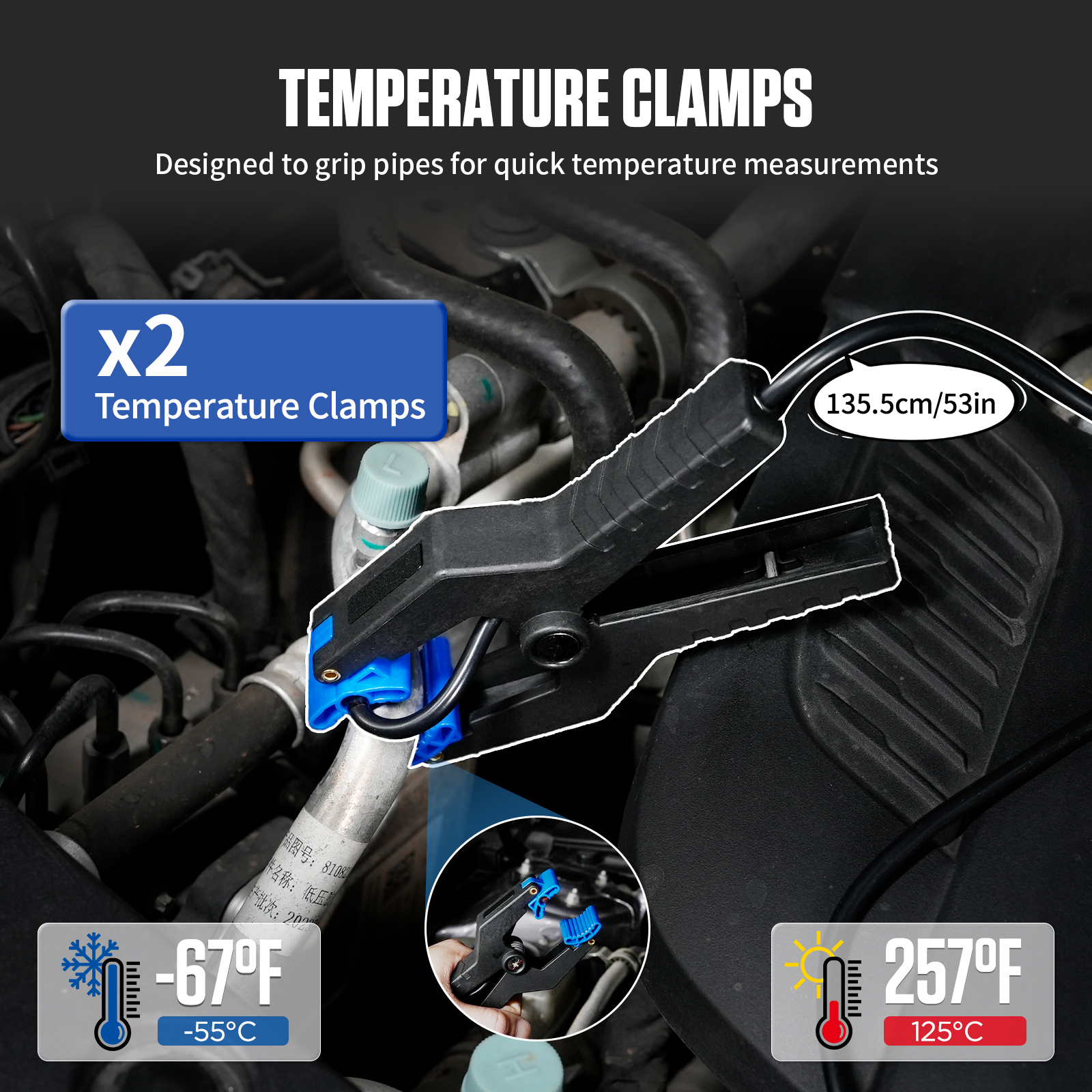

Dual Temperature Test × × ✓ ✓
Refrigerant Mode ✓ ✓ ✓ ✓
Pressure Leak Test ✓ ✓ ✓ ✓
Foldable Hook ✓ ✓ ✓ ✓
Refrigerant Visible Window × × × ✓
Product Size 150*90*60mm 165*113*60mm 170*170*60mm 210*110*40mm
⚙️Other Models
Sale!
MRCARTOOL L202 Refrigerant Gauges air conditioning gauges

MRCARTOOL L202 Refrigerant Gauges air conditioning gauges

Original price was: $99.90.Current price is: $75.90.
MRCARTOOL L205 HVAC Manifold Gauge Set AC Gauges

MRCARTOOL L205 HVAC Manifold Gauge Set AC Gauges

Price range: $89.00 through $109.00
NEW
MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set

MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set

$259.00
Sale!
MRCARTOOL L302 Digital Refrigerant Gauge & HVAC gauges​

MRCARTOOL L302 Digital Refrigerant Gauge & HVAC gauges​

Original price was: $149.99.Current price is: $129.90.

MRCARTOOL L505 Digital HVAC Gauges Features

Features

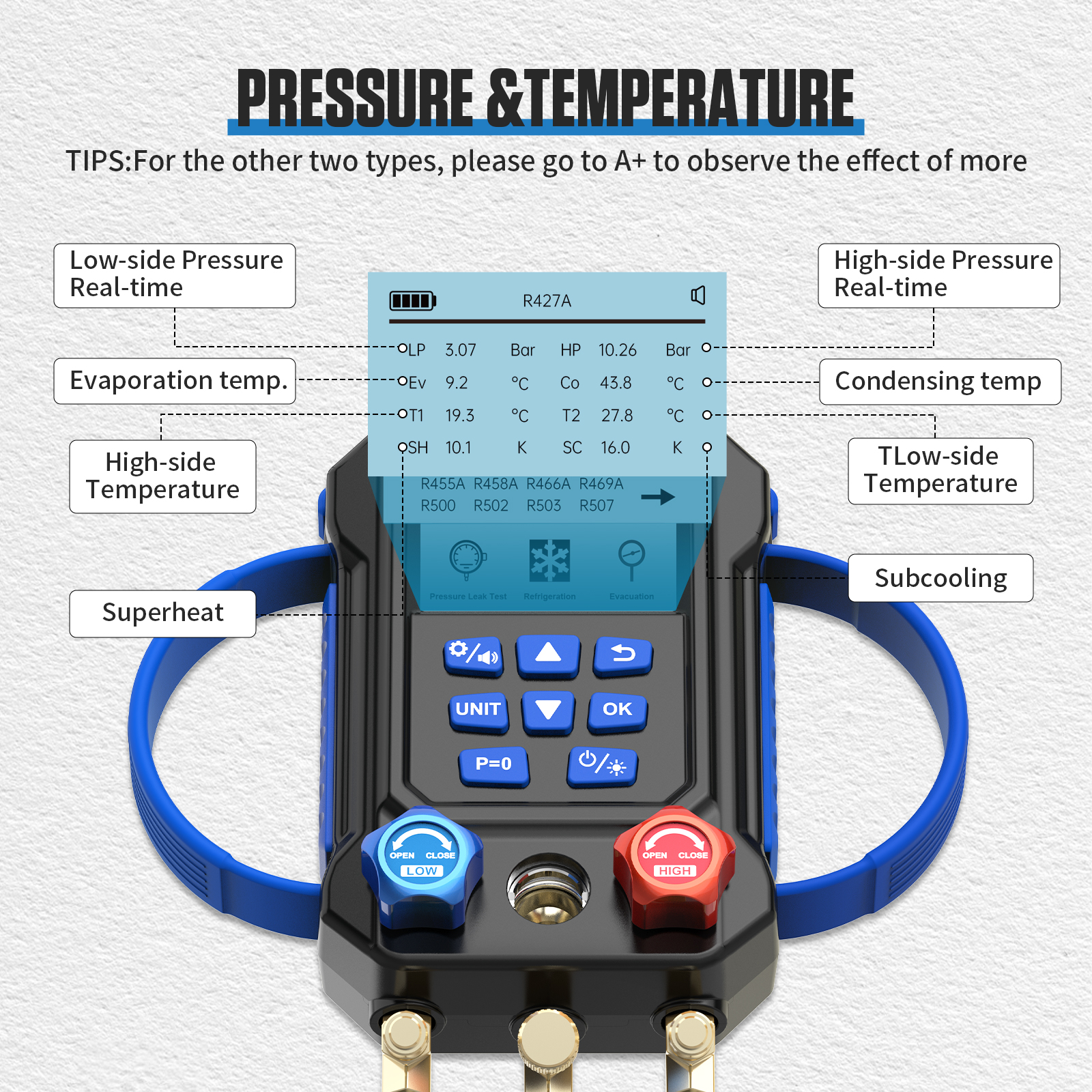

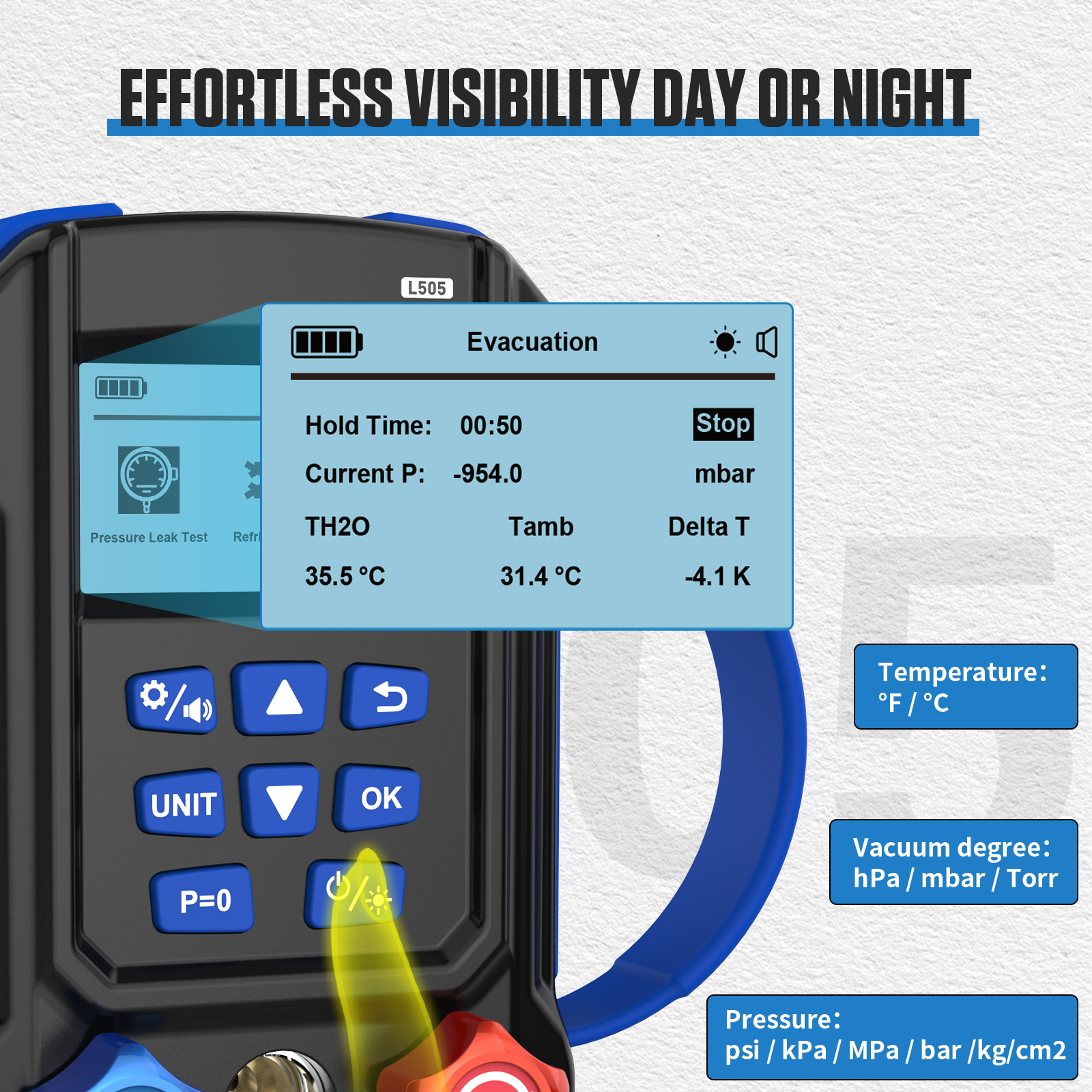

  • Dual Pressure/Temperature Measurement: Displays vacuum and pressure values ​​in real time, and supports automatic conversion between various units of measurement, including temperature, vacuum, and pressure, to meet diverse needs.

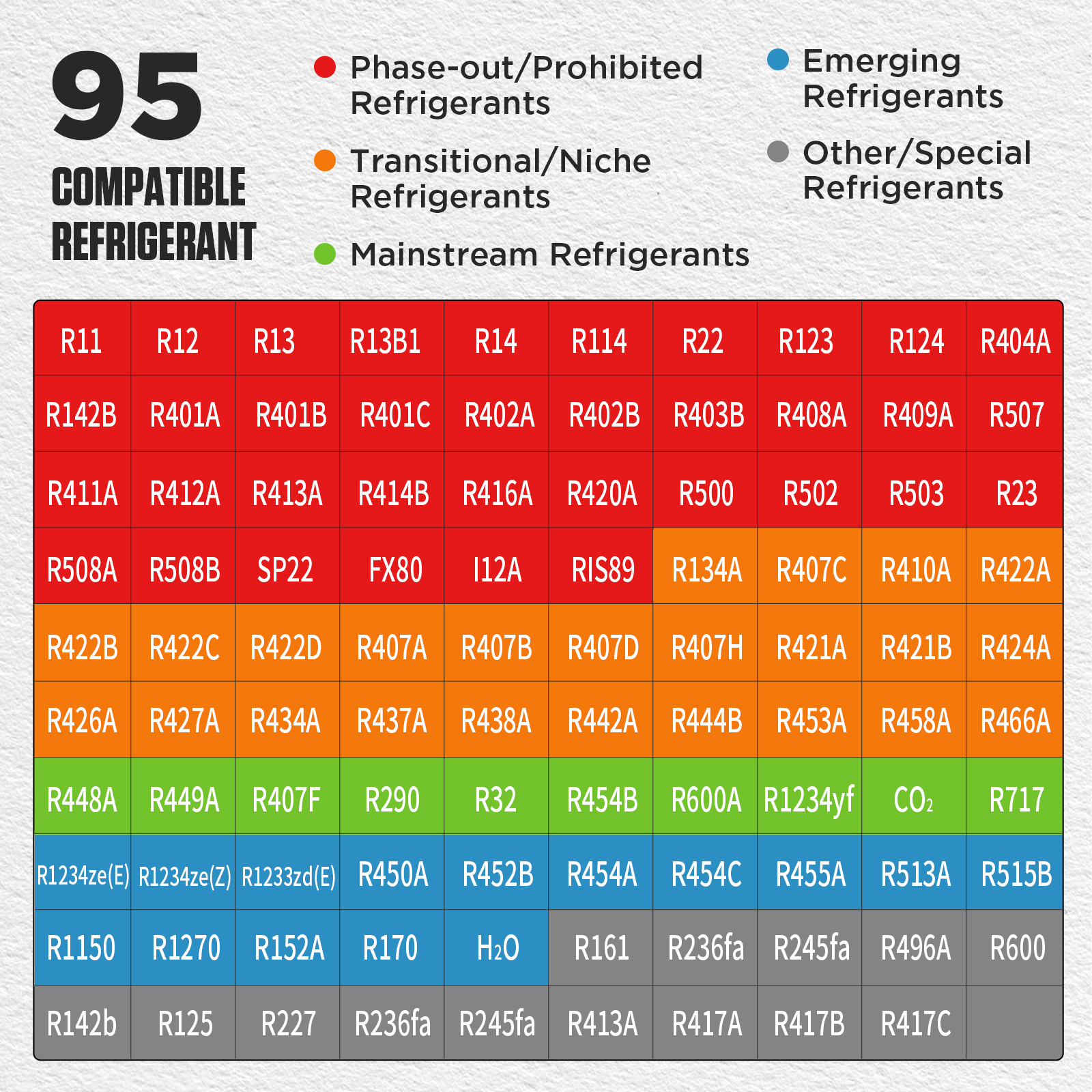

  • Supports 95 Refrigerants: digital hvac gauges built-in database of refrigerant pressure and evaporation temperature is included, along with subcooling and superheat calculations, allowing direct access to operating data.

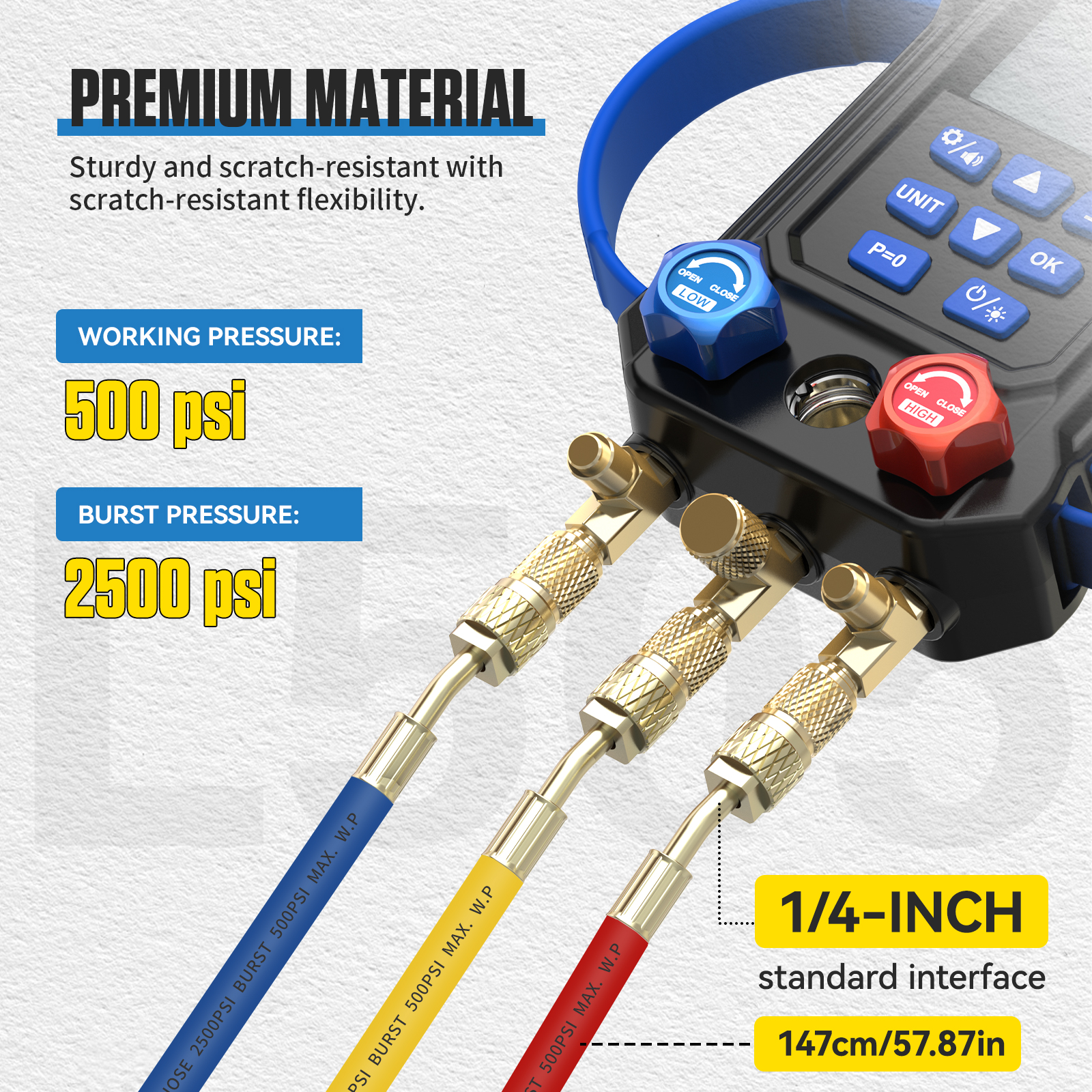

  • Metal Interface: Made of durable, corrosion-resistant metal, it comes standard with a 1.4-inch standard interface.
  • Long Cable: Manifold Gauge Set with a 57-inch measurement cable, it adapts to various maintenance scenarios without being constrained by the device.
  • Lightweight and Portable: Equipped with a high-quality tool case, the device weighs only 0.95 kg, ensuring long-term work without fatigue.

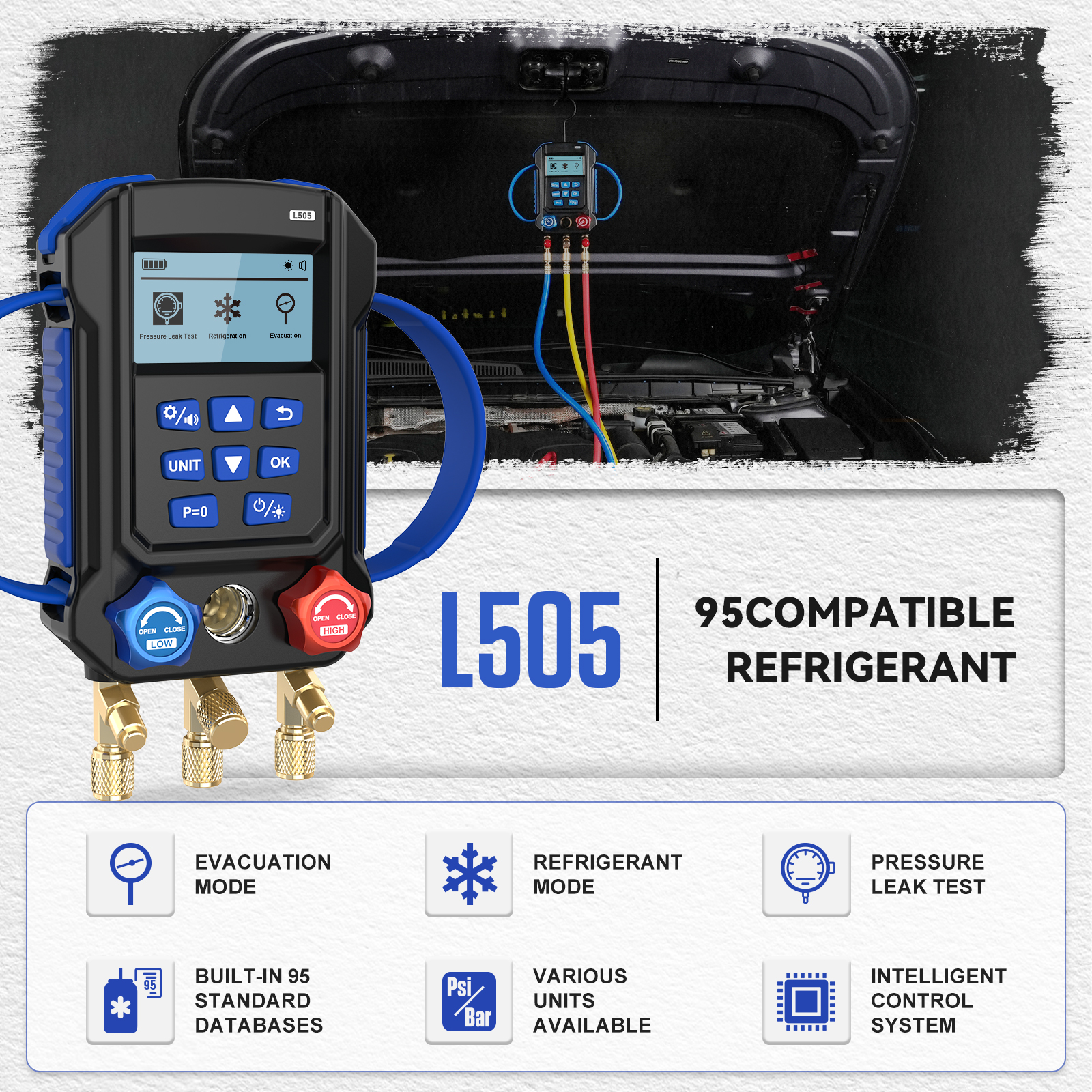

  • Multiple Applications: Manifold Gauge Set installation and maintenance, refrigerator maintenance, cold storage inspection, and automotive air conditioner maintenance.
  • Vacuum Percentage Measurement: HAVC Manifold Gauges Supports pressure leak measurement, leak time, and velocity recording.
  • After-Sales Service: MRCARTOOL offers a 48-month warranty and friendly 24/7 customer service to ensure your shopping experience. If you have any questions about the EVAP leak detector, please contact us. Online Support >>

Packing List:

Weight 2 kg
Ship From

, , ,

1 review for MRCARTOOL L505 Digital HVAC Gauges Manifold Gauge Set

5.0
Based on 1 review
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-1 of 1 review
  1. Mikey1
    Reviewer

    The measurement is incredibly precise—I couldn’t do without it when charging refrigerant! Plus, it’s highly portable.
