• DYXZ-02 non-contact phase rotation tester designs for quick , easy and accurate detection of three phase sequence in motor installation and repair . The non-connection to insulated conductor avoids uncertain and difficult connections to bare high voltage wires

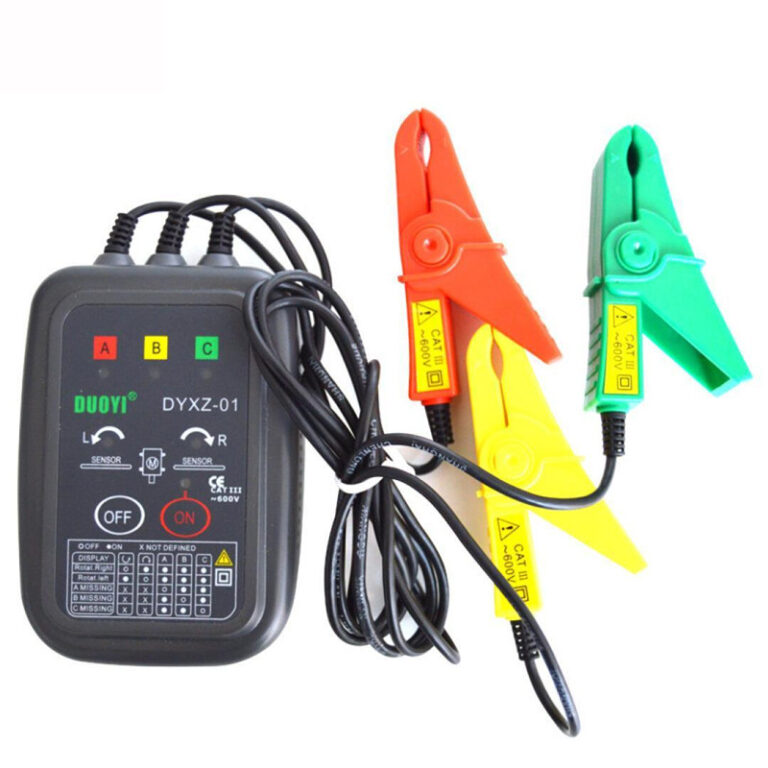

• This is a phase detector, designed to perform phase sequence checks and live line checks of a 3-phase circuit using a static induction voltage clip.
• The static induction voltage clips are used to be able to clip on a cladded wire.It is small with a CAT 600V safety rating.
• Red LED lamps are used to make the indication visible in dimly lit areas.The direction of phase sequence can be checked easily using the LED lamps, which blink in order.
• MRCARTOOL offers a 48 month warranty and 7×24 hour friendly customer service to ensure your shopping experience. If you have any questions about Evap Leak Tester, please contact us directly.

Connection:

1.Connect the three non-contact alligator clips to the three

2.phase power cables.

(2)The symbol or each clip should be placed at the center of each cables.

(3)Press “ON”,lightA,B,C flashes once to power on the tester.

(4)In case the A,B,C are lit up , R is on if positive CW is detected.

1.If in negative CCW, L is on.

2.If one or more of light A,B,C does not light up , it means the relevant phase is open. In this case, R or L does not represent the indication.

(5)Press “OFF” to shut down the tester after use

CAUTION ! HIGH VOLTAGE !

(1)Connect any of the alligator clips to the conductor. If the  conductor is powered on (Voltage within 70~600V AC),the relevant light A,B,C should light up.This can quickly determine if the conductor is powered on.

(2)Clips and lights reference table
