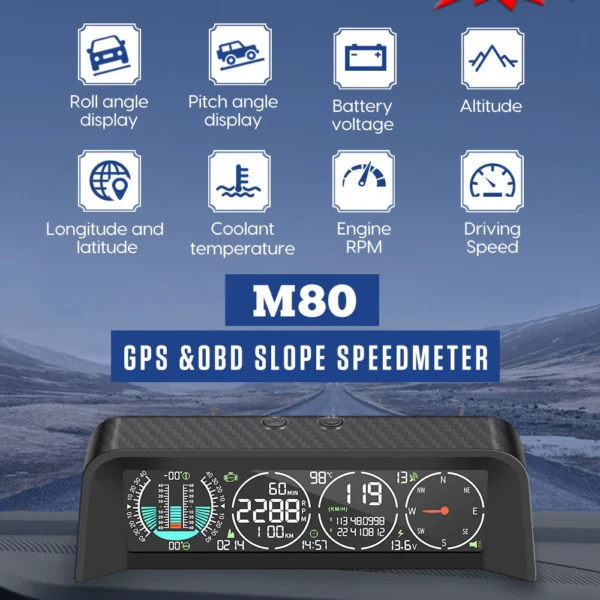

MRCARTOOL M80 Introduction：

MRCARTOOL M80 is a GPS+OBD intelligent multifunction vehicle head-up display, which can read the real-time data output of ECU through the data line connection to the automobile OBD interface, and supports nine OBD protocols. The satellite signal data can also be obtained through the GPS/Beidou satellite dual-channel module, and the double signal is more stable. The use of high-definition display screen, the effect is dazzling and clear, so that the vision at a glance, not only can drive without bowing, pay attention to the dynamics of the vehicle at any time, greatly improve the safety of driving, but also favored by a large number of new and old drivers. This product extends the concept of the combination of HUD vehicle head-up display function and on-board slope meter,which greatly improves the safety protection level of the product to users and escorts the car owners.

MRCARTOOL M80 Specifications:

Driving speed: Synchronize car data.
Power supply: DC10V ~ 30V.
Working temperature:- 40℃ ~ +80℃.
Pitch angle & Roll angle: -40° ~ +40°.
Clock error: <1minute. Wireless transmission.
Frequency: 2.4GHz.
Support protocols: Support 9 protocols
Product size: 170*70*60mm.
RPM: Synchronizing car data.
Voltage measurement range: DC 5V ~ 30V.
Voltage measurement accuracy: ±0.5V.
Speed accuracy: ±0.05Km/h.
GPS cold start time: 32s (average).
GPS hot start time: 1s (average).
GPS data refresh rate: 1s.
Shell material: ABS+PC.
Weight: 210g

MRCARTOOL M80 Main Function：

*Driving speed display.
*Coolant temperature display.
*Vehicle roll angle display.
*Vehicle pitch angle display.
*Altitude display.
*Latitude and longitude measurement.
*Battery voltage display.
*The number of positioning satellites.
*RPM display.
*Satellite time display.
*Roll angle alarm.
*Pitch angle alarm.
*Fatigue driving alarm.
*Compass display.
*Driving time display.
*Driving mileage display
