MRCARTOOL M50 GPS Smart Inclinometer Digital Inclinometer Guage for Off-Road SUV Vehicles GPS HUD

Upgraded M50 Introduction：

MR CARTOOL M50 Automotive Smart Slope Meter is a meter with a built-in multi-functional and multi-axis gyroscope. It supports 99% of the car models in the market. It can measure the vehicle’s pitch angle, roll angle, driving mode selection and safety alarm prompts, which greatly improves driving safety and delivers a premium journey experience.

Product Parameter:

Power supply：DC 10V~30V;
Operating temperature: -40°C~80°C;
Pitch angle/Roll angle:-40°~40°;
Voltage measurement range: DC 5V~ 30V;
Voltage measurement accuracy: 0.5v;
Weight：230g；
Product Size：127*25*60mm

Detailed Explanation of Functions:

➤Driving mode switch: Press and hold the function select button for 5s to enter the off-road driving mode and city driving mode selection interface, and then press and hold for 5s to save the settings.
➤Roll angle reset: Short press the On/O button to reset the roll angle and pitch angle.
➤Brightness adjustment: short press the function select button to adjust the brightness.

Features：

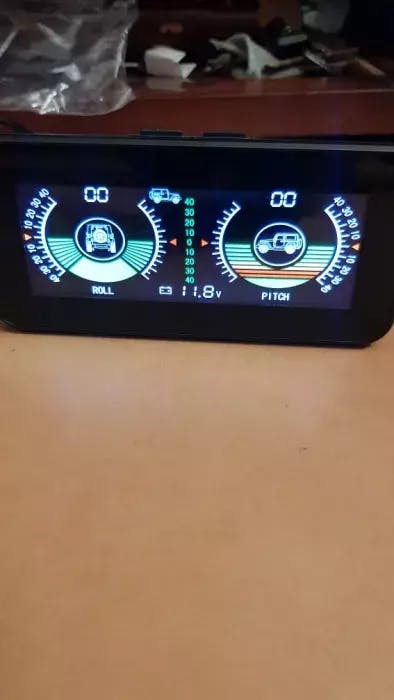

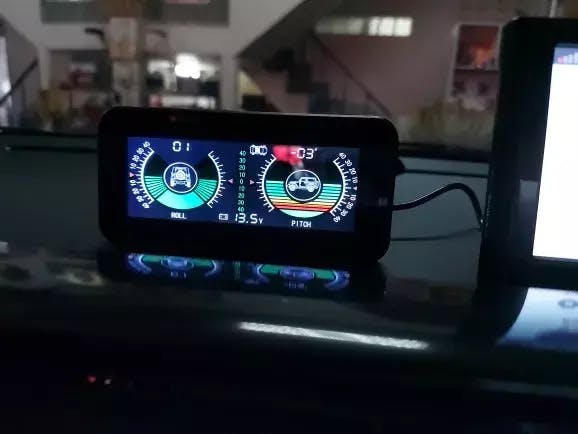

-Pitch angle: Real-time measurement of the vehicle pitch angle during driving, the range is -40°~ +40° between upside and downside.
-Roll angle: Real-time measurement of the vehicle roll angle during driving, the range is -40°~ +40° between left-side and right-side.
-Driving mode selection: City driving mode and off-road mode can be selected.
-Safety alarm prompts: When the pitch angle and roll angle of the vehicle exceeds the default alarm value, the device will issue a safety alarm “beep”

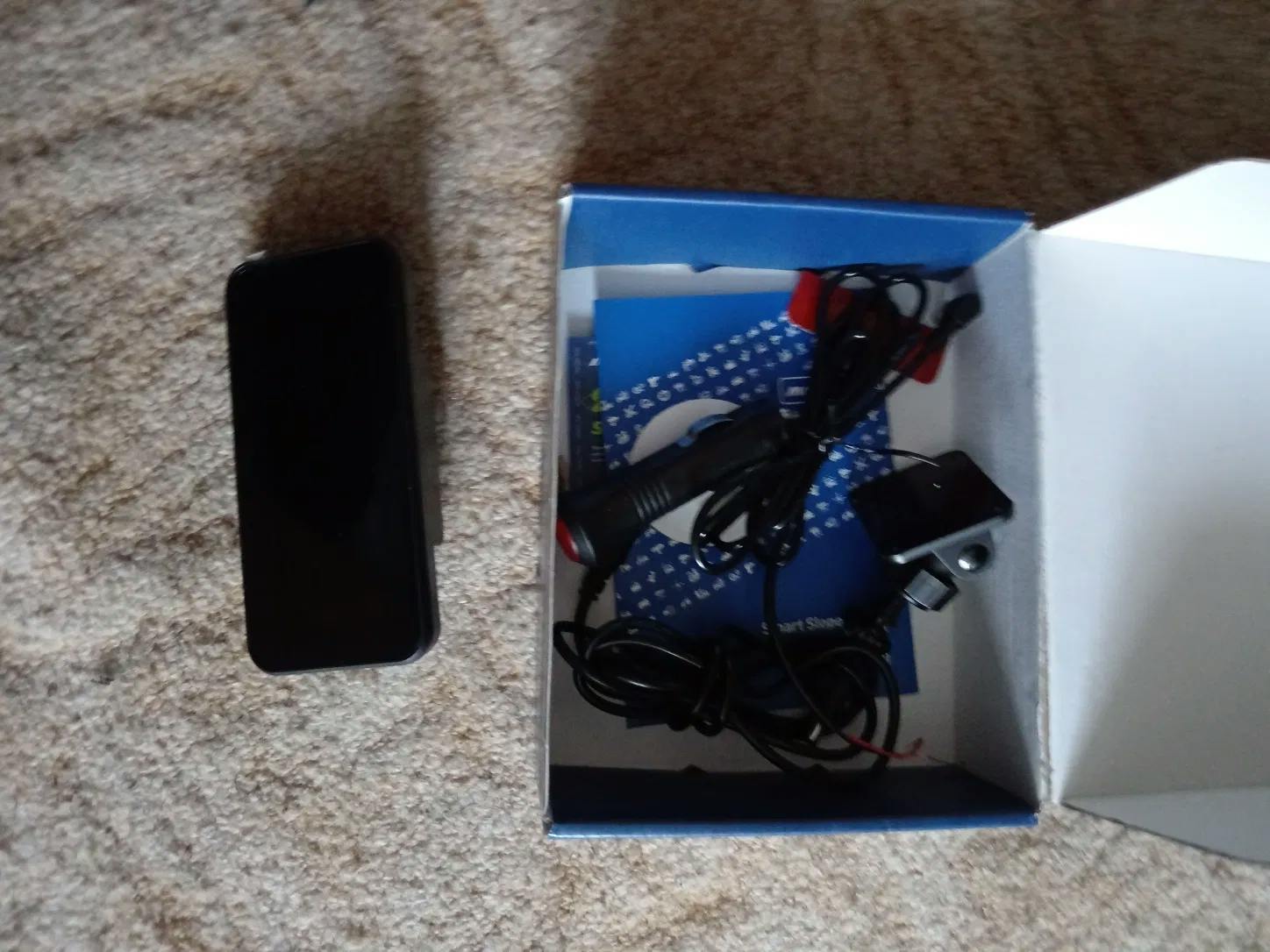

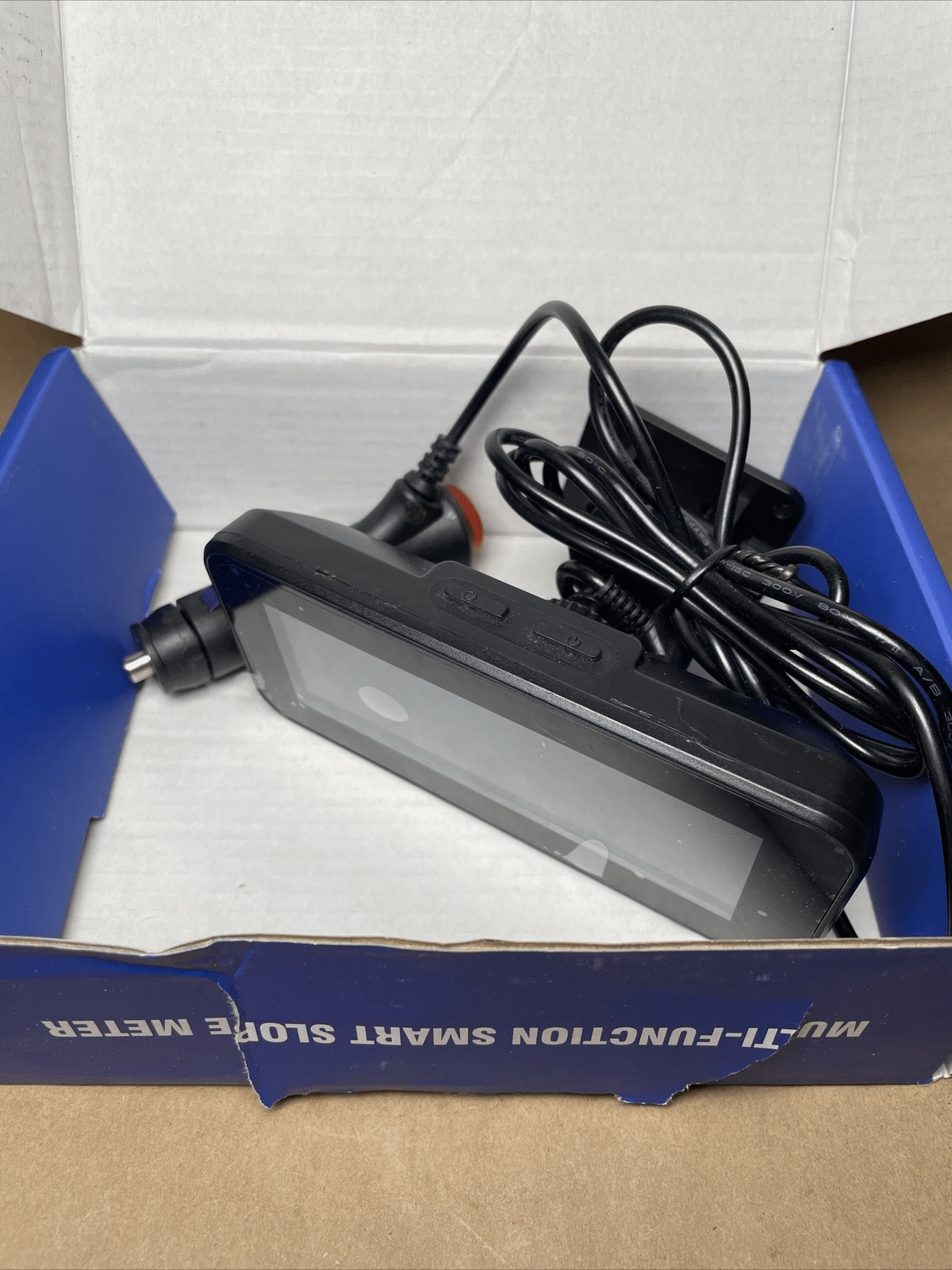

Packing list:

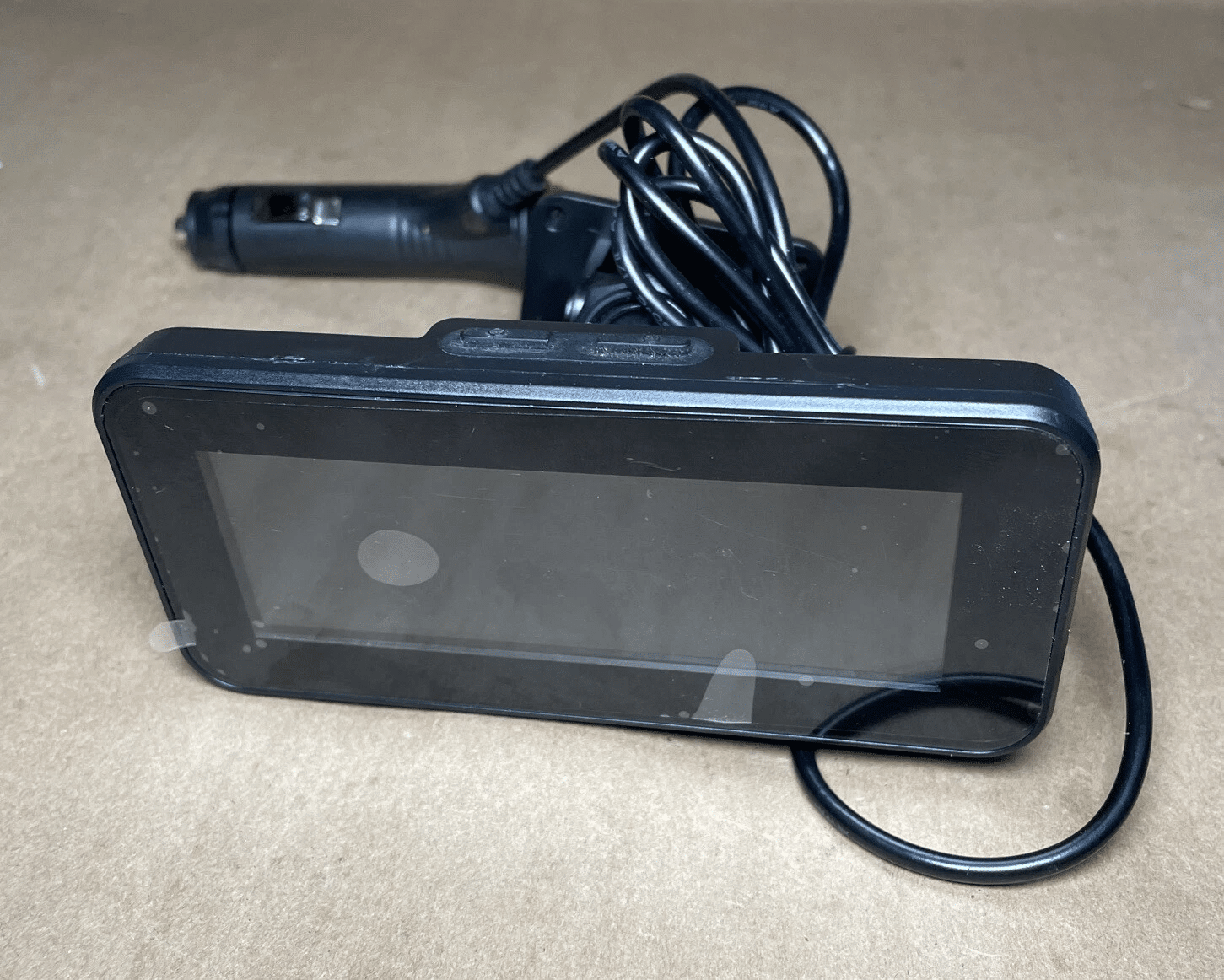

1pc* MRCARTOOL M50 smart slope meter main unit
1pc* Cigarette lighter power cable
1pc* Refitted power cable

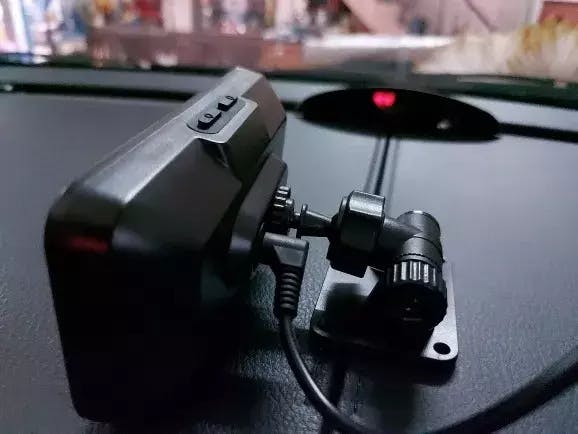

1pc* Holder
1pc* User manual
1pc* Package box
