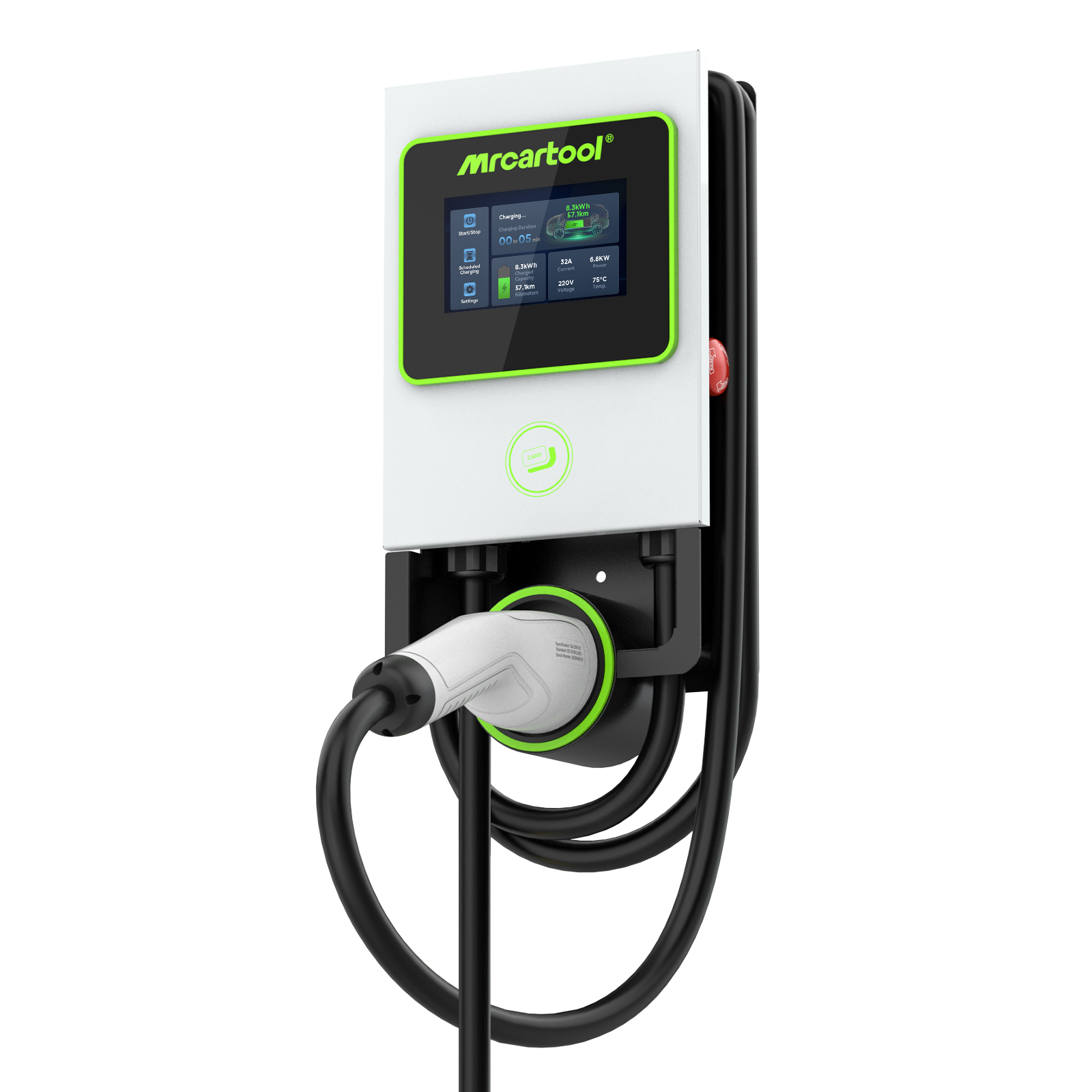

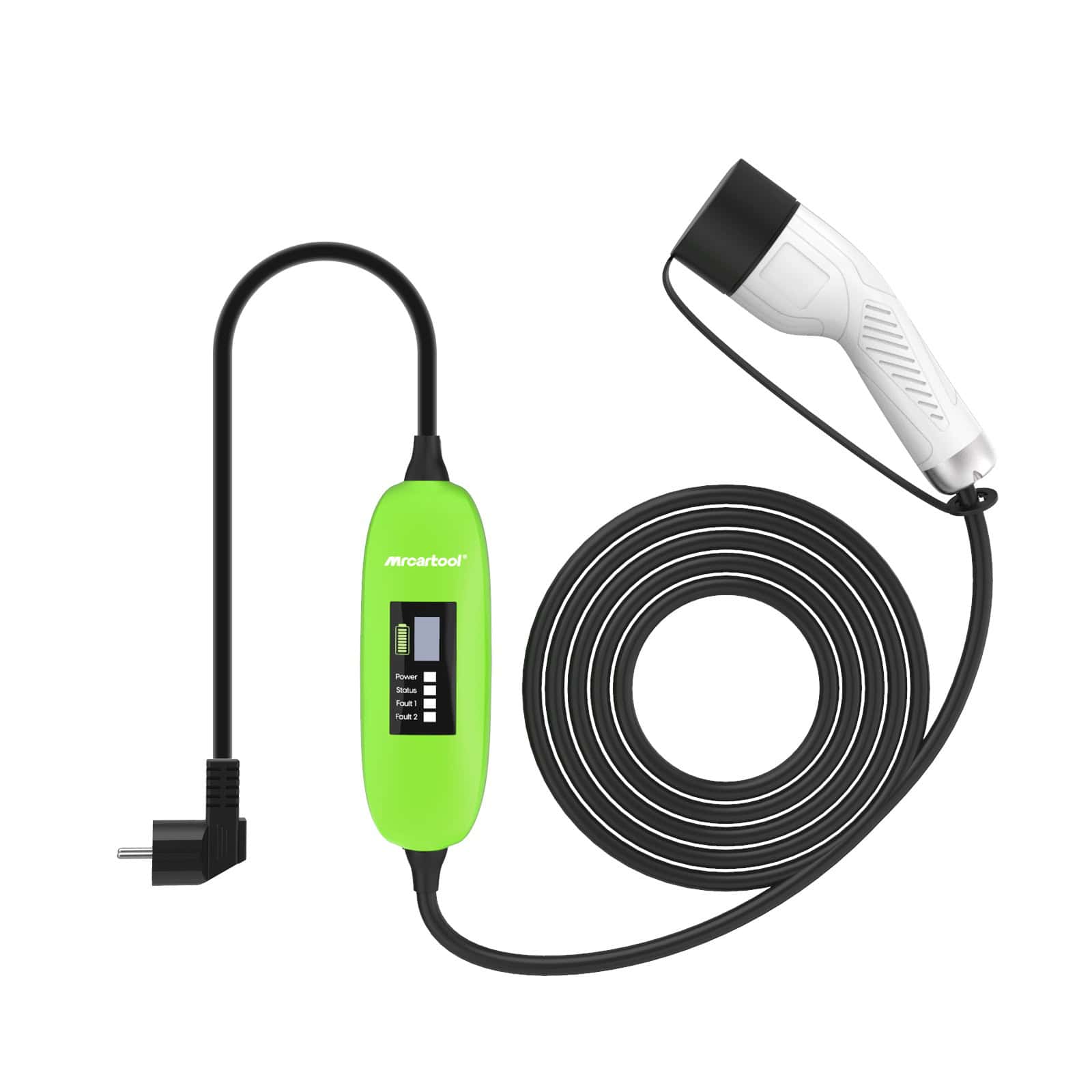

| Product Name | S300 | S310 (4m/8m) | S311 |
|---|---|---|---|
| Image |  |
 |
 |
| WORKING VOLTAGE | 110V/220V | 110V/220V | 220V |
| Working Current | 14A | 32A | 32A |
| Cable Length | 5m (16FT) | 4.5m (15FT) | 8m (26FT) |
| Rated Power | 3.5KW | 7KW | 7KW |
| Protection Class | IP65 | IP65 | IP65 |
| Reference Standard | IEC_61851/SAE_J1772 | IEC_61851-1/SAE_J1772 | SAE_J1772 |
| Installation | Take-along & plug-and-play | Wall-mounted | Wall-mounted |
| Standby Power Consumption | / | 6W | <2W |
| Operating Temperature | -25℃~55℃ | -30℃~55℃ | -20℃~80℃ |
| Display | ✔ Support |
✘ No Support |
✔ Support |
| Charge by Appointment | ✔ Support |
✔ Support |
✔ Support |
| Current Level Control | ✔ Support |
✔ Support |
✔ Support |
| Bluetooth Control | ✘ No Support |
✘ No Support |
✔ No Support |
| APP Control | ✘ No Support |
✘ No Support |
✔ Support |
| Swipe Card Charging | ✔ Support |
✔ Support |
✔ Support |
| TUV Certification | ✘ No Support |
✔ Support |
✔ Support |
| Charge Protection | ✔ Support |
✔ Support |
✔ Support |
The device is CE certified. We offer 7kW and 22kW versions supporting Type 1 connectors. Both US and EU versions are available—select based on your actual needs.
For your safety, we recommend hiring an experienced electrician to install it following the video guide. Do not attempt installation without relevant expertise. For any installation questions, contact our online support.
All MRCARTOOL products come with a two-year warranty.
Non-human-induced damage qualifies for free replacement parts.
1. We offer 4.5m and 8m cable lengths. For longer parking distances, choose the longest option.
2. We provide 7kW and 10-32A adjustable current, meeting 90% of market vehicle charging needs.
3. Choose between the app-enabled or non-app version. If you prioritize smart features like scheduled charging, real-time vehicle status monitoring, and optimized charging windows, the app.
