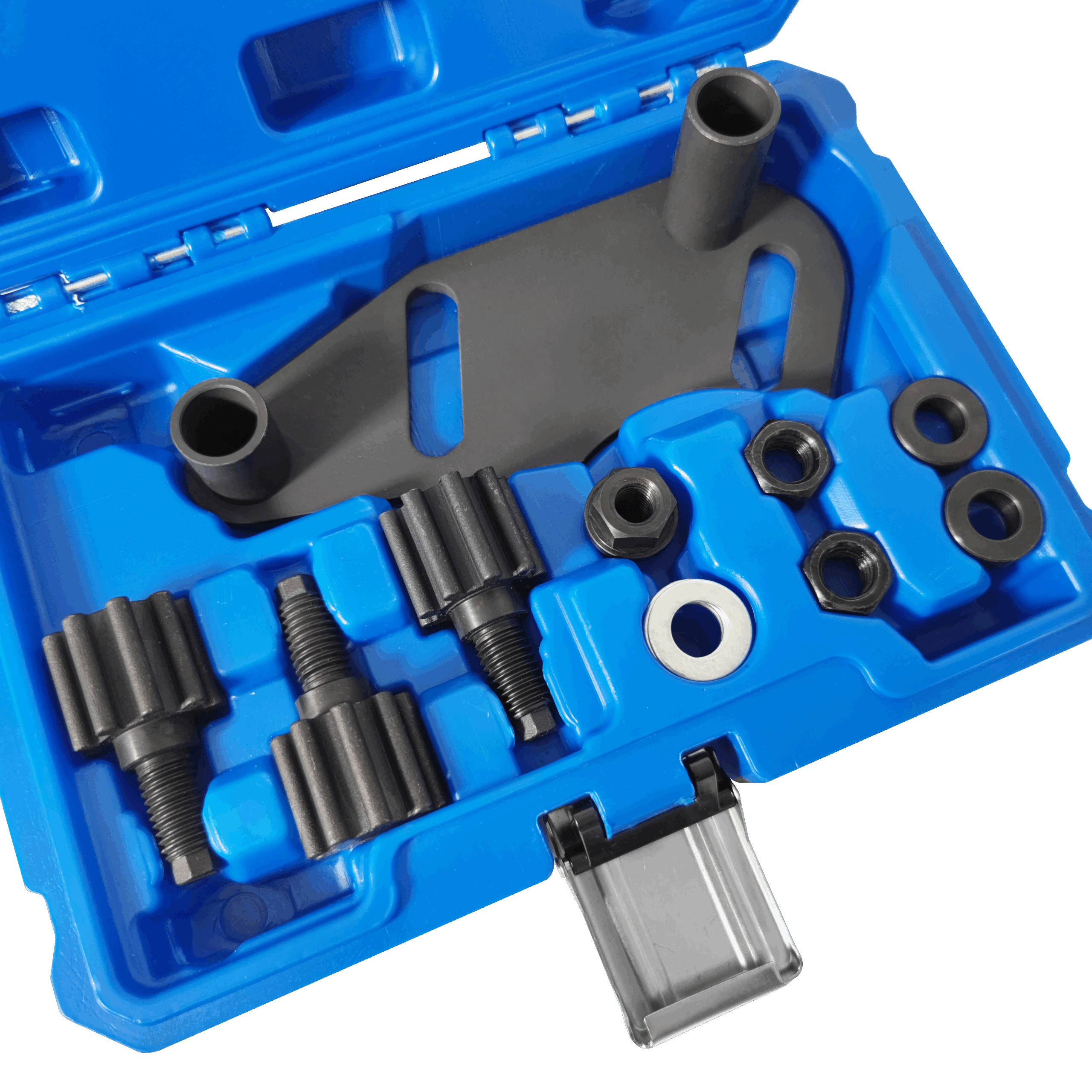

Renault F4 Camshaft Removal Tool Renault 1.8/2.0 F4 16-Valve Camshaft Sprocket Locking Timing Tool
Renault F4 Camshaft Removal Tool Renault 1.8/2.0 F4 16-Valve Camshaft Sprocket Locking Timing Tool - Image 2
Renault F4 Camshaft Removal Tool Renault 1.8/2.0 F4 16-Valve Camshaft Sprocket Locking Timing Tool - Image 3

Renault F4 Camshaft Removal Tool Renault 1.8/2.0 F4 16-Valve Camshaft Sprocket Locking Timing Tool

$79.00

Looking for ODM or Wholesale? Request a quote >>

MRCARTOOL operates 5 overseas warehouses:
USA, Germany, UK, Mexico, and Canada

Our business hours are: Monday to Friday, 9:00 AM to 6:30 PM.
Orders are typically shipped within 48 hours of receipt. If an item is out of stock, we will contact you via WhatsApp or email.

For customers in the EU region, please select shipping from our Germany warehouse. Delivery typically takes 3-8 business days.

The US warehouse ships only within the United States and cannot deliver internationally.

Our company is located in Shenzhen, China. If you have a freight forwarder in China, please contact our online support >>

All our products come with a two-year warranty, while accessories are covered for one year. For non-human-induced damage, we offer complimentary replacement parts at no additional cost.

For human-induced damage, please contact our online support for an assessment. We will then provide repair solutions or recommendations.

Online Support >>

We support drop shipping or distributor models.
If you wish to launch your business plan, please contact us.
We offer OEM and ODM customization services with a minimum order quantity of 500pcs+.

We provide the highest quality, personalized customization, and competitive pricing.

For more information, please contact us >>

Applicable Engine Models
F4R 2.0L Naturally Aspirated (NA)
Models: F4R 730/732/738
Features: 16-valve, DOHC, dual overhead camshafts
Equipped with:
Renault Megane III
Renault Laguna III
Renault Scenic III
F4Rt 2.0L Turbo
Model: F4Rt
Features: Turbocharged version for performance vehicles
Equipped with:
Renault Megane RS
Renault Laguna GT
Tool Usage
Function:
Secures the camshaft gear (Camshaft Sprocket) to prevent it from rotating during removal.
Aligns the timing (requires a crankshaft alignment tool).
Typical Operation Scenarios:
Replacing the timing belt/chain
Repairing the camshaft seal or phaser
Tool Examples (Original/Third-Party)
Original Tool (Renault OEM)
Part Number: 8200607918 (Camshaft Locking Tool)
Requires a crankshaft alignment tool (e.g., 8200142239).
Third-Party Tool
LASER 4943 (F4R/F4Rt)
Sealey VS1381 (Universal Locking Tool)
Why are specialized Camshaft Removal Tool needed?
Timing System Design:
The F4R/F4Rt engine uses a timing belt (not a chain), requiring strict alignment of the camshaft and crankshaft during replacement.
Maintenance Frequency:
The timing belt needs to be replaced every 60,000-80,000 kilometers, resulting in high tool usage.
Performance Engine (F4Rt):
The turbocharged version has higher timing requirements, requiring precise tooling.
Notes
Differences between engine versions:
The timing tool is universal for both naturally aspirated (F4R) and turbocharged (F4RT), but turbocharged engines require additional phaser inspection.
Supporting tools:
The camshaft locking tool alone is insufficient; a crankshaft locating pin (such as 8200305863) is required to complete timing alignment.
Weight 2 kg
