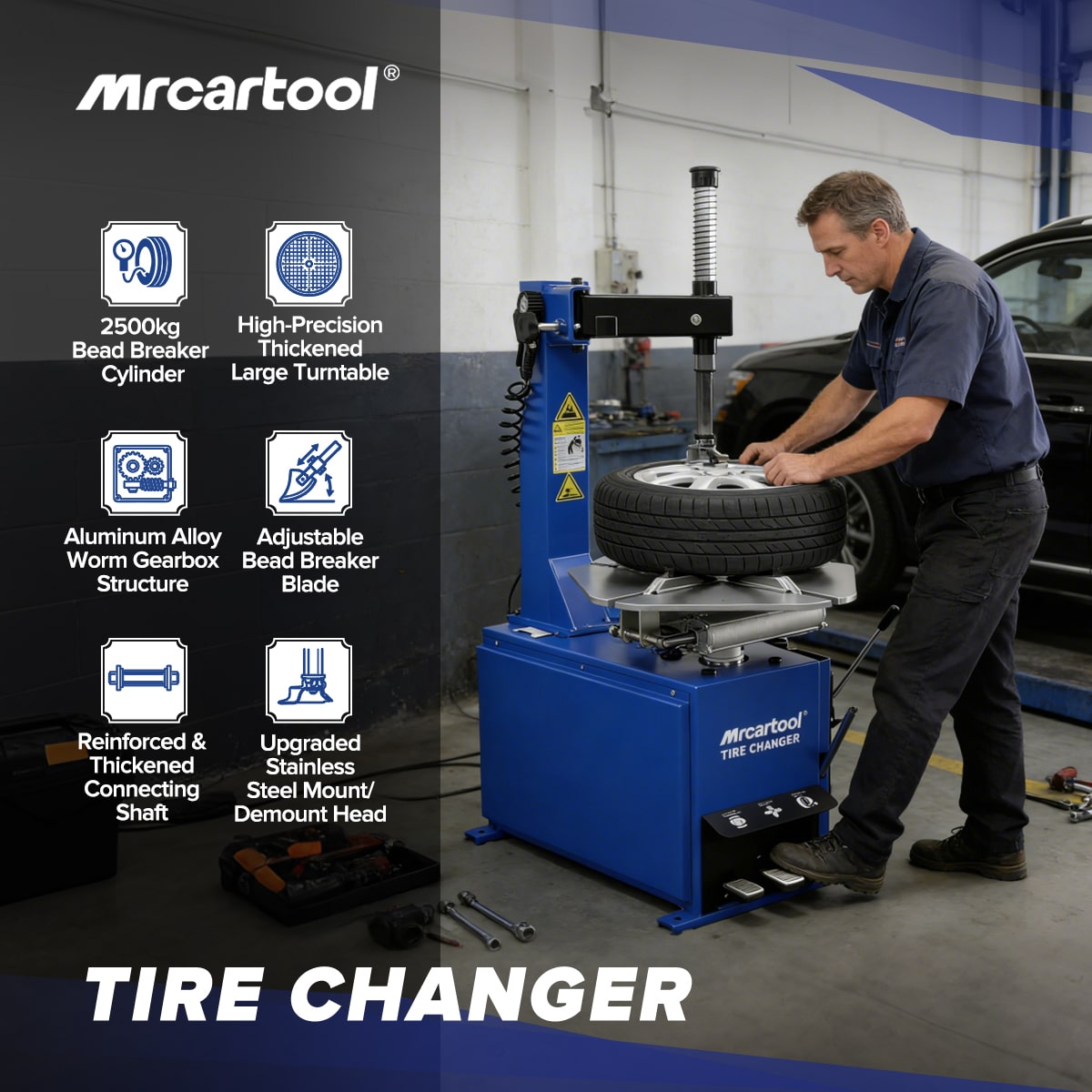

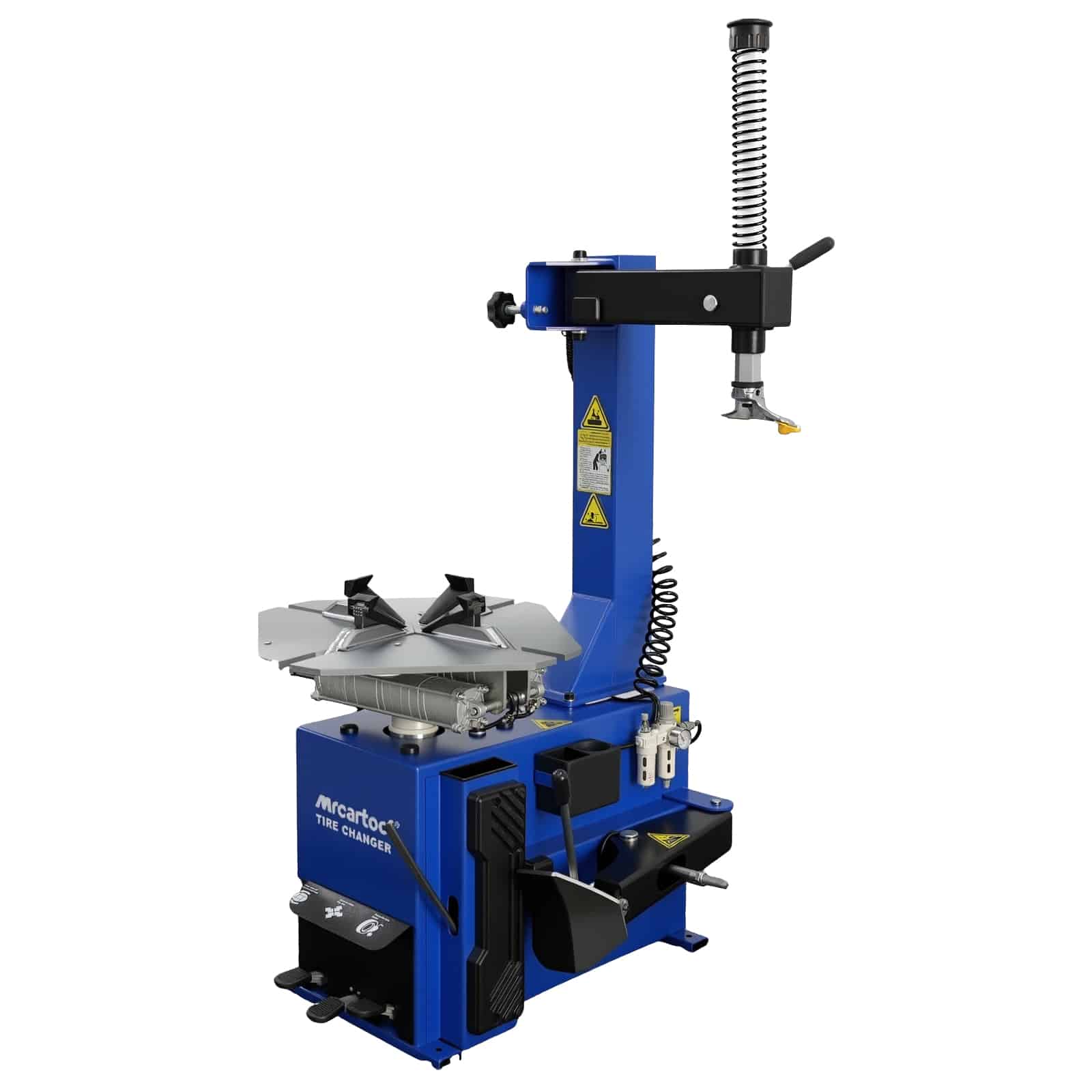

MRCARTOOL 112 Semi-Automatic Tire Changer Machine (10"–24")

The MRCARTOOL 112 Tire Changer features a high-strength, integrated pneumatic and electric drive system, designed for efficient, damage-free tire changing and maintenance on passenger cars and light trucks. It combines a 0.75kW–1.1kW high-torque bidirectional motor, a high-rigidity self-centering four-jaw turntable, a powerful 2,500 kg pneumatic bead breaker shoe, and an integrated tire pressure gauge. This setup streamlines tire removal, installation, and inflation, making it an essential productivity tool for modern automotive repair shops and tire service bays.

Help Center

📝Warm Tips

Deflate & De-Weight First: Always ensure the tire is completely deflated and remove all old wheel balancing weights before breaking the bead or clamping the wheel onto the turntable
Mandatory Bead Lubrication: Apply a generous amount of mounting grease to both sides of the tire bead before demounting and mounting. Operating without proper lubrication risks tearing the bead rubber or damaging internal bead cords.
Maintain 2 mm Rim Clearance: After locking the vertical arm, verify that the M/D head is set approximately 2 mm away from the rim edge to avoid direct metal-to-metal contact and prevent scratching alloy rims during rotation.
Position Valve Away from Tool Head: When inserting the crowbar to lever the bead over the demount head, position the valve stem approximately 10 cm to the right of the head to prevent damaging the tire valve, pressure sensor, or inner tube.
Safe Pulsed Inflation: Always keep your hands and body clear of the tire assembly during inflation. Inflate using short air pulses while frequently monitoring pressure, and never exceed the manufacturer’s recommended limit or the machine’s automatic maximum limit of 3.5 bar (51 psi).

📘MRCARTOOOL F109 Manual

Download

MRCARTOOL 112 Semi-Automatic Car Tire Changer Machine

Features

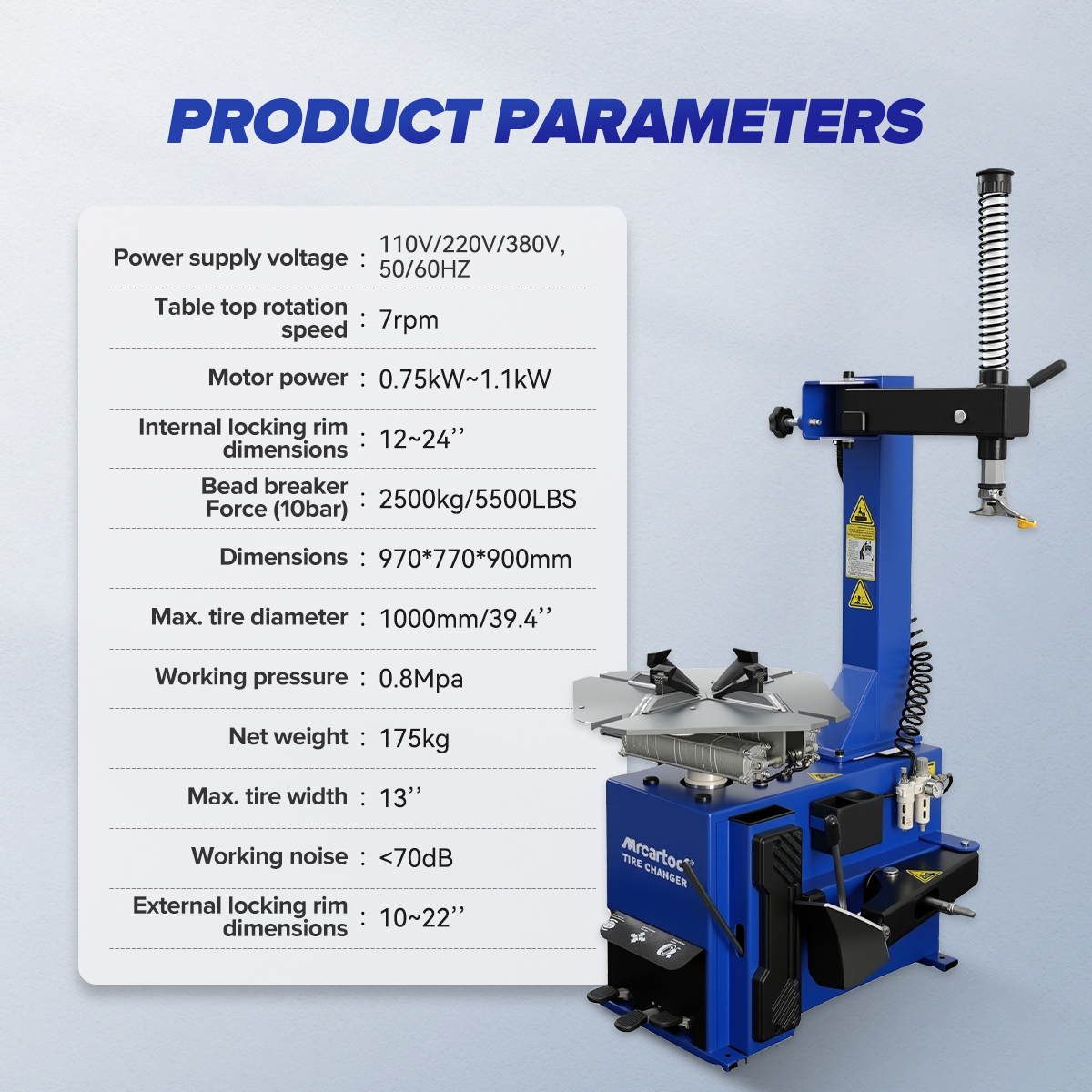

Large Rim Clamping Range: External clamping covers 10-22″, while internal clamping covers 12-24″, accommodating tire up to 1,000 mm in diameter and 13″ in width.

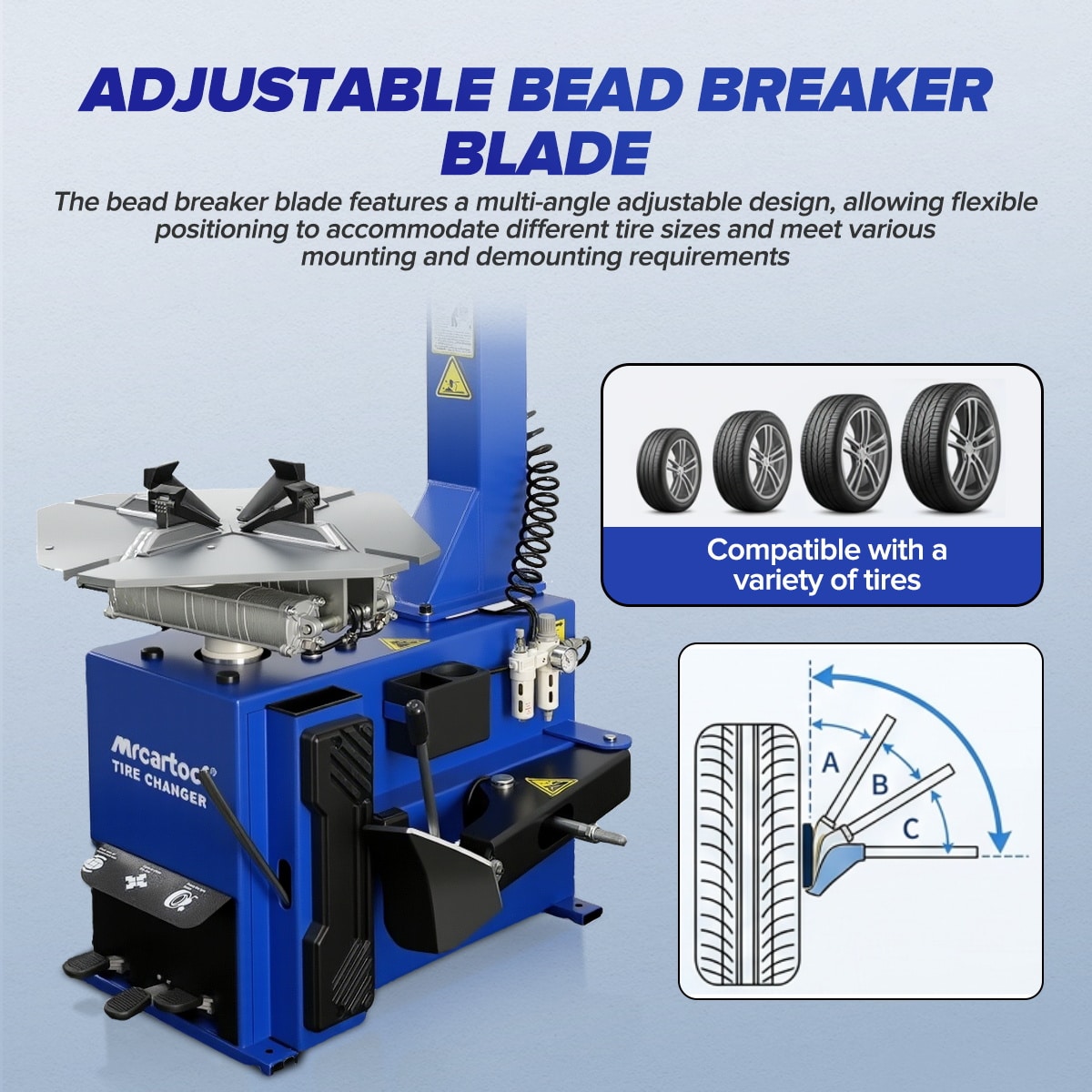

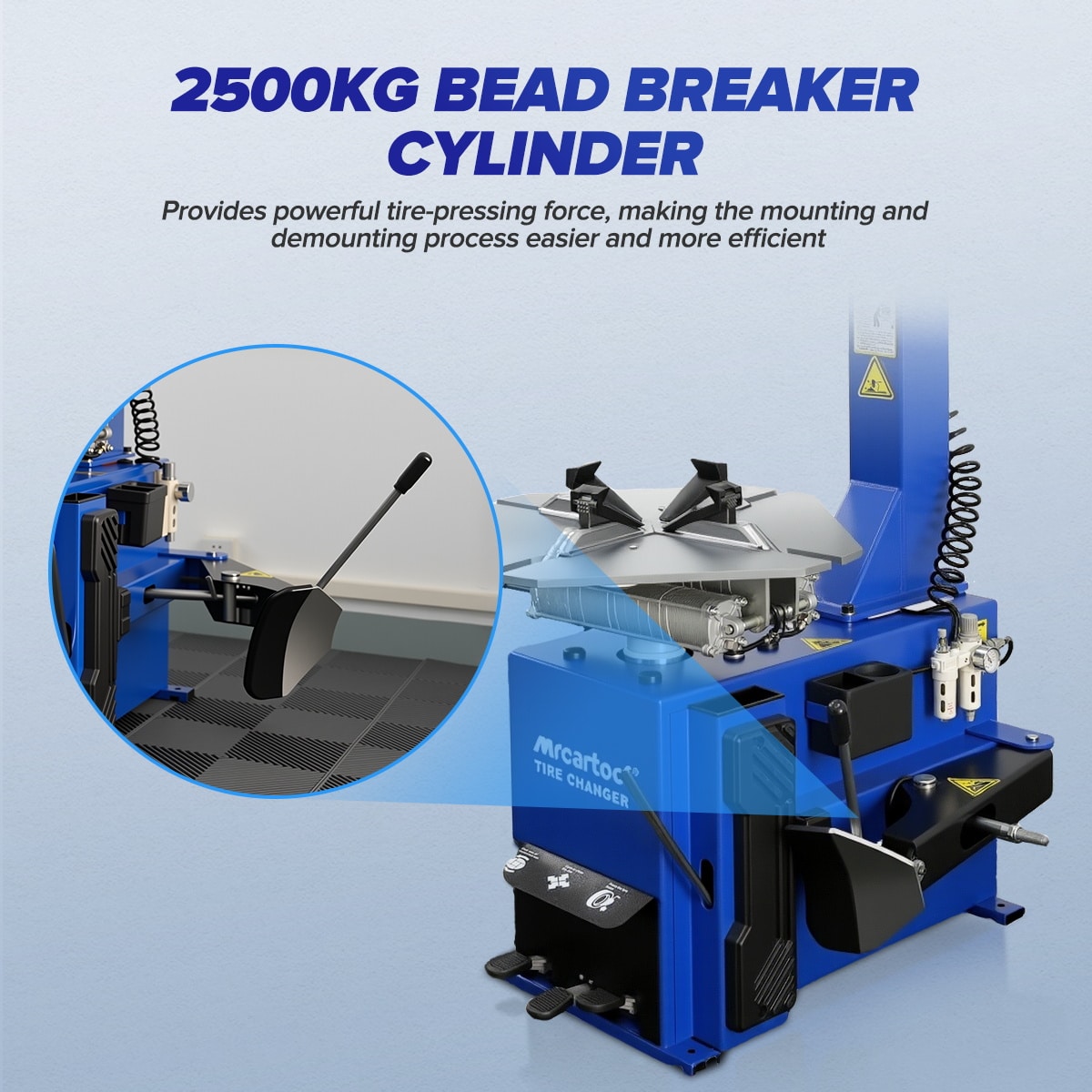

2,500 kg Pneumatic Bead Breaking Force: The side-mounted heavy-duty cylinder delivers up to 2,500kg (5,500lbs) of bead-breaking force at 10bar, breaking tight beads in seconds.

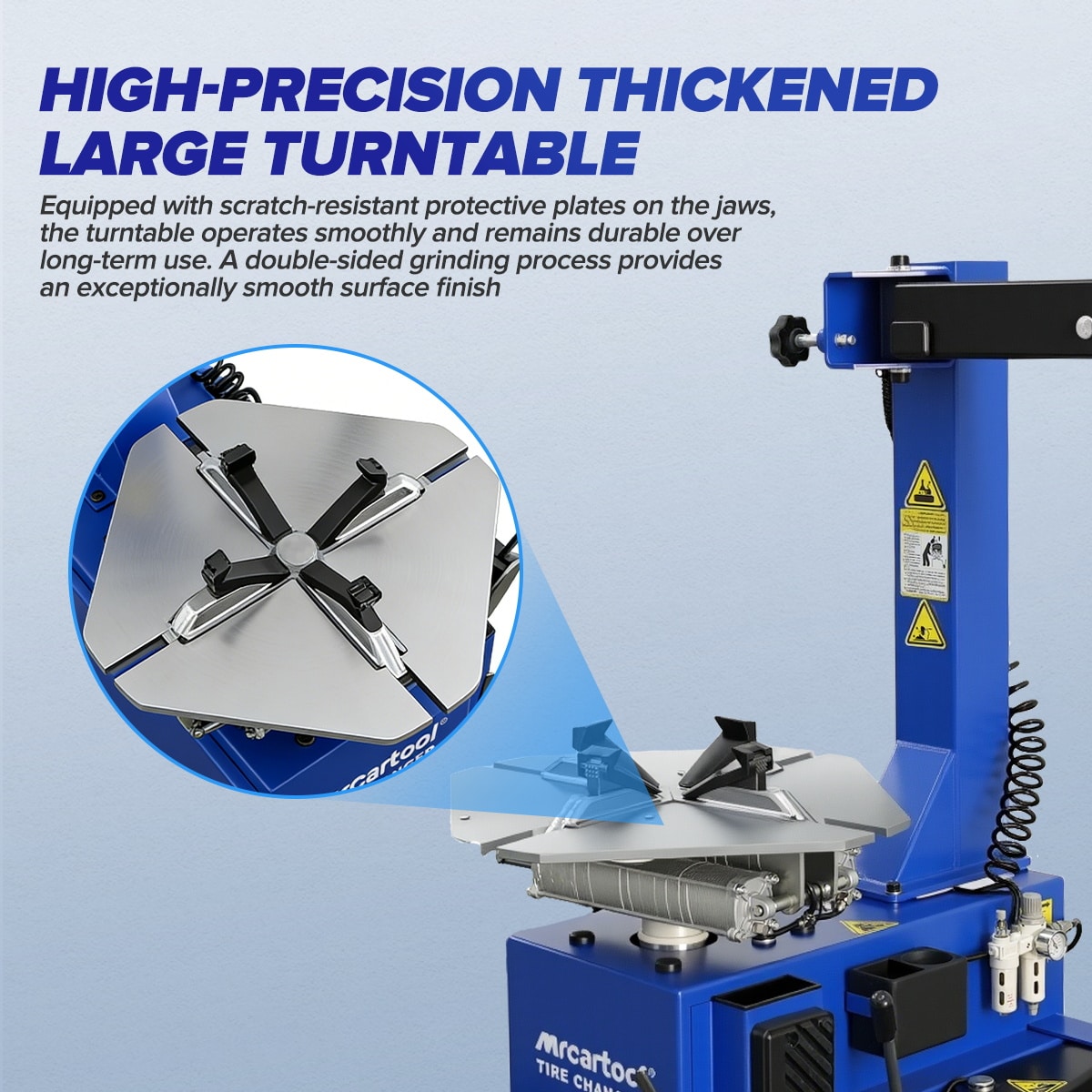

Bidirectional Self-Centering Turntable: Four linked self-centering jaws securely lock the rim in the center. The turntable reaches a speed of 7 rpm and can be rotated clockwise or counterclockwise using the foot pedal.

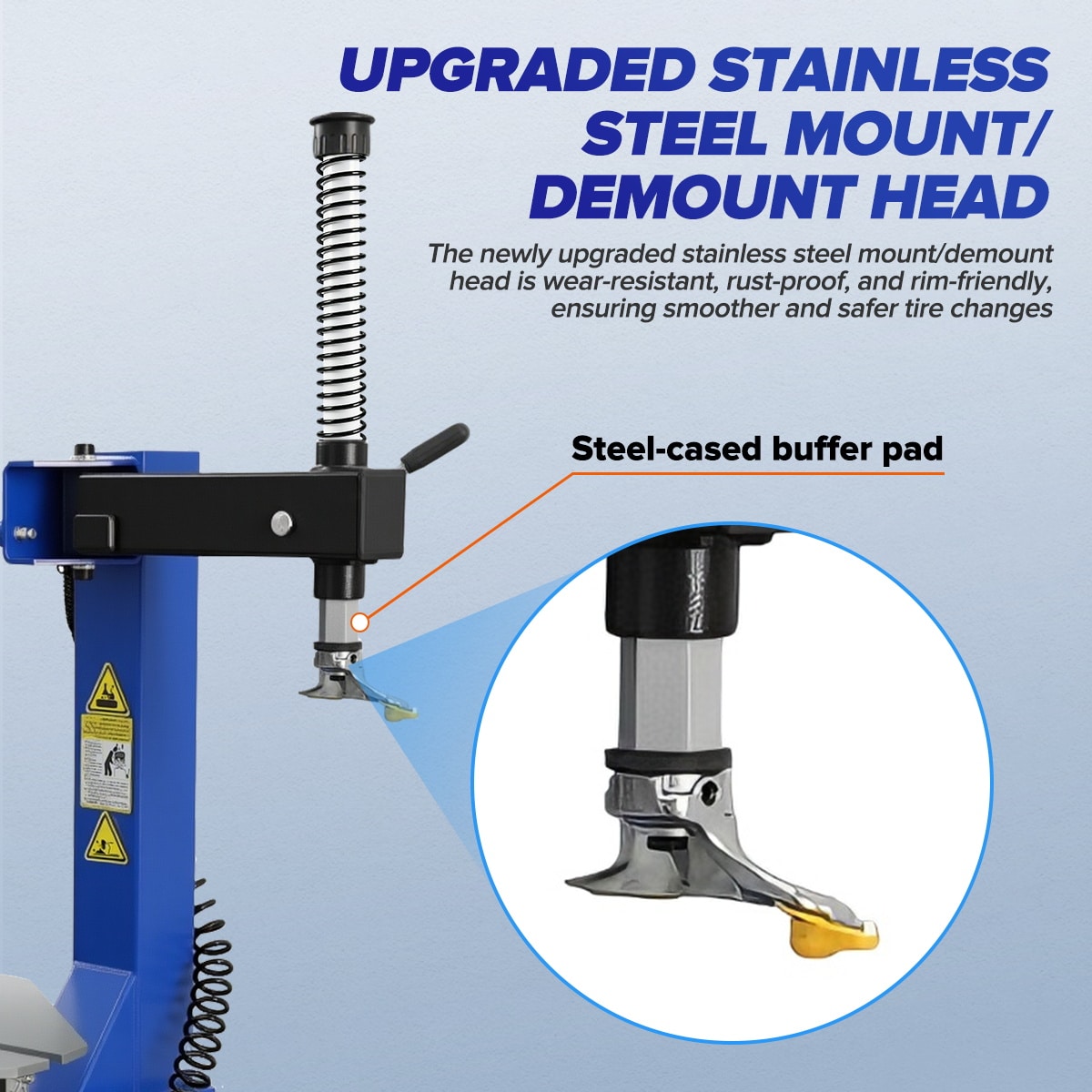

Scratch-Protective Fine-Adjustment Mount/Demount Head: The high-rigidity column and quick-lock handle maintain approximately 2 mm of clearance between the mount/demount head and rim edge, helping prevent scratches on aluminum alloy wheels.
Ergonomic Three-Pedal Control: Three independent heavy-duty foot pedals control turntable rotation, jaw opening and closing, and side-mounted bead breaker shoe movement, making one-person operation smooth and efficient.
Integrated Safety Inflation Gauge: Includes a high-precision inflation handle and pressure gauge with a built-in 3.5bar (51psi) automatic pressure-limiting mechanism to help prevent over-inflation and tire bursts.
Integrated Air Supply Oil-Water Separator: The side-mounted air filtration, pressure reduction, and oil-water separation system effectively removes moisture from compressed air while lubricating pneumatic components to extend the service life of valves and cylinders.
Low-Noise, Low-Vibration Heavy-Duty Construction: With a net weight of 175 kg and a reinforced steel base, the machine provides stable, solid operation. Operating noise is below 70 dB for a quieter and more comfortable workshop environment.
Official Warranty & After-Sales Support: Backed by MRCARTOOL’s 2-year warranty for the main unit, 1-year warranty for accessories, and long-term online technical support.

online support

HOW TO USE THE MRCARTOOL 112 TIRE CHANGER MACHINE?

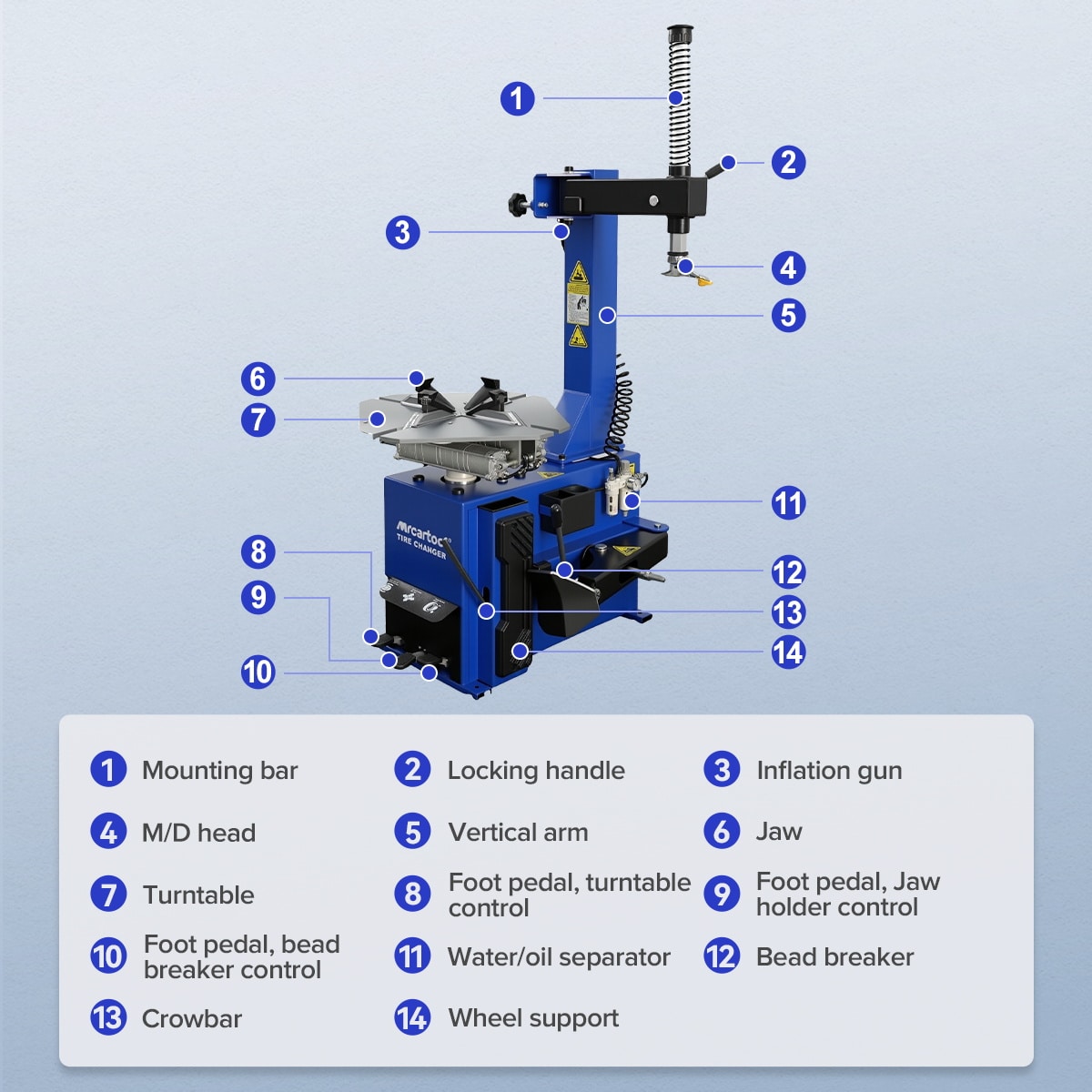

Structure

Deflate the tire completely and remove all old wheel balancing weights;
Place the tire against the side wheel support and press the bead breaker pedal to separate the bead on both sides;
Place the wheel onto the turntable and press the clamp pedal to lock the rim firmly with the self-centering jaws;
Lower the vertical arm, lock the M/D head (maintaining a 2 mm clearance from the rim edge), and lubricate the tire bead with grease;
Insert the crowbar to lift the bead over the M/D head, then press the turntable pedal to rotate clockwise and demount the tire;
Align the new tire bead with the M/D head, rotate the turntable clockwise to complete mounting, and safely inflate with the airline gauge.
